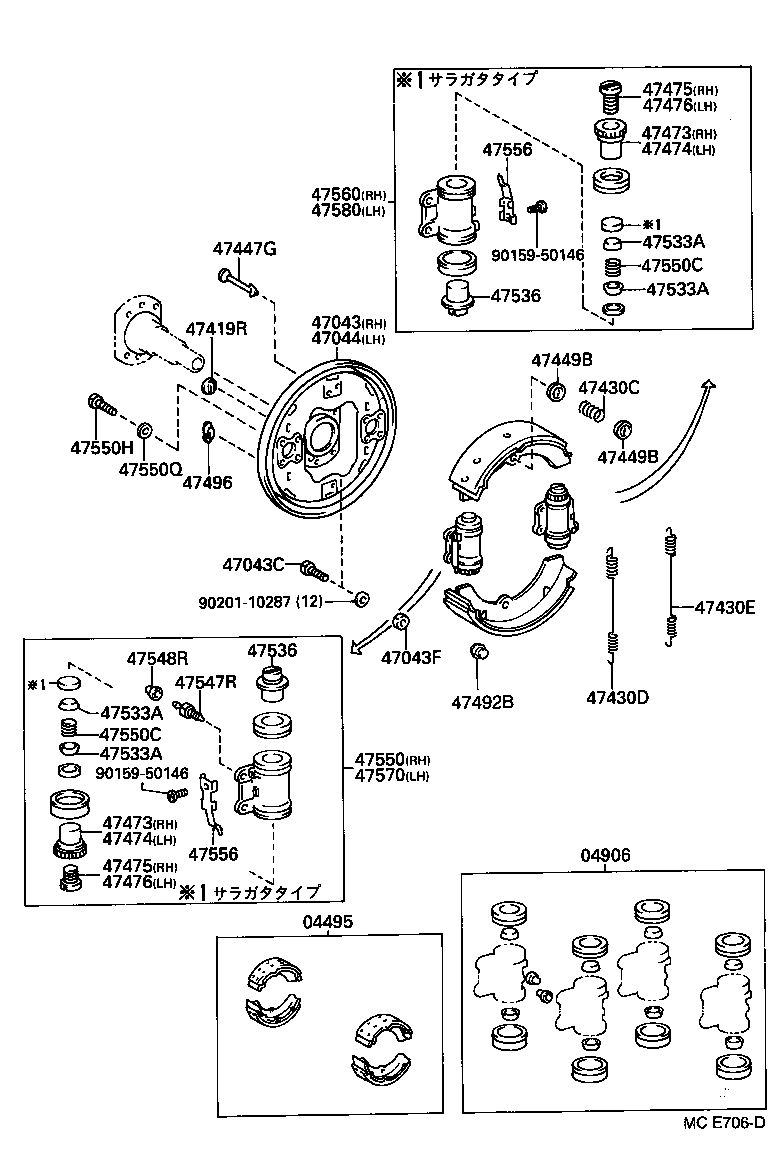

YU60-MDPGTJ3 (1988)
Toyota Dyna/Toyoace
(8808-9303)WU85,YU6#,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04496-36090 |
YU60..T2,TW2 REBUILT |
1 | ||
| 04494-36090 |
YU60..T2,TW2 |
1 | ||
| 04494-36150 |
YU60..T2,TW2 ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
YU60..T2,TW2 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
YU60..T2,TW2 *10−1.25PX31−21.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
YU60..T2,TW2 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
YU60..T2,TW2 |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
WU85,93,YU6#,70 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
YU60..T2,TW2 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36150 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36150 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36150 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36150 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
YU60..T2,TW2 |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YU6#,70 W/C ID=25.4 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YU6#,70 W/C ID=25.4 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
WU85,93,YU6#,70 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
WU85,93,YU6#,70 |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||

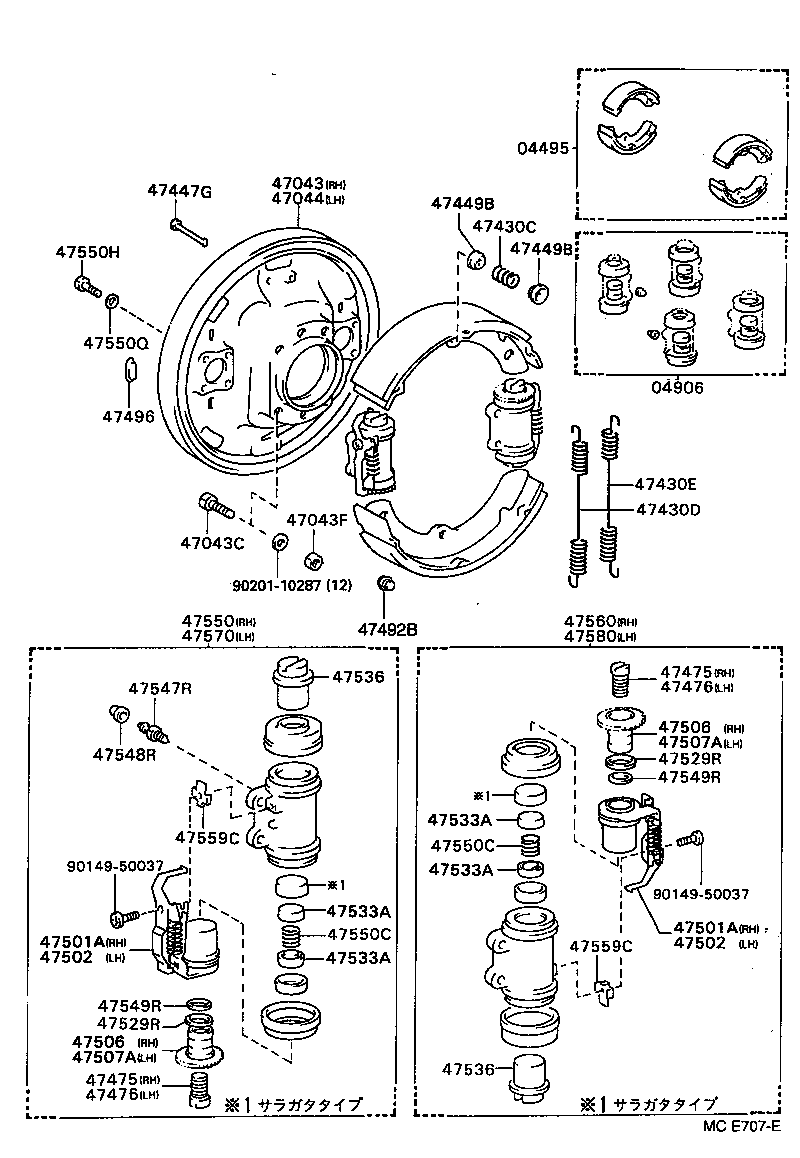

(8808-9303)WU85,YU60
ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04496-36090 |
YU60..T2,TW2 REBUILT |
1 | ||
| 04494-36090 |
YU60..T2,TW2 |
1 | ||
| 04494-36150 |
YU60..T2,TW2 ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
YU60..T2,TW2 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
YU60..T2,TW2 *10−1.25PX31−21.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
YU60..T2,TW2 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
YU60..T2,TW2 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
YU60..T2,TW2 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
YU60..T2,TW2 |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
YU6#,70 W/C ID=25.4 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YU6#,70 W/C ID=25.4 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YU6#,70 W/C ID=25.4 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
(9303- )WU85,93,YU60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04496-36090 |
YU60..T2,TW2 REBUILT |
1 | ||
| 04494-36090 |
YU60..T2,TW2 |
1 | ||
| 04494-36150 |
YU60..T2,TW2 ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
YU60..T2,TW2 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
YU60..T2,TW2 *10−1.25PX31−21.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
YU60..T2,TW2 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
YU60..T2,TW2 |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
WU85,93,YU6#,70 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
YU60..T2,TW2 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
YU60..T2,TW2 |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
YU60..T2,TW2 |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
WU85,93,YU6#,70 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
WU85,93,YU6#,70 |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
(9303- )WU85,93,YU60
ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04496-36090 |
YU60..T2,TW2 REBUILT |
1 | ||
| 04494-36090 |
YU60..T2,TW2 |
1 | ||
| 04494-36150 |
YU60..T2,TW2 ﾏｰｸ AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36100 |
YU60..T2,TW2 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
YU60..T2,TW2 *10−1.25PX31−21.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
YU60..T2,TW2 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36100 |
YU60..T2,TW2 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29002 |
YU60..T2,TW2 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
YU60..T2,TW2 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
WU75,85,9#,YU6#,70 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
YU60..T2,TW2 |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
WU75,85,9#,YU6#,70 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
WU75,85,9#,YU6#,70 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
16 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
