YU60-MDPGTJ (1988)
Toyota Dyna/Toyoace
(8808- )WU85,93,YU60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

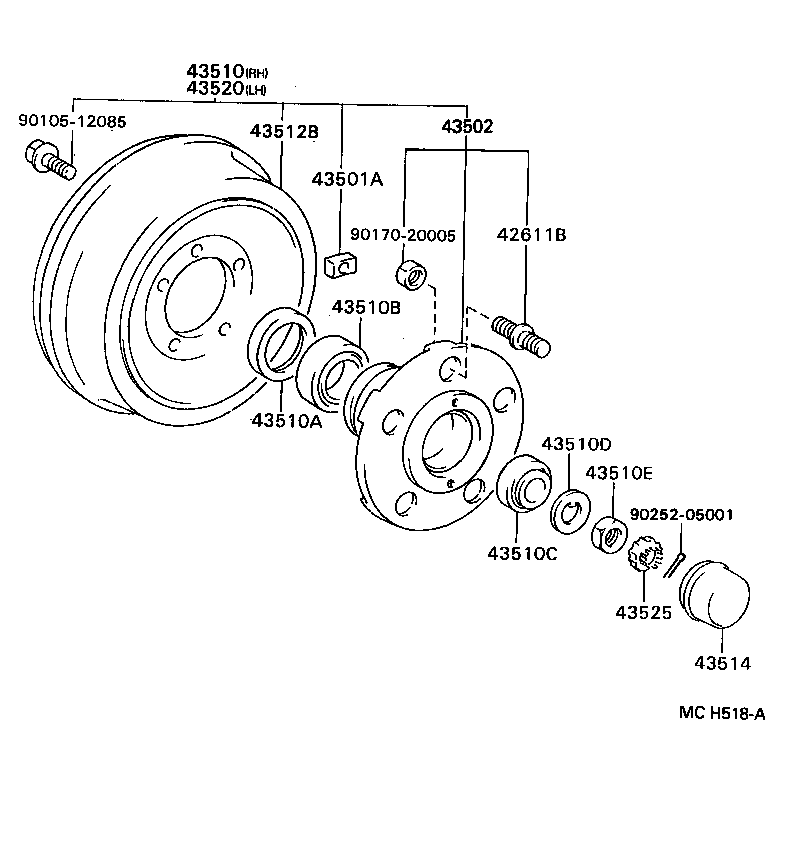

| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02024 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 右側 |
1 | ||
| 90942-02024 |
YU60..T3..ST;YU60..T2,TW1,TW2 右側 |
1 | ||
| 90942-02025 |
YU60..T3..ST;YU60..T2,TW1,TW2 左側 |
1 | ||
| 90942-02025 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 左側 |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-68001 |
WU85,93,YU6#,70 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-42045 |
WU85,93,YU6#,70 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-28001 |
WU85,93,YU6#,70 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
WU85,93,YU6#,70 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-26001 |
WU85,93,YU6#,70 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-36030 |
WU85,93,YU6#,70 |
2 | ||
| 43514-36030 |
WU85,93,YU60..T2,T3,T4,TW1,TW2 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-36010 |
WU85,93,YU6#,70 |
2 | ||
| Common parts | ||||
| 90101-12070 | ||||
| 90170-20005 | ||||
| 90201-12007 | ||||
| 95381-05040 | ||||
(8808- )YU60,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02024 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 右側 |
1 | ||
| 90942-02024 |
YU60..T3..ST;YU60..T2,TW1,TW2 右側 |
1 | ||
| 90942-02025 |
YU60..T3..ST;YU60..T2,TW1,TW2 左側 |
1 | ||
| 90942-02025 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 左側 |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36110 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-68001 |
WU85,93,YU6#,70 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-42045 |
WU85,93,YU6#,70 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-28001 |
WU85,93,YU6#,70 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
WU85,93,YU6#,70 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-26001 |
WU85,93,YU6#,70 |
2 | ||
| 43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB) | ||||
| 90520-99065 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 厚さ=1.60 |
1 | ||
| 90520-99065 |
YU60..T3..ST;YU60..T2,TW1,TW2 厚さ=1.60 |
1 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36060 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-36030 |
WU85,93,YU6#,70 |
2 | ||
| 43514-36030 |
WU85,93,YU60..T2,T3,T4,TW1,TW2 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36110 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-36010 |
WU85,93,YU6#,70 |
2 | ||
| Common parts | ||||
| 90252-05001 | ||||
(8808- )WU85,93,YU6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02024 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 右側 |
1 | ||
| 90942-02024 |
YU60..T3..ST;YU60..T2,TW1,TW2 右側 |
1 | ||
| 90942-02025 |
YU60..T3..ST;YU60..T2,TW1,TW2 左側 |
1 | ||
| 90942-02025 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 左側 |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36110 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-68001 |
WU85,93,YU6#,70 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-42045 |
WU85,93,YU6#,70 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-28001 |
WU85,93,YU6#,70 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-27001 |
WU85,93,YU6#,70 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-26001 |
WU85,93,YU6#,70 |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36060 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-36030 |
WU85,93,YU6#,70 |
2 | ||
| 43514-36030 |
WU85,93,YU60..T2,T3,T4,TW1,TW2 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36110 |
YU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-36010 |
WU85,93,YU6#,70 |
2 | ||
| Common parts | ||||
| 90105-12085 | ||||
| 90170-20005 | ||||
| 90252-05001 | ||||
