YU60-MDPGT3 (1988)
Toyota Dyna/Toyoace

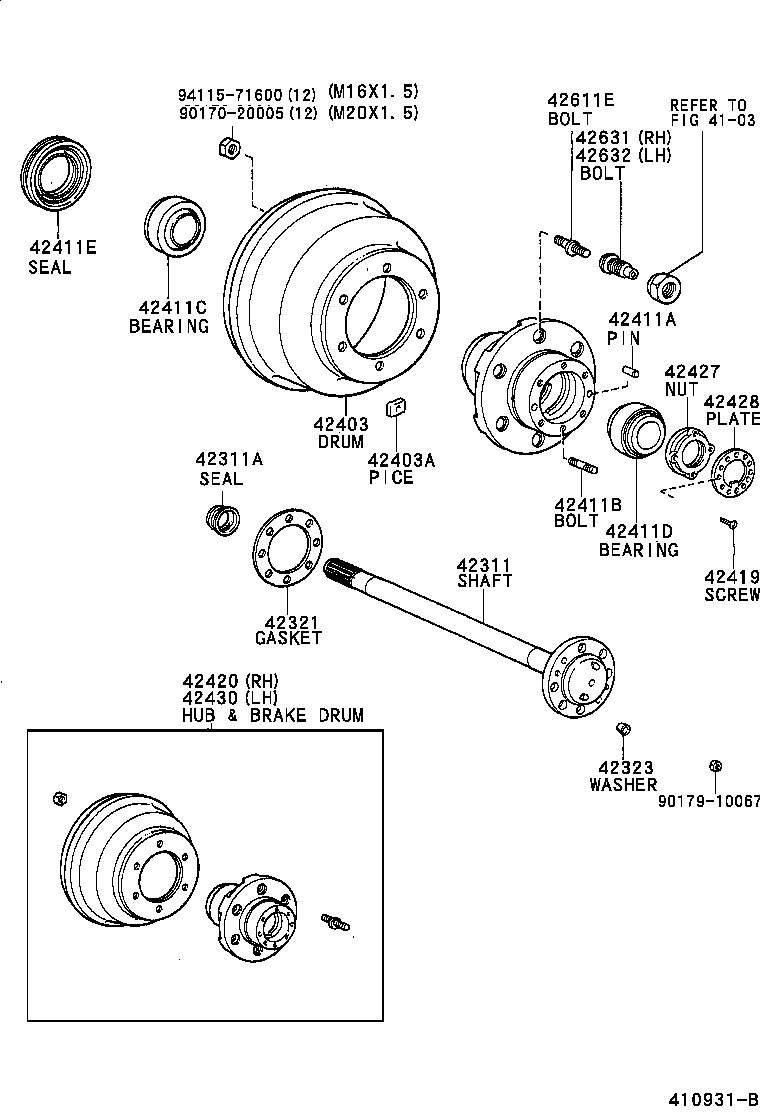

(8808- )WU85,93,YU6#..DM1,T3,T4..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36071 |
YU6#..(DM1,T3)..WT |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311-36071 |
YU60..T3..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
WU85,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42323-36010 |
YU60,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42431-36120 |
YU60..T3..WT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01122 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 60G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
YU60..T3..WT |
4 | ||
| 90250-10055 |
WU85,YU6#,70 |
4 | ||
| 90250-10055 |
YU60..T1,T2,TW1,TW2 |
4 | ||
| 90250-10055 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
4 | ||
| 90250-10055 |
WU85,93,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,93,YU60,70 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU60..T3..WT |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T1,T2,TW1,TW2 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
12 | ||
| 90116-10191 |
YU60,70 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
WU85,YU6#,70 |
2 | ||
| 90368-57010 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90368-57010 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ) |
2 | ||
| 90368-57010 |
WU85,93,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,93,YU60,70 |
2 | ||
| 90368-57010 |
YU60..T3..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
WU85,93,YU60,70 |
2 | ||
| 90368-52043 |
WU85,93,YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU60..T3..WT |
2 | ||
| 90311-75003 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
2 | ||
| 90311-75003 |
WU85,YU6#,70 |
2 | ||
| 90311-75003 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
WU85,93,YU6#,70 |
4 | ||
| 93311-16012 |
WU85,93,YU60,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42420-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
WU85,93,YU6#,70 |
2 | ||
| 42427-36030 |
WU85,93,YU60,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
WU85,93,YU60,70 |
2 | ||
| 42428-36020 |
WU85,93,YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42631-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| 42631-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| 42632-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||

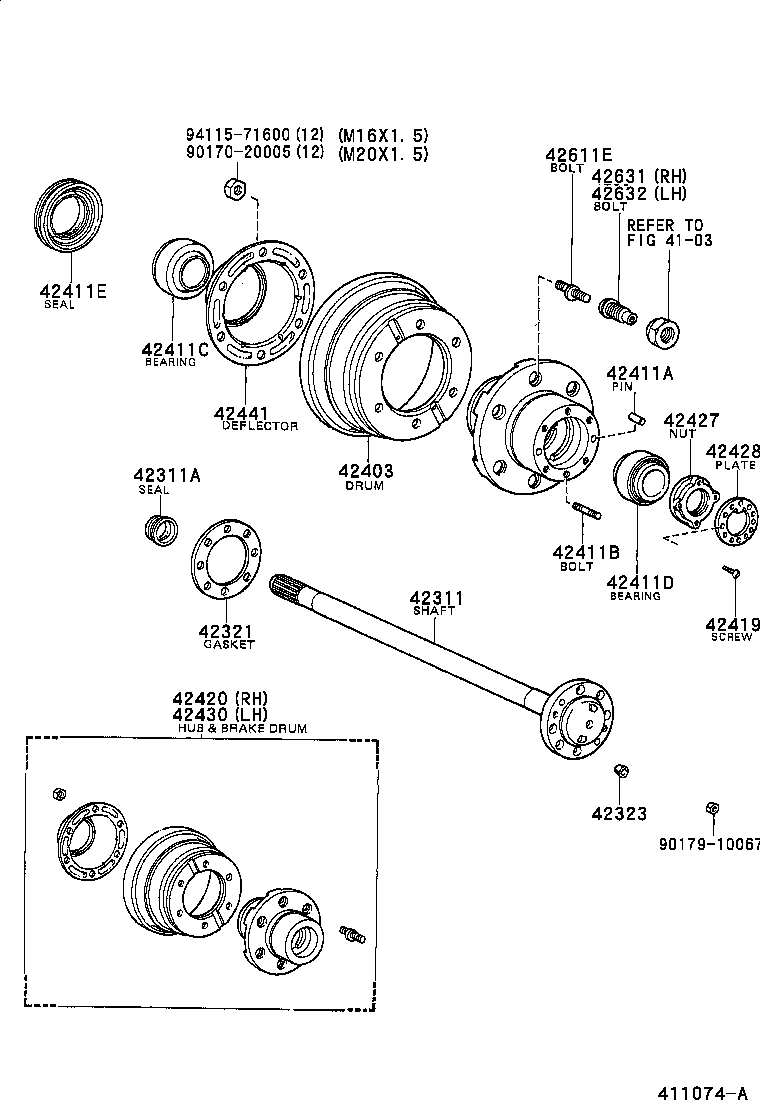

(8808- )T2,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36071 |
YU6#..(DM1,T3)..WT |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311-36071 |
YU60..T3..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
WU85,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42323-36010 |
YU60,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42431-36120 |
YU60..T3..WT |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
YU60..T3..WT |
4 | ||
| 90250-10055 |
WU85,YU6#,70 |
4 | ||
| 90250-10055 |
YU60..T1,T2,TW1,TW2 |
4 | ||
| 90250-10055 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
4 | ||
| 90250-10055 |
WU85,93,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,93,YU60,70 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU60..T3..WT |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T1,T2,TW1,TW2 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
12 | ||
| 90116-10191 |
YU60,70 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
WU85,YU6#,70 |
2 | ||
| 90368-57010 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90368-57010 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ) |
2 | ||
| 90368-57010 |
WU85,93,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,93,YU60,70 |
2 | ||
| 90368-57010 |
YU60..T3..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
WU85,93,YU60,70 |
2 | ||
| 90368-52043 |
WU85,93,YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU60..T3..WT |
2 | ||
| 90311-75003 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
2 | ||
| 90311-75003 |
WU85,YU6#,70 |
2 | ||
| 90311-75003 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
WU85,93,YU6#,70 |
4 | ||
| 93311-16012 |
WU85,93,YU60,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42420-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
WU85,93,YU6#,70 |
2 | ||
| 42427-36030 |
WU85,93,YU60,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
WU85,93,YU60,70 |
2 | ||
| 42428-36020 |
WU85,93,YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-36050 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42631-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| 42631-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| 42632-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )YU60,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36071 |
YU6#..(DM1,T3)..WT |
2 | ||
| 42311-36071 |
YU6#..(DM1,T3)..WT |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311-36071 |
YU60..T3..WT |
2 | ||
| 42311-36071 |
YU60..T3..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
WU85,YU6#,70 |
2 | ||
| 42321-36040 |
WU85,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42323-36010 |
YU60,70 |
12 | ||
| 42323-36010 |
YU60,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 42431-36120 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42431-36120 |
YU60..T3..WT |
2 | ||
| 42431-36120 |
YU60..T3..WT |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
YU60..T3..WT |
4 | ||
| 90250-10055 |
YU60..T3..WT |
4 | ||
| 90250-10055 |
WU85,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,YU6#,70 |
4 | ||
| 90250-10055 |
YU60..T1,T2,TW1,TW2 |
4 | ||
| 90250-10055 |
YU60..T1,T2,TW1,TW2 |
4 | ||
| 90250-10055 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
4 | ||
| 90250-10055 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
4 | ||
| 90250-10055 |
WU85,93,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,93,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,93,YU60,70 |
4 | ||
| 90250-10055 |
WU85,93,YU60,70 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU60..T3..WT |
12 | ||
| 90116-10191 |
YU60..T3..WT |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T1,T2,TW1,TW2 |
12 | ||
| 90116-10191 |
YU60..T1,T2,TW1,TW2 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
12 | ||
| 90116-10191 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
12 | ||
| 90116-10191 |
YU60,70 |
12 | ||
| 90116-10191 |
YU60,70 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
WU85,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,YU6#,70 |
2 | ||
| 90368-57010 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90368-57010 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90368-57010 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ) |
2 | ||
| 90368-57010 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ) |
2 | ||
| 90368-57010 |
WU85,93,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,93,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,93,YU60,70 |
2 | ||
| 90368-57010 |
WU85,93,YU60,70 |
2 | ||
| 90368-57010 |
YU60..T3..WT |
2 | ||
| 90368-57010 |
YU60..T3..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
WU85,93,YU60,70 |
2 | ||
| 90368-52043 |
WU85,93,YU60,70 |
2 | ||
| 90368-52043 |
WU85,93,YU6#,70 |
2 | ||
| 90368-52043 |
WU85,93,YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU60..T3..WT |
2 | ||
| 90311-75003 |
YU60..T3..WT |
2 | ||
| 90311-75003 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
2 | ||
| 90311-75003 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
2 | ||
| 90311-75003 |
WU85,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,YU6#,70 |
2 | ||
| 90311-75003 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90311-75003 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
WU85,93,YU6#,70 |
4 | ||
| 93311-16012 |
WU85,93,YU6#,70 |
4 | ||
| 93311-16012 |
WU85,93,YU60,70 |
4 | ||
| 93311-16012 |
WU85,93,YU60,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42420-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42420-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
WU85,93,YU6#,70 |
2 | ||
| 42427-36030 |
WU85,93,YU6#,70 |
2 | ||
| 42427-36030 |
WU85,93,YU60,70 |
2 | ||
| 42427-36030 |
WU85,93,YU60,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
WU85,93,YU60,70 |
2 | ||
| 42428-36020 |
WU85,93,YU60,70 |
2 | ||
| 42428-36020 |
WU85,93,YU6#,70 |
2 | ||
| 42428-36020 |
WU85,93,YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42430-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| Common parts | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )WU85,93,YU6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36071 |
YU6#..(DM1,T3)..WT |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311-36071 |
YU60..T3..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
WU85,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42323-36010 |
YU60,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42431-36120 |
YU60..T3..WT |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01122 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 60G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
YU60..T3..WT |
4 | ||
| 90250-10055 |
WU85,YU6#,70 |
4 | ||
| 90250-10055 |
YU60..T1,T2,TW1,TW2 |
4 | ||
| 90250-10055 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
4 | ||
| 90250-10055 |
WU85,93,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,93,YU60,70 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU60..T3..WT |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T1,T2,TW1,TW2 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
12 | ||
| 90116-10191 |
YU60,70 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
WU85,YU6#,70 |
2 | ||
| 90368-57010 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90368-57010 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ) |
2 | ||
| 90368-57010 |
WU85,93,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,93,YU60,70 |
2 | ||
| 90368-57010 |
YU60..T3..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
WU85,93,YU60,70 |
2 | ||
| 90368-52043 |
WU85,93,YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU60..T3..WT |
2 | ||
| 90311-75003 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
2 | ||
| 90311-75003 |
WU85,YU6#,70 |
2 | ||
| 90311-75003 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
WU85,93,YU6#,70 |
4 | ||
| 93311-16012 |
WU85,93,YU60,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42420-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
WU85,93,YU6#,70 |
2 | ||
| 42427-36030 |
WU85,93,YU60,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
WU85,93,YU60,70 |
2 | ||
| 42428-36020 |
WU85,93,YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42631-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| 42631-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| 42632-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8808- )YU60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36071 |
YU6#..(DM1,T3)..WT |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311-36071 |
YU60..T3..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
WU85,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42321-36050 |
WU85,93,YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42323-36010 |
YU60,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36120 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
2 | ||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42431-36120 |
YU60..T3..WT |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
YU60..T3..WT |
4 | ||
| 90250-10055 |
WU85,YU6#,70 |
4 | ||
| 90250-10055 |
YU60..T1,T2,TW1,TW2 |
4 | ||
| 90250-10055 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
4 | ||
| 90250-10055 |
WU85,93,YU6#,70 |
4 | ||
| 90250-10055 |
WU85,93,YU60,70 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU60..T3..WT |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T1,T2,TW1,TW2 |
12 | ||
| 90116-10191 |
YU6#,70 |
12 | ||
| 90116-10191 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
12 | ||
| 90116-10191 |
YU60,70 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
WU85,YU6#,70 |
2 | ||
| 90368-57010 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90368-57010 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ) |
2 | ||
| 90368-57010 |
WU85,93,YU6#,70 |
2 | ||
| 90368-57010 |
WU85,93,YU60,70 |
2 | ||
| 90368-57010 |
YU60..T3..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
WU85,93,YU60,70 |
2 | ||
| 90368-52043 |
WU85,93,YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU60..T3..WT |
2 | ||
| 90311-75003 |
YU60..T3..WT..CBR..IV3 ｼﾞﾝｶｲｼﾔ ｼﾖｳ |
2 | ||
| 90311-75003 |
WU85,YU6#,70 |
2 | ||
| 90311-75003 |
YU60..T1,T2,TW1,TW2 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 90311-75003 |
WU85,93,YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
WU85,93,YU6#,70 |
4 | ||
| 93311-16012 |
WU85,93,YU60,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42420-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
WU85,93,YU6#,70 |
2 | ||
| 42427-36030 |
WU85,93,YU60,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
WU85,93,YU60,70 |
2 | ||
| 42428-36020 |
WU85,93,YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36130 |
YU6#..(DM1,T3)..WT |
1 | ||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-36050 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02046 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU6#..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02046 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 左側 |
1 | ||
| 90942-02045 |
WU75,85,9#,YU60..(DM1,T3,T4)..WT 右側 |
1 | ||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42631-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| 42631-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| 42632-55031 |
WU85,93,YU60..(T3,T4)..WT |
5 | ||
| 42632-55031 |
WU85,93,YU6#..(DM1,T3,T4)..WT |
5 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
