YU60-MDPGT3 (1984)
Toyota Dyna/Toyoace
Production
Sep 1984
-
Aug 1987
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
YU6#,70,80 |
1 | ||
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
YU6#,70,80 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
WU75,9#,YU6#,70,80 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
WU75,9#,YU6#,70,80 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95405 |
YU6#,70,80 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95405 |
YU6#,70,80 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95416 |
YU60,70,80 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95417 |
YU60,70,80 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95423 |
YU6#,70,80 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95400 |
YU6#,70,80 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95400 |
YU6#,70,80 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95400 |
YU6#,70,80 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95400 |
YU6#,70,80 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
WU75,9#,YU6#,70,80 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
WU75,9#,YU6#,70,80 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95406 |
YU6#,70,80 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95406 |
YU6#,70,80 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-95405 |
YU6#,70,80 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95403 |
YU6#,70,80 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95403 |
YU6#,70,80 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95405 |
YU6#,70,80 |
1 | ||
| Common parts | ||||
| 88718-95426 | ||||
| 88718-95A06 | ||||
| 88718-95A21 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
ILLUST NO. 2 OF 2(8409- )YU6#,70,80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
YU6#,70,80 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-95423 |
YU6#,70,80 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95405 |
YU6#,70,80 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95409 |
YU6#,70,80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95410 |
YU6#,70,80 |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95407 |
YU6#,70,80 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95407 |
YU6#,70,80 |
1 | ||
| 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88896-95705 |
YU6#,70,80 |
1 | ||
| Common parts | ||||
| 87241-95400 | ||||
| 88718-10120 | ||||
| 88718-95417 | ||||
| 88718-95418 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 88718-95428 | ||||
| 90179-08123 | ||||
| 90404-19009 | ||||
| 90404-22005 | ||||
| 90461-08205 | ||||
| 93381-18040 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||

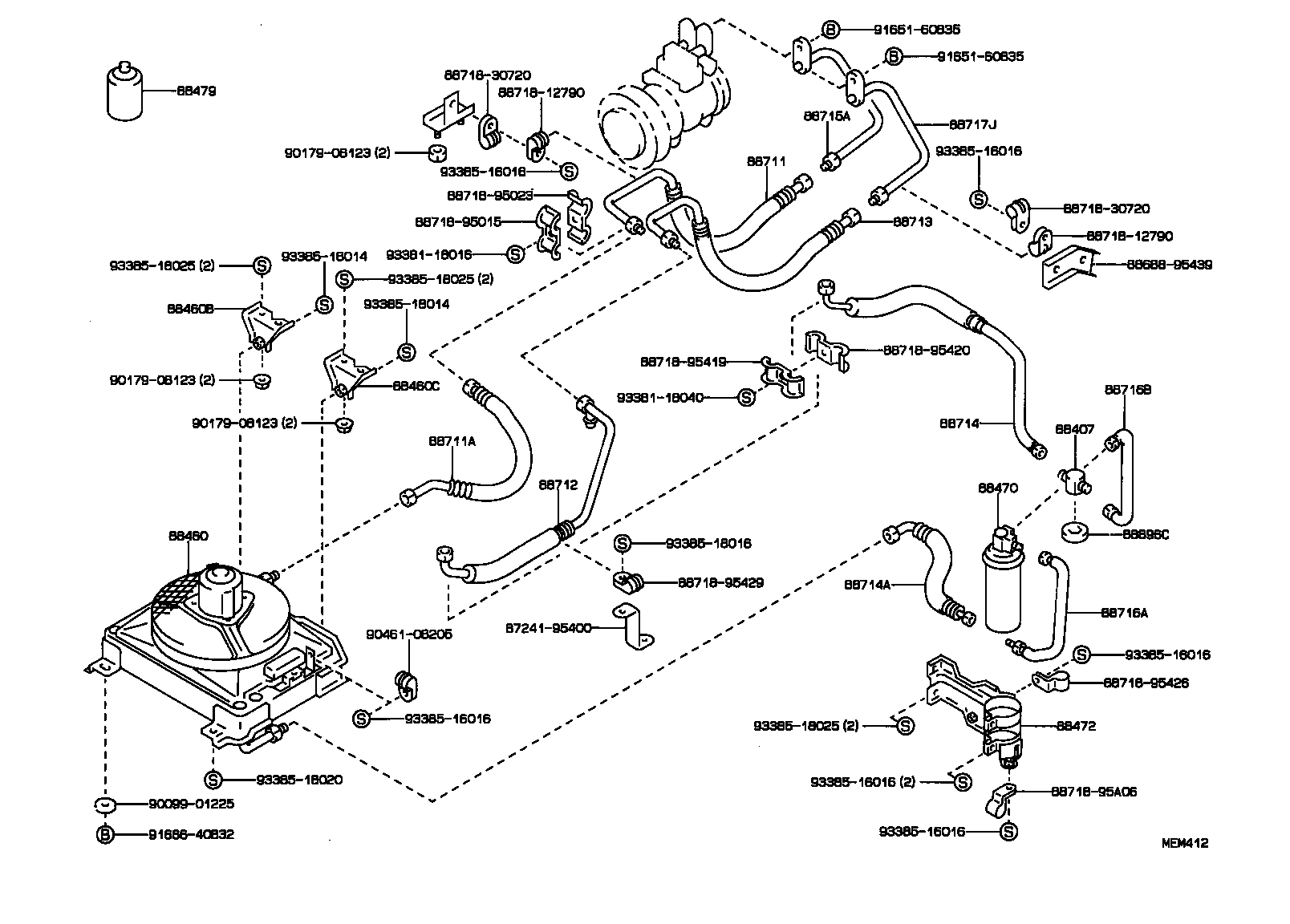

(8808-9309)YU6#,70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87241-95400 | ||||
| 88688-95439 | ||||
| 88718-12790 | ||||
| 88718-30720 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 88718-95426 | ||||
| 88718-95429 | ||||
| 88718-95A06 | ||||
| 90099-01225 | ||||
| 90179-08123 | ||||
| 90461-08205 | ||||
| 91651-60835 | ||||
| 91666-40832 | ||||
| 93381-18016 | ||||
| 93381-18040 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
