Toyota Dyna/toyoace YU60 SEAT & SEAT TRACK

YU60-MDPGT (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )

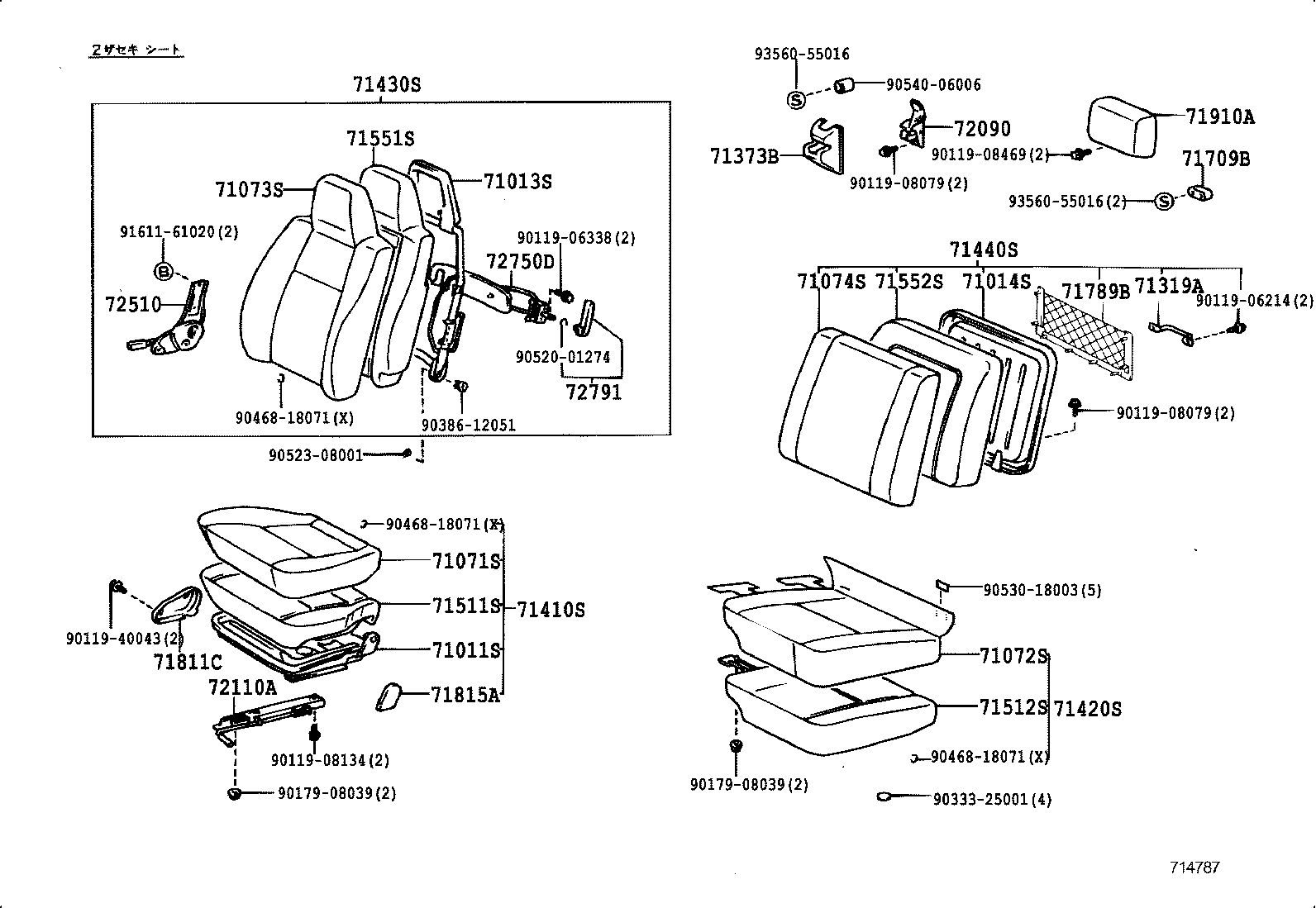

Click highlighted areas on diagram

Part #	Description	Period	Qty
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-95700B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
58930-9570006	WU75,85,9#,YU6#,70..DYN DARK BROWN,TRIM4#	08/1988 - 09/1991	1
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95414	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
71011-95417	WU75,YU60 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1993 - 05/1995	1
71011-95417	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	08/1988 - 09/1993	1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95412	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	08/1988 - 09/1991	1
71013-37030	YU60..175;WU75,85,9#,YU70	09/1991 - 09/1993	1
71013-37030	WU75,85,9#,YU60	09/1993 - 05/1995	1
71013-95413	WU75,85,9#,YU6#,70	08/1988 - 09/1991	1
71013-37010	YU60..T3..CBU;YU60..T3..ST..IV3;WU75,85,9#,YU61,70;YU60..T1,T2,TW1,TW2;YU60..T3..WT..LPG..IV3 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1991 - 09/1993	1
71013-37010	WU75,85,9#,YU60 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1993 - 05/1995	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9541801	YU60..DYN..175 BLACK,TRIM4#	08/1988 - 09/1991	1
71014-9541801	YU60..175 BLACK,TRIM1#	09/1991 - 05/1995	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9547006	WU75,85,9#,YU6#,70..DYN ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71071-37020B1	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71071-37010B1	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71071-9547306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95B2806	YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
71072-95B3006	YU6#..DYN ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71072-37070B1	YU6# ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71072-37060B1	YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547606	YU60,70..DYN..(SRF,TW1,TW2) ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71073-9548106	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71073-37020B1	YU60,70..SRF,TW1,TW2 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71073-37270B1	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B4806	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
71074-95B4606	YU60..DYN..175 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71074-37060B2	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
71074-37070B1	YU60..175 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71319A - STRIKER, FRONT SEAT BACK
71319-95404	YU60..175	08/1988 - 05/1995	1
71319A - STRIKER, FRONT SEAT BACK
71319-95404	YU60..175	08/1988 - 05/1995	1
71373B - COVER, FRONT SEAT BACK LOCK
71373-95400B0	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
71373-9540006	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9545706	YU60,70..DYN..(SRF,TW1,TW2) ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71410-37040B0	WU75,YU60 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1993 - 05/1995	1
71410-37040B0	WU75,85,9#,YU6#,70 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 09/1993	1
71410-37030B0	YU60,70..SRF,TW1,TW2 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71410-9546206	WU75,85,9#,YU6#,70..DYN ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95B1606	YU6#..DYN ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71420-95B1406	YU6#,70..DYN ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71420-37070B0	YU6# ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71420-37060B0	YU6#,70 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9545806	YU60,70..DYN..(SRF,TW1,TW2) ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71430-9546406	YU60,70..DYN..(SRF,TW1,TW2) ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71430-37020B0	YU60,70..SRF,TW1,TW2 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71430-37270B0	YU60,70..SRF,TW1,TW2 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B0406	YU60..DYN..175 ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71440-37070B0	YU60..175 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71440-95B0606	YU60..DYN..175 ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71440-37080B0	YU60..175 ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95404	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	08/1988 - 05/1995	1
71511-95400	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95A05	YU6#,70..DYN	08/1988 - 09/1991	1
71502-95A05	YU6#,70	09/1991 - 05/1995	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37010	YU60,70..SRF,TW1,TW2	09/1991 - 05/1995	1
71551-95404	WU75,85,9#,YU6#,70	08/1988 - 09/1991	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403	YU60..175	08/1988 - 05/1995	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00	WU75,85,9#,YU6#,70	09/1991 - 05/1995	2
71587-95J00	YU6#..20T;YU60..DYN..175	08/1988 - 09/1991	1
71587-95J00	YU60..T3..CBU;YU60..DYN..175;YU6#..DM1,T1,T2;YU60..T3..ST..IV3;YU60..T3..WT..LPG..IV3 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	08/1988 - 09/1991	2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J01B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
71811-95J0106	WU75,85,9#,YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J00B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
71815-95J0016	WU75,85,9#,YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71910-92603B0	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71910-92603B0	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71910-92603B0	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71910-92603B0	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540006	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
72090-95400B0	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0006	WU75,85,9#,YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
72510-95J0011	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-37010	WU75,85,9#,YU6#,70	09/1991 - 05/1995	1
72791 - LEVER, LUMBAR SUPPORT
72791-20030B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
Common parts
90119-06214
90119-06338
90119-08079
90119-08086
90119-08469
90119-10116
90149-50039
90168-40043
90179-08039
90183-04066
90333-25001
90386-12018
90468-18071
90520-01274
90523-08001
90530-18003
90530-24002
90540-06006
91611-61020
93210-56020
93560-55016

(8808- )YU6#

Click highlighted areas on diagram

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95414	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
71011-95417	WU75,YU60 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1993 - 05/1995	1
71011-95417	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	08/1988 - 09/1993	1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95412	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	08/1988 - 09/1991	1
71013-37030	YU60..175;WU75,85,9#,YU70	09/1991 - 09/1993	1
71013-37030	WU75,85,9#,YU60	09/1993 - 05/1995	1
71013-95413	WU75,85,9#,YU6#,70	08/1988 - 09/1991	1
71013-37010	YU60..T3..CBU;YU60..T3..ST..IV3;WU75,85,9#,YU61,70;YU60..T1,T2,TW1,TW2;YU60..T3..WT..LPG..IV3 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1991 - 09/1993	1
71013-37010	WU75,85,9#,YU60 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1993 - 05/1995	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-9541801	YU60..DYN..175 BLACK,TRIM4#	08/1988 - 09/1991	1
71014-9541801	YU60..175 BLACK,TRIM1#	09/1991 - 05/1995	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9547006	WU75,85,9#,YU6#,70..DYN ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71071-37020B1	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71071-37010B1	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71071-9547306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95B2806	YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
71072-95B3006	YU6#..DYN ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71072-37070B1	YU6# ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71072-37060B1	YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9547606	YU60,70..DYN..(SRF,TW1,TW2) ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71073-9548106	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71073-37020B1	YU60,70..SRF,TW1,TW2 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71073-37270B1	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B4806	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
71074-95B4606	YU60..DYN..175 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71074-37060B2	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
71074-37070B1	YU60..175 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71319A - STRIKER, FRONT SEAT BACK
71319-95404	YU60..175	08/1988 - 05/1995	1
71373B - COVER, FRONT SEAT BACK LOCK
71373-95400B0	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
71373-9540006	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9545706	YU60,70..DYN..(SRF,TW1,TW2) ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71410-37040B0	WU75,YU60 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1993 - 05/1995	1
71410-37040B0	WU75,85,9#,YU6#,70 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 09/1993	1
71410-37030B0	YU60,70..SRF,TW1,TW2 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71410-9546206	WU75,85,9#,YU6#,70..DYN ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95B1606	YU6#..DYN ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71420-95B1406	YU6#,70..DYN ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71420-37070B0	YU6# ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71420-37060B0	YU6#,70 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9545806	YU60,70..DYN..(SRF,TW1,TW2) ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BROWN,TRIM4#	08/1988 - 09/1991	1
71430-9546406	YU60,70..DYN..(SRF,TW1,TW2) ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71430-37020B0	YU60,70..SRF,TW1,TW2 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71430-37270B0	YU60,70..SRF,TW1,TW2 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B0406	YU60..DYN..175 ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,BROWN,TRIM4#	08/1988 - 09/1991	1
71440-37070B0	YU60..175 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71440-95B0606	YU60..DYN..175 ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71440-37080B0	YU60..175 ***,ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ,GRAY,TRIM1#	09/1991 - 05/1995	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95404	WU75,85,9#,YU6#,70 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	08/1988 - 05/1995	1
71511-95400	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95A05	YU6#,70..DYN	08/1988 - 09/1991	1
71502-95A05	YU6#,70	09/1991 - 05/1995	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37010	YU60,70..SRF,TW1,TW2	09/1991 - 05/1995	1
71551-95404	WU75,85,9#,YU6#,70	08/1988 - 09/1991	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-95403	YU60..175	08/1988 - 05/1995	1
71789B - POCKET, FRONT SEAT BACK BOARD
71789-22010	YU60..175	08/1988 - 05/1995	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J01B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
71811-95J0106	WU75,85,9#,YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J00B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
71815-95J0016	WU75,85,9#,YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
71910A - HEADREST ASSY, FRONT SEAT
71910-9260306	YU60,70..DYN..(SRF,TW1,TW2) BROWN,TRIM4#	08/1988 - 09/1991	1
71910-92603B0	YU60,70..SRF,TW1,TW2 GRAY,TRIM1#	09/1991 - 05/1995	1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-9540006	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
72090-95400B0	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0006	WU75,85,9#,YU6#,70..DYN BROWN,TRIM4#	08/1988 - 09/1991	1
72510-95J0011	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-37010	WU75,85,9#,YU6#,70	09/1991 - 05/1995	1
72791 - LEVER, LUMBAR SUPPORT
72791-20030B0	WU75,85,9#,YU6#,70 GRAY,TRIM1#	09/1991 - 05/1995	1
Common parts
90119-06214
90119-06338
90119-08079
90119-08134
90119-08469
90119-40043
90179-08039
90333-25001
90386-12051
90468-18071
90520-01274
90523-08001
90530-18003
90540-06006
91611-61020
93560-55016

(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408	WU75,85,9#,YU6#,70	08/1988 - 05/1995	1
72111A - RAIL, FRONT INNER SEAT TRACK, UPPER
72113-95402	YU6#,70	08/1988 - 05/1995	1
73800 - SUSPENSION ASSY, SEAT, RH
73800-95402	YU6#,70	08/1988 - 05/1995	1
73888 - HANDLE, SEAT SUSPENSION CONTROL
73888-95400	YU6#,70	08/1988 - 05/1995	1
Common parts
90105-08075
90179-08039
91611-60816

(8808- )175

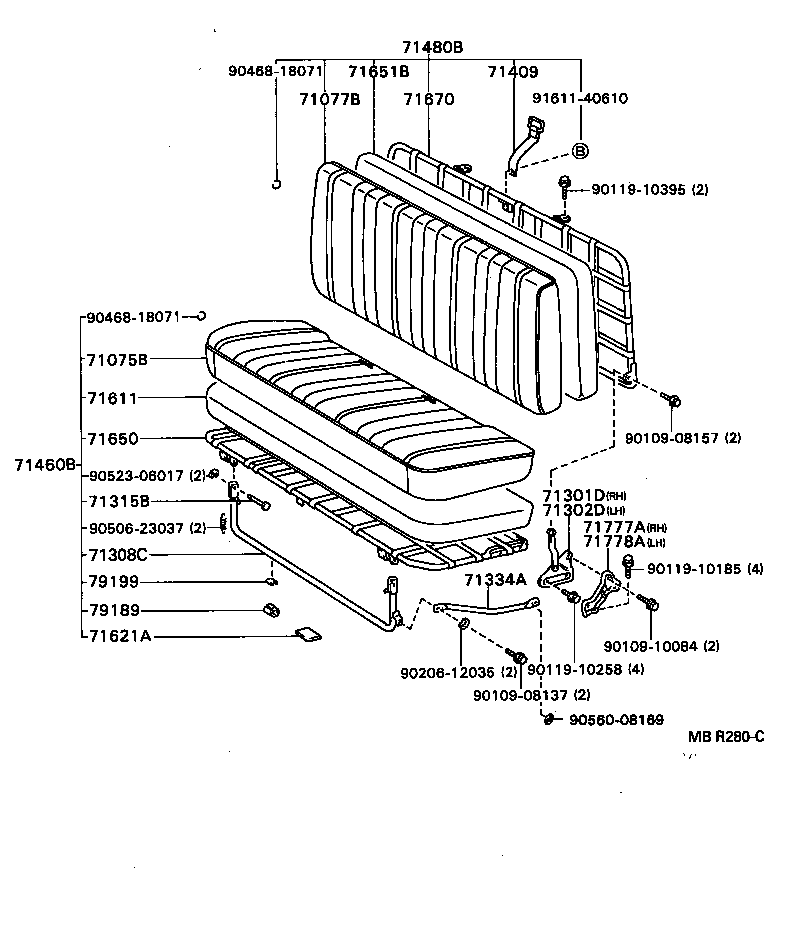

Click highlighted areas on diagram

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-9540006	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
71075-37010B1	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37010B2	YU60..175 GRAY,TRIM1#	09/1991 - 05/1995	1
71077-9540706	YU60..DYN..175 BROWN,TRIM4#	08/1988 - 09/1991	1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71301-95401	YU60..175	08/1988 - 05/1995	1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-95401	YU60..175	08/1988 - 05/1995	1
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-95400	YU60..175	08/1988 - 05/1995	1
71315B - PIN, REAR SEAT HINGE
71315-95011	YU60..175	08/1988 - 05/1995	2
71334A - STOPPER, REAR SEAT LEG
71334-95400	YU60..175	08/1988 - 05/1995	1
71409 - STOPPER SUB-ASSY, REAR SEAT BACK
71409-95A31	YU60..175	08/1988 - 05/1995	1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37010B1	YU60..175 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71460-9541306	YU60..DYN..175 ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9540706	YU60..DYN..175 ***,BROWN,TRIM4#	08/1988 - 09/1991	1
71480-37010B1	YU60..175 ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71611 - PAD, REAR SEAT CUSHION
71611-95401	YU60..175	08/1988 - 05/1995	1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95701	YU60..175	08/1988 - 05/1995	6
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-95404	YU60..175	08/1988 - 05/1995	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-95400	YU60..175	08/1988 - 05/1995	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-95402	YU60..175	08/1988 - 05/1995	1
71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH
71777-95400	YU60..175	08/1988 - 05/1995	1
71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH
71778-95400	YU60..175	08/1988 - 05/1995	1
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00	YU60..175	08/1988 - 05/1995	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	YU60..175	08/1988 - 05/1995	2
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10258
90119-10395
90206-12035
90468-18071
90506-23037
90523-06017
90560-08169
91611-40610

YU60-MDPGT (1988)

(8808- )

(8808- )YU6#

(8808- )

(8808- )175

Part Price Details
