YU60-MDPGT (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

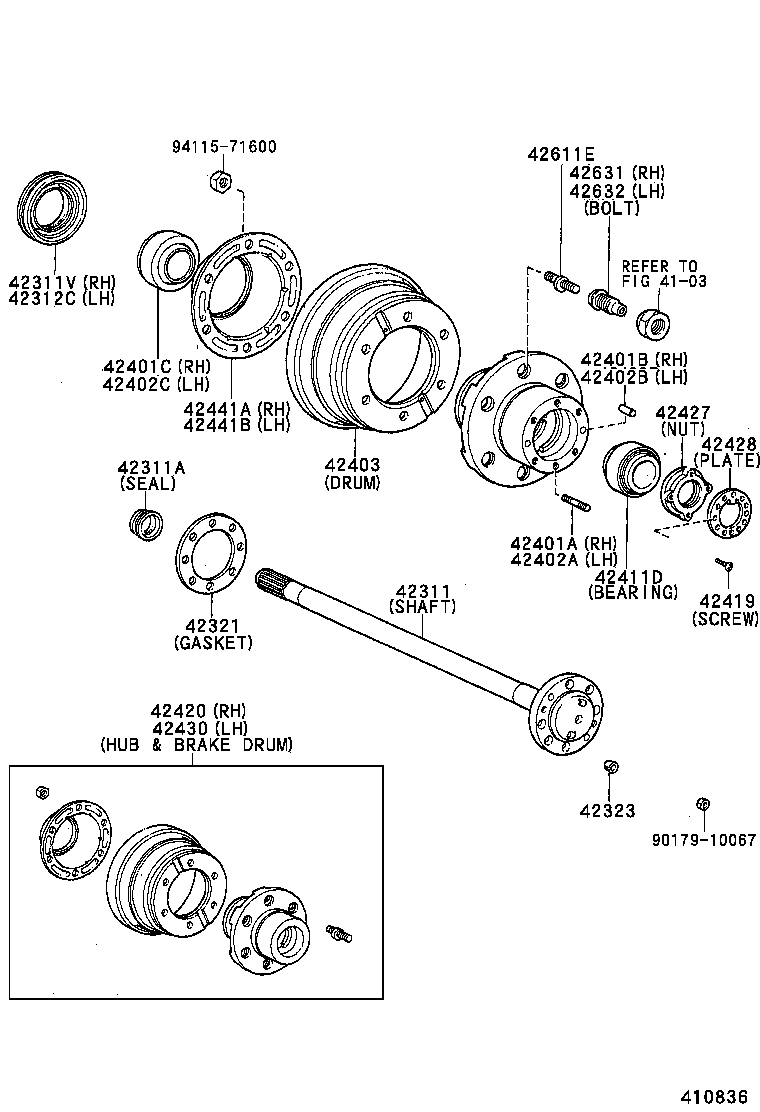

(8708- )T2,TW2
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36090 |
YU60..T2,TW2 |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
YU6#,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
YU6#,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||

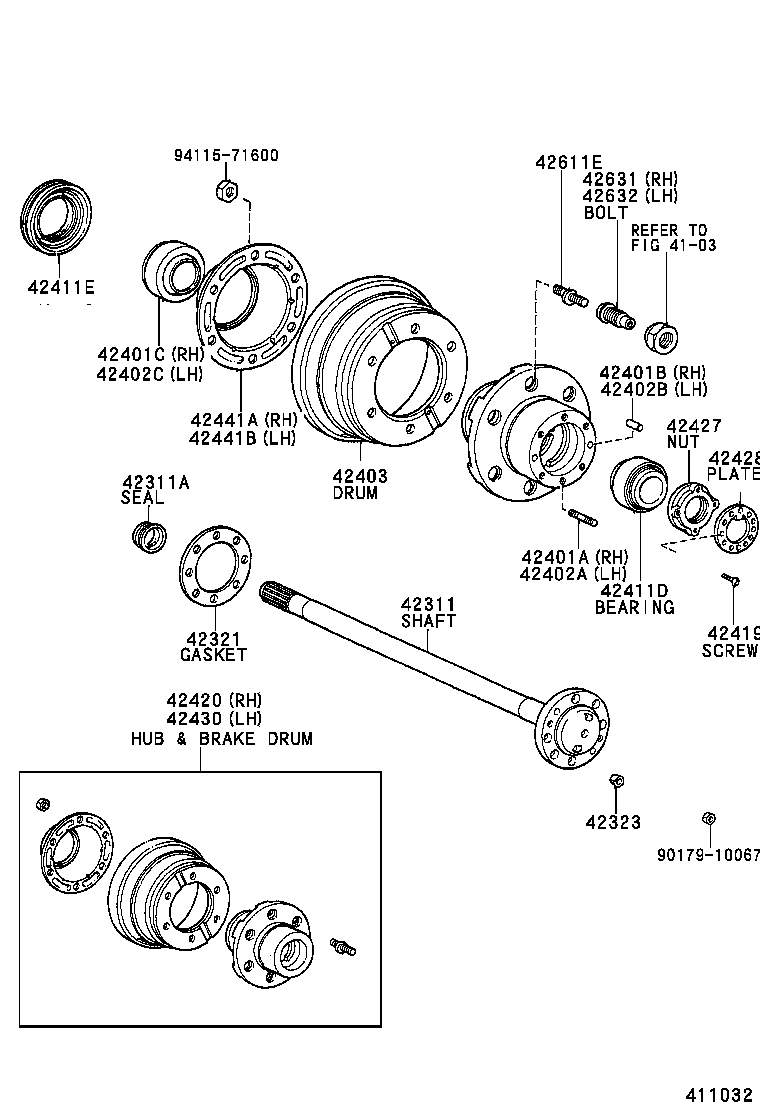

(8708- )T2,TW2
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36090 |
YU60..T2,TW2 |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
YU6#,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
YU6#,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94115-71600 | ||||
| Linked diagrams | ||||
| 4103 | ||||
(8708- )YU6#,70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36090 |
YU60..T2,TW2 |
2 | ||
| 42311-36091 |
YU60..T2,TW2 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
YU6#,70 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36040 |
YU6#,70 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
YU6#,70 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36090 |
YU60..T2,TW2 |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
YU6#,70 |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
YU6#,70 |
6 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
YU6#,70 |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
YU6#,70 |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-75003 |
YU6#,70 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
YU6#,70 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36100 |
YU60..T2,TW2 |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
YU6#,70 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
YU6#,70 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36100 |
YU60..T2,TW2 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02050 |
YU60..T2,TW2 右側 |
1 | ||
| 90942-02051 |
YU60..T2,TW2 左側 |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
YU60..T2,TW2 |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
YU60..T2,TW2 |
6 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4103 | ||||
