YU60-MDP3 (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

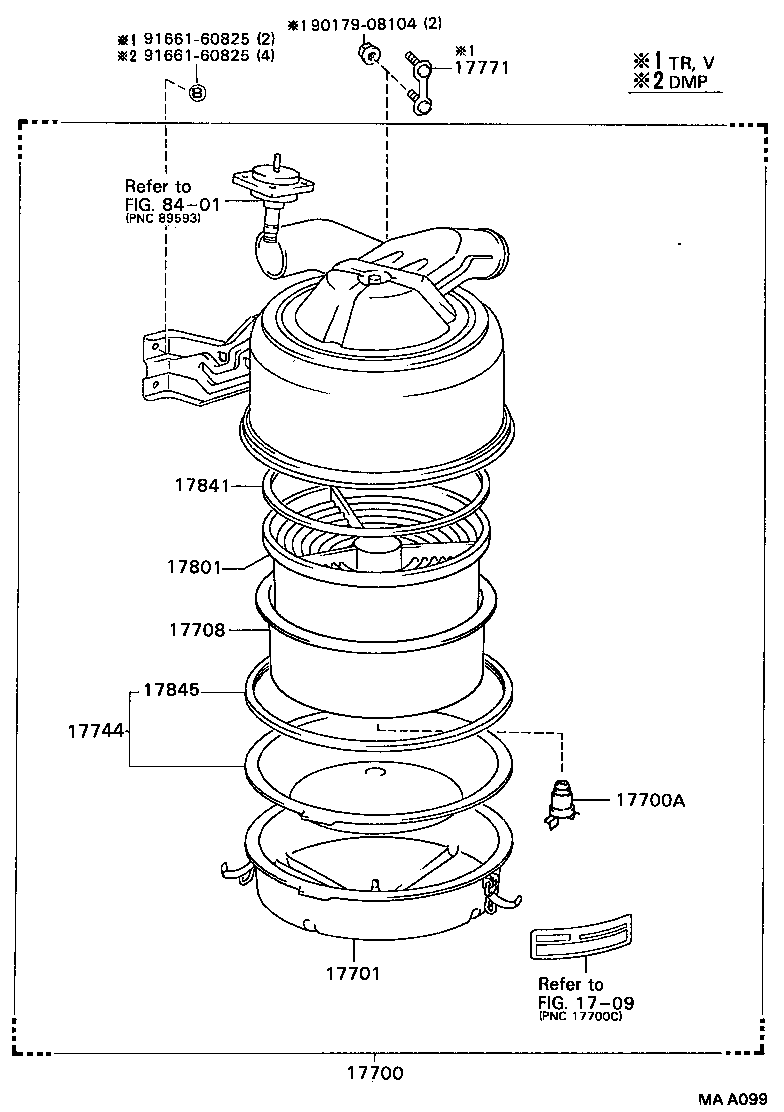

ILLUST NO. 1 OF 2(8708- )3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73210 |
3Y..YU6#,70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
3Y..YU6#,70 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56130 |
3Y..YU6#,70 |
1 | ||
| 17708 - BAFFLE SUB-ASSY, AIR CLEANER | ||||
| 17708-56010 |
3Y..YU6#,70 |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-56010 |
3Y..YU6#,70 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-56020 |
3Y..YU60,70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56031 |
3Y..YU6#,70 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56031 |
3Y..YU6#,70 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56050 |
3Y..YU6#,70 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

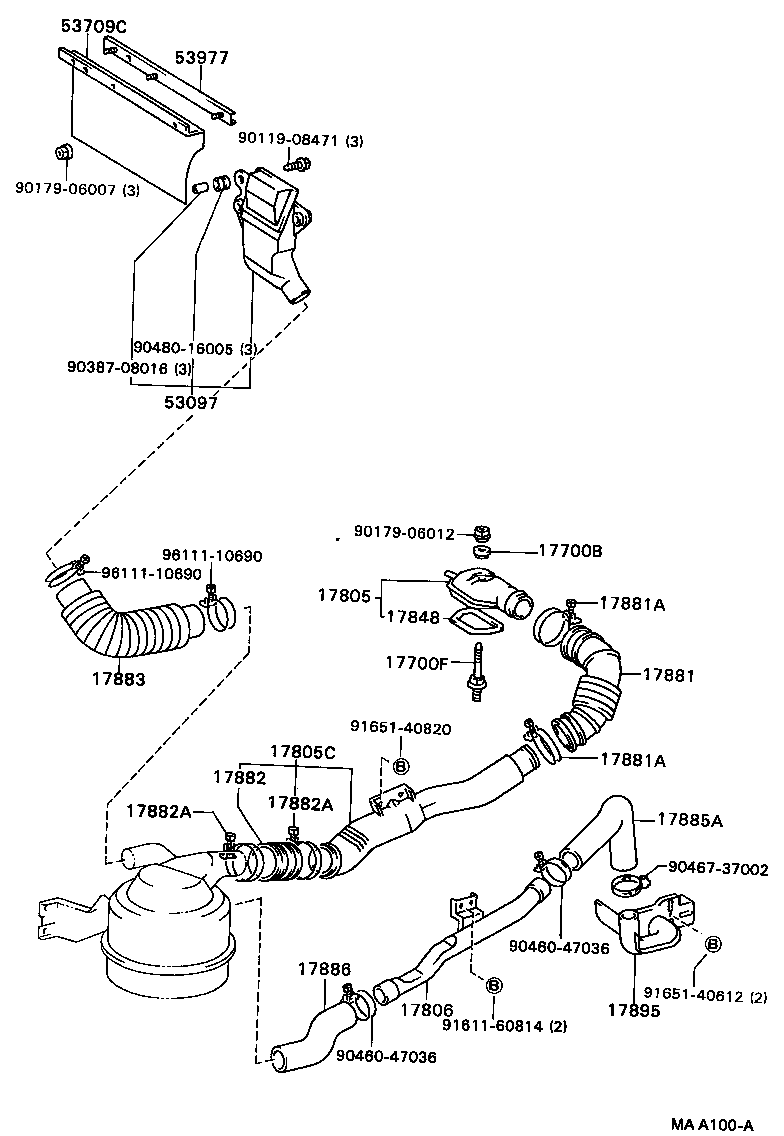

ILLUST NO. 2 OF 2(8708- )3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
3Y..YU6#,70 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
3Y..YU6#,70 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73070 |
3Y..YU6#,70 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-73080 |
3Y..YU6#,70 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-73010 |
3Y..YU6#,70 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YU6#,70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58080 |
3Y..YU6#,70 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3Y..YU6#,70 INTAKE MANIFOLD SIDE |
1 | ||
| 90460-47036 |
3Y..YU6#,70 |
2 | ||
| 96111-10750 |
3Y..YU6#,70 PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3Y..YU6#,70 INTAKE MANIFOLD SIDE |
1 | ||
| 90460-47036 |
3Y..YU6#,70 |
2 | ||
| 96111-10750 |
3Y..YU6#,70 PIPE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YU6#,70 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YU6#,70 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YU6#,70 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95402 |
3Y..YU6#,70 |
1 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17881-74040 |
3Y..YU6#,70 |
1 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17881-34040 |
3Y..YU6#,70 |
1 | ||
| 17895 - SHROUD, HOT AIR | ||||
| 17895-71040 |
3Y..YU6#,70 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95422 |
YU6#,70 |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53709-95014 |
YU6#,70 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95400 |
YU6#,70 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90387-08016 | ||||
| 90460-47036 | ||||
| 90467-37002 | ||||
| 90480-16005 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 96111-10690 | ||||
