YU60-MDP (1988)
Toyota Dyna/Toyoace

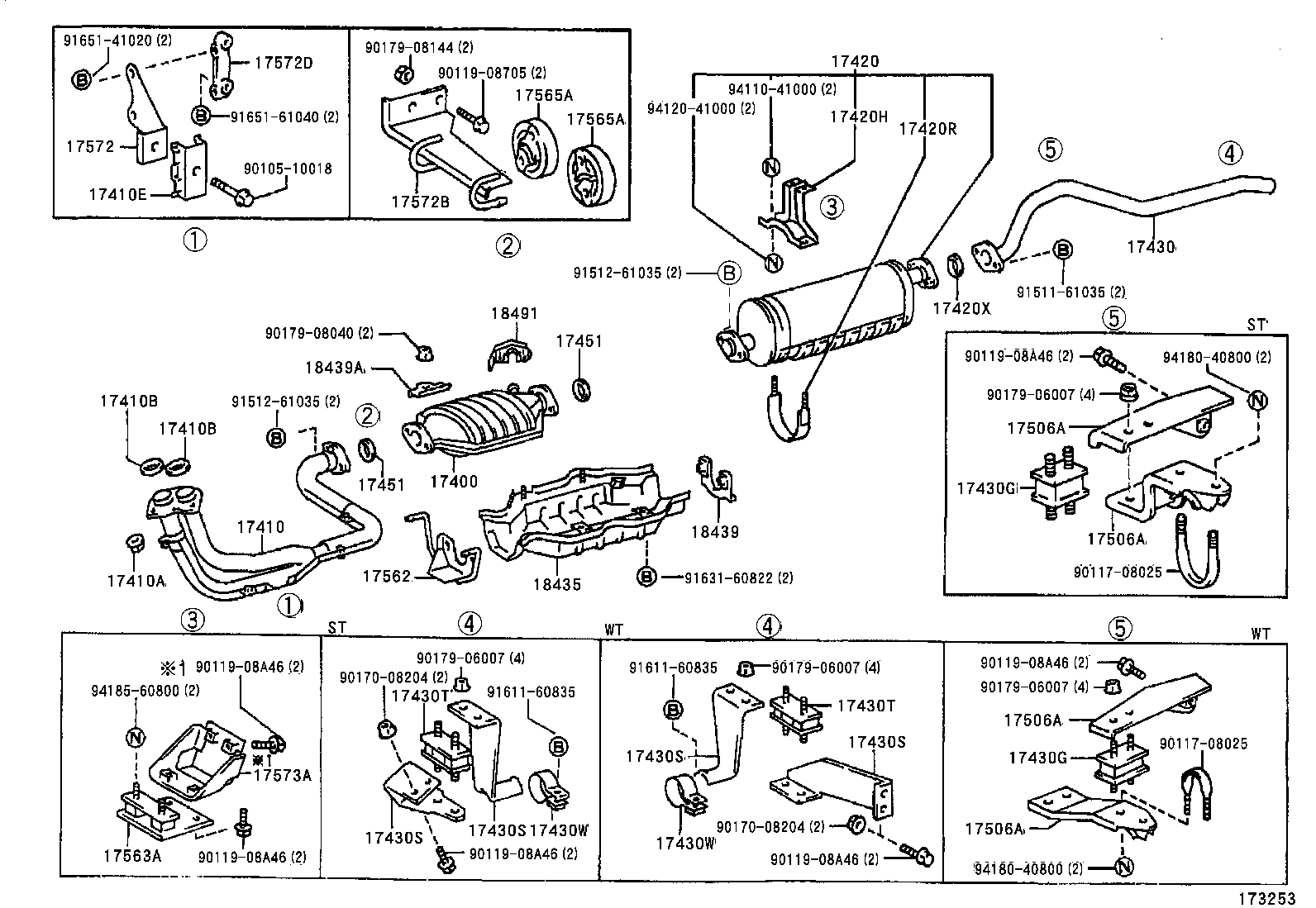

(9008- )3Y..YU60,70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-73170 |
3Y..YU60 |
1 | ||
| 18450-15070 |
3Y..YU6#,70 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-73090 |
3Y#..YU60,70 |
1 | ||
| 17410-73490 |
3Y..YU60,70..ST |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1W,3Y#..WU75,85,9#,YU6#,70 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
3Y#..YU6#,70 |
2 | ||
| 90917-06038 |
3Y#..YU6#,70 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
3Y#..YU6#,70 |
2 | ||
| 90917-06038 |
3Y#..YU6#,70 |
2 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17589-27010 |
3Y#..YU6#,70 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-73080 |
3Y..YU60,70..ST |
1 | ||
| 17420-58090 |
3Y..YU61;3Y#..YU60,70..ST |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58020 |
3Y..YU6#,70 |
1 | ||
| 17576-56020 |
3Y#..YU6#,70 |
1 | ||
| 17576-56021 |
3Y#..YU6#,70 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-56011 |
3Y#..YU6#,70 |
1 | ||
| 17504-56010 |
3Y#..YU6#,70 |
1 | ||
| 17504-58010 |
3Y..YU6#,70 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
3Y..YU6#,70 |
1 | ||
| 90917-06008 |
1W,3Y#..WU75,85,9#,YU6#,70 |
1 | ||
| 90917-06005 |
3Y..YU6#,70 |
1 | ||
| 90917-06047 |
1W,3Y#..WU75,85,9#,YU6#,70 |
1 | ||
| 90917-06045 |
1W,3Y#..WU75,85,9#,YU6#,70 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58070 |
3Y#..YU60..ST |
1 | ||
| 17430-73370 |
3Y..YU60..ST |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
3Y..YU60,70;3YP..YU60..ST |
1 | ||
| 17567-61030 |
3Y#..YU60,70..ST |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
3Y..YU60,70;3YP..YU60..ST |
1 | ||
| 17567-61030 |
3Y#..YU60,70..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
1W,3Y#..WU85,9#,YU6#,70 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
1W,3Y#..WU85,9#,YU6#,70 |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32005 |
3Y#..YU6#,70 |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32005 |
3Y#..YU6#,70 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
3Y..YU6#,70 |
2 | ||
| 90917-06045 |
3Y..YU6#,70 |
2 | ||
| 90917-06047 |
3Y..YU6#,70 |
2 | ||
| 90917-06008 |
1W,3Y#..WU9#,YU6#,70 |
1 | ||
| 90917-06008 |
3Y#..YU6#,70 |
1 | ||
| 90917-06045 |
3Y..YU6#,70 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
3Y..YU6#,70 |
2 | ||
| 90917-06045 |
3Y..YU6#,70 |
2 | ||
| 90917-06047 |
3Y..YU6#,70 |
2 | ||
| 90917-06008 |
1W,3Y#..WU9#,YU6#,70 |
1 | ||
| 90917-06008 |
3Y#..YU6#,70 |
1 | ||
| 90917-06045 |
3Y..YU6#,70 |
2 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y#..YU60,70..ST PIPE SIDE |
1 | ||
| 17575-73050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17575-73050 |
3Y..YU60,70;3YP..YU60..ST BODY SIDE |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y#..YU60,70..ST PIPE SIDE |
1 | ||
| 17575-73050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17575-73050 |
3Y..YU60,70;3YP..YU60..ST BODY SIDE |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y#..YU60,70..ST PIPE SIDE |
1 | ||
| 17575-73050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17575-73050 |
3Y..YU60,70;3YP..YU60..ST BODY SIDE |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y#..YU60,70..ST PIPE SIDE |
1 | ||
| 17575-73050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17575-73050 |
3Y..YU60,70;3YP..YU60..ST BODY SIDE |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-73110 |
3Y..YU60,70 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
3Y#..YU6#,70 |
1 | ||
| 17563-58010 |
3Y#..YU60,70 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
3Y..YU6#,70 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-63030 |
3Y..YU6#,70 |
2 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-73090 |
3Y#..YU6#,70 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-73100 |
3Y..YU60,70 |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
3Y#..YU6#,70 |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-35010 |
3Y..YU6#,70 |
1 | ||
| 18439 - BRACKET, CONVERTOR PROTECTOR, REAR | ||||
| 18495-71010 |
3Y..YU6#,70 |
1 | ||
| 18495-38020 |
3Y..YU6#,70 |
1 | ||
| 18439A - BRACKET, CONVERTER PROTECTOR, RH | ||||
| 18439-35010 |
3Y..YU6#,70 |
2 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-63010 |
3Y..YU6#,70 |
1 | ||
| Common parts | ||||
| 90105-10018 | ||||
| 90117-08025 | ||||
| 90119-08705 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-06007 | ||||
| 90179-08040 | ||||
| 90179-08144 | ||||
| 91511-61035 | ||||
| 91512-61035 | ||||
| 91611-60835 | ||||
| 91631-60822 | ||||
| 91651-41020 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94180-40800 | ||||
| 94185-60800 | ||||

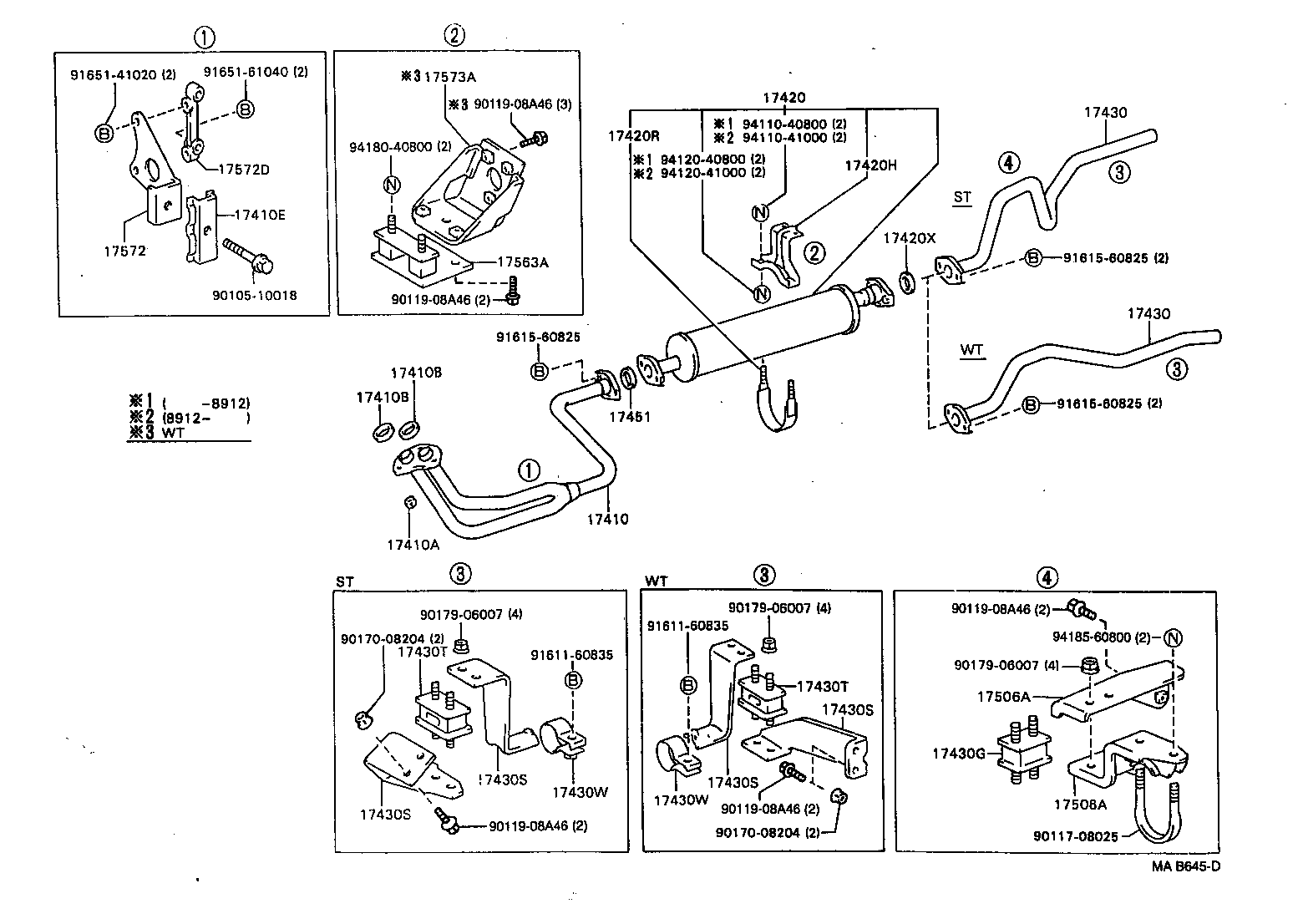

(8808-9008)3Y..DM1,SRF,T1,T3,TW1 ; (8811- )3YP..T3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-73090 |
3Y#..YU60,70 |
1 | ||
| 17410-73490 |
3Y..YU60,70..ST |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1W,3Y#..WU75,85,9#,YU6#,70 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
3Y#..YU6#,70 |
2 | ||
| 90917-06038 |
3Y#..YU6#,70 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
3Y#..YU6#,70 |
2 | ||
| 90917-06038 |
3Y#..YU6#,70 |
2 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17589-27010 |
3Y#..YU6#,70 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-73080 |
3Y..YU60,70..ST |
1 | ||
| 17420-58090 |
3Y..YU61;3Y#..YU60,70..ST |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-58020 |
3Y..YU6#,70 |
1 | ||
| 17576-56020 |
3Y#..YU6#,70 |
1 | ||
| 17576-56021 |
3Y#..YU6#,70 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-56011 |
3Y#..YU6#,70 |
1 | ||
| 17504-56010 |
3Y#..YU6#,70 |
1 | ||
| 17504-58010 |
3Y..YU6#,70 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
3Y..YU6#,70 |
1 | ||
| 90917-06008 |
1W,3Y#..WU75,85,9#,YU6#,70 |
1 | ||
| 90917-06005 |
3Y..YU6#,70 |
1 | ||
| 90917-06047 |
1W,3Y#..WU75,85,9#,YU6#,70 |
1 | ||
| 90917-06045 |
1W,3Y#..WU75,85,9#,YU6#,70 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58070 |
3Y#..YU60..ST |
1 | ||
| 17430-73370 |
3Y..YU60..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58070 |
3Y#..YU60..ST |
1 | ||
| 17430-73370 |
3Y..YU60..ST |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
3Y..YU60,70;3YP..YU60..ST |
1 | ||
| 17567-61030 |
3Y#..YU60,70..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-58050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17561-56010 |
3Y#..YU60..T3..ST;3Y#..YU60,70..SRF,T1,T2,TW1,TW2 PIPE SIDE |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
1W,3Y#..WU85,9#,YU6#,70 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
1W,3Y#..WU85,9#,YU6#,70 |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32005 |
3Y#..YU6#,70 |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32005 |
3Y#..YU6#,70 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
3Y..YU6#,70 |
2 | ||
| 90917-06045 |
3Y..YU6#,70 |
2 | ||
| 90917-06047 |
3Y..YU6#,70 |
2 | ||
| 90917-06008 |
1W,3Y#..WU9#,YU6#,70 |
1 | ||
| 90917-06008 |
3Y#..YU6#,70 |
1 | ||
| 90917-06045 |
3Y..YU6#,70 |
2 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y#..YU60,70..ST PIPE SIDE |
1 | ||
| 17575-73050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17575-73050 |
3Y..YU60,70;3YP..YU60..ST BODY SIDE |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y#..YU60,70..ST PIPE SIDE |
1 | ||
| 17575-73050 |
3Y#..YU60,70..ST BODY SIDE |
1 | ||
| 17575-73050 |
3Y..YU60,70;3YP..YU60..ST BODY SIDE |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
3Y#..YU6#,70 |
1 | ||
| 17563-58010 |
3Y#..YU60,70 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-73090 |
3Y#..YU6#,70 |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
3Y#..YU6#,70 |
1 | ||
| Common parts | ||||
| 90105-10018 | ||||
| 90117-08025 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-06007 | ||||
| 91611-60835 | ||||
| 91615-60825 | ||||
| 91651-41020 | ||||
| 91651-61040 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94180-40800 | ||||
| 94185-60800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
