YU60-MDP (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 6(8708- )YU6#,70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
WU75,9#,YU6#,70 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
WU75,9#,YU6#,70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
WU75,9#,YU6#,70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
WU75,9#,YU6#,70 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
WU75,9#,YU6#,70 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
WU75,9#,YU6#,70 |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-22030 |
WU9#,YU60 |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-22030 |
WU9#,YU60 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-36020 | ||||
| 82711-36070 | ||||
| 82711-36080 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90463-08124 | ||||
| 91611-60816 | ||||
| 91651-40825 | ||||
| 91651-41020 | ||||
| 91656-40816 | ||||
| 94613-10601 | ||||
ILLUST NO. 2 OF 6(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84162-95402 |
YU6#,70 |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10170 |
YU6#,70 12V 1.12W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95401 |
YU6#,70 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10170 |
YU6#,70 12V 1.12W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
YU6#,70 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
YU6#,70 FR HEATER |
1 | ||
| 84732-87001 |
YU60..175 RR HEATER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
YU6#,70 14V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95403 |
YU6#,70 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95400 |
YU6#,70 NO.1 |
1 | ||
| Common parts | ||||
| 83566-14512 | ||||
| 90189-05054 | ||||
| 90463-15003 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 93560-15016 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

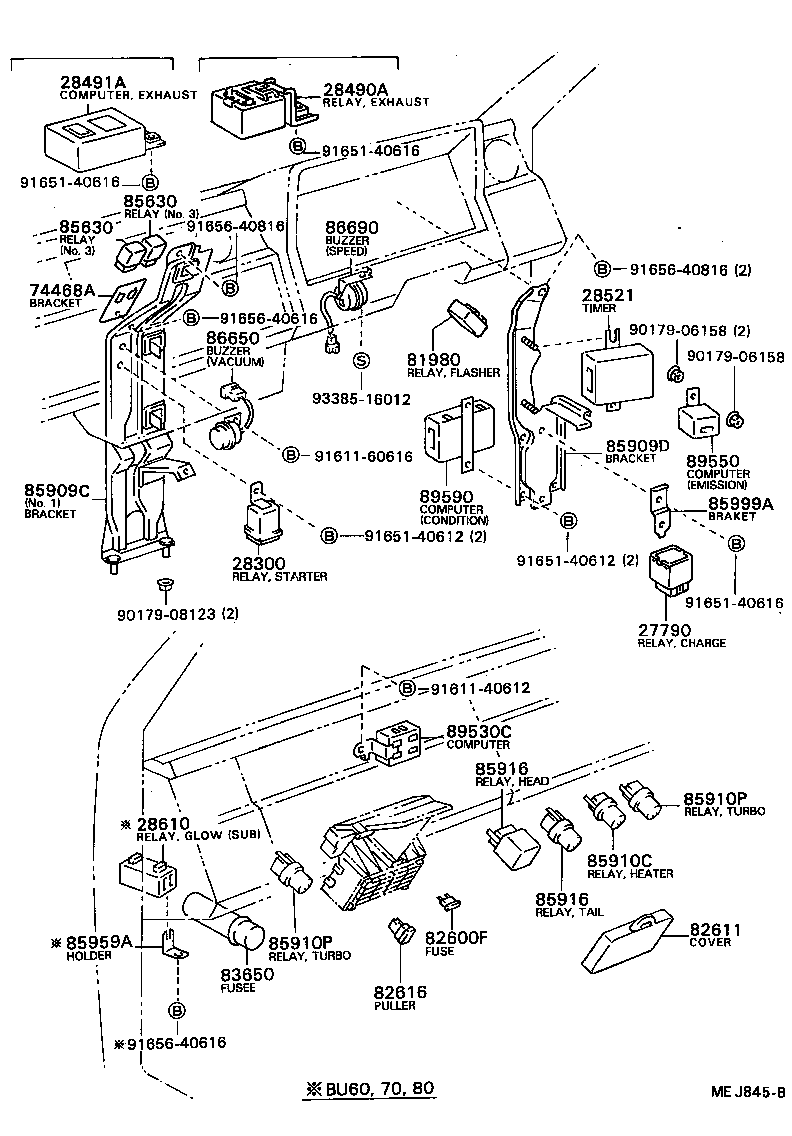

ILLUST NO. 4 OF 6(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
YU6#,70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
WU75,9#,YU6#,70 10A |
1 | ||
| 90982-09003 |
YU6#,70 15A |
8 | ||
| 90982-09004 |
WU75,9#,YU6#,70 20A,黄 |
3 | ||
| 90982-09005 |
YU6#,70 7.5A |
6 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95408 |
YU6#,70 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
WU75,9#,YU6#,70 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
WU75,9#,YU6#,70 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95400 |
YU6#,70 NO.1 |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95400 |
WU75,9#,YU6#,70 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
YU6#,70 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
YU6#,70 HEADLAMP |
1 | ||
| 90987-01003 |
YU6#,70 TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
YU6#,70 HEADLAMP |
1 | ||
| 90987-01003 |
YU6#,70 TAIL LAMP |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25030 |
YU6#,70 |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95J01 |
YU6#,70 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-36070 |
YU6#,70 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-40612 | ||||
| 91611-60616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 93385-16012 | ||||

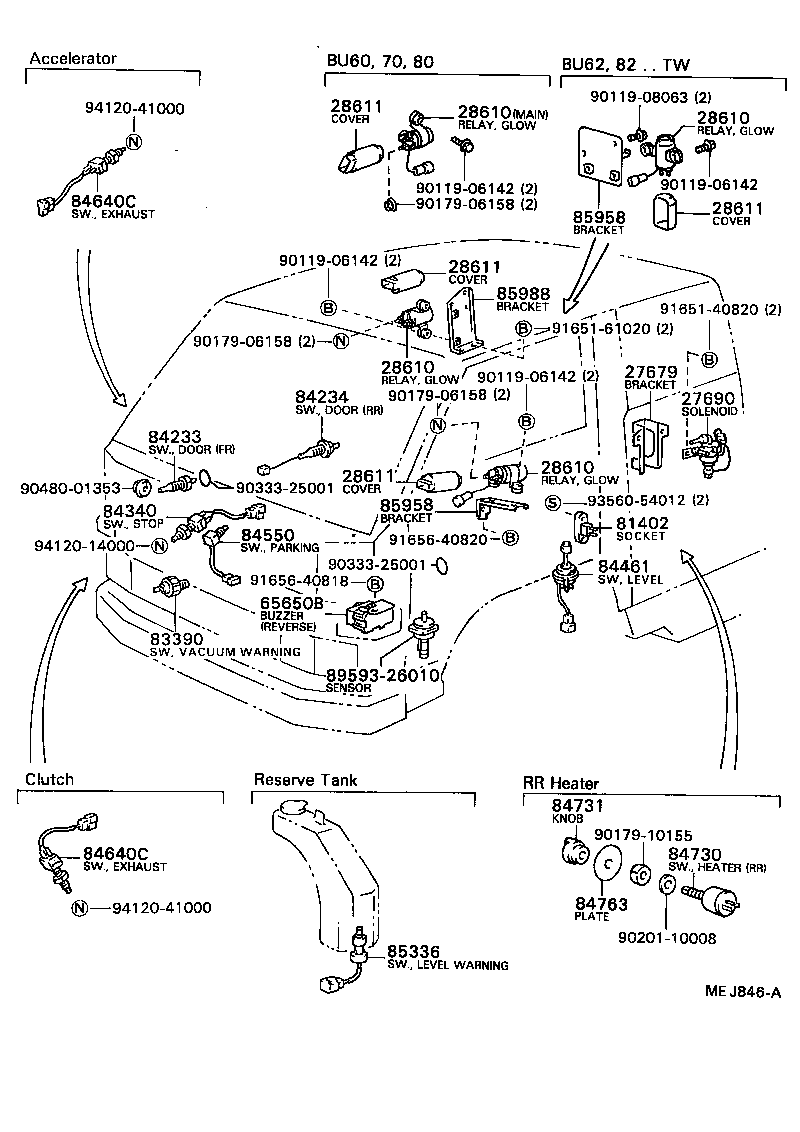

ILLUST NO. 5 OF 6(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
YU6#,70 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
WU75,9#,YU6#,70 |
1 | ||
| 84231-28020 |
WU75,9#,YU6#,70 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
WU75,9#,YU6#,70 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-25010 |
WU75,9#,YU6#,70 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
YU6#,70 FR HEATER |
1 | ||
| 84732-87001 |
YU60..175 RR HEATER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
YU60..175 |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-95010 |
YU60..175 |
1 | ||
| Common parts | ||||
| 89593-26010 | ||||
| 90119-06142 | ||||
| 90119-08063 | ||||
| 90179-06158 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90480-01353 | ||||
| 91651-40820 | ||||
| 91651-61020 | ||||
| 91656-40818 | ||||
| 91656-40820 | ||||
| 93560-54012 | ||||
| 94120-14000 | ||||
| 94120-41000 | ||||

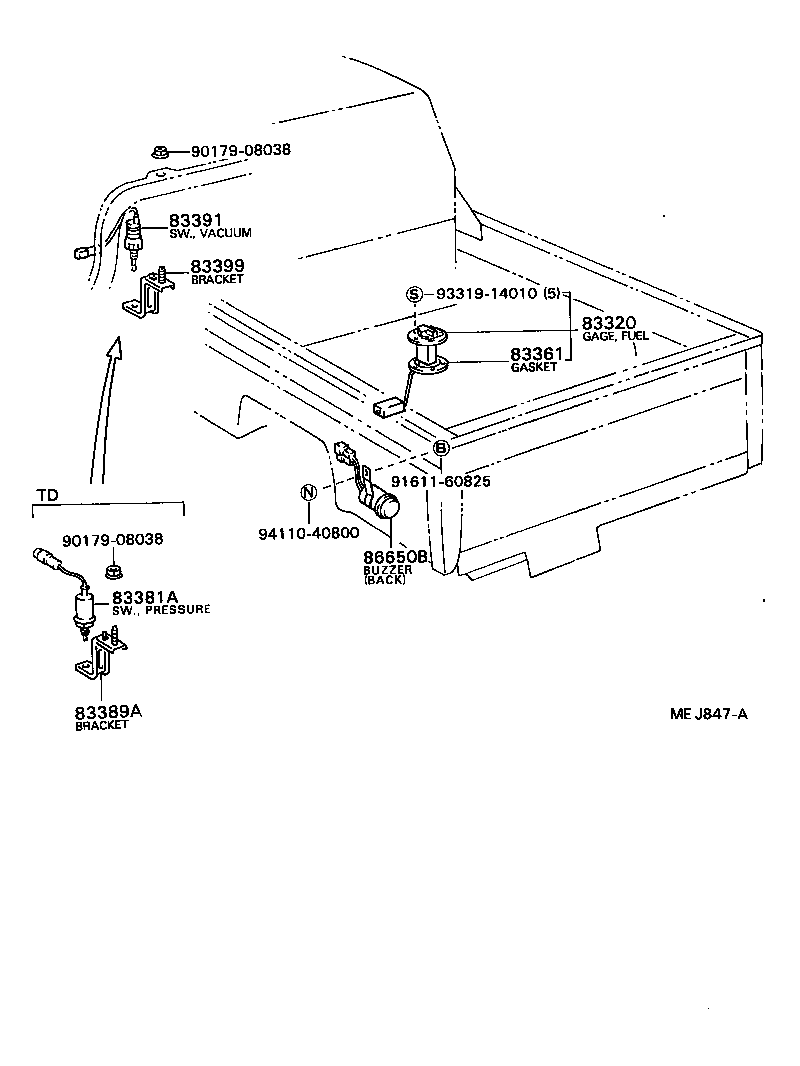

ILLUST NO. 6 OF 6(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
YU60,70..SRF,T1,T2,TW1,TW2 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
WU75,9#,YU6#,70 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-32030 |
YU6#,70 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-36020 |
YU6#,70 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95418 |
YU6#,70 ﾊﾞﾂｸ ﾌﾞｻﾞ- |
1 | ||
| 86650-95420 |
YU6#,70 ﾘﾊﾞ-ｽ ｳｵ-ﾆﾝｸﾞ |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91611-60825 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
ILLUST NO. 3 OF 6(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
YU6#,70 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36090 |
YU6#,70 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36360 |
YU6#,70 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
WU75,9#,YU6#,70 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36010 |
YU6#,70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36270 |
YU6#,70 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40009 | ||||
| 90164-44001 | ||||
| 90463-15003 | ||||
| 90464-00551 | ||||
| 91651-40818 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14620 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91612-60616 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 93385-16012 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 28622-57010 | ||||
| 28623-78010 | ||||
| 82711-36020 | ||||
| 90179-08059 | ||||
| 90201-10042 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 93385-16014 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30070 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90464-00232 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 91656-40818 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 82711-14620 | ||||
| 91656-40616 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08668 | ||||
| 90179-10016 | ||||
| 90179-10132 | ||||
| 90333-25001 | ||||
| 90480-01353 | ||||
| 91651-40820 | ||||
| 94120-41000 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 89593-26010 | ||||
| 90119-06142 | ||||
| 90179-06158 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
(8808-9505)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-95410 | ||||
| 90179-08038 | ||||
| 90430-08252 | ||||
| 91611-60825 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 94110-70800 | ||||
