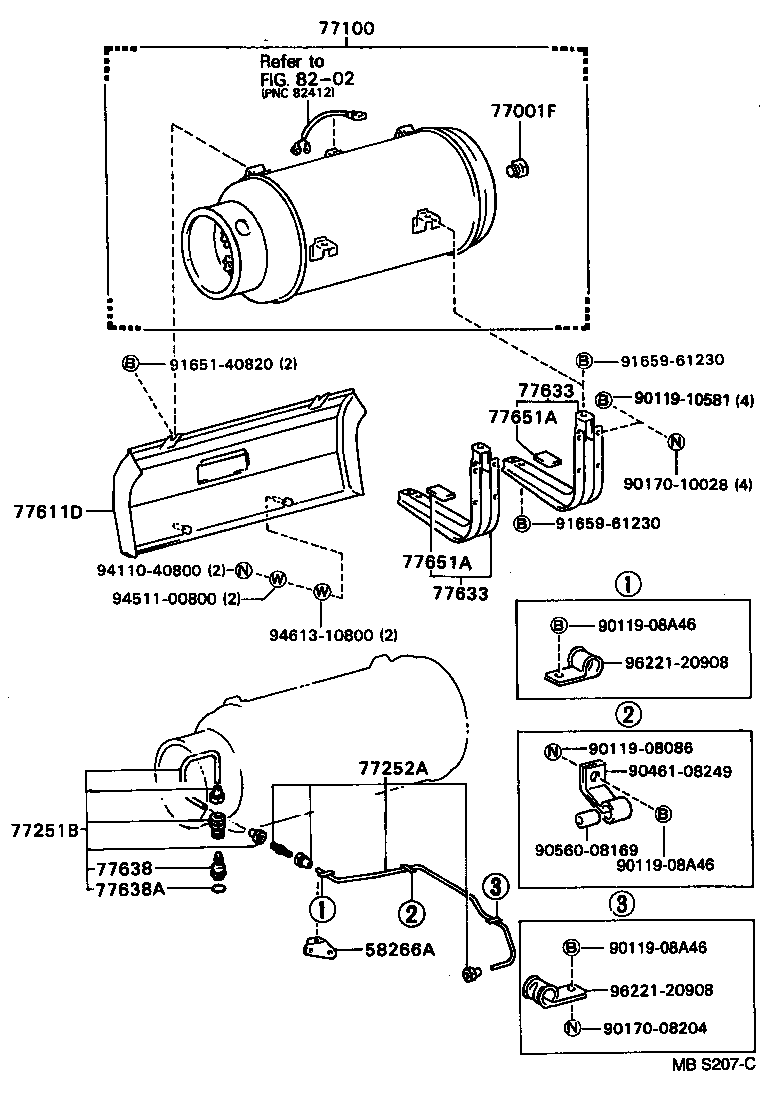

Toyota Dyna/toyoace YU60 FUEL TANK & TUBE

Part #	Description	Period	Qty
58266A - BRACKET, FUEL TUBE CLAMP
58266-36290	YU60..LPG	11/1988 - 10/1993	1
77001F - PLUG, LPG TANK
90345-26001	YU60..LPG	11/1988 - 10/1993	1
77100 - TANK ASSY, FUEL
77001-3B220	YU60..T2..LPG	12/1989 - 10/1993	1
77001-36770	YU60..T2..LPG	11/1988 - 12/1989	1
77251B - TUBE, FUEL MAIN
77205-36760	YU60..T2..LPG ﾌｭｰｴﾙﾀﾝｸへ接続	02/1990 - 10/1993	1
77205-36730	YU60..T2..LPG	12/1989 - 02/1990	1
77205-36770	YU60..LPG TO FILTER	02/1990 - 10/1993	1
77205-36350	YU60..T2..LPG	11/1988 - 12/1989	1
77252A - TUBE, FUEL MAIN, NO.2
77206-36240	YU60..LPG	11/1988 - 12/1989	1
77206-36400	YU60..LPG	12/1989 - 10/1993	1
77611D - COVER, FUEL TANK, RH
77611-36180	YU60..T2..LPG	11/1988 - 10/1993	1
77633 - STAY, FUEL TANK
77633-36160	YU60..T2..LPG	11/1988 - 10/1993	2
77633 - STAY, FUEL TANK
77633-36160	YU60..T2..LPG	11/1988 - 10/1993	2
77638 - SLEEVE, TANK VALVE JOINT
77638-20011	YU60..LPG	11/1988 - 10/1993	1
77638A - RING, O (FOR TANK VALVE JOINT SLEEVE)
96712-24011	YU60..LPG	11/1988 - 10/1993	1
77651A - CUSHION, FUEL TANK, NO.1
77651-36120	YU60..LPG	11/1988 - 10/1993	4
77651A - CUSHION, FUEL TANK, NO.1
77651-36120	YU60..LPG	11/1988 - 10/1993	4
Common parts
90119-08086
90119-08A46
90119-10581
90170-08204
90170-10028
90461-08249
90560-08169
91651-40820
91659-61230
94110-40800
94511-00800
94613-10800
96221-20908
Linked diagrams
8202

YU60-MDGTU3 (1988)
