YU60-MDGTU (1988)
Toyota Dyna/Toyoace
Production
Nov 1988
-
Oct 1993
Engine
3YP
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8811- )3YP

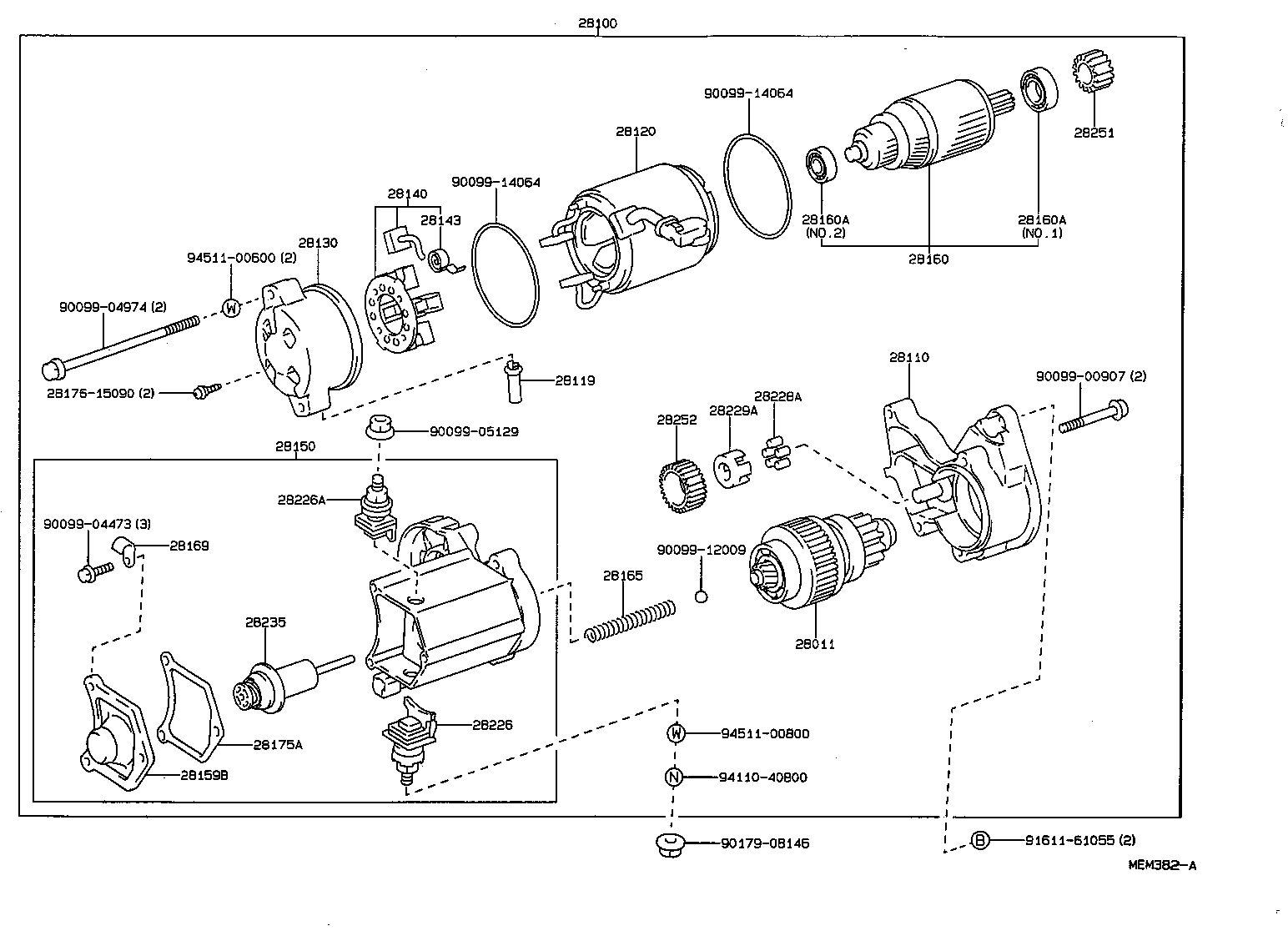

Click highlighted areas on diagram
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3Y#..YU6#,70 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72010 |
3Y#..YU6#,70 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72010 |
3Y#..YU6#,70 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3Y#..YU6#,70 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72010 |
3Y#..YU6#,70 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3Y#..YU6#,70 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3Y#..YU6#,70 |
4 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3Y#..YU6#,70 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
3YP..YU60 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160-26070 |
3Y#..YU6#,70 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y#..YU6#,70 NO.1 |
1 | ||
| 28253-45020 |
3Y#..YU6#,70 NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y#..YU6#,70 NO.1 |
1 | ||
| 28253-45020 |
3Y#..YU6#,70 NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3Y#..YU6#,70 |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3Y#..YU6#,70 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3Y#..YU6#,70 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
3Y#..YU6#,70 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3Y#..YU6#,70 |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3Y#..YU6#,70 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3Y#..YU6#,70 |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3Y#..YU6#,70 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3Y#..YU6#,70 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
