YU60-MDGTU (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 3YP
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )3Y

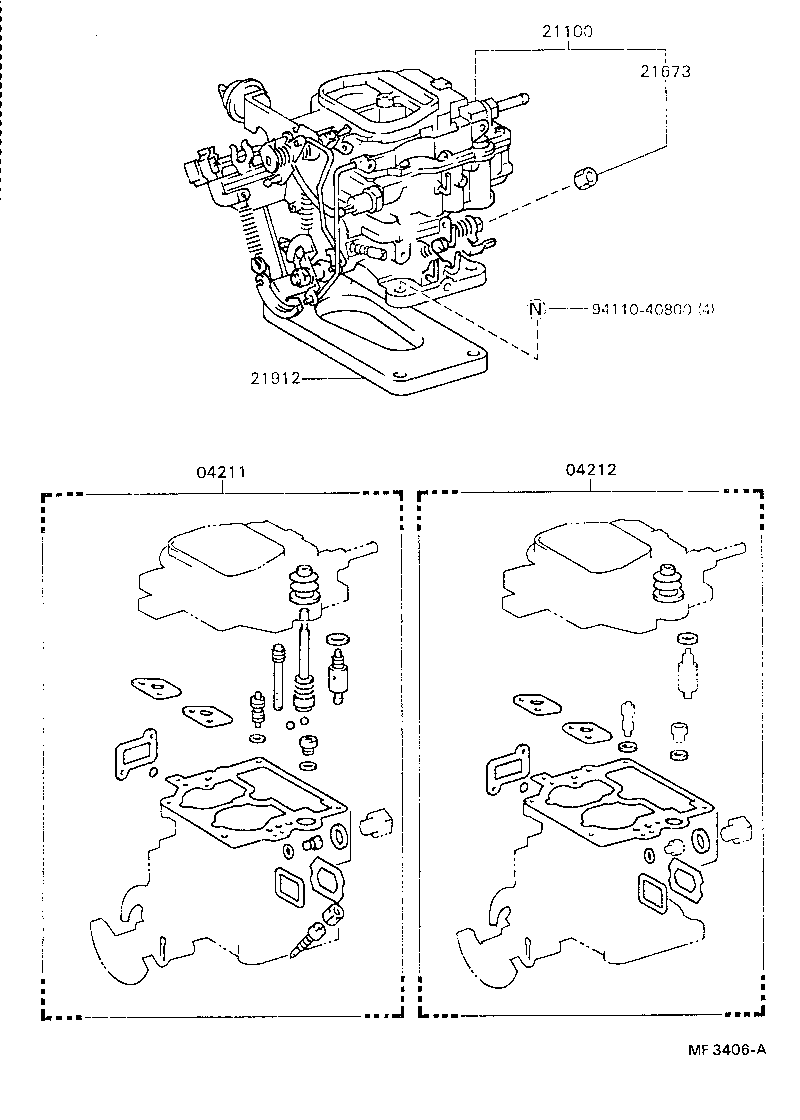

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-73120

3Y..YU6#,70

 1
04211-73040

3Y..YU60,70

 1
04212 - GASKET KIT, CARBURETOR
04212-71030

3Y..YU60,70

 1
04212-73020

3Y..YU6#,70

 1
21100 - CARBURETOR ASSY
21100-73110

3Y..YU6#,70

 1
21100-73111

3Y..YU6#,70

 1
21673 - CAP, IDLE LIMIT
21673-71030

3Y..YU6#,70

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-71020

3Y..YU6#,70

 1
Common parts
94110-40800
