YU60-MDGT (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YU60..T2,T3,TW2

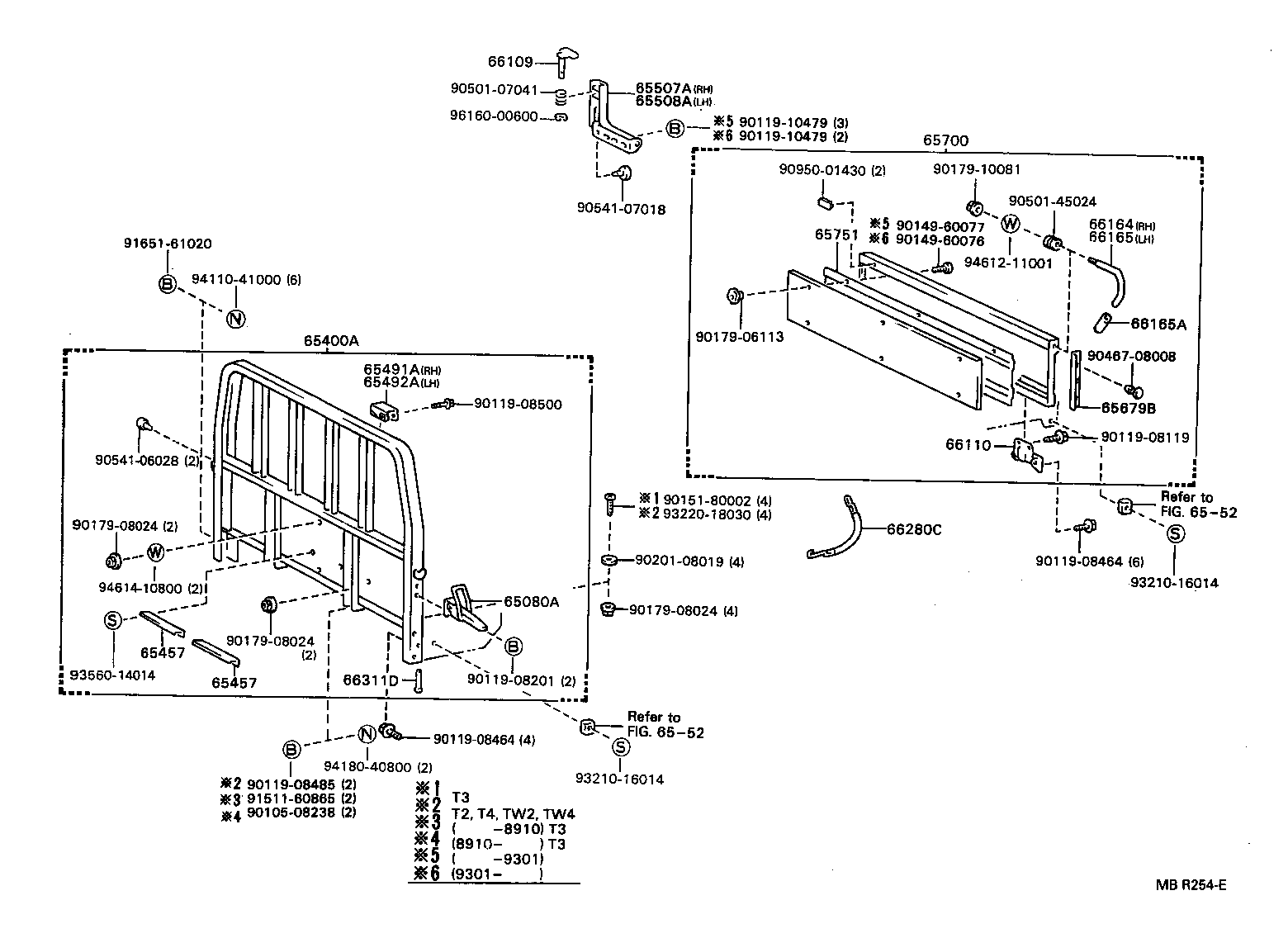

Click highlighted areas on diagram

diagram 65080A 65400A 65457 65457 65491A 65492A 65507A 65508A 6552 6552 65679B 65700 65751 66109 66110 66164 66165 66165A 66280C 66311D 9010508238 9011908119 9011908201 9011908464 9011908464 9011908485 9011908500 9011910479 9011910479 9014960076 9014960077 9015180002 9017906113 9017908024 9017908024 9017908024 9017910081 9020108019 9046708008 9050107041 9050145024 9054106028 9054107018 9095001430 9151160865 9165161020 9321016014 9321016014 9322018030 9356014014 9411041000 9418040800 9461211001 9461410800 9616000600
Part # Description Qty Price
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 2
65400A - GUARD ASSY, REAR BODY
65400-37230

YU60..T2..CBR..CBU

 1
65400-92743

YU60..T2..CBU

 1
65400-37020

YU60..T2..CBR..CBU

 1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-92702

YU60..(T2,T3,TW2)..CBU

SIDE,L=290

 2
65457-92702

YU60..(T2,T3)..CBU

 2
65457-37120

YU60..(T2,T3,TW2)..CBU

SIDE,L=240

 2
65457-37060

YU60..(T2,T3,TW2)..CBU

CENTER,L=615

 1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-92702

YU60..(T2,T3,TW2)..CBU

SIDE,L=290

 2
65457-92702

YU60..(T2,T3)..CBU

 2
65457-37120

YU60..(T2,T3,TW2)..CBU

SIDE,L=240

 2
65457-37060

YU60..(T2,T3,TW2)..CBU

CENTER,L=615

 1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-92702

YU60..(T2,T3,TW2)..CBU

 1
65491-37010

YU60..(T2,T3,TW2)..CBU

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-37010

YU60..(T2,T3,TW2)..CBU

 1
65492-92700

YU60..(T2,T3,TW2)..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-92706

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-92706

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 1
65679B - SEAL, TAIL GATE
65679-92707

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 2
65700 - GATE ASSY, REAR BODY TAIL
65700-92721

YU60..(T2,T3,TW2)..CBU

 1
65751 - PANEL, TAIL GATE
65751-92703

YU60..(T2,T3,TW2)..CBU

 1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66109-92701

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 2
66110 - HINGE ASSY, TAIL GATE
66110-92702

YU60..(T2,T3,TW2)..CBU

 3
66164 - HANDLE, TAIL GATE LATCH, RH
66264-92700

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-92700

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-92701

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 2
66280C - CHAIN ASSY, TAIL GATE
66280-92702

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 2
66311D - HOOK, ROPE
66311-92701

WU85,9#,YU60..(T2,T3,T4,TW2)..CBU

 2
Common parts
90105-08238
90119-08119
90119-08201
90119-08464
90119-08485
90119-08500
90119-10479
90149-60076
90149-60077
90151-80002
90179-06113
90179-08024
90179-10081
90201-08019
90467-08008
90501-07041
90501-45024
90541-06028
90541-07018
90950-01430
91511-60865
91651-61020
93210-16014
93220-18030
93560-14014
94110-41000
94180-40800
94612-11001
94614-10800
96160-00600
Linked diagrams
6552

(9109- )T2,T3,T4

Click highlighted areas on diagram

diagram 6515492802 66033A 66039 6618592700 66302 66303E 66335 66336 6646592720 9020110046 9020110046 9020111369 9020111369 9024910097 9044114001 9111141070 9111151060 9118151260 9161140820 9327018035 9411040800 9418041000 9418041000 9453100800 9461210800 9616000800 9616000800
Part # Description Qty Price
Common parts
65154-92802
66185-92700
66465-92720
90201-10046
90201-11369
90249-10097
90441-14001
91111-41070
91111-51060
91181-51260
91611-40820
93270-18035
94110-40800
94180-41000
94531-00800
94612-10800
96160-00800
