YU60-MDDUJ3 (1988)
Toyota Dyna/Toyoace
Production
Nov 1988
-
Oct 1993
Engine
3YP
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9309)YU6#,70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88407 - GLASS SUB-ASSY, SIGHT | ||||
| 88407-95701 |
YU6#,70 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95405 |
YU6#,70 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95416 |
YU60,70 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95417 |
YU60,70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95400 |
YU6#,70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95408 |
YU6#,70 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
YU60..LPG 250G |
3 | ||
| 90986-02004 |
WU75,85,9#,YU6#,70 250G |
3 | ||
| 90986-02004 |
YU6#,70 250G |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95422 |
YU60,70 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95417 |
YU6#,70 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95420 |
YU6#,70 |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95431 |
YU60,70 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95413 |
YU6#,70 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-95405 |
YU6#,70 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95409 |
YU6#,70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95403 |
YU6#,70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95405 |
YU6#,70 |
1 | ||
| 88717J - PIPE, COOLER REFRIGERANT SUCTION, J | ||||
| 88717-95407 |
YU6#,70 |
1 | ||
| 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88896-95705 |
YU6#,70 |
1 | ||
| Common parts | ||||
| 87241-95400 | ||||
| 88688-95439 | ||||
| 88718-12790 | ||||
| 88718-30720 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 88718-95426 | ||||
| 88718-95429 | ||||
| 88718-95A06 | ||||
| 90099-01225 | ||||
| 90179-08123 | ||||
| 90461-08205 | ||||
| 91651-60835 | ||||
| 91666-40832 | ||||
| 93381-18016 | ||||
| 93381-18040 | ||||
| 93385-16016 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
(9309- )YU60

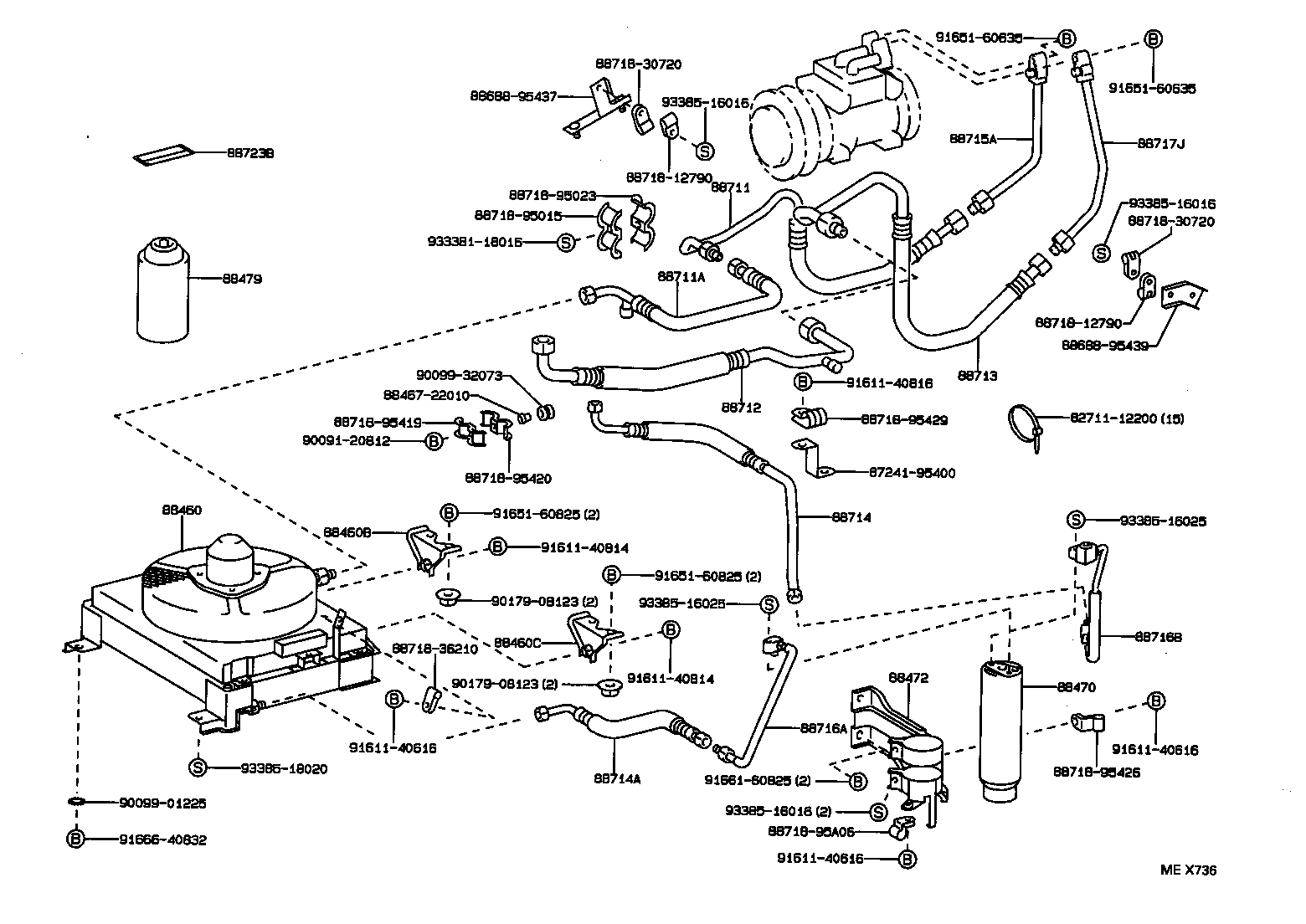

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95405 |
YU6#,70 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-95416 |
YU60,70 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-95417 |
YU60,70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95400 |
YU6#,70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95408 |
YU6#,70 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
YU60..LPG 250G |
3 | ||
| 90986-02004 |
WU75,85,9#,YU6#,70 250G |
3 | ||
| 90986-02004 |
YU6#,70 250G |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95422 |
YU60,70 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-95417 |
YU6#,70 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95420 |
YU6#,70 |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-95431 |
YU60,70 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95413 |
YU6#,70 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-95405 |
YU6#,70 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-95409 |
YU6#,70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95403 |
YU6#,70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95405 |
YU6#,70 |
1 | ||
| 88717J - PIPE, COOLER REFRIGERANT SUCTION, J | ||||
| 88717-95407 |
YU6#,70 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 87241-95400 | ||||
| 88467-22010 | ||||
| 88688-95437 | ||||
| 88688-95439 | ||||
| 88718-12790 | ||||
| 88718-30720 | ||||
| 88718-36210 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 88718-95426 | ||||
| 88718-95429 | ||||
| 88718-95A06 | ||||
| 90091-20812 | ||||
| 90099-01225 | ||||
| 90099-32073 | ||||
| 90179-08123 | ||||
| 91611-40616 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91651-60635 | ||||
| 91651-60825 | ||||
| 91661-60825 | ||||
| 91666-40832 | ||||
| 93381-18016 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-18020 | ||||
| 93385-46025 | ||||
