YU60-MDDU3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987

Engine 3YP

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8409- )LPG

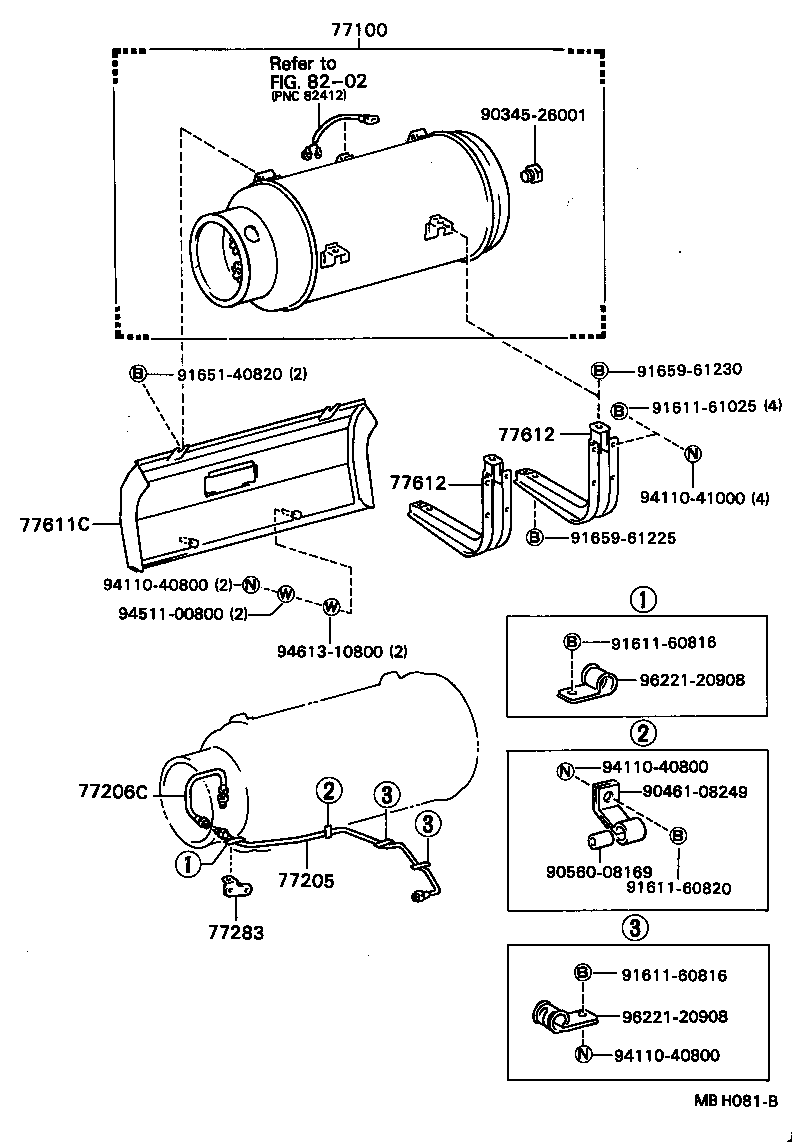

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
77100 - TANK ASSY, FUEL
77001-36760	YU60,80..T3..LPG	09/1984 - 08/1987	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36240	YU60,80..LPG	09/1984 - 08/1987	1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36340	YU60,80..T3..LPG	09/1984 - 08/1987	1
77283 - BRACKET, FUEL TUBE
58266-36290	YU60,80..LPG	09/1984 - 08/1987	1
77611C - COVER, FUEL TANK GUARD
77611-36160	YU60,80..T3..LPG	09/1984 - 08/1987	1
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36150	YU60,80..T3..LPG	09/1984 - 08/1987	2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36150	YU60,80..T3..LPG	09/1984 - 08/1987	2
Common parts
90345-26001
90461-08249
90560-08169
91611-60816
91611-60820
91611-61025
91651-40820
91659-61225
91659-61230
94110-40800
94110-41000
94511-00800
94613-10800
96221-20908
Linked diagrams
8202
