Toyota Dyna/toyoace YU60 VACUUM PIPING

YU60-MDDTU3 (1988)

Toyota Dyna/Toyoace

Production Nov 1988 - Oct 1993

Engine 3YP

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

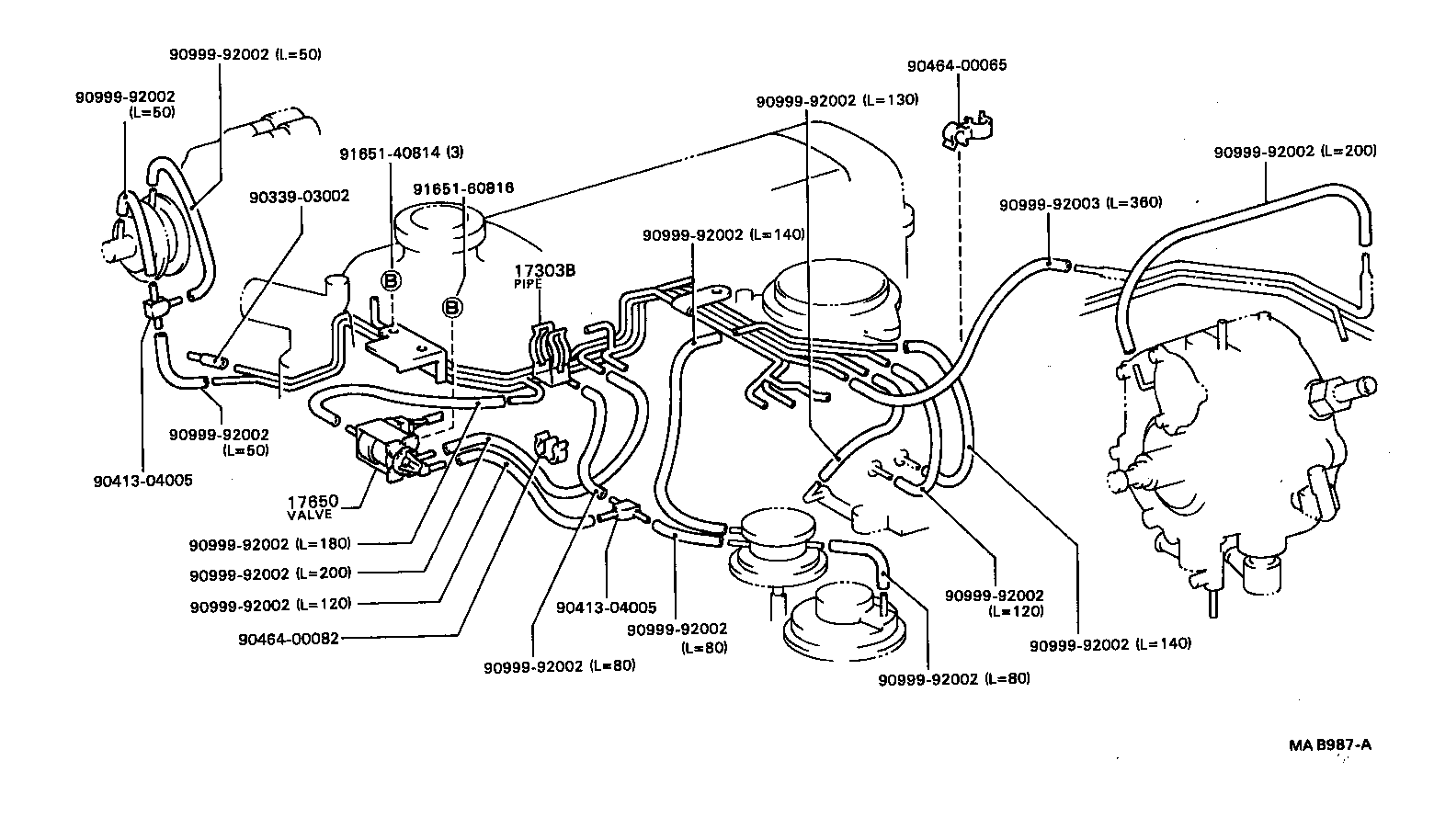

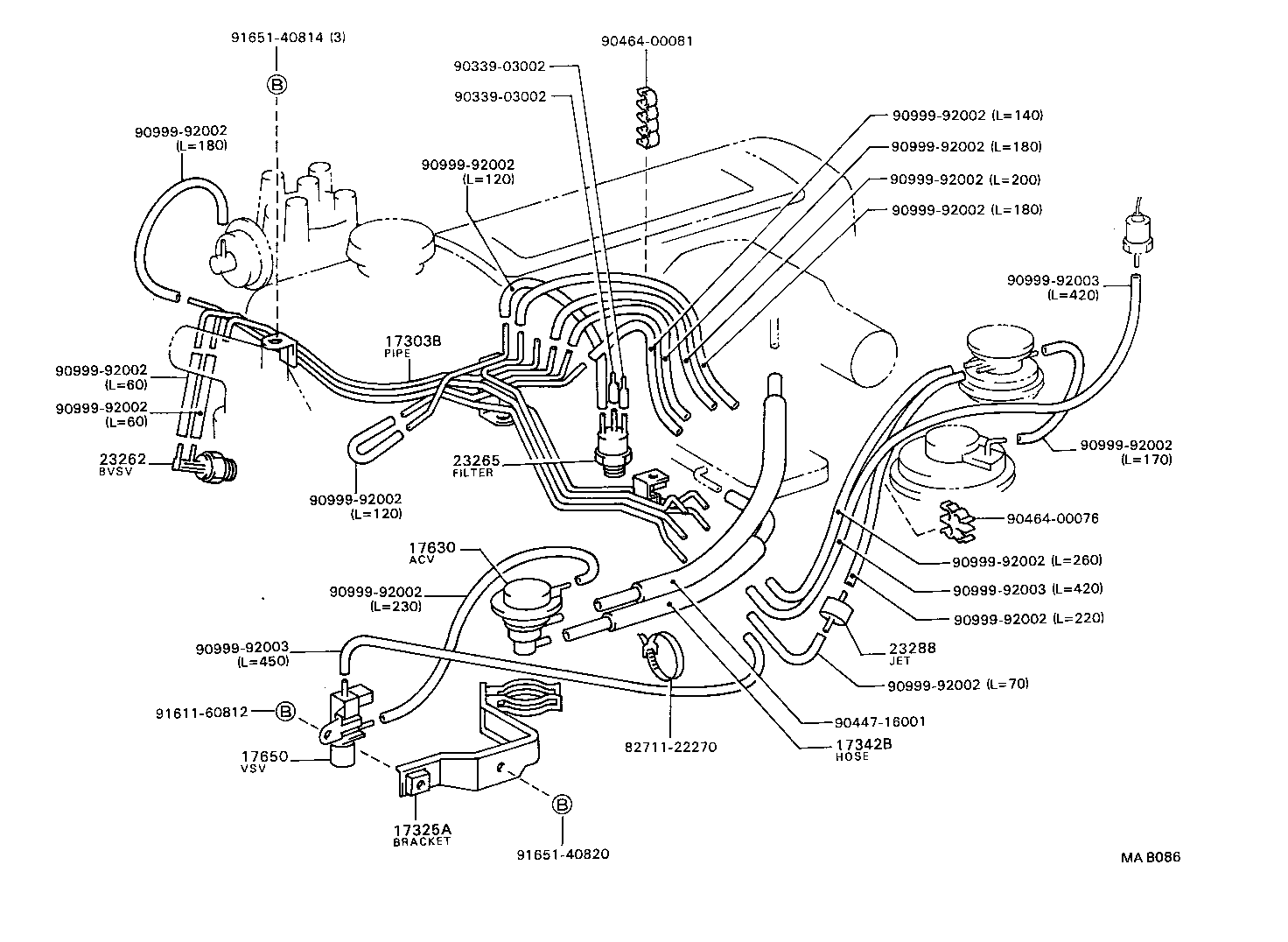

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-72010	3YP..YU60	11/1988 - 10/1993	1
17303-71052	3Y..YU6#,70	08/1988 - 08/1990	1
17303-72021	3Y..YU6#,70	08/1990 - 09/1993	1
17325A - BRACKET, AIR VALVE
17325-73010	3Y..YU6#,70	08/1988 - 12/1990	1
17325-73011	3Y..YU6#,70	12/1990 - 09/1993	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-73021	3Y..YU6#,70	12/1989 - 09/1993	1
17342-73020	3Y..YU6#,70	08/1988 - 12/1989	1
17630 - VALVE ASSY, AIR CONTROL
17300-73011	3Y..YU6#,70	12/1990 - 09/1993	1
17300-73010	3Y..YU6#,70	08/1988 - 12/1990	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12072	3Y..YU6#,70	08/1988 - 09/1993	1
89570-36060	3YP..YU60	11/1988 - 10/1993	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044	3Y..YU6#,70	08/1990 - 09/1993	1
90925-05041	3Y..YU6#,70	08/1988 - 08/1990	1
23265 - FILTER, GAS, NO.1
90917-11024	3Y..YU6#,70	08/1988 - 04/1990	1
23288 - JET, NO.1
90925-04006	3Y..YU6#,70	08/1988 - 08/1990	1
90925-04004	3Y..YU6#,70	08/1990 - 09/1993	1
Common parts
82711-22270
90339-03002
90447-16001
90464-00076
90464-00081
90999-92002
90999-92003
91611-60812
91651-40814
91651-40820

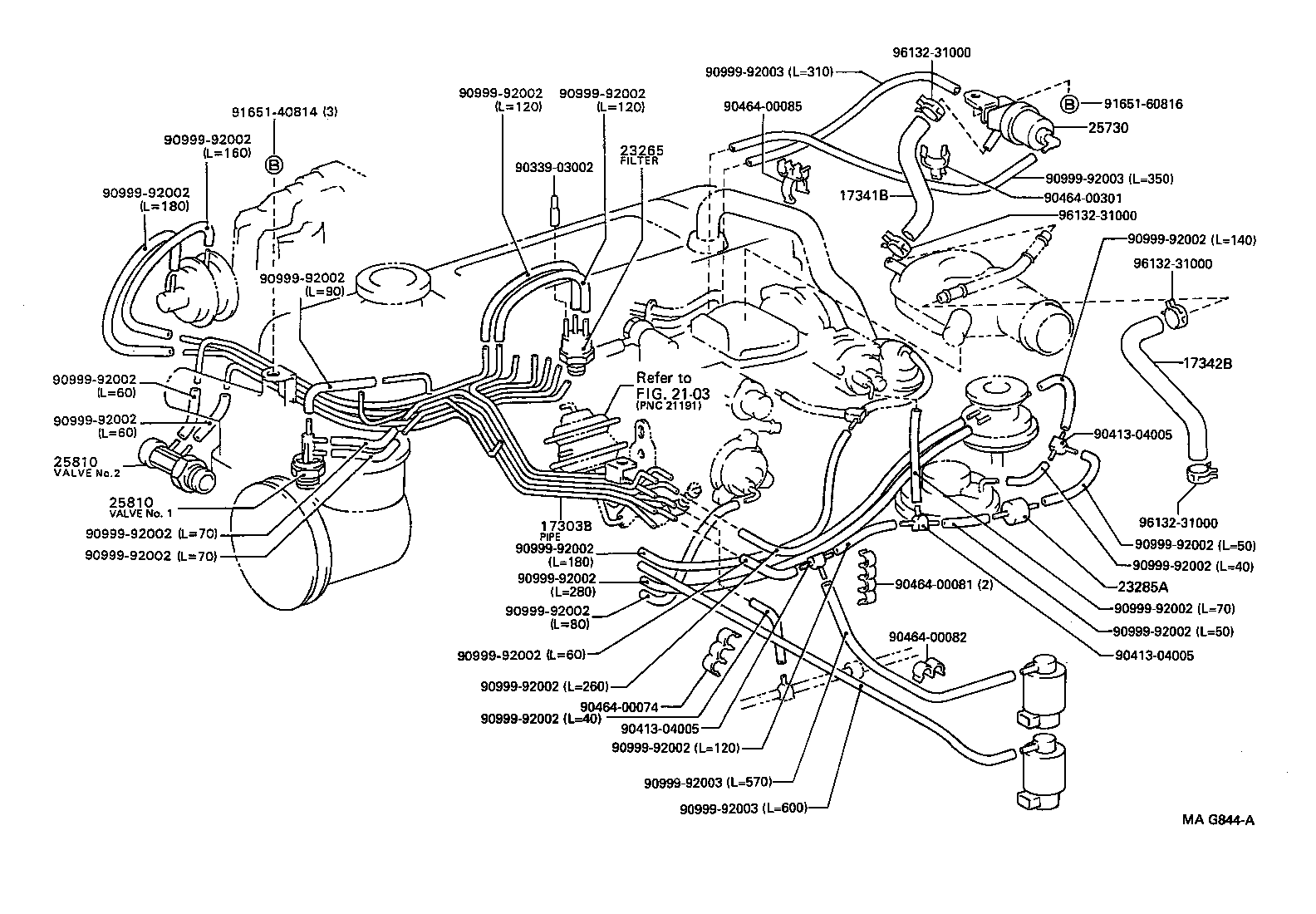

Click highlighted areas on diagram

Click highlighted areas on diagram

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-72010	3YP..YU60	11/1988 - 10/1993	1
17303-71052	3Y..YU6#,70	08/1988 - 08/1990	1
17303-72021	3Y..YU6#,70	08/1990 - 09/1993	1
17325A - BRACKET, AIR VALVE
17325-73010	3Y..YU6#,70	08/1988 - 12/1990	1
17325-73011	3Y..YU6#,70	12/1990 - 09/1993	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-73021	3Y..YU6#,70	12/1989 - 09/1993	1
17342-73020	3Y..YU6#,70	08/1988 - 12/1989	1
17630 - VALVE ASSY, AIR CONTROL
17300-73011	3Y..YU6#,70	12/1990 - 09/1993	1
17300-73010	3Y..YU6#,70	08/1988 - 12/1990	1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12072	3Y..YU6#,70	08/1988 - 09/1993	1
89570-36060	3YP..YU60	11/1988 - 10/1993	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05044	3Y..YU6#,70	08/1990 - 09/1993	1
90925-05041	3Y..YU6#,70	08/1988 - 08/1990	1
23265 - FILTER, GAS, NO.1
90917-11024	3Y..YU6#,70	08/1988 - 04/1990	1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03166	3Y..YU6#,70	08/1990 - 09/1993	1
23285A - VALVE, CHECK, NO.1
90917-10049	3Y..YU6#,70	08/1990 - 09/1993	2
23285A - VALVE, CHECK, NO.1
90917-10049	3Y..YU6#,70	08/1990 - 09/1993	2
23288 - JET, NO.1
90925-04006	3Y..YU6#,70	08/1988 - 08/1990	1
90925-04004	3Y..YU6#,70	08/1990 - 09/1993	1
25810 - VALVE ASSY, BIMETAL
90925-02077	3Y..YU6#,70	08/1990 - 09/1993	1
Common parts
82711-22270
90339-03002
90413-04005
90413-04008
90447-16001
90464-00074
90464-00076
90464-00082
90464-00098
90464-00314
90467-13007
90999-92002
90999-92003
91611-60812
91651-40814
91651-40820
Linked diagrams
2103
7751
