YU60-MDDTU3 (1988)
Toyota Dyna/Toyoace
Production
Nov 1988
-
Oct 1993
Engine
3YP
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

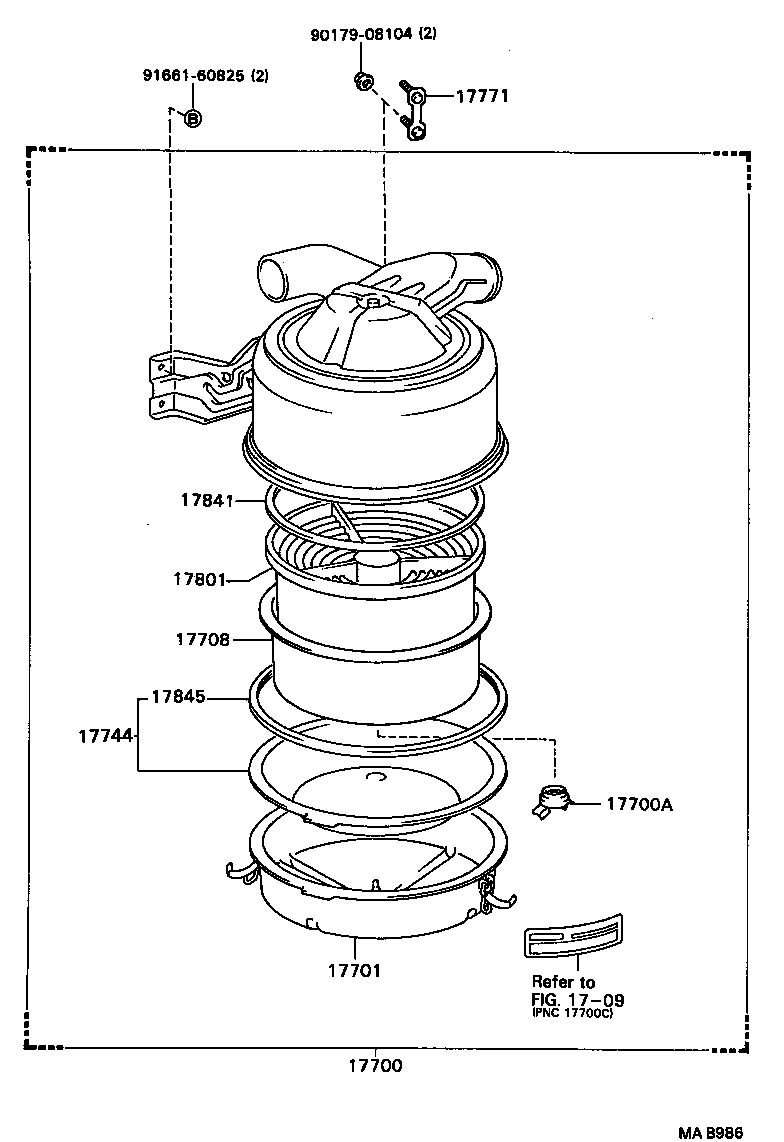

ILLUST NO. 1 OF 2(8811-9310)3YP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73101 |
3YP..YU60 |
1 | ||
| 17700-73230 |
3Y..YU6#,70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
3Y..YU6#,70 NO.2 |
1 | ||
| 90175-08008 |
3Y..YU6#,70 NO.1 |
1 | ||
| 90175-06003 |
3YP..YU60 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56130 |
3YP..YU60 |
1 | ||
| 17701-56170 |
3Y..YU6#,70 |
1 | ||
| 17708 - BAFFLE SUB-ASSY, AIR CLEANER | ||||
| 17708-56010 |
3YP..YU60 |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-56010 |
3YP..YU60 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-56020 |
3Y#..YU60,70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
3Y..YU6#,70 |
1 | ||
| 17801-56031 |
3YP..YU60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56031 |
3YP..YU60 |
1 | ||
| 17841-44030 |
3Y..YU6#,70 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3Y..YU6#,70 |
1 | ||
| 17845-56050 |
3YP..YU60 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
