YU60-MDDTJ (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )YU60..T3

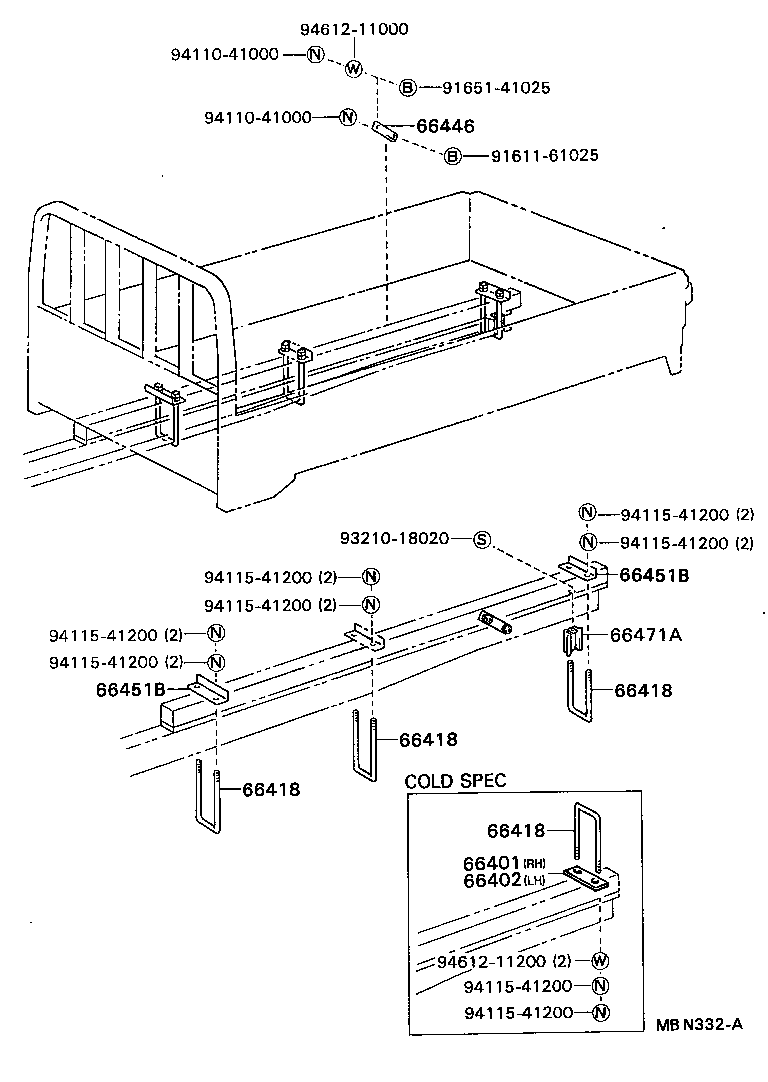

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
YU60..T3..WT..CBU NO.1 |
2 | ||
| 66463-92707 |
YU60..T3..WT..CBU NO.2 |
2 | ||
| 90117-12022 |
YU60..T3..WT..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
YU60..T3..WT..CBU NO.1 |
2 | ||
| 66463-92707 |
YU60..T3..WT..CBU NO.2 |
2 | ||
| 90117-12022 |
YU60..T3..WT..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
YU60..T3..WT..CBU NO.1 |
2 | ||
| 66463-92707 |
YU60..T3..WT..CBU NO.2 |
2 | ||
| 90117-12022 |
YU60..T3..WT..CBU NO.3 |
2 | ||
| 66418 - BOLT, MOUNTING | ||||
| 90117-12021 |
YU60..T3..WT..CBU NO.1 |
2 | ||
| 66463-92707 |
YU60..T3..WT..CBU NO.2 |
2 | ||
| 90117-12022 |
YU60..T3..WT..CBU NO.3 |
2 | ||
| 66446 - BRACE, FRAME FLOOR | ||||
| 66446-92701 |
YU60..T3..CBU |
2 | ||
| 66451B - PLATE, U BOLT | ||||
| 66466-92580 |
YU60..T3..CBU |
4 | ||
| 66451B - PLATE, U BOLT | ||||
| 66466-92580 |
YU60..T3..CBU |
4 | ||
| 66471A - REINFORCEMENT, FRAME U BOLT | ||||
| 66471-92701 |
YU60..T3..CBU |
2 | ||
| Common parts | ||||
| 91611-61025 | ||||
| 91651-41025 | ||||
| 93210-18020 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94612-11000 | ||||
| 94612-11200 | ||||
