YU60-MDDT3 (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

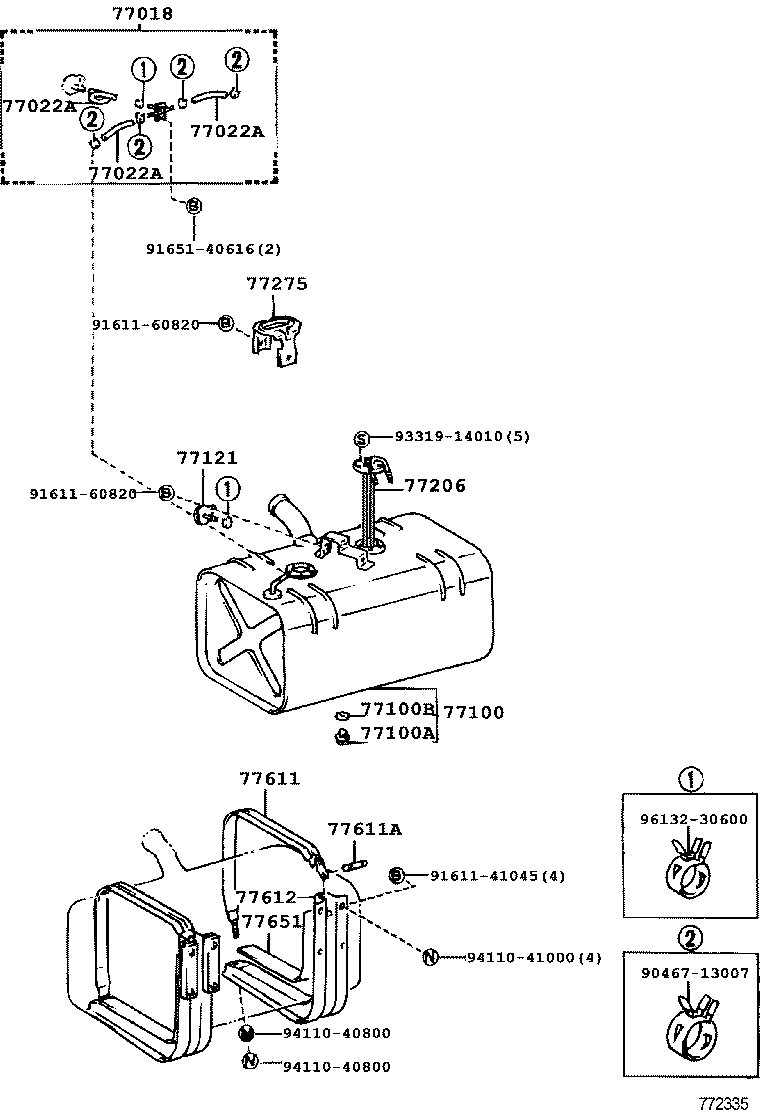

ILLUST NO. 1 OF 2(8409- )WU75,9#,YU60..DM1,T1,T3..CBR,DSL

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77100 77100A 77100B 77121 77206 77275 77611 77611A 77612 77651 9046713007 9161141045 9161160820 9161160820 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36140

YU6#..(DM1,T1,T3)..CBR

*TCA=70L

 1
77018-36051

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

 1
77100 - TANK ASSY, FUEL
77001-36730

YU6#..(DM1,T1,T3)..CBR

*TCA=70L

 1
77001-36680

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*TCA=60L

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

WU75,9#,YU6#,70..CBR,DSL

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

WU75,9#,YU6#,70..CBR,DSL

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-36191

WU75,9#,YU6#..(DM1,T1,T3)..(CBR,DSL)

*TCA=70L,90L

 1
77611 - BAND, FUEL TANK
77601-36150

YU6#..(DM1,T3)..WT..CBR

 2
77601-25090

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

YU60..T3..WT..CBR..ATP

*TCA=60L

 4
77629-36010

WU75,9#,YU6#..03S..(CBR,DSL)

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36111

YU6#..(DM1,T3)..WT..CBR

 2
77501-28011

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36100

YU6#..(DM1,T3)..CBR

*TCA=70L,90L

 2
77651-26040

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
Common parts
90467-13007
91611-41045
91611-60820
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

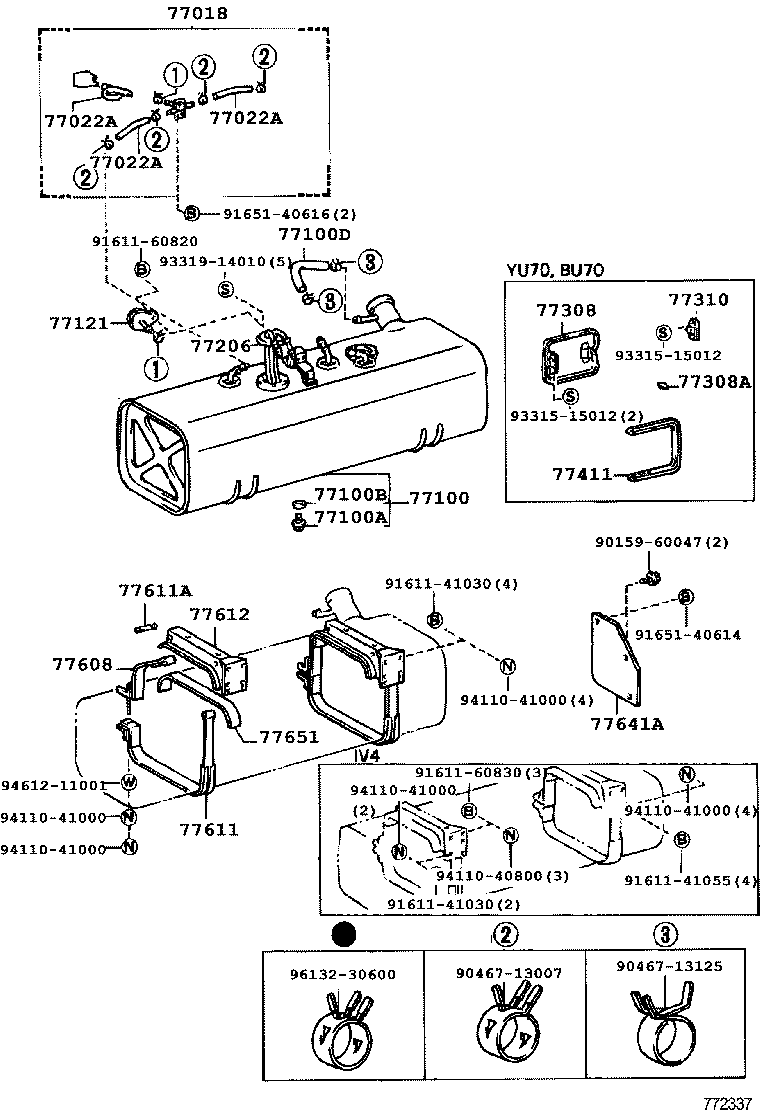

ILLUST NO. 1 OF 2(8409- )SRF,TW1,TW2 ; (8409- )DYN..T3..WT..CBR..ATP

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77100 77100A 77100B 77100D 77121 77206 77308 77308A 77310 77411 77608 77611 77611A 77612 77641A 77651 9015960047 9046713007 9046713125 9161141030 9161141030 9161141055 9161160820 9161160830 9165140614 9165140616 9331515012 9331515012 9331914010 9411040800 9411041000 9411041000 9411041000 9411041000 9411041000 9461211001 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36140

YU6#..(DM1,T1,T3)..CBR

*TCA=70L

 1
77018-36051

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

 1
77100 - TANK ASSY, FUEL
77001-36730

YU6#..(DM1,T1,T3)..CBR

*TCA=70L

 1
77001-36680

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*TCA=60L

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

WU75,9#,YU6#,70..CBR,DSL

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

WU75,9#,YU6#,70..CBR,DSL

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95332-08040

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*H,L=320,内径=7.6

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-36191

WU75,9#,YU6#..(DM1,T1,T3)..(CBR,DSL)

*TCA=70L,90L

 1
77608 - BAND SUB-ASSY, FUEL TANK, NO.2
77603-25010

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
77611 - BAND, FUEL TANK
77601-36150

YU6#..(DM1,T3)..WT..CBR

 2
77601-25090

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

YU60..T3..WT..CBR..ATP

*TCA=60L

 4
77629-36010

WU75,9#,YU6#..03S..(CBR,DSL)

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36111

YU6#..(DM1,T3)..WT..CBR

 2
77501-28011

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36100

YU6#..(DM1,T3)..CBR

*TCA=70L,90L

 2
77651-26040

YU60..T3..WT..CBR..ATP

*TCA=60L

 2
Common parts
90159-60047
90467-13007
90467-13125
91611-41030
91611-41055
91611-60820
91611-60830
91651-40614
91651-40616
93315-15012
93319-14010
94110-40800
94110-41000
94612-11001
96132-30600

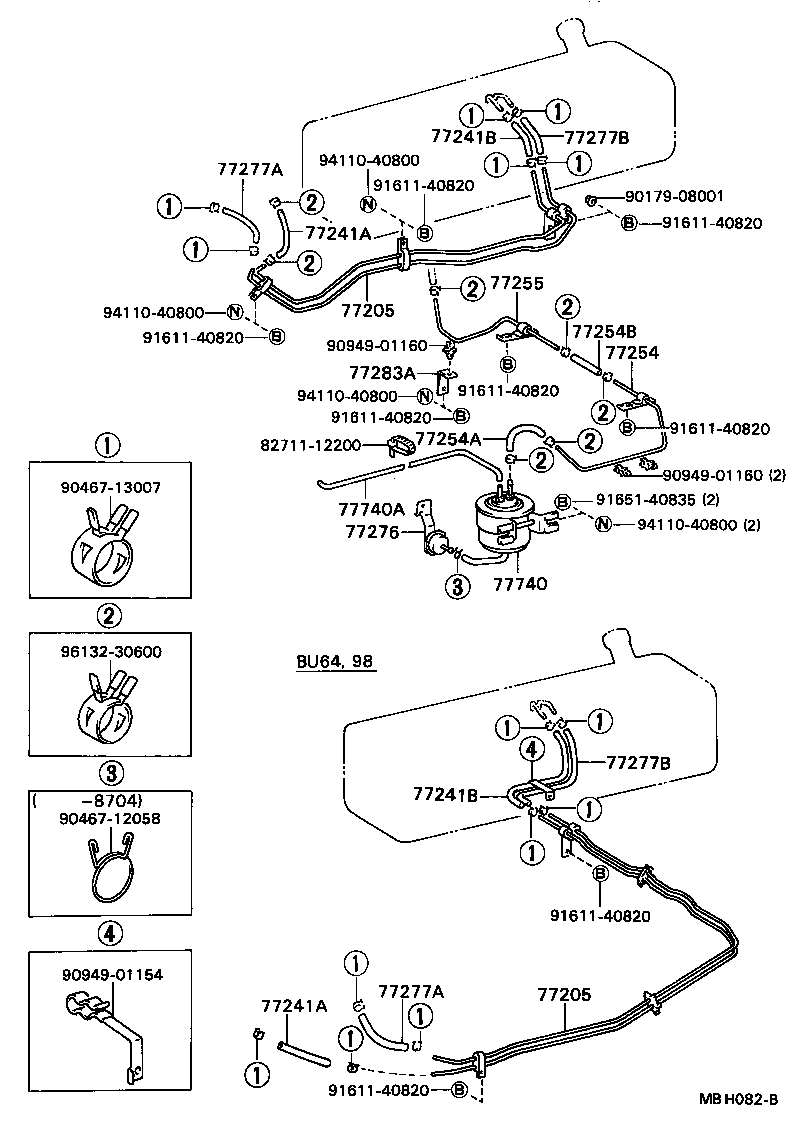

ILLUST NO. 2 OF 2(8409- )YU60,70..CBR

Click highlighted areas on diagram

diagram 77205 77205 77241A 77241A 77241B 77241B 77254 77254A 77254B 77255 77276 77277A 77277A 77277B 77277B 77283A 77740 77740A 8271112200 9017908001 9046712058 9046713007 9094901154 9094901160 9094901160 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140835 9411040800 9411040800 9411040800 9411040800 9613230600
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-36250

YU60,70..CBR

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-36250

YU60,70..CBR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

YU60,70..CBR

*H,L=300

 1
95333-06028

YU60,70..CBR

*H,L=280

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

YU60,70..CBR

*H,L=300

 1
95333-06028

YU60,70..CBR

*H,L=280

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

YU60..T3..WT..CBR

*H,L=300,内径=7.6

 1
95333-08018

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*H,L=180

 1
95332-08030

YU60..20T..CBR

*H,L=280,内径=7.6

 1
95333-08028

YU60..T3..WT..CBR

*H,L=280

 1
95332-08020

WU90,YU70;YU60..175;YU60..T3..WT..CBR..ATP

*H,L=180,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

YU60..T3..WT..CBR

*H,L=300,内径=7.6

 1
95333-08018

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*H,L=180

 1
95332-08030

YU60..20T..CBR

*H,L=280,内径=7.6

 1
95333-08028

YU60..T3..WT..CBR

*H,L=280

 1
95332-08020

WU90,YU70;YU60..175;YU60..T3..WT..CBR..ATP

*H,L=180,内径=7.6

 1
77254 - TUBE, FUEL EMISSION, NO.1
77028-36010

YU60,70..CBR

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

YU60,70..CBR

*H,L=220

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

YU60,70..CBR

*H,L=150

 1
77255 - TUBE, FUEL EMISSION, NO.2
77027-36010

YU60,70..CBR

 1
77276 - PROTECTOR, FUEL HOSE
77276-36030

YU6#,70..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12048

YU60,70..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12048

YU60,70..CBR

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08030

YU60..20T..CBR

*H,L=280,内径=7.6

 1
95332-08020

WU90,YU70;YU60..175;YU60..T3..WT..CBR..ATP

*H,L=180,内径=7.6

 1
95333-08028

YU60..T3..WT..CBR

*H,L=280

 1
95332-08030

YU60..T3..WT..CBR

*H,L=280,内径=7.6

 1
95333-08018

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*H,L=180

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08030

YU60..20T..CBR

*H,L=280,内径=7.6

 1
95332-08020

WU90,YU70;YU60..175;YU60..T3..WT..CBR..ATP

*H,L=180,内径=7.6

 1
95333-08028

YU60..T3..WT..CBR

*H,L=280

 1
95332-08030

YU60..T3..WT..CBR

*H,L=280,内径=7.6

 1
95333-08018

YU60,70..SRF,TW1,TW2;YU60..T3..WT..CBR..ATP

*H,L=180

 1
77283A - BRACKET, FUEL TUBE CLAMP, NO.1
58266-36210

YU60,70..CBR

 1
77740 - CANISTER ASSY, CHARCOAL
77740-36090

YU6#,70..CBR

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-10695

YU6#,70..CBR

*H,L=700,ﾏｰｸ=#6

 1
Common parts
82711-12200
90179-08001
90467-12058
90467-13007
90949-01154
90949-01160
91611-40820
91651-40835
94110-40800
96132-30600
