YU60-MDDT3 (1984)
Toyota Dyna/Toyoace

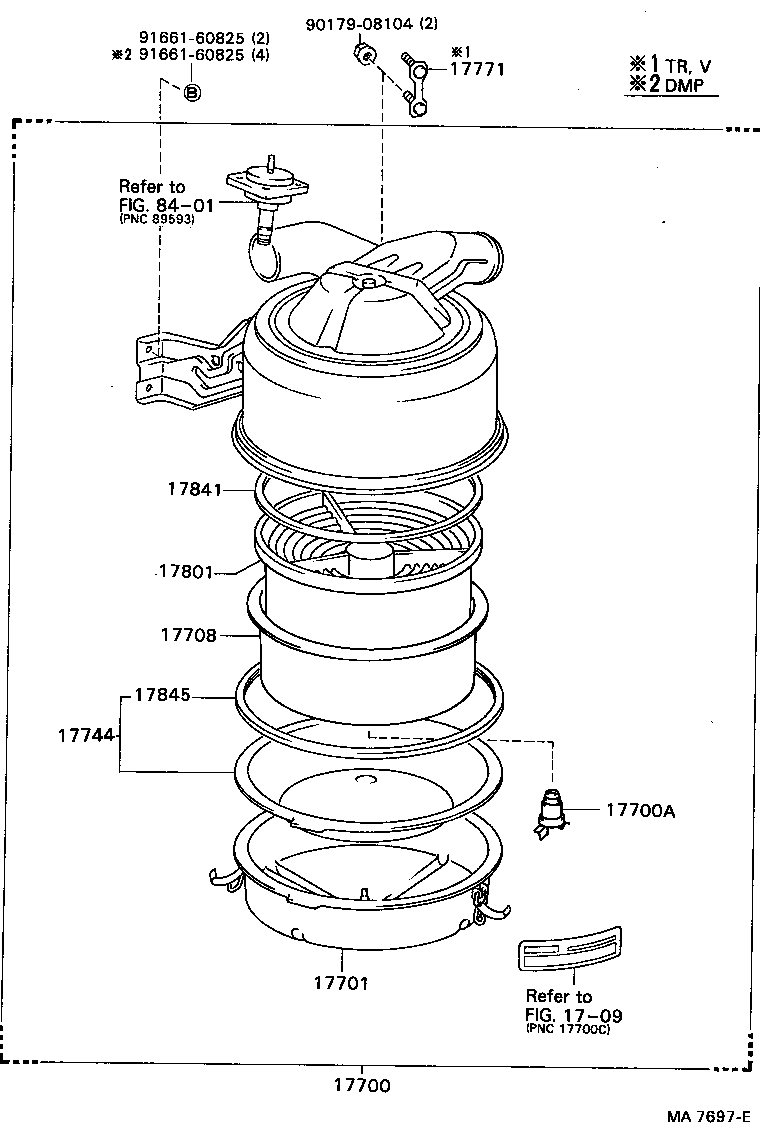

ILLUST NO. 1 OF 2(8409- )3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73080 |
3Y..YU6#,70 |
1 | ||
| 17700-73081 |
3Y..YU6#,70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
3Y#..YU6#,70,80 |
1 | ||
| 90099-05187 |
3Y#..YU6#,70,80 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56130 |
3Y#..YU6#,70,80 |
1 | ||
| 17708 - BAFFLE SUB-ASSY, AIR CLEANER | ||||
| 17708-56010 |
3Y#..YU6#,70,80 |
1 | ||
| 17744 - CUP, PRECLEANER | ||||
| 17744-56010 |
3Y#..YU6#,70,80 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-56020 |
3Y#..YU60,70,80 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56030 |
3Y#..YU6#,70,80 |
1 | ||
| 17801-56031 |
3Y#..YU6#,70,80 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-56030 |
3Y#..YU6#,70,80 |
1 | ||
| 17841-56031 |
3Y#..YU6#,70,80 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56050 |
3Y#..YU6#,70,80 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

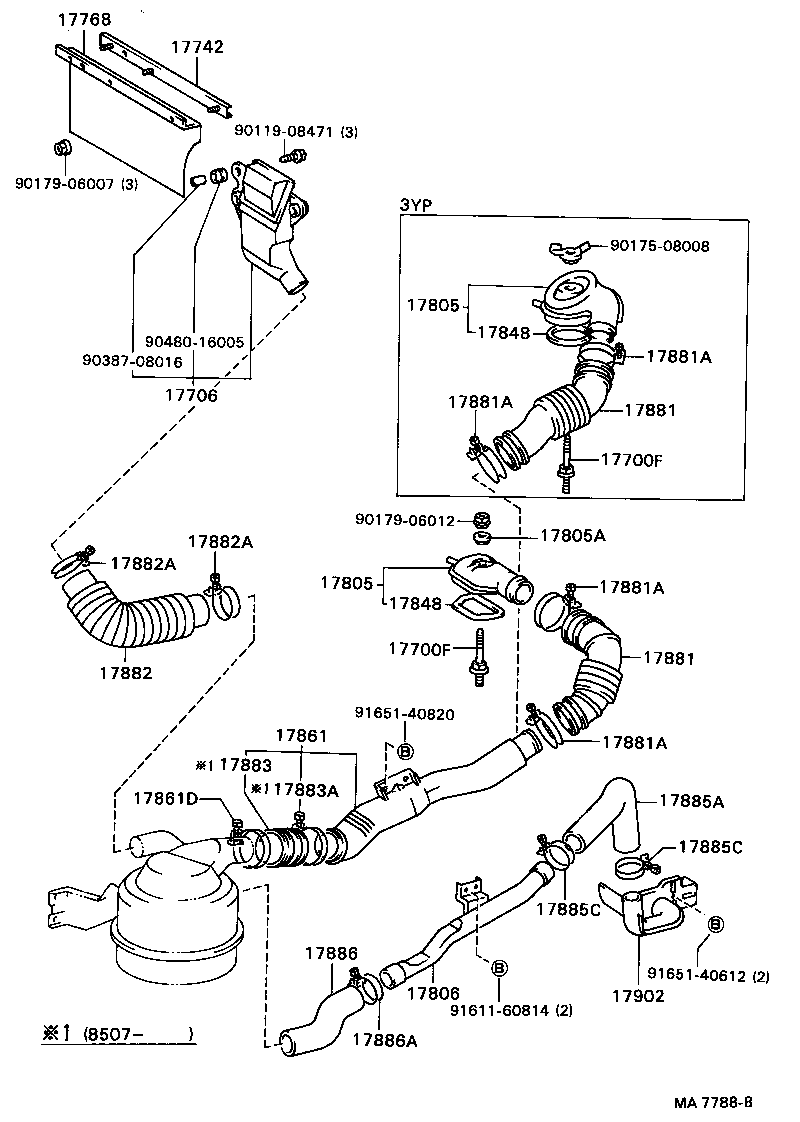

ILLUST NO. 2 OF 2(8409- )3Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
3Y..YU6#,70 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
3Y..YU6#,70 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53097-95402 |
3Y#..YU6#,70,80 |
1 | ||
| 17742 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95400 |
3Y#..YU6#,70,80 |
1 | ||
| 17768 - COVER, AIR CLEANER INLET | ||||
| 53767-95400 |
3Y#..YU6#,70,80 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71011 |
3Y..YU6#,70 |
1 | ||
| 17805-71010 |
3Y..YU60,70 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71011 |
3Y..YU6#,70 |
1 | ||
| 17805-71010 |
3Y..YU60,70 |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-09026 |
3Y..YU6#,70 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-73010 |
3Y..YU6#,70 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YU6#,70 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YU6#,70 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-73050 |
3Y..YU60,70 |
1 | ||
| 17805-73051 |
3Y..YU60,70 |
1 | ||
| 17805-73052 |
3Y..YU6#,70 |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10830 |
3Y#..YU60,70,80 |
1 | ||
| 96111-10750 |
3Y#..YU6#,70,80 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58080 |
3Y..YU6#,70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58080 |
3Y..YU6#,70 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y#..YU6#,70,80 PIPE SIDE |
1 | ||
| 96111-10690 |
3Y#..YU6#,70,80 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y#..YU6#,70,80 PIPE SIDE |
1 | ||
| 96111-10690 |
3Y#..YU6#,70,80 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y#..YU6#,70,80 PIPE SIDE |
1 | ||
| 96111-10690 |
3Y#..YU6#,70,80 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y#..YU6#,70,80 PIPE SIDE |
1 | ||
| 96111-10690 |
3Y#..YU6#,70,80 INTAKE MANIFOLD SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17883-95402 |
3Y#..YU6#,70,80 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
3Y#..YU6#,70,80 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
3Y#..YU6#,70,80 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-58020 |
3Y#..YU6#,70,80 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y#..YU6#,70,80 |
1 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17882-31060 |
3Y..YU60,70 |
1 | ||
| 17881-74040 |
3Y..YU6#,70 |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10460 |
3Y..YU6#,70 |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 96111-10460 |
3Y..YU6#,70 |
2 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17881-34040 |
3Y..YU6#,70 |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90467-37002 |
3Y..YU6#,70 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-73010 |
3Y..YU60,70 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90175-08008 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90387-08016 | ||||
| 90480-16005 | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
