YU60-MD3 (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )3Y..DM1,SRF,T1,T3,TW1

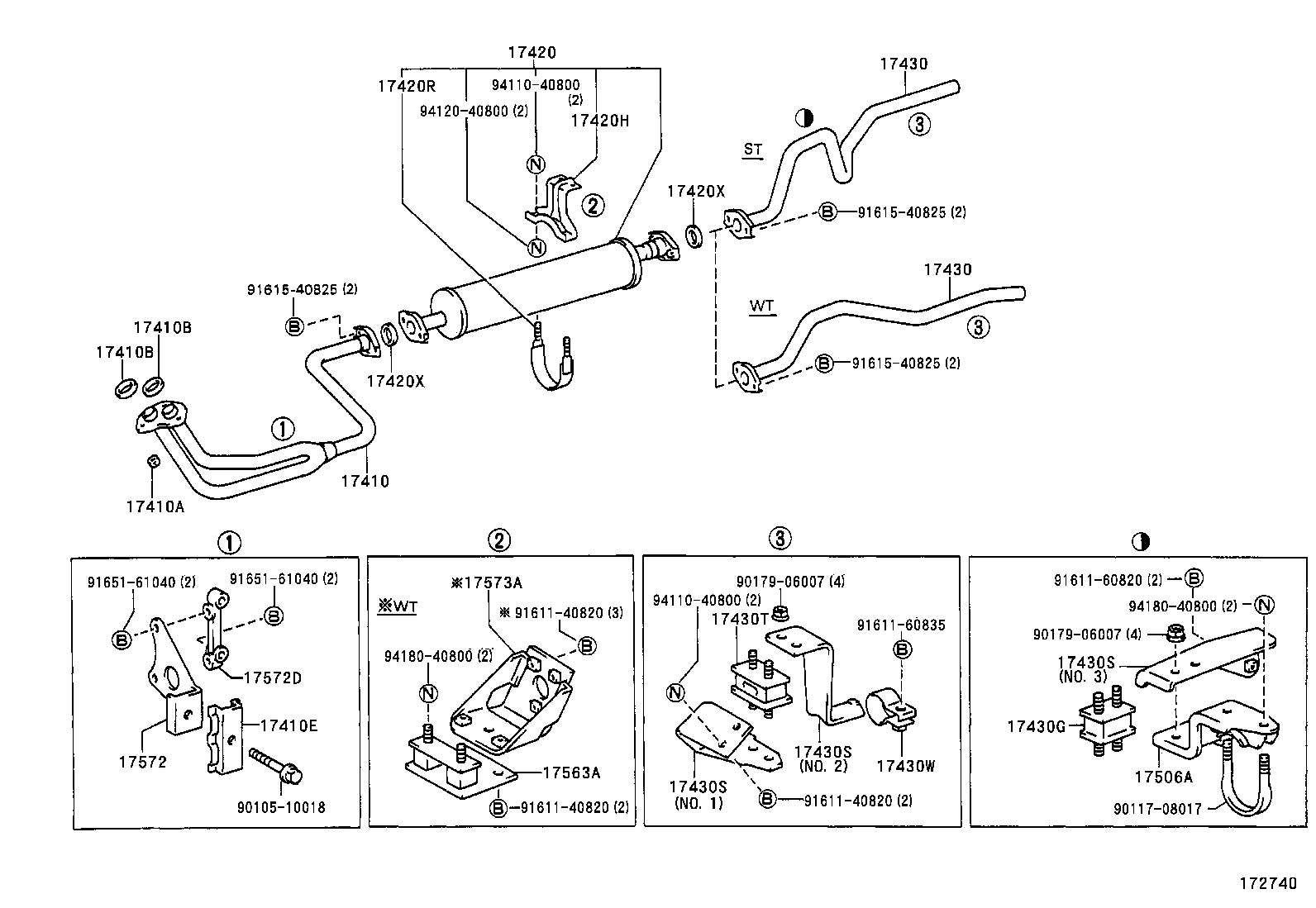

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-73090 |
3Y..YU60,70 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1W,3Y..WU75,9#,YU6#,70 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
3Y..YU6#,70 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06001 |
3Y..YU6#,70 |
2 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17589-27010 |
3Y..YU6#,70 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58090 |
3Y..YU61;3Y..YU60,70..ST |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-56020 |
3Y..YU6#,70 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-56010 |
3Y..YU6#,70 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06008 |
3Y..YU6#,70 |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06008 |
3Y..YU6#,70 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58070 |
3Y..YU60..ST |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58070 |
3Y..YU60..ST |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
3Y..YU60,70..ST |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-56010 |
3Y..YU6#,70 NO.2 |
1 | ||
| 17574-58050 |
3Y..YU60,70..ST NO.1 |
1 | ||
| 17575-73050 |
3Y..YU60,70..ST NO.3 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-56010 |
3Y..YU6#,70 NO.2 |
1 | ||
| 17574-58050 |
3Y..YU60,70..ST NO.1 |
1 | ||
| 17575-73050 |
3Y..YU60,70..ST NO.3 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-56010 |
3Y..YU6#,70 NO.2 |
1 | ||
| 17574-58050 |
3Y..YU60,70..ST NO.1 |
1 | ||
| 17575-73050 |
3Y..YU60,70..ST NO.3 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
1W,3Y..WU9#,YU6#,70 |
1 | ||
| 17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90461-32005 |
3Y..YU6#,70 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-73050 |
3Y..YU60,70..ST |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17563-58010 |
3Y..YU6#,70 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-73090 |
3Y..YU6#,70 |
1 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
3Y..YU6#,70 |
1 | ||
| Common parts | ||||
| 90105-10018 | ||||
| 90117-08017 | ||||
| 90179-06007 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 91611-60835 | ||||
| 91615-40825 | ||||
| 91651-61040 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94180-40800 | ||||
(8808-9008)3Y..DM1,SRF,T1,T3,TW1 ; (8811- )3YP..T3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10018 | ||||
| 90117-08025 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90179-06007 | ||||
| 91611-60835 | ||||
| 91615-60825 | ||||
| 91651-41020 | ||||
| 91651-61040 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94180-40800 | ||||
| 94185-60800 | ||||
