XZU775-TQMMC3 (2011)

Toyota Dyna/Toyoace

Production Aug 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

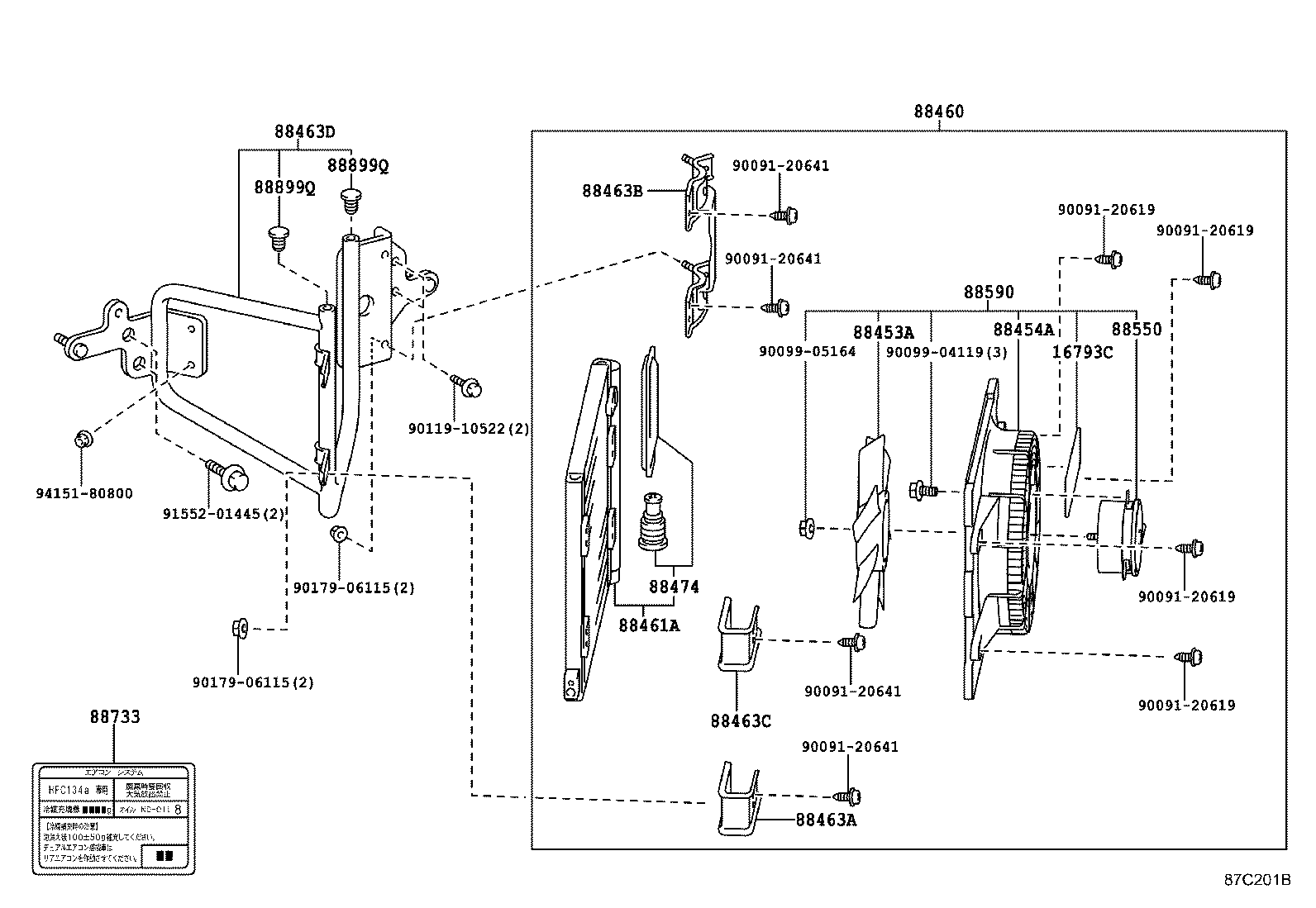

ILLUST NO. 1 OF 3(1108- )XZU775..DCRTK

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼｰﾊﾞ

diagram 16793C 88453A 88454A 88460 88461A 88463A 88463B 88463C 88463D 88474 88550 88590 88733 88899Q 88899Q 9009120619 9009120619 9009120619 9009120619 9009120641 9009120641 9009120641 9009120641 9009904119 9009905164 9011910522 9017906115 9017906115 9155201445 9415180800
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-28020

N04C..XZU775;N04C..XZU710..DCB;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88453A - FAN, COOLING
88453-37030

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88454A - SHROUD, FAN
88454-37120

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88454-37160

XZU775;XZU710..DCB;XZU700,710,720,730..DCRTL

 1
88460 - CONDENSER ASSY, COOLER
88460-37A20

XZU775

 1
88461A - CORE, COOLER CONDENSER
88461-37150

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-37D90

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-37F00

XZU775

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88688-37E10

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88463D - BRACKET, COOLER CONDENSER, NO.5
88688-37D50

XZU775

 1
88474 - DRYER, COOLER
88474-17010

XZC710,XZU700,710,720,730,775

 1
88474-12030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37140

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37250

XZU775

 1
88733 - LABEL, COOLER SERVICE INFORMATION
88733-37010

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 1
88899Q - PLATE, COVER
88899-30840

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 2
88899Q - PLATE, COVER
88899-30840

XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL

 2
Common parts
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
90179-06115
91552-01445
94151-80800

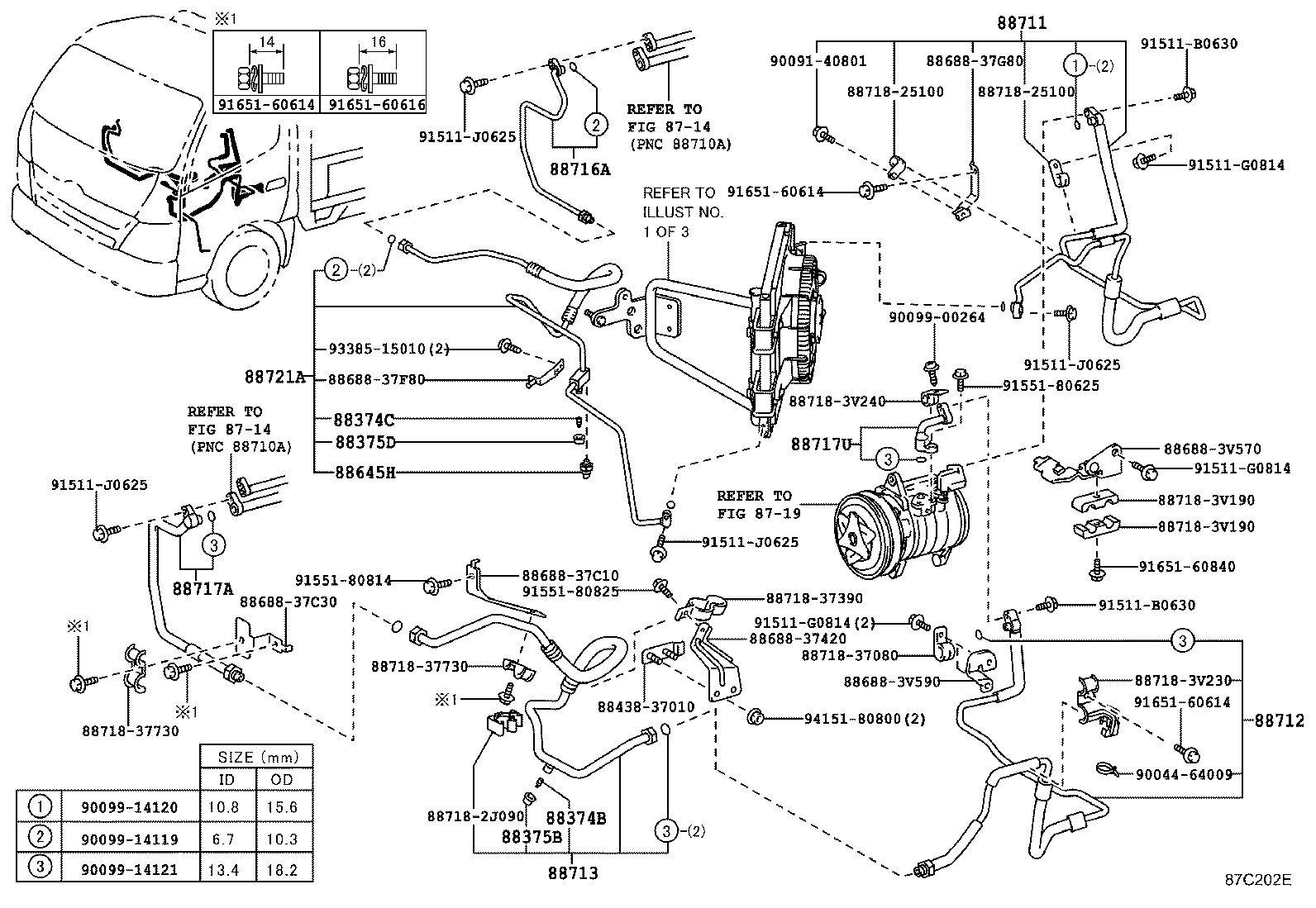

ILLUST NO. 2 OF 3(1108- )XZU775..DCRTK

Click highlighted areas on diagram

ﾊﾟｲﾋﾟﾝｸﾞ

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 8843837010 88645H 8868837420 8868837C10 8868837C30 8868837F80 8868837G80 886883V570 886883V590 88711 88712 88713 88716A 88717A 88717U 8871825100 8871825100 887182J090 8871837080 8871837390 8871837730 8871837730 887183V190 887183V190 887183V230 887183V240 88721A 9004464009 9009140801 9009900264 9009914119 9009914120 9009914121 91511B0630 91511B0630 91511G0814 91511G0814 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 9155180625 9155180814 9155180825 9165160614 9165160614 9165160614 9165160616 9165160840 9338515010 9415180800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37A80

XZU775

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37B10

XZU775

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-37B60

XZU775

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37C40

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37490

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
88717U - TUBE, SUCTION, NO.1
88717-37390

XZU775

 1
88721A - HOSE, LIQUID, A
88721-37B70

XZU775

 1
Common parts
88438-37010
88688-37420
88688-37C10
88688-37C30
88688-37F80
88688-37G80
88688-3V570
88688-3V590
88718-25100
88718-2J090
88718-37080
88718-37390
88718-37730
88718-3V190
88718-3V230
88718-3V240
90044-64009
90091-40801
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-G0814
91511-J0625
91551-80625
91551-80814
91551-80825
91651-60614
91651-60616
91651-60840
93385-15010
94151-80800
Linked diagrams
8714
8719
