XZU775-TQMMC3 (2011)
Toyota Dyna/Toyoace

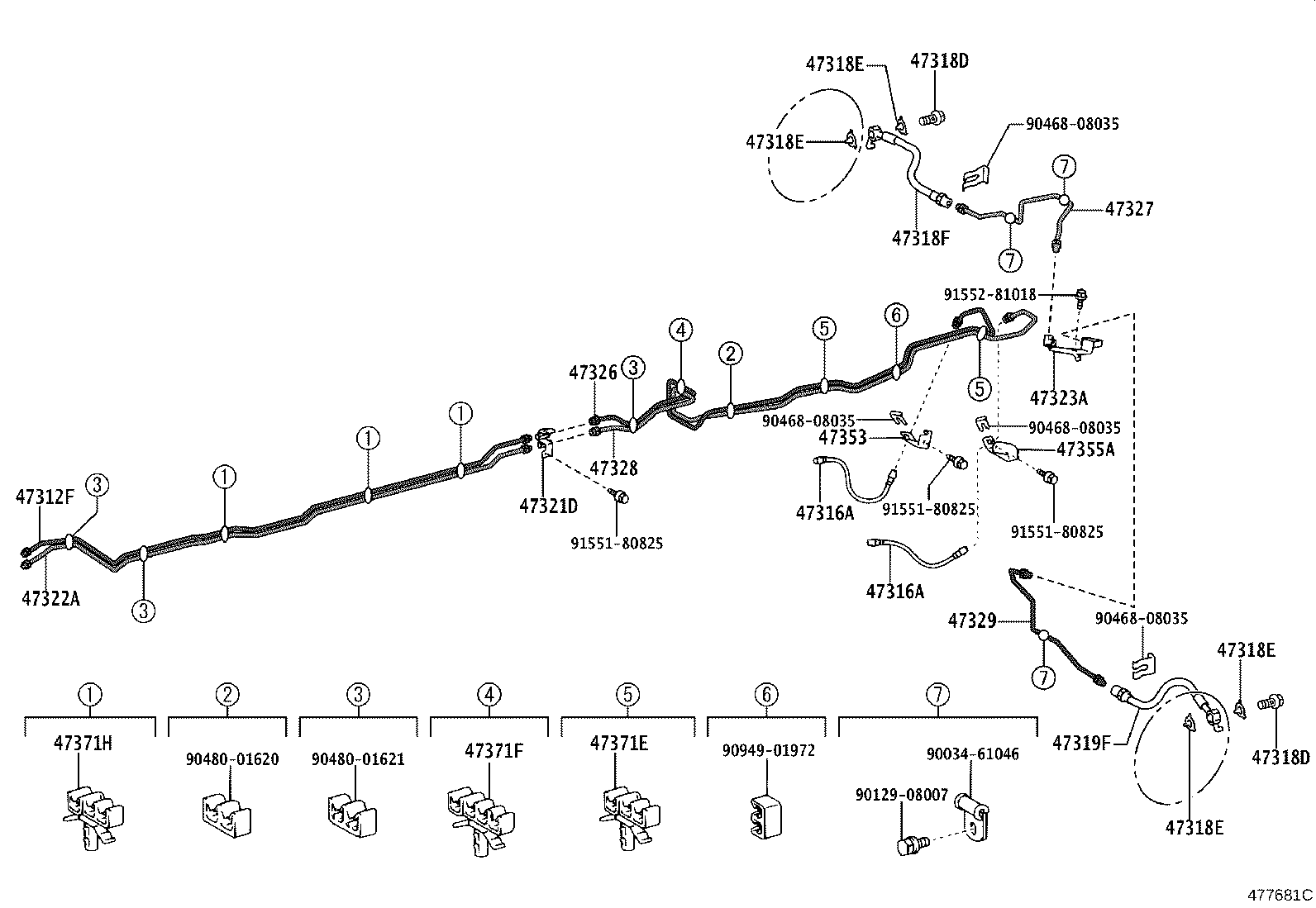

ILLUST NO. 2 OF 3(1108-1605)XZU775
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37630 |
XZU775 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU775 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU775 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU775 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU775 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU775 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU775 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU775 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU775 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F02 |
XZU775 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F03 |
XZU775 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37660 |
XZU775 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZU775 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37660 |
XZU775 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37340 |
XZU775 |
1 | ||
| 47327-37880 |
XZU775 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37520 |
XZU775 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37660 |
XZU775 |
1 | ||
| 47329-37200 |
XZU775 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZU775 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZU775 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90959-01594 |
XZU775 |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90959-01594 |
XZU775 |
3 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90949-01972 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||
ILLUST NO. 3 OF 3(1108- )XZU775
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-37210 |
XZU775 |
1 | ||
| 44050-37080 |
XZU775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37081 |
XZU775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37211 |
XZU775 |
1 | ||
| 44050-37211 |
XZU775 VSC−無し |
1 | ||
| 44050-37081 |
XZU775 ﾃﾞｭﾄﾛ専用&VSC−無し |
1 | ||
| 44050-37B10 |
XZU775..20T |
1 | ||
| 44050-37890 |
XZU775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37082 |
XZU775 ﾃﾞｭﾄﾛ専用&VSC−無し |
1 | ||
| 44050-37212 |
XZU775 VSC−無し |
1 | ||
| 44050-37891 |
XZU775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 44050-37B11 |
XZU775..20T |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37050 |
XZU775 |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91551-80820 | ||||
ILLUST NO. 1 OF 3(1107-1905)XZC710,XZU700,710,720..MTM..20T ; (1905- )6F..20T..DCRWD,DCVUO ; (210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37611 |
XZU775 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47311-37631 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47311-37630 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37B30 |
XZU775 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D54 |
XZU775 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D98 |
XZU775 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37810 |
XZU775 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C40 |
XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| 47312-37C41 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37C00 |
XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| 47322-37C01 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37580 |
XZU775 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37601 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47321-37600 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47321-37602 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
XZU775 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
XZU775 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37330 |
XZU775 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37200 |
XZU775 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZU775 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90959-01603 |
XZU775 |
3 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37280 |
XZU775 NO.1 |
1 | ||
| 47391-37300 |
XZU775 NO.2 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37470 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
ILLUST NO. 1 OF 3(1107-1905)6F..30T,35T,40T ; (1905- )6F..30T,35T,40T..DCRWD,DCVTO,DCVUO ; (2103-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37611 |
XZU775 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47311-37631 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47311-37630 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37B30 |
XZU775 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D54 |
XZU775 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D98 |
XZU775 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37810 |
XZU775 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C40 |
XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| 47312-37C41 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37C00 |
XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| 47322-37C01 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37580 |
XZU775 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37601 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47321-37600 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47321-37602 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
XZU775 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
XZU775 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37330 |
XZU775 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37200 |
XZU775 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZU775 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90959-01603 |
XZU775 |
3 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37280 |
XZU775 NO.1 |
1 | ||
| 47391-37300 |
XZU775 NO.2 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37470 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
ILLUST NO. 1 OF 3(1107-1905)6FC..30T,35T,40T ; (1905- )6FC..30T,35T,40T..DCRWD,DCVTO ; (2103-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37611 |
XZU775 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47311-37631 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47311-37630 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37B30 |
XZU775 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D54 |
XZU775 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D98 |
XZU775 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37810 |
XZU775 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C40 |
XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| 47312-37C41 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37C00 |
XZC710,XZU700,710,720,730,775..MTM |
1 | ||
| 47322-37C01 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37580 |
XZU775 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37601 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47321-37600 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 47321-37602 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B00 |
XZU775 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37380 |
XZU775 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37330 |
XZU775 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37200 |
XZU775 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZU775 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90959-01593 |
XZU775 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90959-01603 |
XZU775 |
3 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37280 |
XZU775 NO.1 |
1 | ||
| 47391-37300 |
XZU775 NO.2 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37470 |
XZU710..(T3,T4)..MTM;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775..MTM |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 82711-34490 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90949-01540 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
