XZU775-TKMQX3 (2019)
Toyota Dyna/Toyoace

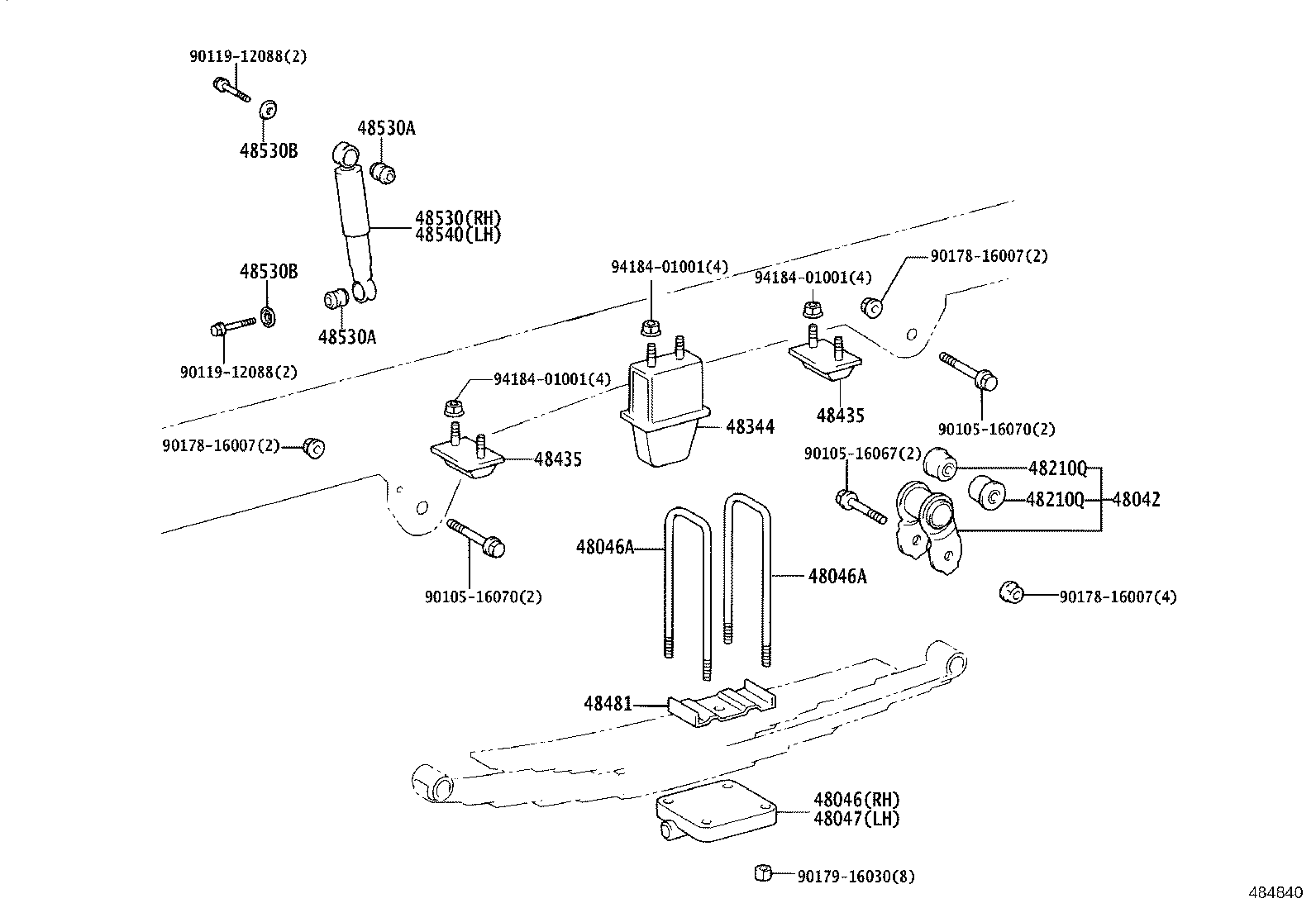

ILLUST NO. 1 OF 2(1905- )XZU775
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU775..DCRWD |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37180 |
XZU775..DCRWD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
XZU775..30T..DCRWD 長さ=300 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16018 |
XZU775..30T..DCRWD 長さ=300 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37180 |
XZU775..DCRWD |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU775..DCRWD |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU775..DCRWD |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37090 |
XZU775..DCRWD;XZU70#,71#,72#..T4..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU775..DCRWD |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48435-36050 |
XZU775..DCRWD |
4 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37081 |
XZU775 |
2 | ||
| 48481-37082 |
XZU775..DCRWD |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80796 |
XZU775..DCRWD ﾏｰｸ 48531−37011 |
1 | ||
| 48531-80833 |
XZU775..DCRWD ﾏｰｸ 48531−37012 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU775..DCRWD |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU775..DCRWD |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80796 |
XZU775..DCRWD ﾏｰｸ 48531−37011 |
1 | ||
| 48531-80833 |
XZU775..DCRWD ﾏｰｸ 48531−37012 |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-12088 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 94184-01001 | ||||

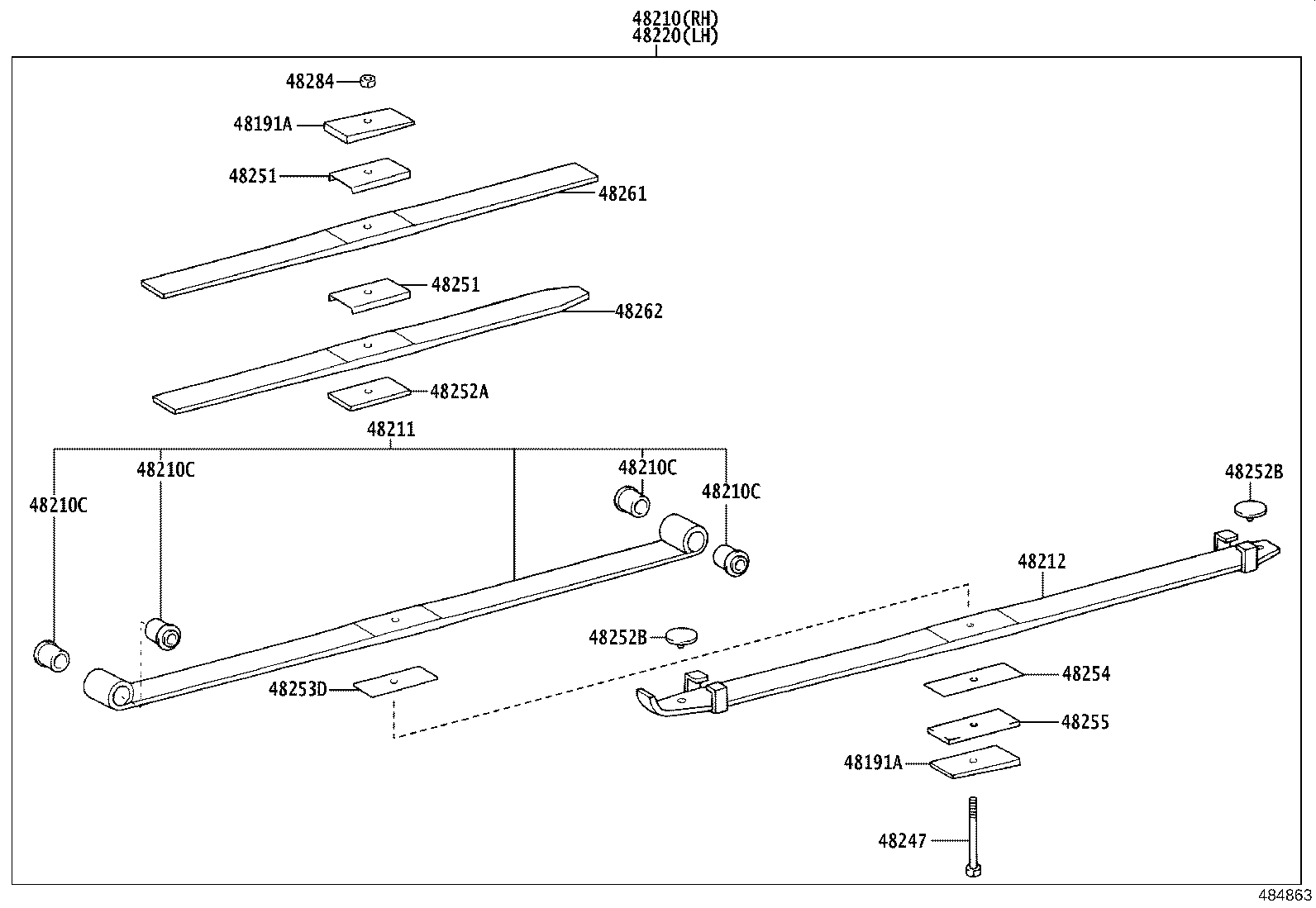

ILLUST NO. 2 OF 2(1905- )XZU775..30T
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37110 |
XZU775..DCRWD |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37110 |
XZU775..DCRWD |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37A90 |
XZU775..30T..DCRWD ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210-37Q80 |
XZU775..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48201-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48212-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37Q80 |
XZU775..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37A90 |
XZU775..30T..DCRWD ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48247-37A40 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU775..30T..DCRWD |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU775..30T..DCRWD |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48263-37600 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48282-37S40 |
XZU775..30T..DCRWD |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48263-37710 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48282-37Q60 |
XZU775..DCRWD |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
6 | ||
| 48253-37F41 |
XZU775..30T..DCRWD |
2 | ||
| 48255 - SPACER, REAR SPRING LEAF | ||||
| 48264-37720 |
XZU775..30T..DCRWD |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48261-37830 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37830 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU775..DCRWD |
2 | ||
| 48155-3B470 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||

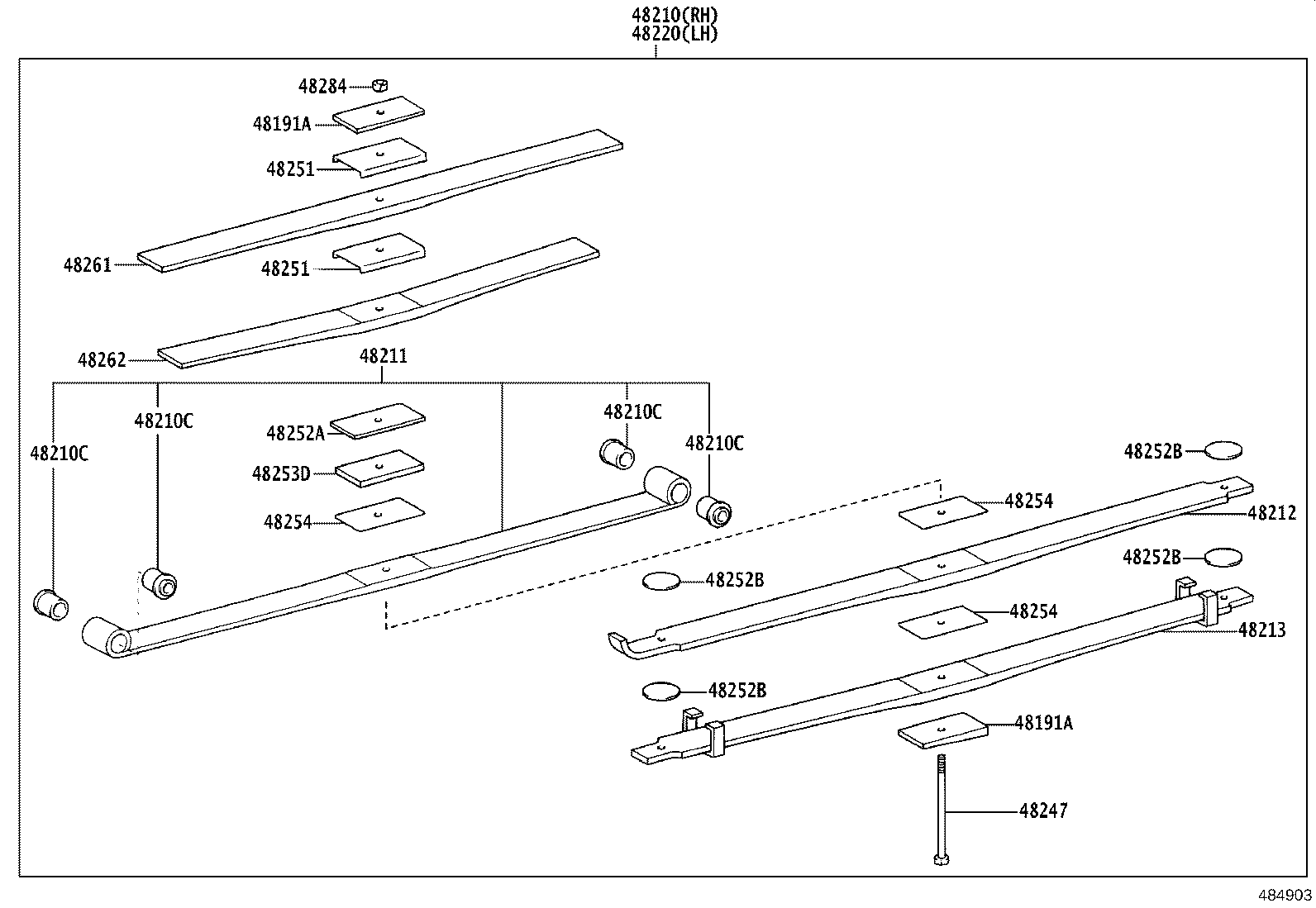

ILLUST NO. 2 OF 2(1905- )XZU775..30T
MAIN 3 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37110 |
XZU775..DCRWD |
4 | ||
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37110 |
XZU775..DCRWD |
4 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37A90 |
XZU775..30T..DCRWD ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210-37Q80 |
XZU775..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZC710,XZU71#,72#,775..DCRWD,DCVTO |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48201-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48212-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37Q80 |
XZU775..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37A90 |
XZU775..30T..DCRWD ﾒｲﾝ3枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48247-37A40 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU775..30T..DCRWD |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37711 |
XZU775..30T..DCRWD |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48263-37600 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48282-37S40 |
XZU775..30T..DCRWD |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48263-37710 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48282-37Q60 |
XZU775..DCRWD |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
6 | ||
| 48253-37F41 |
XZU775..30T..DCRWD |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
6 | ||
| 48253-37F41 |
XZU775..30T..DCRWD |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48282-37570 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
6 | ||
| 48253-37F41 |
XZU775..30T..DCRWD |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48261-37830 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37830 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262-37Q80 |
XZU775..30T..DCRWD |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU775..DCRWD |
2 | ||
| 48155-3B470 |
XZU775..30T..DCRWD ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
