XZU775-TKMQX (2019)
Toyota Dyna/Toyoace
Production
May 2019
-
Sep 9999
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1905- )XZU775

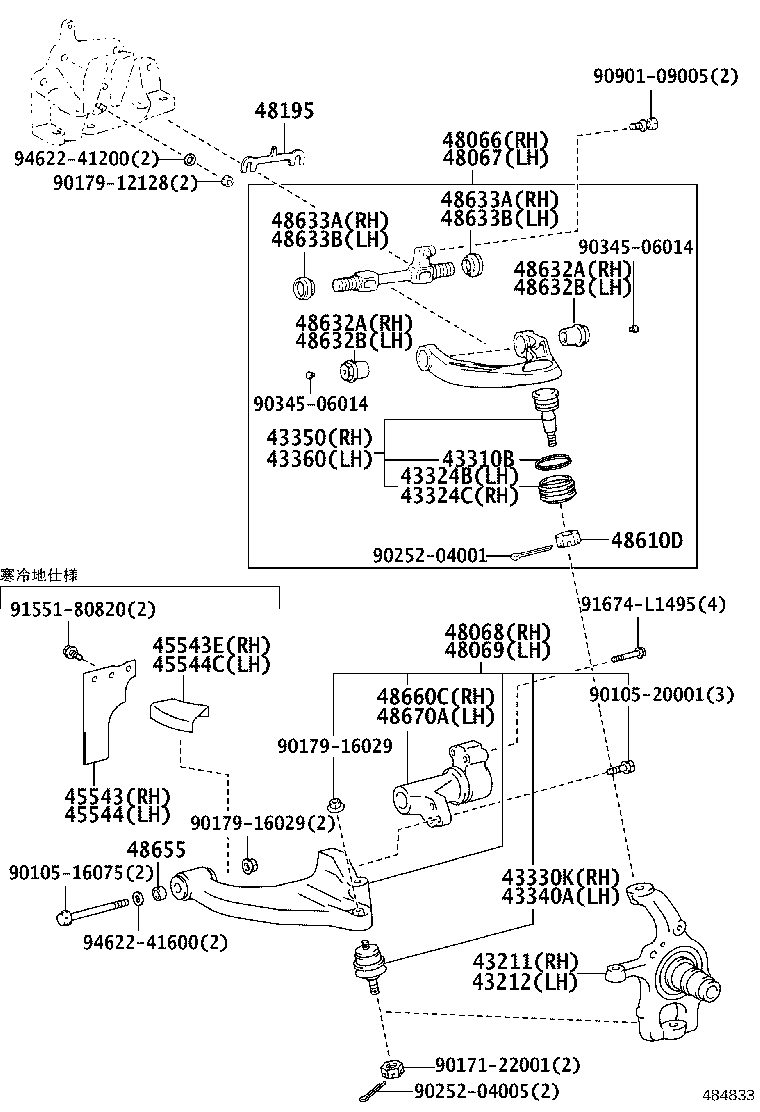

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-37110 |
XZU775..DCRWD |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-37110 |
XZU775..DCRWD |
1 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90522-32002 |
XZU775..DCRWD |
2 | ||
| 43324B - COVER, FRONT UPPER BALL JOINT DUST, RH | ||||
| 43324-37020 |
XZU775..DCRWD |
1 | ||
| 43324C - COVER, FRONT UPPER BALL JOINT DUST, LH | ||||
| 43324-37020 |
XZU775..DCRWD |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-37020 |
XZU775..DCRWD |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-37020 |
XZU775..DCRWD |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43310-39095 |
XZU775..DCRWD |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43310-39095 |
XZU775..DCRWD |
1 | ||
| 45543 - PROTECTOR, STEERING RACK BOOT, RH | ||||
| 45543-37020 |
XZU775..DCRWD 寒冷地仕様 |
1 | ||
| 45543E - PROTECTOR, STEERING RACK BOOT,RH NO.2 | ||||
| 45544-37010 |
XZU775..DCRWD 寒冷地仕様 |
1 | ||
| 45544 - PROTECTOR, STEERING RACK BOOT, LH | ||||
| 45543-37020 |
XZU775..DCRWD 寒冷地仕様 |
1 | ||
| 45544C - PROTECTOR, STEERING RACK BOOT, LH NO.2 | ||||
| 45544-37010 |
XZU775..DCRWD 寒冷地仕様 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-89015 |
XZU775..DCRWD |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-89015 |
XZU775..DCRWD |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-37052 |
XZU775..DCRWD |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48640-37052 |
XZU775..DCRWD |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90905-65003 |
XZU775..DCRWD 厚さ=1.2 |
1 | ||
| 90905-65001 |
XZU775..DCRWD 厚さ=4.0 |
1 | ||
| 90905-65004 |
XZU775..DCRWD 厚さ=2.0 |
1 | ||
| 90905-65002 |
XZU775..DCRWD 厚さ=0.8 |
1 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90171-18003 |
XZU775..DCRWD |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZU775..DCRWD |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-37020 |
XZU775..DCRWD |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZU775..DCRWD |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-37020 |
XZU775..DCRWD |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZU775..DCRWD |
2 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-37010 |
XZU775..DCRWD |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZU775..DCRWD |
2 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-37010 |
XZU775..DCRWD |
2 | ||
| 48655 - BUSH, LOWER ARM, NO.2 | ||||
| 48655-65010 |
XZU775..DCRWD |
2 | ||
| 48660C - ARM ASSY, SUSPENSION, LOWER NO.2 RH | ||||
| 48660-37011 |
XZU775..DCRWD |
1 | ||
| 48670A - ARM ASSY, SUSPENSION, LOWER NO.2 LH | ||||
| 48670-37011 |
XZU775..DCRWD |
1 | ||
| Common parts | ||||
| 90105-16075 | ||||
| 90105-20001 | ||||
| 90171-22001 | ||||
| 90179-12128 | ||||
| 90179-16029 | ||||
| 90252-04001 | ||||
| 90252-04005 | ||||
| 90345-06014 | ||||
| 90901-09005 | ||||
| 91551-80820 | ||||
| 91674-L1495 | ||||
| 94622-41200 | ||||
| 94622-41600 | ||||
