XZU775-TKMQC3 (2011)
Toyota Dyna/Toyoace
Production
Aug 2011
-
May 2017
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

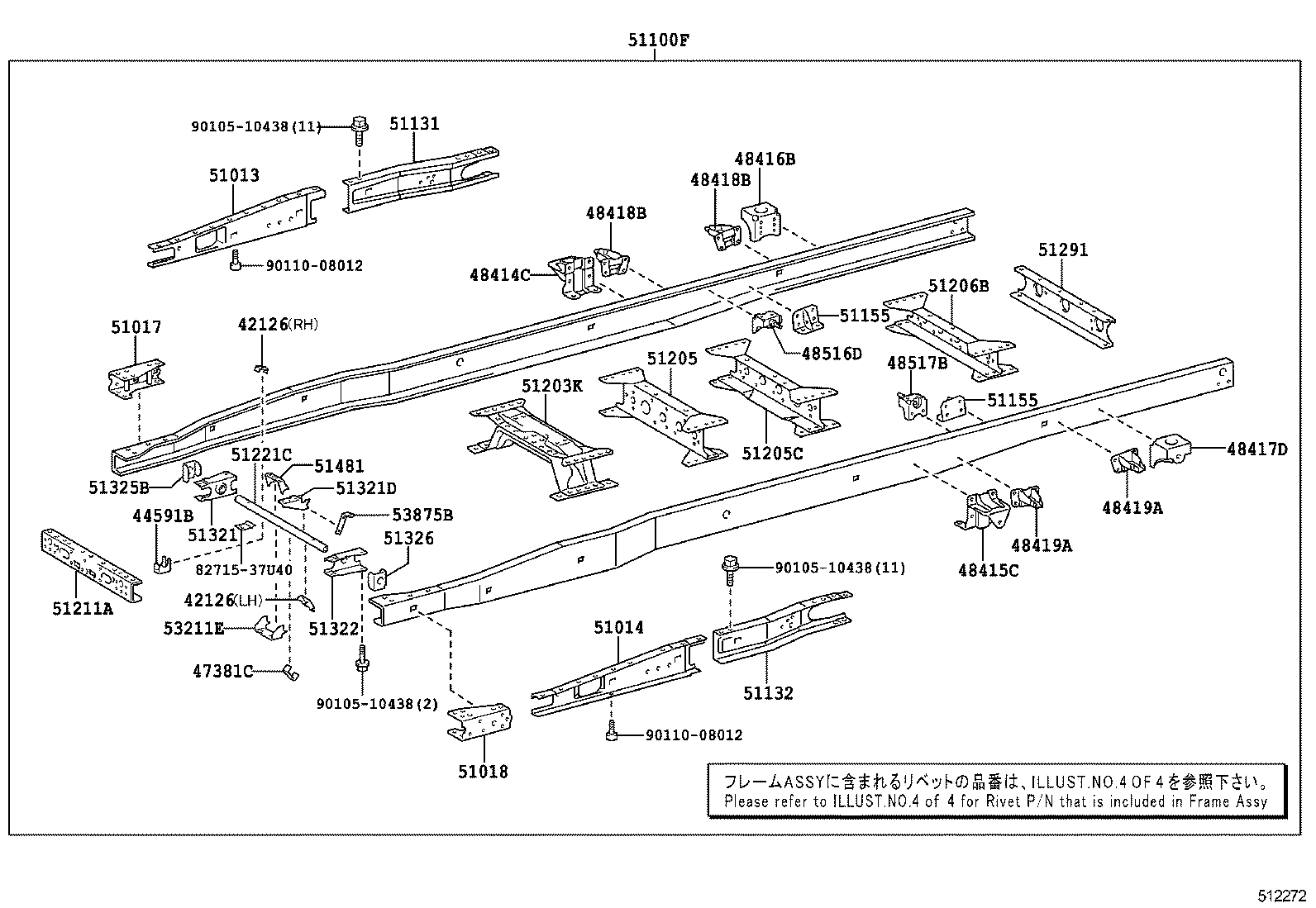

ILLUST NO. 1 OF 4(1108-1705)XZU775
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37160 |
XZU775 左側 |
1 | ||
| 42126-37070 |
XZU775 右側 |
1 | ||
| 42126 - ATTACHMENT, BRAKE 3 WAY | ||||
| 42126-37160 |
XZU775 左側 |
1 | ||
| 42126-37070 |
XZU775 右側 |
1 | ||
| 44591B - BRACKET, BRAKE ACTUATOR | ||||
| 44591-37260 |
XZU775 |
1 | ||
| 47381C - BRACKET, TUBE CLAMP | ||||
| 47381-37310 |
XZU775 |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XZU775 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XZU775 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XZU775 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XZU775 |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU775 |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XZU775 |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48418-36090 |
XZU775 |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48418-36090 |
XZU775 |
2 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZU775 |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZU775 |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37301 |
XZU775 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37200 |
XZU775 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37260 |
XZU775 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37210 |
XZU775 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-3VV40 |
XZU775 |
1 | ||
| 51131 - RAIL, FRONT FRAME, RH | ||||
| 51013-37310 |
XZU775 |
1 | ||
| 51132 - RAIL, FRONT FRAME, LH | ||||
| 51014-37240 |
XZU775 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU775 |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU775 |
2 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37251 |
XZU775 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37140 |
XZU775 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-37140 |
XZU775 |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-37030 |
XZU775 |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51201-37130 |
XZU775 |
1 | ||
| 51201-37131 |
XZU775 |
1 | ||
| 51221C - CROSSMEMBER, FRAME, NO.2 | ||||
| 51221-37180 |
XZU775 |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51291-37040 |
XZU775 |
1 | ||
| 51321 - GUSSET, CROSSMEMBER, NO.2 RH | ||||
| 51321-37110 |
XZU775 |
1 | ||
| 51321D - BRACKET, ENGINE REAR CROSSMEMBER | ||||
| 51321-37100 |
XZU775 |
1 | ||
| 51322 - GUSSET, CROSSMEMBER, NO.2 LH | ||||
| 51322-37050 |
XZU775 |
1 | ||
| 51325B - RETAINER, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51325-37080 |
XZU775 |
1 | ||
| 51326 - RETAINER, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51326-37040 |
XZU775 |
1 | ||
| 51481 - BRACKET, POWER STEERING TUBE CLAMP | ||||
| 51481-37120 |
XZU775 |
1 | ||
| 53211E - SUPPORT, RADIATOR | ||||
| 53211-37080 |
XZU775 |
1 | ||
| 53875B - BRACKET, AIR DUCT CLAMP | ||||
| 53875-37010 |
XZU775 |
1 | ||
| Common parts | ||||
| 82715-37U40 | ||||
| 90105-10438 | ||||
| 90110-08012 | ||||

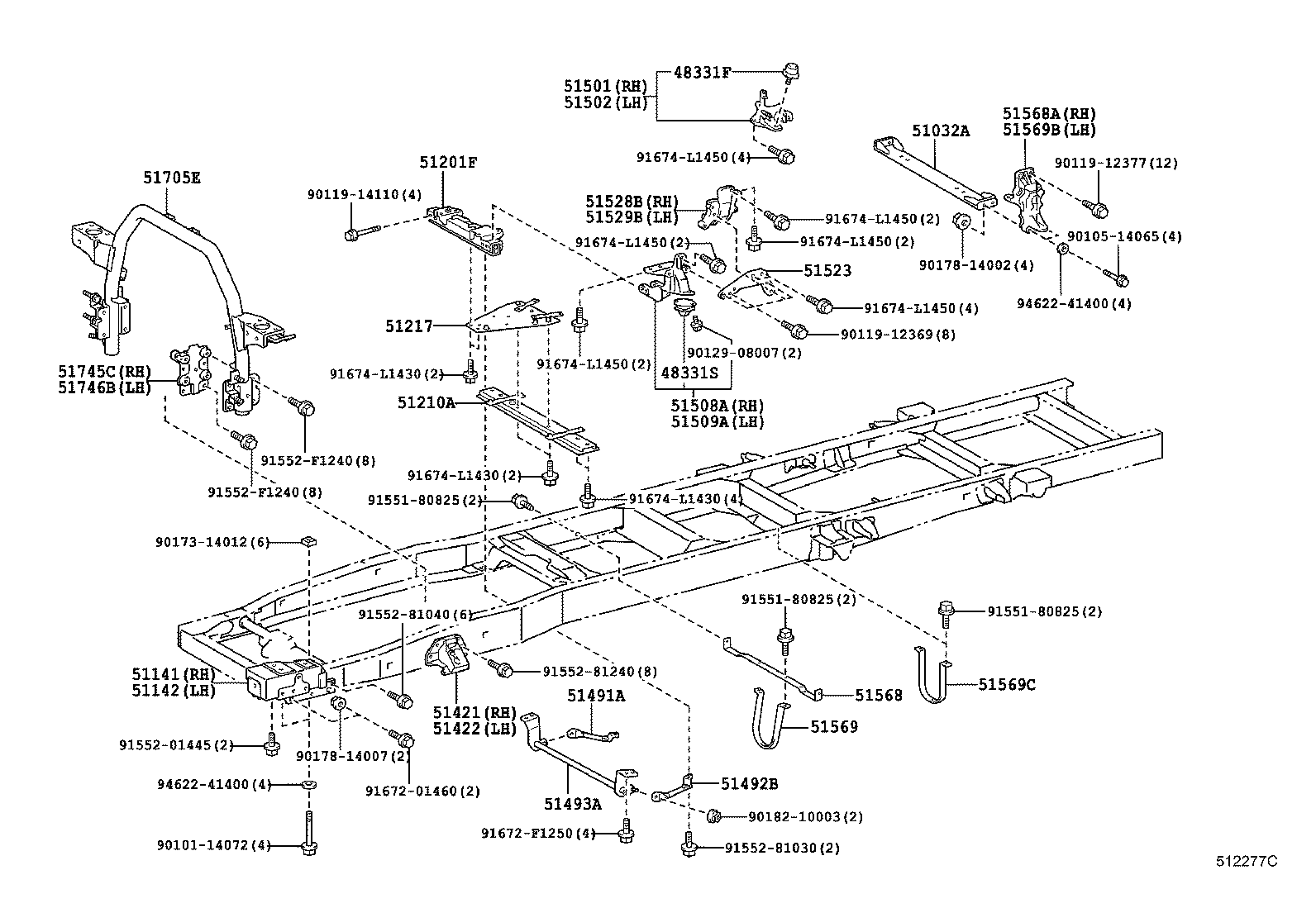

ILLUST NO. 2 OF 4(1108-1705)XZU775
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48331F - BUMPER, FRONT SPRING | ||||
| 48332-37010 |
XZU775 |
2 | ||
| 48331S - BUMPER, FRONT SPRING NO.1 | ||||
| 48331-37020 |
XZU775 |
2 | ||
| 51032A - MEMBER SUB-ASSY, ANCHOR ARM SUPPORT | ||||
| 51032-37041 |
XZU775 |
1 | ||
| 51141 - REINFORCEMENT, SIDE RAIL, RH | ||||
| 51141-37270 |
XZU775 |
1 | ||
| 51142 - REINFORCEMENT, SIDE RAIL, LH | ||||
| 51142-37170 |
XZU775 |
1 | ||
| 51201F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-37121 |
XZU775 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37041 |
XZU775 |
1 | ||
| 51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 51217-37021 |
XZU775 |
1 | ||
| 51421 - BRACKET, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37191 |
XZU775 |
1 | ||
| 51422 - BRACKET, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37191 |
XZU775 |
1 | ||
| 51491A - BAR, UNDER GUARD, FRONT NO.1 | ||||
| 51491-37030 |
XZU775 |
1 | ||
| 51492B - BAR, UNDER GUARD, FRONT NO.2 | ||||
| 51492-37020 |
XZU775 |
1 | ||
| 51493A - BRACKET, UNDER GUARD, FRONT NO.1 | ||||
| 51493-37080 |
XZU775 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37030 |
XZU775 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37060 |
XZU775 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37070 |
XZU775 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37070 |
XZU775 |
1 | ||
| 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51523-37010 |
XZU775 |
2 | ||
| 51528B - BRACKET, LOWER ARM SUPPORT, REAR RH | ||||
| 51528-37010 |
XZU775 |
1 | ||
| 51529B - BRACKET, LOWER ARM SUPPORT, REAR LH | ||||
| 51529-37010 |
XZU775 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37260 |
XZU775 |
1 | ||
| 51568A - SUPPORT, ANCHOR ARM, LOWER RH | ||||
| 51568-37580 |
XZU775 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU710..T3,T4;XZC710,XZU720,775;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 51569B - SUPPORT, ANCHOR ARM, LOWER LH | ||||
| 51569-37340 |
XZU775 |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37250 |
XZU775 |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37720 |
XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK) |
1 | ||
| 51745C - GUSSET, CAB MOUNTING, NO.3 RH | ||||
| 51745-37021 |
XZU775 |
1 | ||
| 51746B - GUSSET, CAB MOUNTING, NO.3 LH | ||||
| 51745-37021 |
XZU775 |
1 | ||
| Common parts | ||||
| 90101-14072 | ||||
| 90105-14065 | ||||
| 90119-12369 | ||||
| 90119-12377 | ||||
| 90119-14110 | ||||
| 90129-08007 | ||||
| 90173-14012 | ||||
| 90178-14002 | ||||
| 90178-14007 | ||||
| 90182-10003 | ||||
| 91551-80825 | ||||
| 91552-01445 | ||||
| 91552-81030 | ||||
| 91552-81040 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 91672-01460 | ||||
| 91672-F1250 | ||||
| 91674-L1430 | ||||
| 91674-L1450 | ||||
| 94622-41400 | ||||
