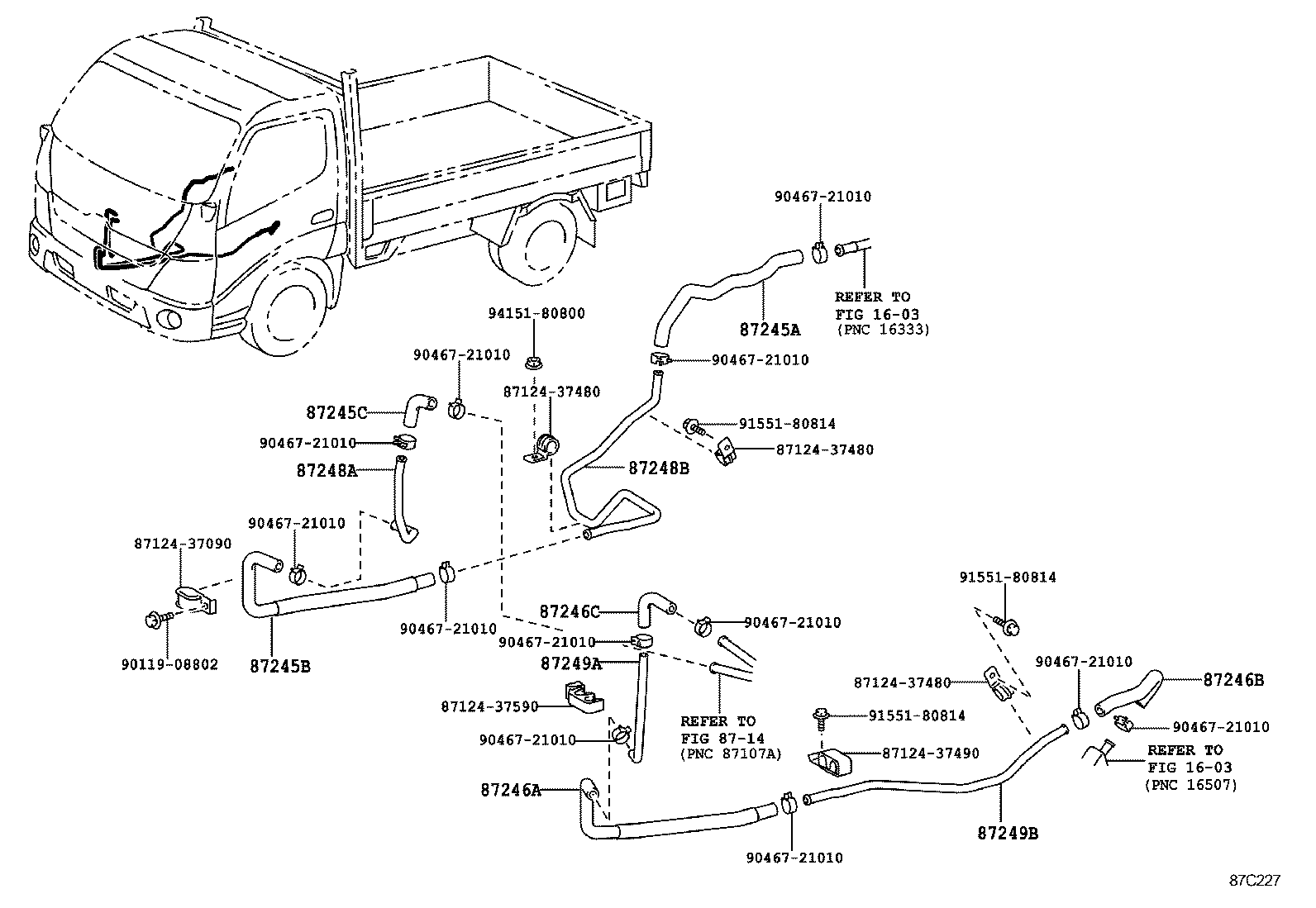

Toyota Dyna/toyoace XZU775 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3V491	XZU775	08/2011 - 05/2017	1
87245B - HOSE, HEATER WATER, INLET B
87245-37F20	XZU775	08/2011 - 05/2017	1
87245C - HOSE, HEATER WATER ,INLET C
87245-37F10	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37830	XZU775	08/2011 - 05/2017	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37770	XZU775	08/2011 - 05/2017	1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37810	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
87248A - PIPE, HEATER WATER INLET, A
87248-37D70	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
87248B - PIPE, HEATER WATER INLET, B
87248-37D80	XZU775	08/2011 - 05/2017	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37D40	XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775	07/2011 - 05/2017	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-37D60	XZU775	08/2011 - 05/2017	1
Common parts
87124-37090
87124-37480
87124-37490
87124-37590
90119-08802
90467-21010
91551-80814
94151-80800
Linked diagrams
1603
8714

XZU775-TKMQC (2011)
