XZU732-TKFRF (2019)

Toyota Dyna/Toyoace

Production May 2019 - Mar 2021
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

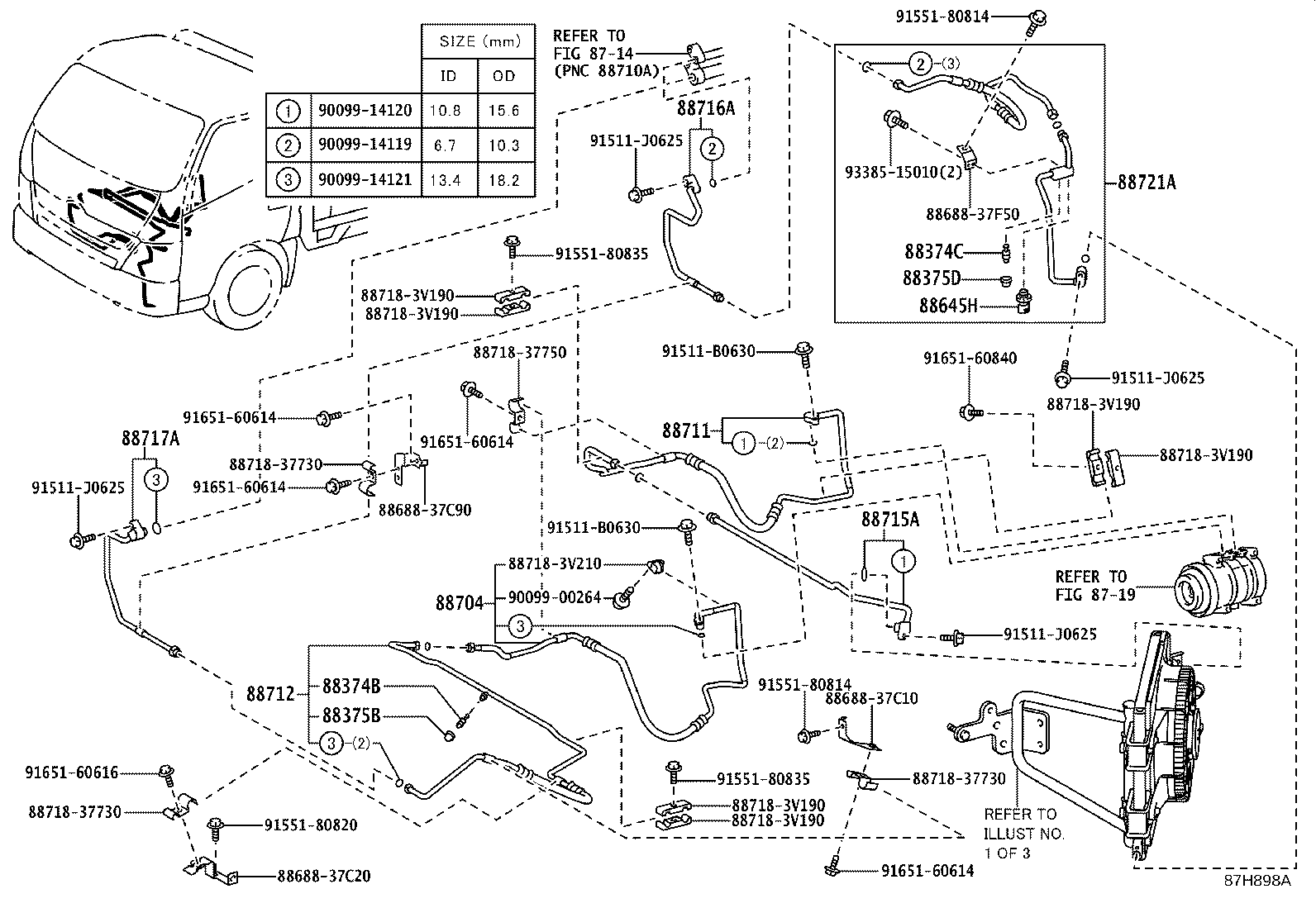

ILLUST NO. 2 OF 3(1905- )DCVUO ; (1905- )DCB..DCRWD

Click highlighted areas on diagram

ﾊﾟｲﾋﾟﾝｸﾞ

diagram 8714 8719 88374B 88374C 88375B 88375D 88645H 8868837C10 8868837C20 8868837C90 8868837F50 88704 88711 88712 88715A 88716A 88717A 8871837730 8871837730 8871837730 8871837750 887183V190 887183V190 887183V190 887183V190 887183V190 887183V190 887183V210 88721A 9009900264 9009914119 9009914120 9009914121 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9155180814 9155180814 9155180820 9155180835 9155180835 9165160614 9165160614 9165160614 9165160614 9165160616 9165160840 9338515010
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZU700,71#,72#,73#..DCVUO

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZU700,71#,72#,73#..DCVUO

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZU700,71#,72#,73#..DCVUO

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZU700,71#,72#,73#..DCVUO

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

XZU700,71#,72#,73#..DCVUO

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37150

XZU700,71#,72#,73#..DCVUO

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37C40

XZU700,71#,72#,73#..DCVUO

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37F30

XZU700,71#,72#,73#..DCVUO

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37470

XZU700,71#,72#,73#..DCVUO

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37F30

XZU700,71#,72#,73#..DCVUO

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37550

XZU700,71#,72#,73#..DCVUO

 1
88721A - HOSE, LIQUID, A
88721-37E60

XZU700,71#,72#,73#..DCVUO

 1
Common parts
88688-37C10
88688-37C20
88688-37C90
88688-37F50
88718-37730
88718-37750
88718-3V190
88718-3V210
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-J0625
91551-80814
91551-80820
91551-80835
91651-60614
91651-60616
91651-60840
93385-15010
Linked diagrams
8714
8719

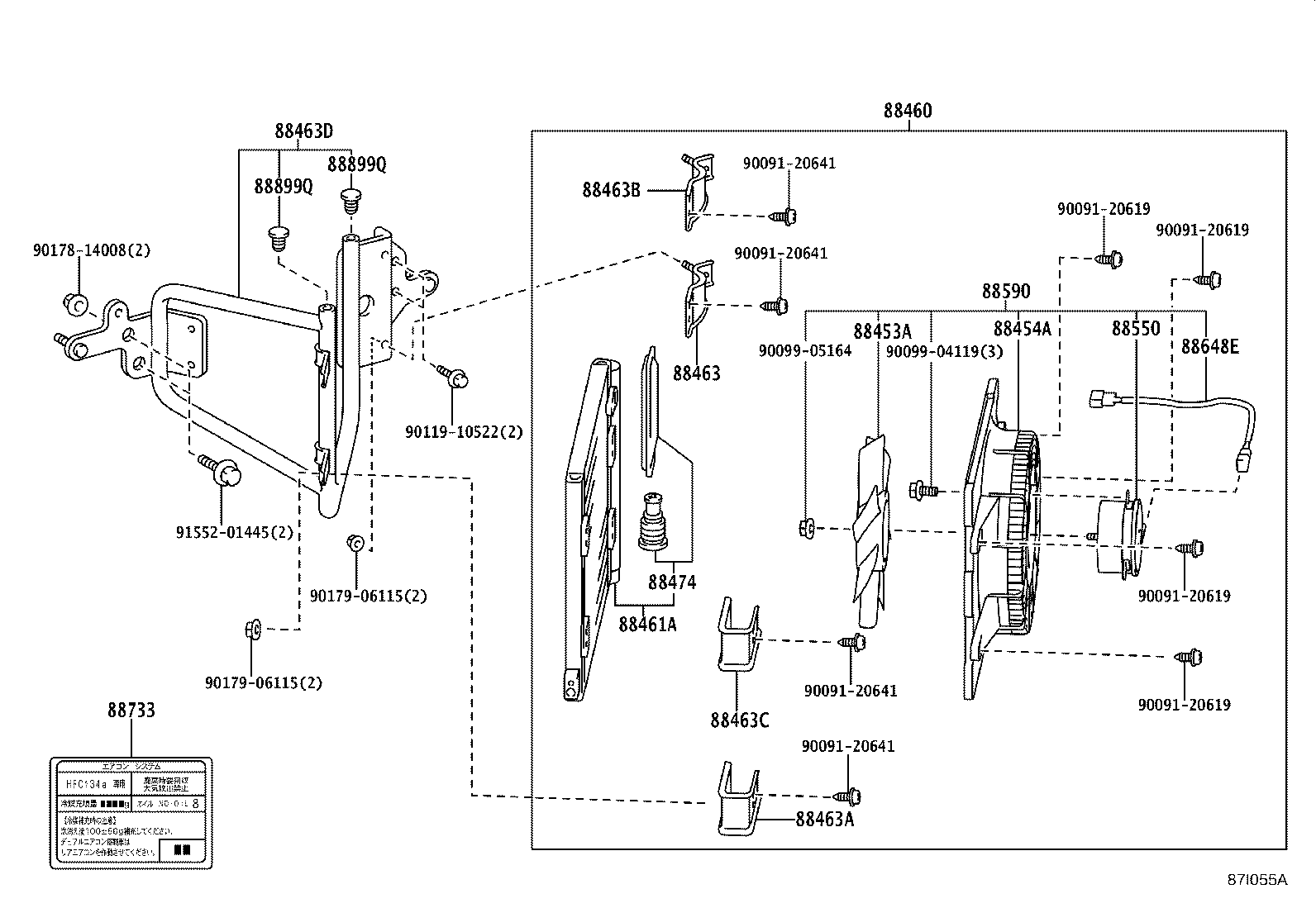

ILLUST NO. 1 OF 3(1905- )DCVUO ; (1905- )DCB..DCRWD ; (2103- )DCVUO ; (2103- )DCB..DCWDO

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾚｼｰﾊﾞ

diagram 88453A 88454A 88460 88461A 88463 88463A 88463B 88463C 88463D 88474 88550 88590 88648E 88733 88899Q 88899Q 9009120619 9009120619 9009120619 9009120619 9009120641 9009120641 9009120641 9009120641 9009904119 9009905164 9011910522 9017814008 9017906115 9017906115 9155201445
Part # Description Qty Price
88453A - FAN, COOLING
88453-37030

XZU700,71#,72#,73#..DCVUO

 1
88454A - SHROUD, FAN
88454-37160

XZU700,71#,72#,73#..DCVUO

 1
88460 - CONDENSER ASSY, COOLER
88460-37A00

XZU700,71#,72#,73#..DCVUO

 1
88461A - CORE, COOLER CONDENSER
88461-37150

XZU700,71#,72#,73#..DCVUO

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-37D80

XZU700,71#,72#,73#..DCVUO

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-37D90

XZU700,71#,72#,73#..DCVUO

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88688-37E00

XZU700,71#,72#,73#..DCVUO

 1
88463C - BRACKET, COOLER CONDENSER, NO.4
88688-37E10

XZU700,71#,72#,73#..DCVUO

 1
88463D - BRACKET, COOLER CONDENSER, NO.5
88688-37D40

XZU700,71#,72#,73#..DCVUO

 1
88474 - DRYER, COOLER
88474-12030

XZU700,71#,72#,73#..DCVUO

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37140

XZU700,71#,72#,73#..DCVUO

 1
88590 - BLOWER ASSY, W/SHROUD
88590-37280

XZU700,71#,72#,73#..DCVUO

 1
88648E - WIRING, COOLER
88648-37140

XZU700,71#,72#,73#..DCVUO

 1
88733 - LABEL, COOLER SERVICE INFORMATION
88733-37010

XZU700,71#,72#,73#..DCVUO

 1
88899Q - PLATE, COVER
88899-30840

XZU700,71#,72#,73#..DCVUO

 2
88899Q - PLATE, COVER
88899-30840

XZU700,71#,72#,73#..DCVUO

 2
Common parts
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
90178-14008
90179-06115
91552-01445
