XZU730-TKFSF (2019)

Toyota Dyna/Toyoace

Production May 2019 - Mar 2021
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )

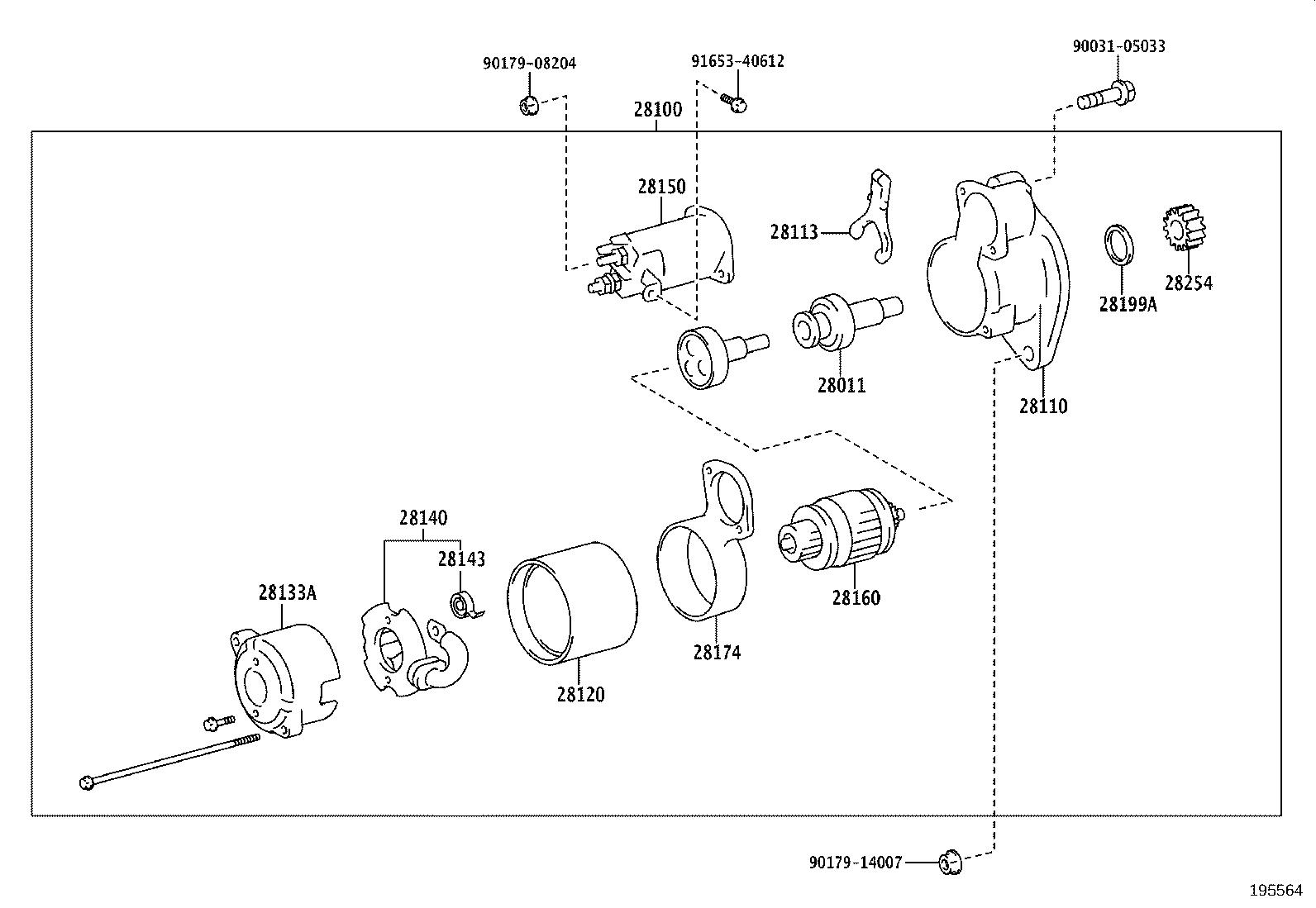

Click highlighted areas on diagram

24V 4.0KW

diagram 28011 28100 28110 28113 28120 28133A 28140 28143 28150 28160 28174 28199A 28254 9003105033 9017908204 9017914007 9165340612
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-78251

N04C..XZU700,71#,72#,73#..DCVUO

 1
28011-78250

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
28100 - STARTER ASSY
28100-78250

N04C..XZU700,71#,72#,73#..DCVUO

24V 4.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-78240

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
28115-78241

N04C..XZU700,71#,72#,73#..DCVUO

 1
28113 - LEVER, STARTER PINION DRIVE
28113-78240

N04C..XZU700,71#,72#,73#..DCVUO

 1
28120 - YOKE ASSY, STARTER
28120-78250

N04C..XZU700,71#,72#,73#..DCVUO

 1
28133A - FRAME, COMMUTATOR END
28133-78250

N04C..XZU700,71#,72#,73#..DCVUO

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78250

N04C..XZU700,71#,72#,73#..DCVUO

 1
28143 - SPRING, STARTER BRUSH
S2814-31200

N04C..XZU700,71#,72#,73#..DCVUO

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-78250

N04C..XZU700,71#,72#,73#..DCVUO

 1
28160 - ARMATURE ASSY, STARTER
28160-78240

N04C..XZU700,71#,72#,73#..DCVUO

 1
28174 - HOUSING, STARTER MOTOR
28174-78240

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
28174-78241

N04C..XZU700,71#,72#,73#..DCVUO

 1
28199A - PROTECTOR, DUST STARTER
S2819-91100

N04C..XZU700,71#,72#,73#..DCVUO

 1
28254 - PINION, STARTER IDLE GEAR
28250-78240

N04C..XZU700,71#,72#,73#..DCVUO

 1
Common parts
90031-05033
90179-08204
90179-14007
91653-40612
