XZU730-TKFSF (2019)

Toyota Dyna/Toyoace

Production May 2019 - Mar 2021
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )

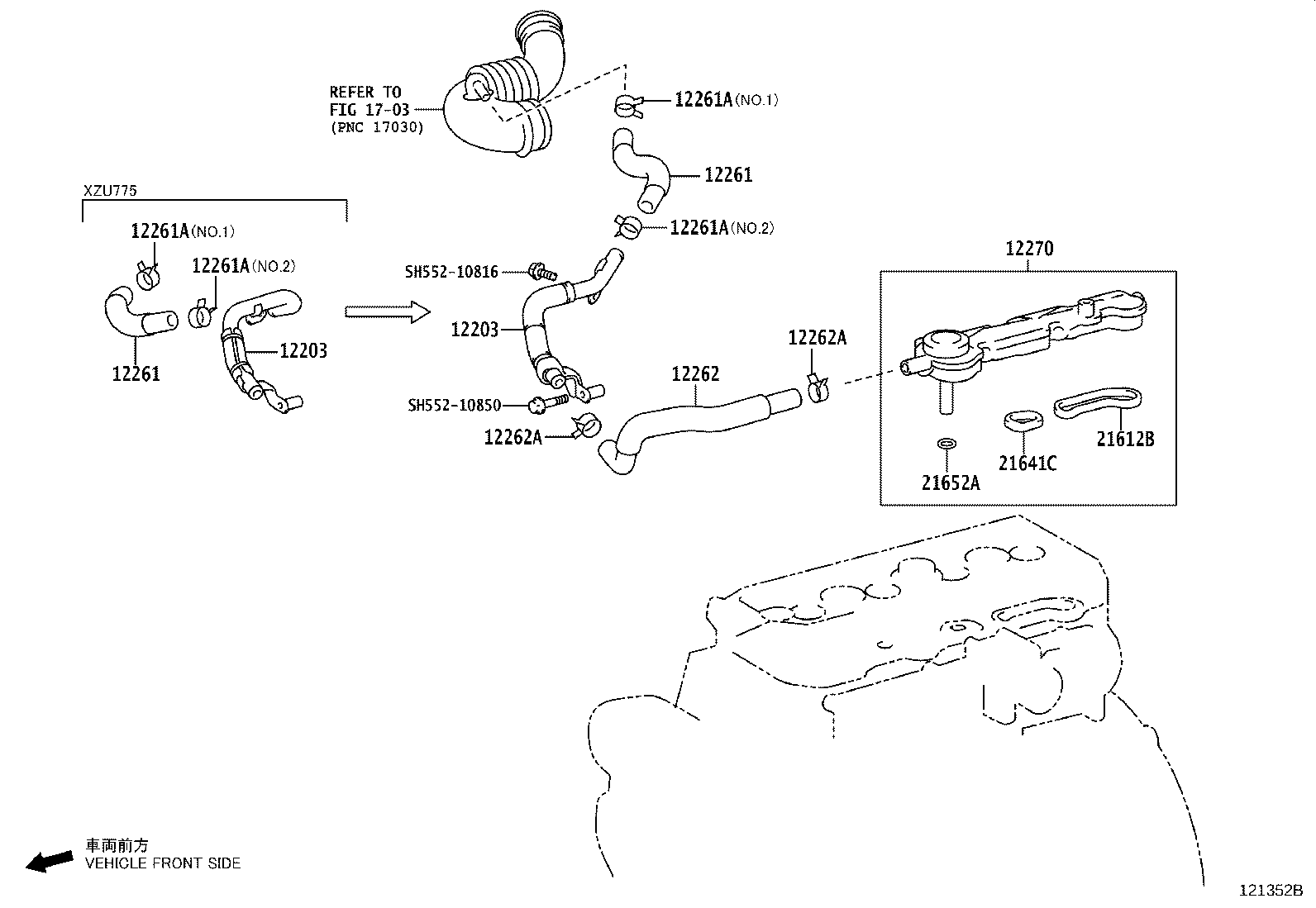

Click highlighted areas on diagram

diagram 12203 12203 12261 12261 12261A 12261A 12261A 12261A 12262 12262A 12262A 12270 1703 21612B 21641C 21652A SH55210816 SH55210850
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-78291

N04C..XZU700,71#,72#,73#..DCVUO

 1
12203-78290

N04C..XZC710,XZU70#,71#,72#,73#

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-78291

N04C..XZU700,71#,72#,73#..DCVUO

 1
12203-78290

N04C..XZC710,XZU70#,71#,72#,73#

 1
12261 - HOSE, VENTILATION
12261-78820

N04C..XZU700,71#,72#,73#..DCVUO

 1
12261 - HOSE, VENTILATION
12261-78820

N04C..XZU700,71#,72#,73#..DCVUO

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZU700,71#,72#,73#..DCVUO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZU700,71#,72#,73#..DCVUO

NO.2:ｲﾗｽﾄ参照

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZU700,71#,72#,73#..DCVUO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZU700,71#,72#,73#..DCVUO

NO.2:ｲﾗｽﾄ参照

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZU700,71#,72#,73#..DCVUO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZU700,71#,72#,73#..DCVUO

NO.2:ｲﾗｽﾄ参照

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
SZ466-28001

N04C..XZU700,71#,72#,73#..DCVUO

NO.1:ｲﾗｽﾄ参照

 1
96136-42901

N04C..XZU700,71#,72#,73#..DCVUO

NO.2:ｲﾗｽﾄ参照

 1
12262 - HOSE, VENTILATION, NO.2
12261-78800

N04C..XZU700,71#,72#,73#..DCVUO

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96136-42901

N04C..XZU700,71#,72#,73#..DCVUO

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96136-42901

N04C..XZU700,71#,72#,73#..DCVUO

 2
12270 - SEPARATOR ASSY, OIL
12270-78051

N04C..XZU700,71#,72#,73#..DCVUO

 1
21612B - GASKET
21612-78050

N04C..XZU700,71#,72#,73#..DCVUO

 1
21641C - GASKET
21641-78050

N04C..XZU700,71#,72#,73#..DCVUO

 1
21652A - RING, O
21652-78050

N04C..XZU700,71#,72#,73#..DCVUO

 1
Common parts
SH552-10816
SH552-10850
Linked diagrams
1703
