XZU730-TKFRF3 (2019)
Toyota Dyna/Toyoace
(1905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600B - RING, O, NO.1(FOR OIL FILTER) | ||||
| 16442-78140 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 15600C - RING, O, NO.2(FOR OIL FILTER) | ||||
| 15188-78140 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 21784-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| 15529-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
3 | ||
| 21677-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.4 |
1 | ||
| 15529-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15661-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| S1566-11560 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
1 | ||
| S1566-11250 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15661-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| S1566-11560 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
1 | ||
| S1566-11250 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 15661-78140 |
N04C..XZU700,71#,72#,73#..DCVUO NO.1 |
1 | ||
| S1566-11560 |
N04C..XZU700,71#,72#,73#..DCVUO NO.3 |
1 | ||
| S1566-11250 |
N04C..XZU700,71#,72#,73#..DCVUO NO.2 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15601-78140 |
N04C..XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
N04C..XZU700,71#,72#,73#..DCVUO |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
N04C..XZU700,71#,72#,73#..DCVUO |
3 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| S1571-41120 |
N04C..XZU700,71#,72#,73#..DCVUO |
3 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-78140 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 15640 - CASE ASSY, OIL FILTER | ||||
| 15640-78150 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||

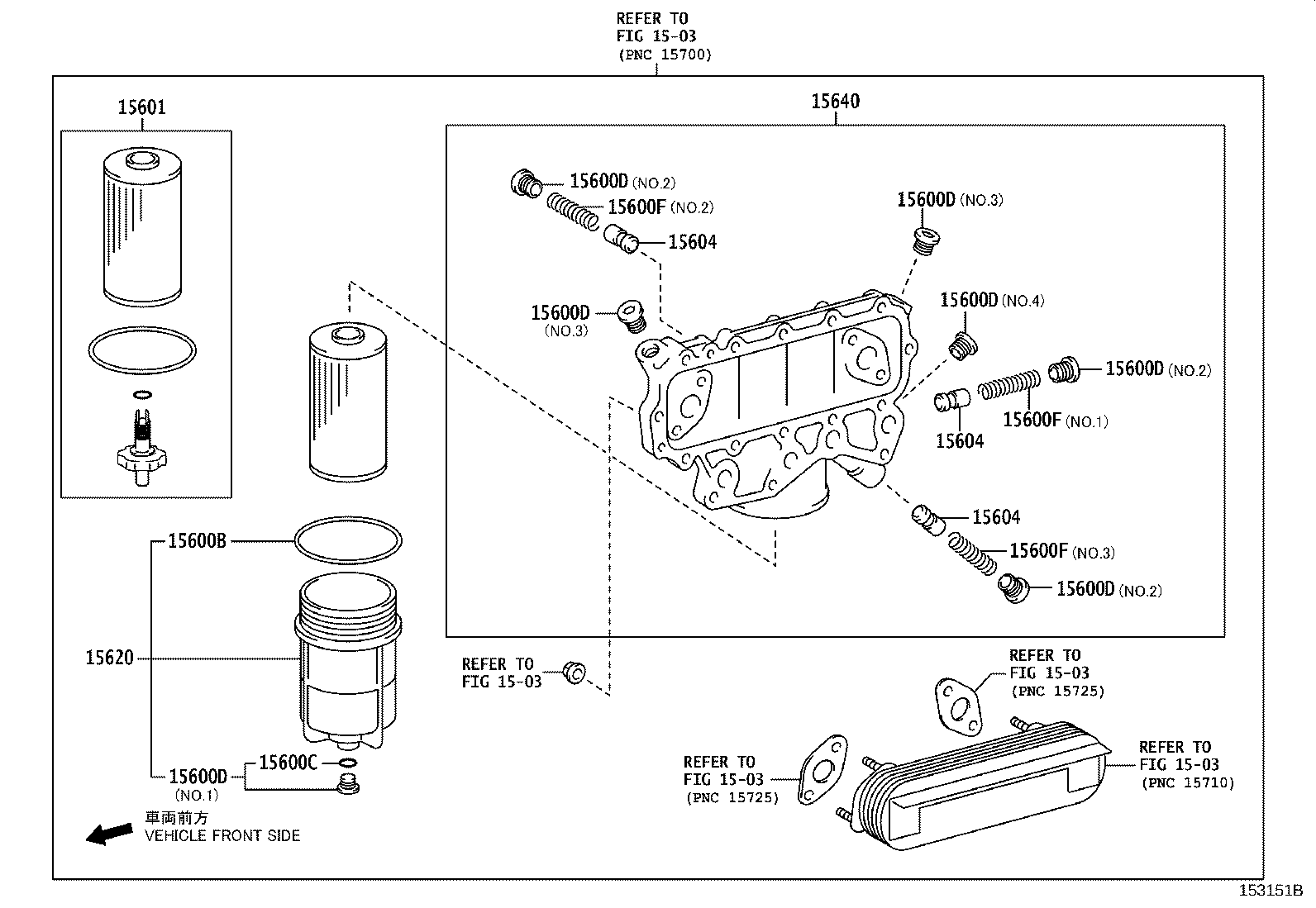

| Linked diagrams | ||||
| 1503 | ||||
