XZU730-TKFRD3 (2011)
Toyota Dyna/Toyoace

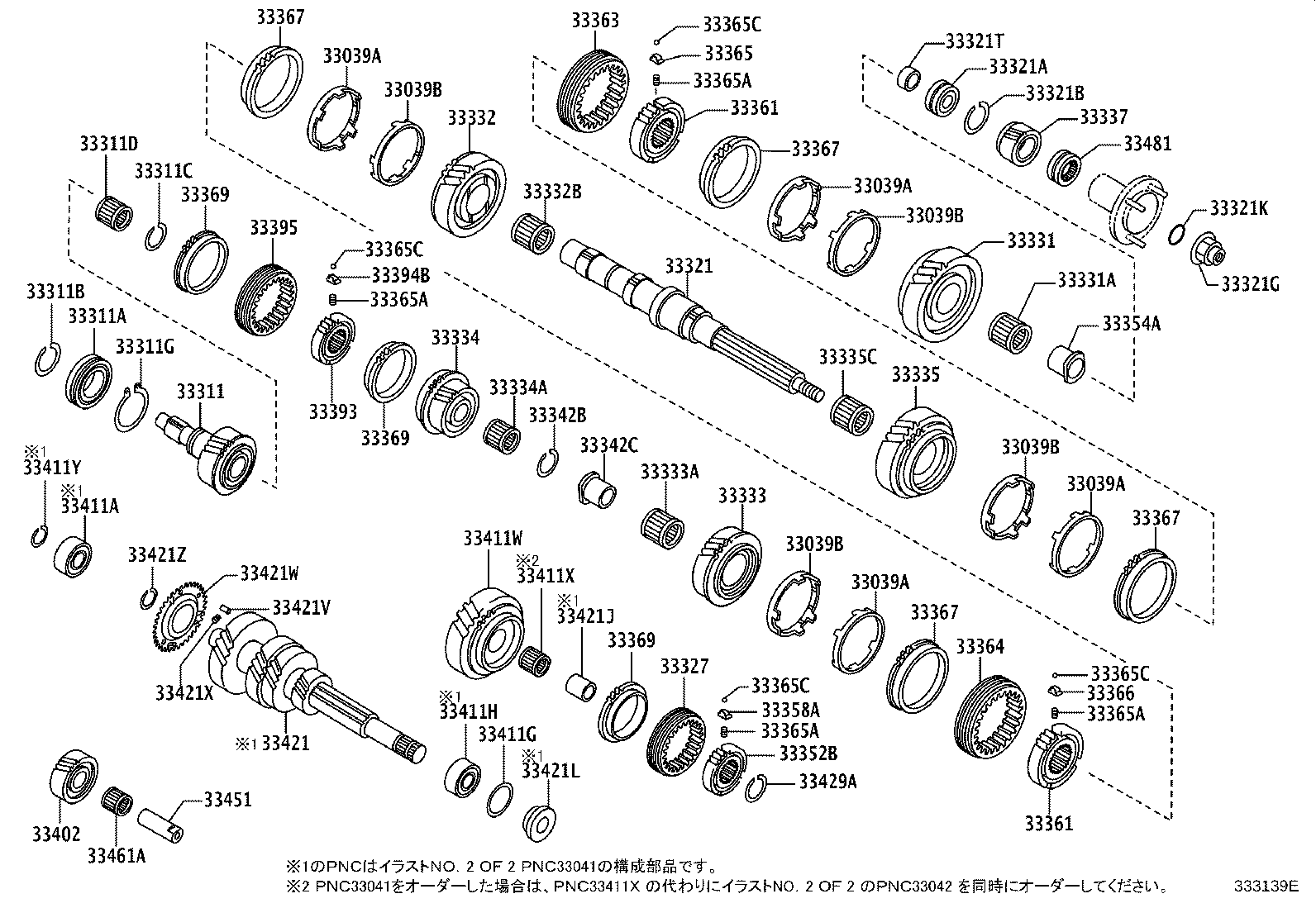

ILLUST NO. 1 OF 2(1107- )XZU700,710,720,730..DCRTL ; (1705-)DCRTL
MZZ6R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00398 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00398 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00398 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039A - RING, OUTSIDE, 3RD & 2ND | ||||
| SU002-00398 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00399 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00399 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00399 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33039B - RING, INSIDE, 3RD & 2ND | ||||
| SU002-00399 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
4 | ||
| 33311 - SHAFT, INPUT | ||||
| SU002-01005 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| SU002-00424 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| SU002-00445 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| SU002-00441 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| SU002-00425 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| SU002-00436 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| SU002-00430 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| SU002-00426 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| SU002-00437 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| SU002-00938 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| SU002-00374 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| SU002-00423 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33327 - SLEEVE, TRANSMISSION HUB, NO.4 | ||||
| SU002-00544 |
XZU710,720,730..(20T,30T,35T)..DCRTL |
1 | ||
| SU002-01088 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| SU002-00390 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| SU002-00223 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33332 - GEAR, 2ND | ||||
| SU002-00388 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| SU002-00223 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33333 - GEAR, 3RD | ||||
| SU002-00387 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| SU002-01060 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| SU002-00223 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33334 - GEAR, 4TH | ||||
| SU002-00408 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| SU002-00429 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33335 - GEAR, 1ST | ||||
| SU002-00389 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| SU002-00223 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33337 - GEAR SUB-ASSY, 6TH | ||||
| SU002-01061 |
XZU710,720,730..(20T,30T,35T)..DCRTL |
1 | ||
| SU002-01061 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| SU002-00182 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| SU002-00227 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33352B - HUB, TRANSMISSION CLUTCH, NO.4 | ||||
| SU002-00396 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| SU002-00227 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33358A - KEY, SYNCHROMESH SHIFTING, NO.4 | ||||
| SU002-00181 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
3 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| SU002-00386 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
2 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| SU002-00386 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
2 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| SU002-00545 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| SU002-00545 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| SU002-00181 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
3 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00449 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00449 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00449 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365A - SPRING, COMPRESSION | ||||
| SU002-00449 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33365C - BALL(FOR SYNCHROMESH SHIFTING KEY) | ||||
| SU002-00233 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
12 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| SU002-00181 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| SU002-00397 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
4 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| SU002-00397 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
4 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| SU002-00397 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
4 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| SU002-00397 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
4 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00184 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
3 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00184 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
3 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| SU002-00184 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
3 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| SU002-00395 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| SU002-00181 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| SU002-00544 |
XZU710,720,730..(20T,30T,35T)..DCRTL |
1 | ||
| SU002-01088 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| SU002-00393 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| SU002-00427 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33411G - SHIM(FOR COUNTER GEAR SHAFT BEARING SETTING) | ||||
| SU002-00409 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.38 |
1 | ||
| SU002-00411 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.50 |
1 | ||
| SU002-00412 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.56 |
1 | ||
| SU002-00413 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.62 |
1 | ||
| SU002-00452 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.32 |
1 | ||
| SU002-00410 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.44 |
1 | ||
| SU002-00418 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.92 |
1 | ||
| SU002-00451 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.26 |
1 | ||
| SU002-00417 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.86 |
1 | ||
| SU002-00415 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.74 |
1 | ||
| SU002-00450 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.20 |
1 | ||
| SU002-00416 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.80 |
1 | ||
| SU002-00414 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.68 |
1 | ||
| SU002-00442 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=70 厚さ=1.98 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| SU002-00427 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33411W - GEAR, COUNTER, 6TH | ||||
| SU002-00391 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33411X - BEARING, RADIAL BALL | ||||
| SU002-00342 |
XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33411Y - RING, SNAP, BAG, COUNTERSHAFT | ||||
| SU002-00439 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 厚さ=2.1 |
1 | ||
| SU002-00438 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 厚さ=1.9 |
1 | ||
| SU002-00440 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 厚さ=2.3 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| SU002-01035 |
XZU710,720,730..(20T,30T,35T)..DCRTL |
1 | ||
| SU002-01081 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| SU002-01035 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33421J - COUNTER, COLLAR 6TH | ||||
| SU002-00431 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33421L - WASHER, THRUST 6TH | ||||
| SU002-00432 |
XZU700,710,720,730..DCRTL |
1 | ||
| SU002-01087 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 33429A - RING, SHAFT SNAP | ||||
| SU002-00448 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=33.2 厚さ=1.9 |
1 | ||
| SU002-00520 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=33.2 厚さ=1.6 |
1 | ||
| SU002-00447 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=33.2 厚さ=1.8 |
1 | ||
| SU002-00446 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 内径=33.2 厚さ=1.7 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| SU002-00195 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| SU002-00203 |
XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| SU002-00694 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL 歯数=6 |
1 | ||
| SU002-00435 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL 歯数=4 |
1 | ||

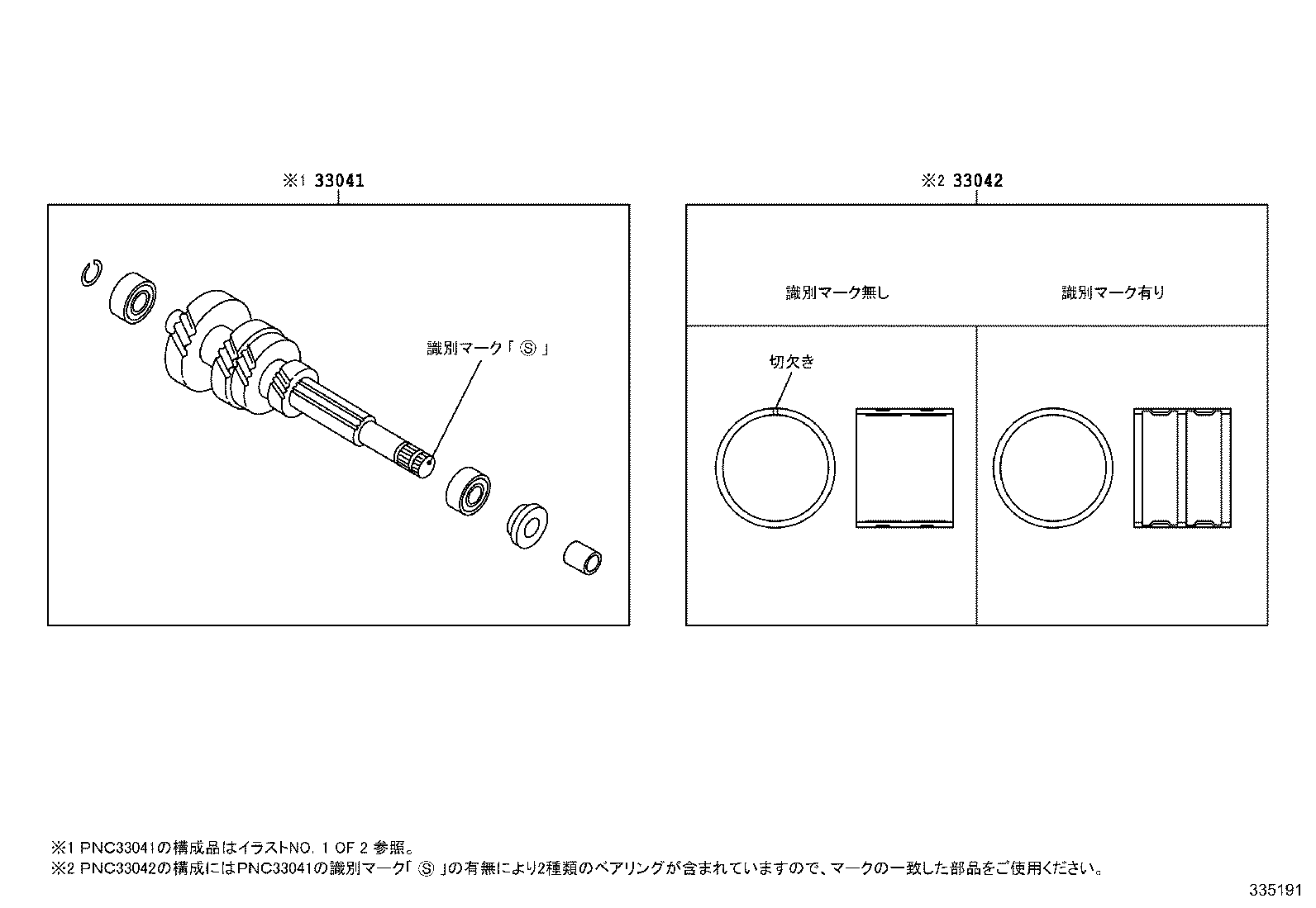

ILLUST NO. 2 OF 2(1502- )XZU700,710,720,730..DCRTL ; (1705-)DCRTL
MZZ6R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33041 - GEAR SET, COUNTER | ||||
| 33041-37010 |
XZU710..T5..DCRTL..IV3;XZU710,720,730..(T3,T4)..(20T,30T,35T)..DCRTL |
1 | ||
| 33042 - BEARING SET, COUNTER GEAR 6TH | ||||
| 33042-37010 |
XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
