XZU722-TQTQB3 (2017)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 3(1107-1905)XZC710,XZU70#,71#,72#,73#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37C10 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E74 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02D85 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37B70 |
XZU72#..DCRTJ,DCRTK,DCRTL |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37720 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37450 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37810 |
XZU70#,71#..30T,35T;XZU72#,73#..T4..(30T,35T);XZU72#..T3..(DCRTK,DCRVT) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37590 |
XZU70#,71#..30T,35T;XZU72#,73#..T4..(30T,35T);XZU72#..T3..(DCRTK,DCRVT) |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47354-37230 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90959-01594 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90959-01602 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 47371-37100 |
XZC710,XZU71#,72#,732..DCRTJ,DCRTK,DCRTL |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90959-01594 |
XZU72#,732..DCRTJ,DCRTK,DCRTL |
4 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 91551-80825 | ||||
| 91552-81018 | ||||

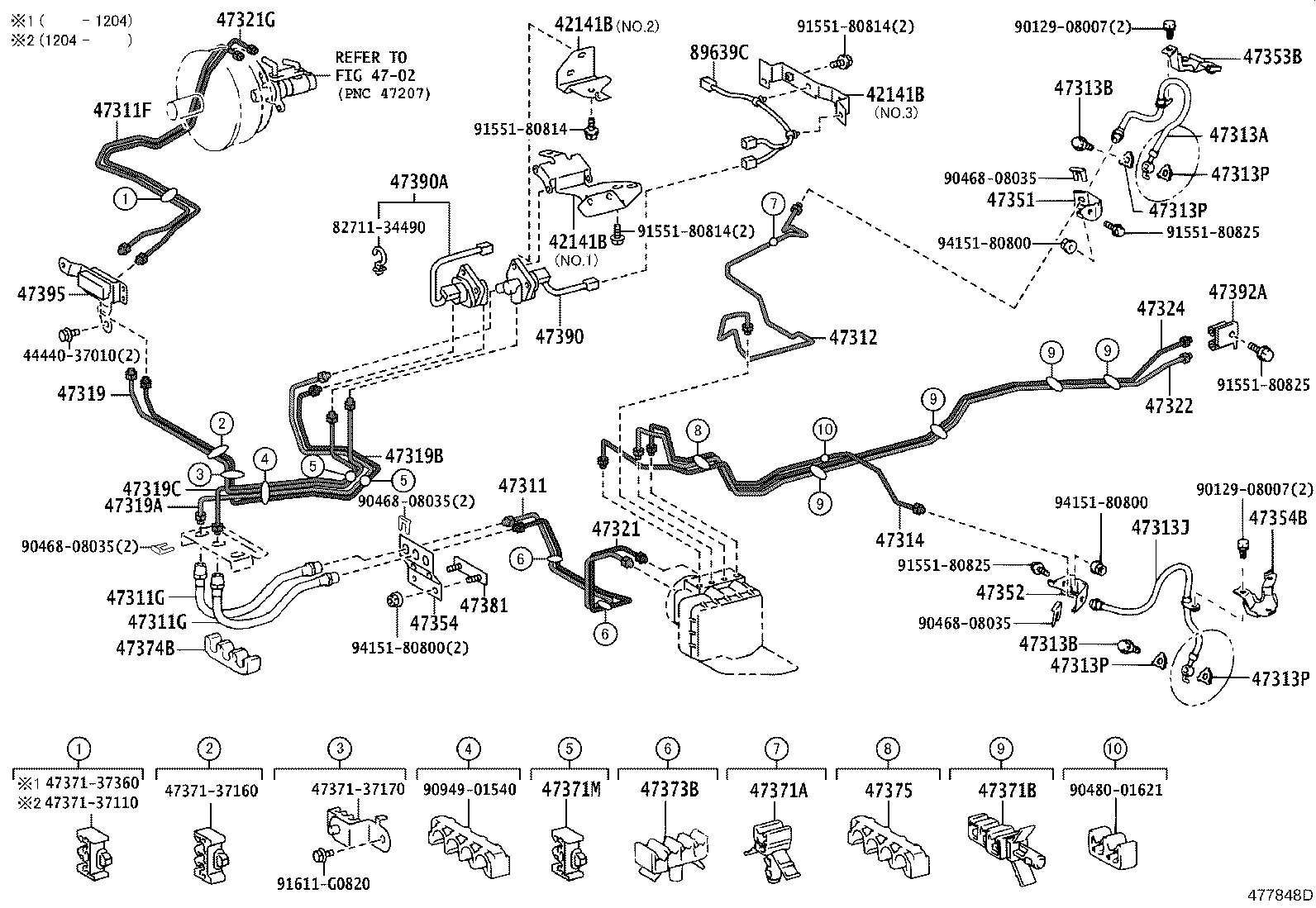

ILLUST NO. 1 OF 3(1107-1905)XZC710,XZU700,710,720..MTM..20T ; (1905- )6F..20T..DCRWD,DCVUO ; (210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37620 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37C50 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47312-37B70 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D86 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D87 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37830 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C31 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47312-37C31 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37B91 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47322-37B91 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37590 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37602 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37390 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37261 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37141 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01602 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37350 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01540 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47391-37420 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37480 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
ILLUST NO. 1 OF 3(1107-1905)6F..30T,35T,40T ; (1905- )6F..30T,35T,40T..DCRWD,DCVTO,DCVUO ; (2103-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37620 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37C50 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47312-37B70 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D86 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D87 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37830 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C31 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47312-37C31 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37B91 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47322-37B91 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37590 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37602 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37390 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37261 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37141 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01602 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37350 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01540 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47391-37420 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37480 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4702 | ||||
ILLUST NO. 1 OF 3(1107-1905)6FC..20T ; (1905- )XZC710,XZU700,710,720..6FC..DCRWD ; (2103- )6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37200 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.3 |
1 | ||
| 42141-37190 |
XZC710,XZU70#,71#,72#..6FC NO.2 |
1 | ||
| 42141-37181 |
XZC710,XZU70#,71#,72#..6FC NO.1 |
1 | ||
| 42141-37190 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.2 |
1 | ||
| 42141-37181 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.1 |
1 | ||
| 42141-37200 |
XZC710,XZU70#,71#,72#..6FC NO.3 |
1 | ||
| 42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37200 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.3 |
1 | ||
| 42141-37190 |
XZC710,XZU70#,71#,72#..6FC NO.2 |
1 | ||
| 42141-37181 |
XZC710,XZU70#,71#,72#..6FC NO.1 |
1 | ||
| 42141-37190 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.2 |
1 | ||
| 42141-37181 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.1 |
1 | ||
| 42141-37200 |
XZC710,XZU70#,71#,72#..6FC NO.3 |
1 | ||
| 42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37200 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.3 |
1 | ||
| 42141-37190 |
XZC710,XZU70#,71#,72#..6FC NO.2 |
1 | ||
| 42141-37181 |
XZC710,XZU70#,71#,72#..6FC NO.1 |
1 | ||
| 42141-37190 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.2 |
1 | ||
| 42141-37181 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.1 |
1 | ||
| 42141-37200 |
XZC710,XZU70#,71#,72#..6FC NO.3 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37620 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37C50 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47312-37B70 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D86 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D87 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37830 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C31 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47312-37C31 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47313-37591 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47313-37591 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37B91 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47322-37B91 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47319C - TUBE, FRONT BRAKE, NO.12 | ||||
| 47323-37741 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47323-37741 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37590 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37602 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37390 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37261 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37141 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01602 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 47371-37110 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
2 | ||
| 47371-37110 |
XZC710,XZU70#,71#,72#..6FC |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37350 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01540 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 35445-37070 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 35445-37050 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47390A - VALVE ASSY, HILL HOLDER BRAKE LOCK, NO.2 | ||||
| 35445-37080 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 35445-37060 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47391-37420 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37480 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 89639C - WIRE, BRAKE CONTROL | ||||
| 89639-37020 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 89639-37060 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 82711-34490 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90949-01540 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 1 OF 3(1107-1905)6FC..30T,35T,40T ; (1905- )6FC..30T,35T,40T..DCRWD,DCVTO ; (2103-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37200 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.3 |
1 | ||
| 42141-37190 |
XZC710,XZU70#,71#,72#..6FC NO.2 |
1 | ||
| 42141-37181 |
XZC710,XZU70#,71#,72#..6FC NO.1 |
1 | ||
| 42141-37190 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.2 |
1 | ||
| 42141-37181 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.1 |
1 | ||
| 42141-37200 |
XZC710,XZU70#,71#,72#..6FC NO.3 |
1 | ||
| 42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37200 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.3 |
1 | ||
| 42141-37190 |
XZC710,XZU70#,71#,72#..6FC NO.2 |
1 | ||
| 42141-37181 |
XZC710,XZU70#,71#,72#..6FC NO.1 |
1 | ||
| 42141-37190 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.2 |
1 | ||
| 42141-37181 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.1 |
1 | ||
| 42141-37200 |
XZC710,XZU70#,71#,72#..6FC NO.3 |
1 | ||
| 42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37200 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.3 |
1 | ||
| 42141-37190 |
XZC710,XZU70#,71#,72#..6FC NO.2 |
1 | ||
| 42141-37181 |
XZC710,XZU70#,71#,72#..6FC NO.1 |
1 | ||
| 42141-37190 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.2 |
1 | ||
| 42141-37181 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,NO.1 |
1 | ||
| 42141-37200 |
XZC710,XZU70#,71#,72#..6FC NO.3 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37620 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37632 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G01 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37C50 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47312-37B70 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02D86 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02D87 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37830 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47312-37C31 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47312-37C31 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47319A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47313-37591 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47313-37591 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47319B - TUBE, FRONT BRAKE, NO.11 | ||||
| 47322-37B91 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47322-37B91 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47319C - TUBE, FRONT BRAKE, NO.12 | ||||
| 47323-37741 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47323-37741 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37590 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37602 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37B40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37390 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37261 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37141 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90959-01595 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90959-01602 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 47371-37110 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
2 | ||
| 47371-37110 |
XZC710,XZU70#,71#,72#..6FC |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-37350 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00726 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01540 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37281 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 35445-37070 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 35445-37050 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47390A - VALVE ASSY, HILL HOLDER BRAKE LOCK, NO.2 | ||||
| 35445-37080 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 35445-37060 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47391-37410 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 47391-37420 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47391-37480 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| 89639C - WIRE, BRAKE CONTROL | ||||
| 89639-37020 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 89639-37060 |
XZC710,XZU70#,71#,72#..6FC |
1 | ||
| Common parts | ||||
| 44440-37010 | ||||
| 47371-37110 | ||||
| 47371-37160 | ||||
| 47371-37170 | ||||
| 47371-37360 | ||||
| 82711-34490 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90480-01621 | ||||
| 90949-01540 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91611-G0820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
