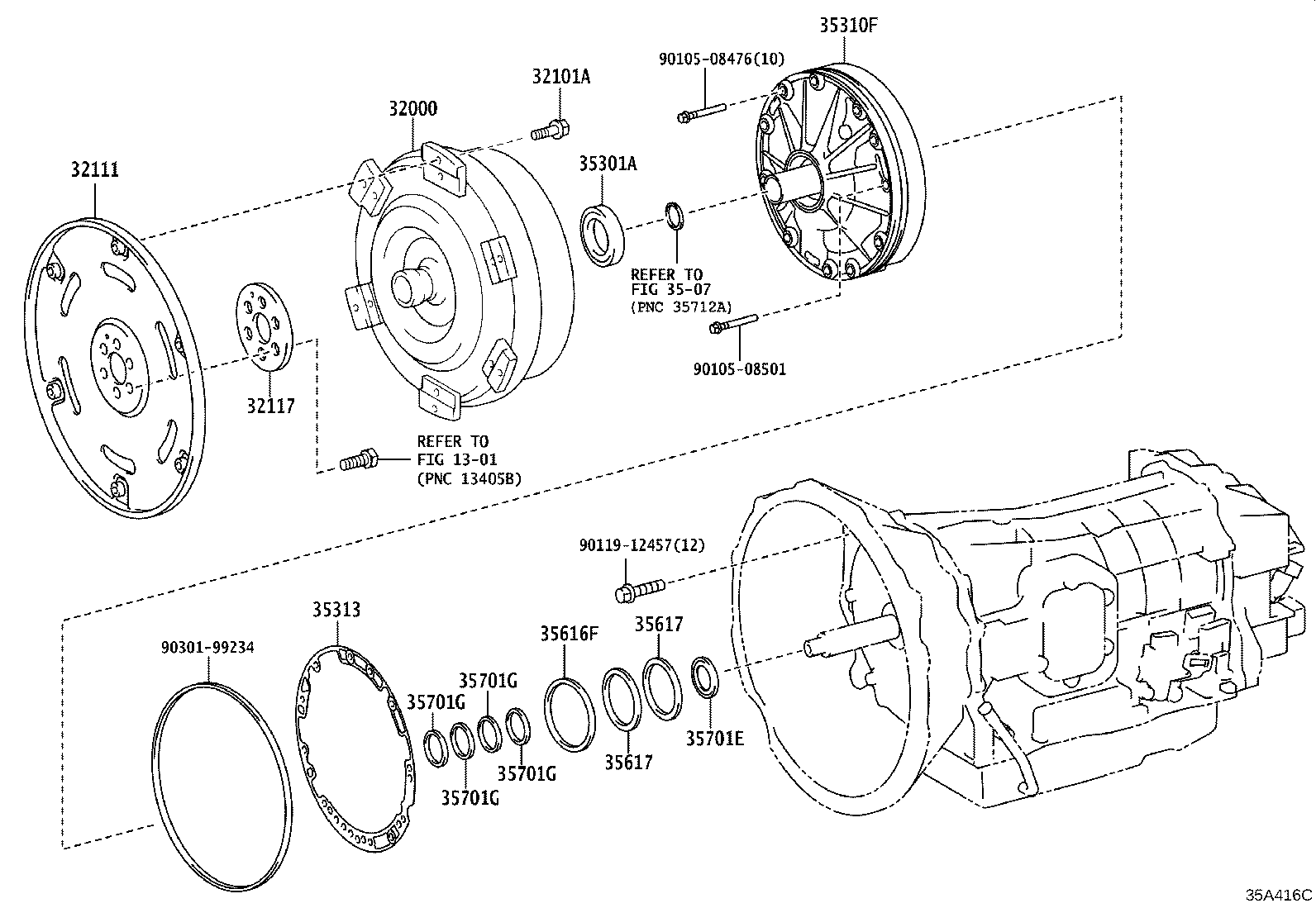

Toyota Dyna/toyoace XZU722 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
32000 - CONVERTER ASSY, TORQUE
32000-37060	XZC710,XZU70#,71#,72#..6FC	05/2017 - 05/2019	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-10894	XZC710,XZU70#,71#,72#..6FC *10−1.25PX28−23	05/2017 - 05/2019	6
32111 - PLATE, PUMP IMPELLER DRIVE
32111-37050	XZC710,XZU70#,71#,72#..6FC	05/2017 - 05/2019	1
32117 - SPACER, DRIVE PLATE, REAR
32117-37050	XZC710,XZU70#,71#,72#..6FC	05/2017 - 05/2019	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-46009	XZC710,XZU70#,71#,72#..6FC	05/2017 - 05/2019	1
35310F - PUMP ASSY, FRONT OIL
35310-37010	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	1
35313 - GASKET, FRONT OIL PUMP COVER
35313-37010	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	1
35616F - WASHER, CLUTCH DRUM THRUST
35616-37010	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-37010	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-37010	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	2
35701E - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789-37010	XZC710,XZU70#,71#,72#..6FC 厚さ=0.81	04/2019 - 05/2019	1
35789-37030	XZC710,XZU70#,71#,72#..6FC 厚さ=1.6	04/2019 - 05/2019	1
35789-37020	XZC710,XZU70#,71#,72#..6FC 厚さ=1.1	04/2019 - 05/2019	1
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	4
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	4
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	4
35701G - RING, INPUT SHAFT OIL SEAL
35712-37020	XZC710,XZU70#,71#,72#..6FC	04/2019 - 05/2019	4
Common parts
90105-08476
90105-08501
90119-12457
90301-99234
Linked diagrams
1301
3507

XZU722-TQTQB3 (2017)

(1904- )6FC
