XZU722-TQFQY3 (2021)

Toyota Dyna/Toyoace

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

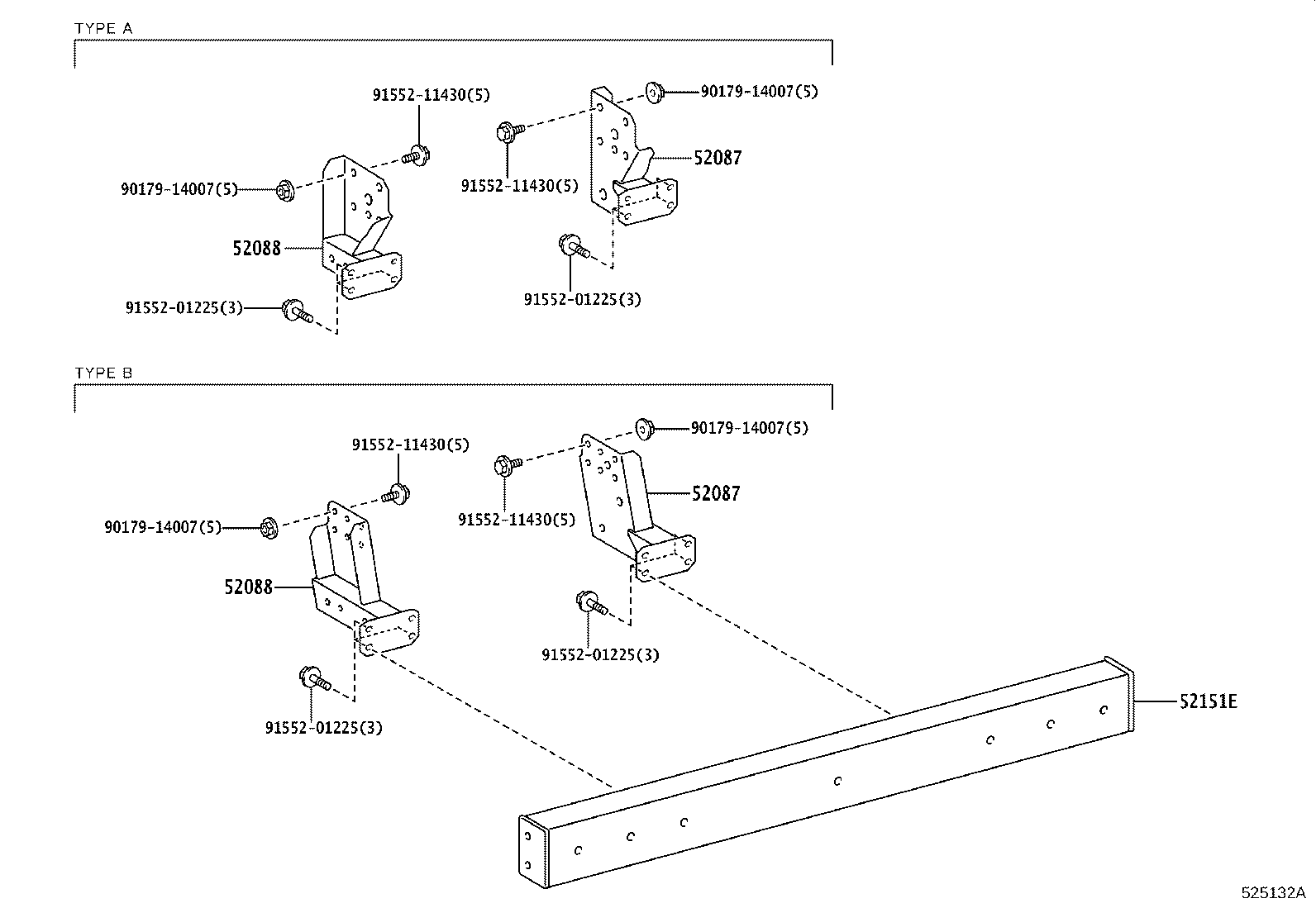

ILLUST NO. 1 OF 2(2103- )DCVUO,DCWDO..CBU,IV3,IV6

Click highlighted areas on diagram

diagram 52087 52087 52088 52088 52151E 9017914007 9017914007 9017914007 9017914007 9155201225 9155201225 9155201225 9155201225 9155211430 9155211430 9155211430 9155211430
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52151-37550

XZU720..6FC..DCWDO..CBU;XZU712..T4..6F..30T..DCWDO..CBU;XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52151-37550

XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..(CBU,IV3)

TYPE B:ｲﾗｽﾄ参照

 1
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52151-37550

XZU720..6FC..DCWDO..CBU;XZU712..T4..6F..30T..DCWDO..CBU;XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52151-37550

XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..(CBU,IV3)

TYPE B:ｲﾗｽﾄ参照

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37250

XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..(CBU,IV3)

TYPE B:ｲﾗｽﾄ参照

 1
52152-37250

XZU720..6FC..DCWDO..CBU;XZU712..T4..6F..30T..DCWDO..CBU;XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52152-37250

XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..(CBU,IV3)

TYPE B:ｲﾗｽﾄ参照

 1
52152-37250

XZU720..6FC..DCWDO..CBU;XZU712..T4..6F..30T..DCWDO..CBU;XZC710,XZU70#,71#,72#,73#..(DCVUO,DCWDO)..IV3

ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照

 1
52151E - BAR, REAR BUMPER
52105-37450

XZU70#,71#,72#,73#..(30T,35T,40T)..(DCVUO,DCWDO)..(CBU,IV3)

塗装不要

 1
52105-37450

XZU712..T4..6F..30T..DCWDO..CBU;XZU70#,71#,72#,73#..(30T,35T,40T)..(DCVUO,DCWDO)..IV3

塗装不要,ﾘﾔﾊﾞﾝﾊﾟ−無し

 1
Common parts
90179-14007
91552-01225
91552-11430
