XZU722-TQFQX (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )XZU710..SCB..CBU ; (1905- )XZC710,XZU70#,712,72#,775..CBU

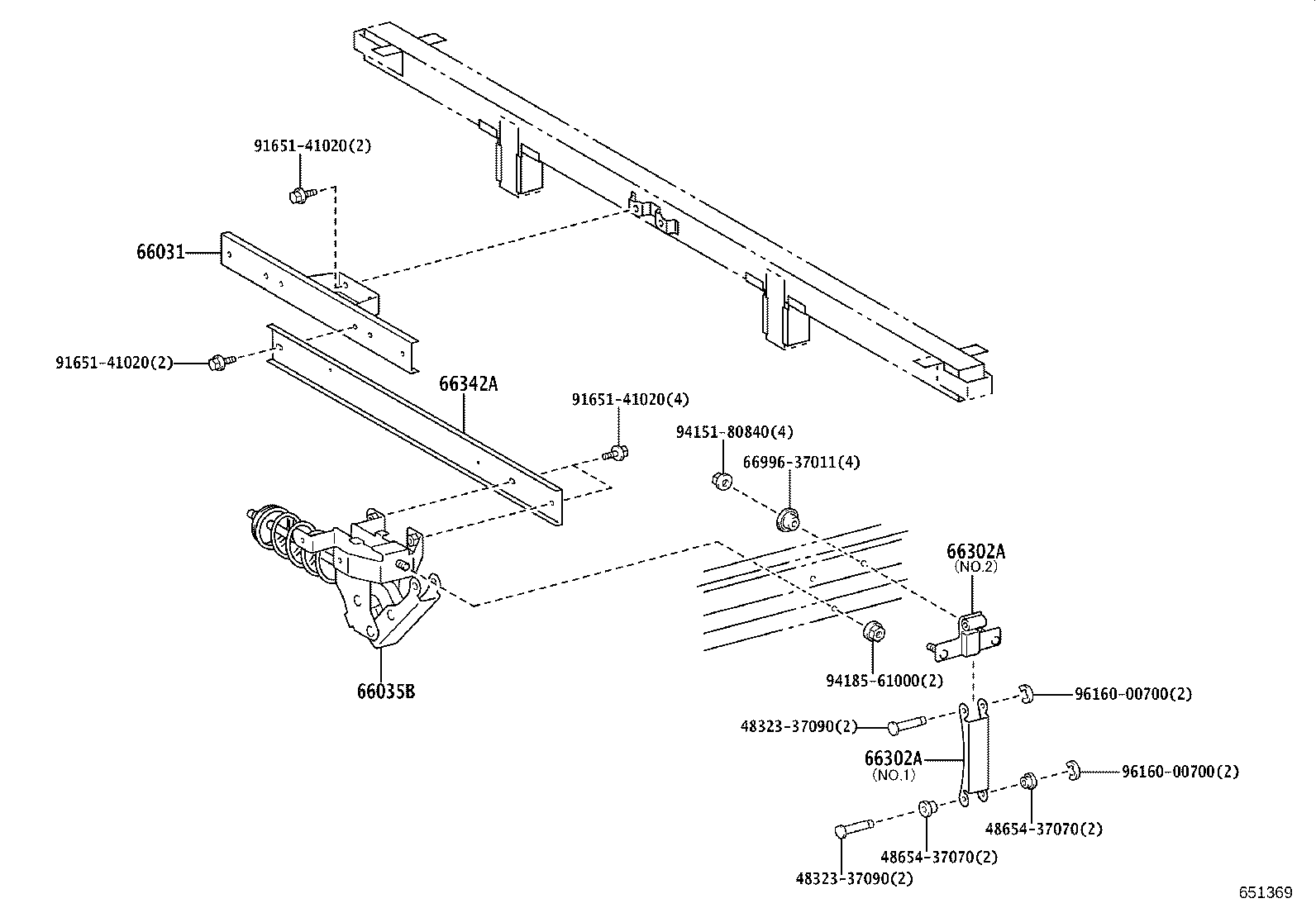

Click highlighted areas on diagram

ｻｲﾄﾞｹﾞｰﾄﾍﾙﾊﾟ

diagram 4832337090 4832337090 4865437070 4865437070 66031 66035B 66302A 66302A 66342A 6699637011 9165141020 9165141020 9165141020 9415180840 9418561000 9616000700 9616000700
Part # Description Qty Price
66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1
66031-37040

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

 1
66031-37040

XZU72#..SCB..(30T,35T)..(DCRWD,DCVTO)..CBU

ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(超ﾛﾝｸﾞ,5方開ﾃﾞｯｷ)

 1
66035B - BELLCRANK SUB-ASSY, GATE HELPER
66302-37070

XZU72#..SCB..(30T,35T)..(DCRWD,DCVTO)..CBU

ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(超ﾛﾝｸﾞ,5方開ﾃﾞｯｷ)

 2
66302-37070

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

 2
66302A - LINK SUB-ASSY, GATE HELPER
66335-37110

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

NO.2:ｲﾗｽﾄ参照

 2
66325-37060

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

NO.1:ｲﾗｽﾄ参照

 2
66325-37060

XZU72#..SCB..(30T,35T)..(DCRWD,DCVTO)..CBU

ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(超ﾛﾝｸﾞ,5方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照

 2
66302A - LINK SUB-ASSY, GATE HELPER
66335-37110

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

NO.2:ｲﾗｽﾄ参照

 2
66325-37060

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

NO.1:ｲﾗｽﾄ参照

 2
66325-37060

XZU72#..SCB..(30T,35T)..(DCRWD,DCVTO)..CBU

ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(超ﾛﾝｸﾞ,5方開ﾃﾞｯｷ),NO.1:ｲﾗｽﾄ参照

 2
66342A - SPACER, GATE HELPER
66342-37050

XZU72#..SCB..(30T,35T)..(DCRWD,DCVTO)..CBU

ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(超ﾛﾝｸﾞ,5方開ﾃﾞｯｷ)

 2
66342-37050

XZU722..DCRWD..CBU;XZC710,XZU71#,720,775..SCB..(DCRWD,DCVTO)..CBU

 2
Common parts
48323-37090
48654-37070
66996-37011
91651-41020
94151-80840
94185-61000
96160-00700
