XZU722-TQFQC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

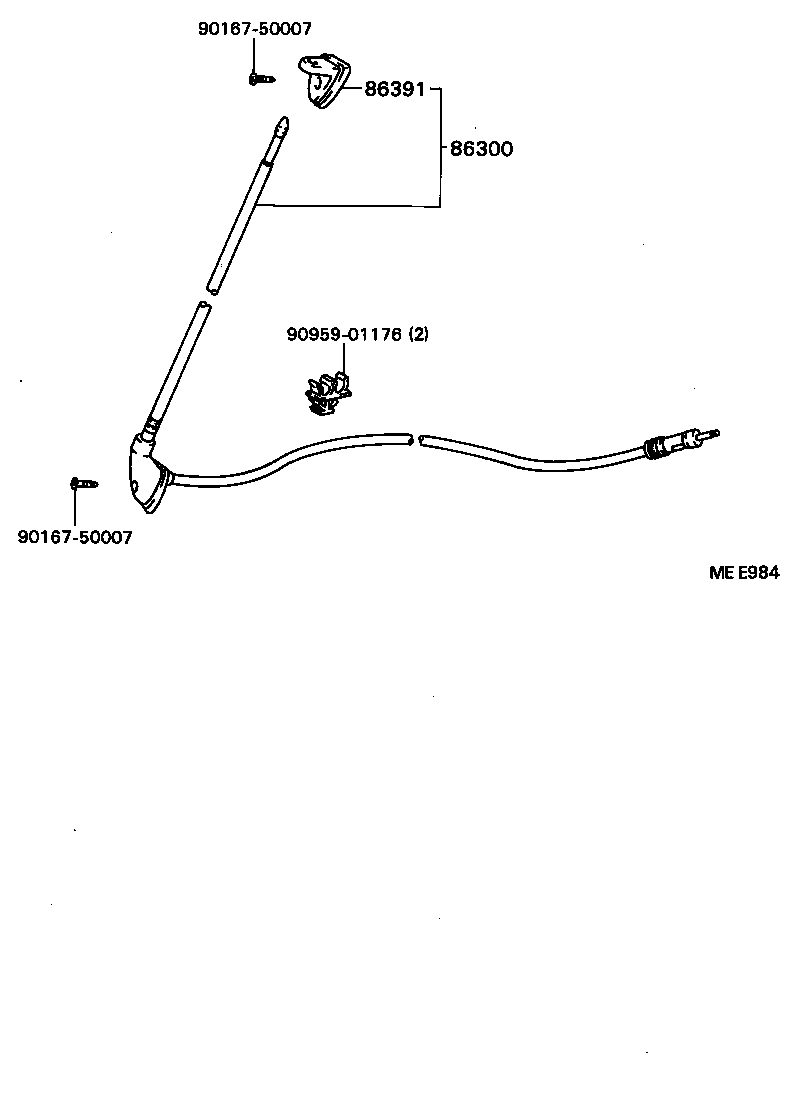

diagram 86300 86391 9016750007 9016750007 9095901176
Part # Description Qty Price
Common parts
90167-50007
90959-01176

(8708- )

Click highlighted areas on diagram

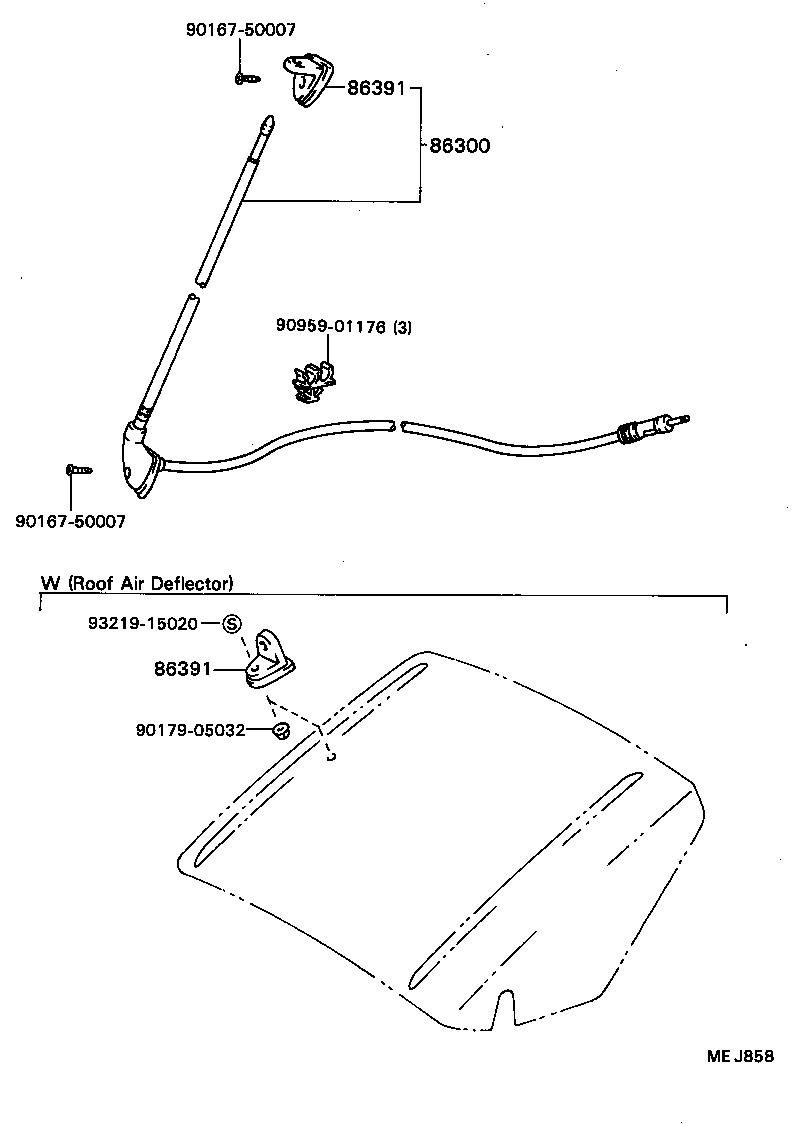

diagram 86300 86391 86391 9016750007 9016750007 9017905032 9095901176 9321915020
Part # Description Qty Price
Common parts
90167-50007
90179-05032
90959-01176
93219-15020

(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU,DCRWD,DCVTO,DCVUO ; (2103- )DCVUO,DCWDO

Click highlighted areas on diagram

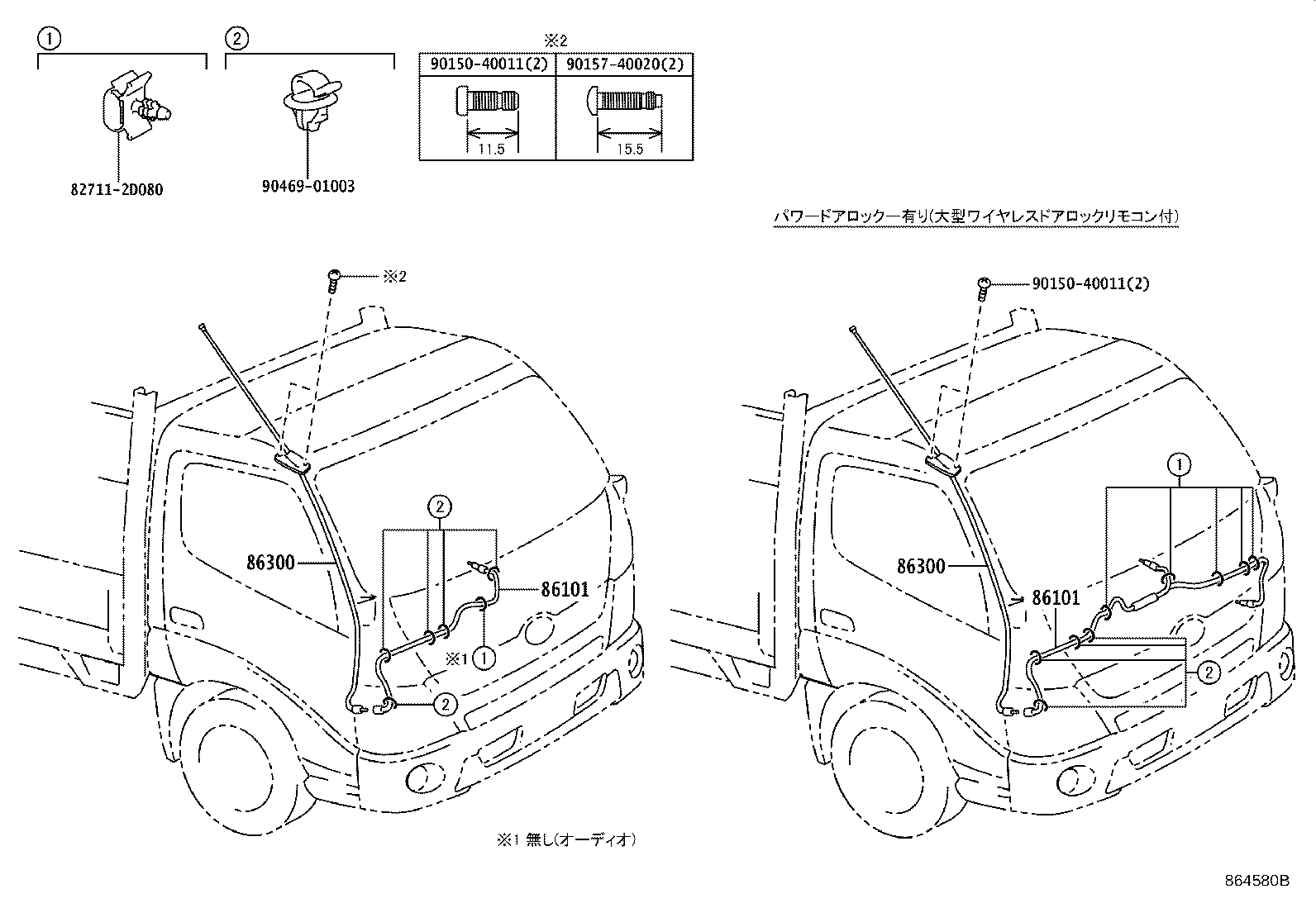

diagram 827112D080 86101 86101 86300 86300 9015040011 9015040011 9015740020 9046901003
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-37060

XZC710,XZU70#,71#,72#,73#,775

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-37060

XZC710,XZU70#,71#,72#,73#,775

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-37160

XZC710,XZU70#,71#,72#,73#,775

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-37160

XZC710,XZU70#,71#,72#,73#,775

 1
Common parts
82711-2D080
90150-40011
90157-40020
90469-01003
