XZU722-TQFQC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

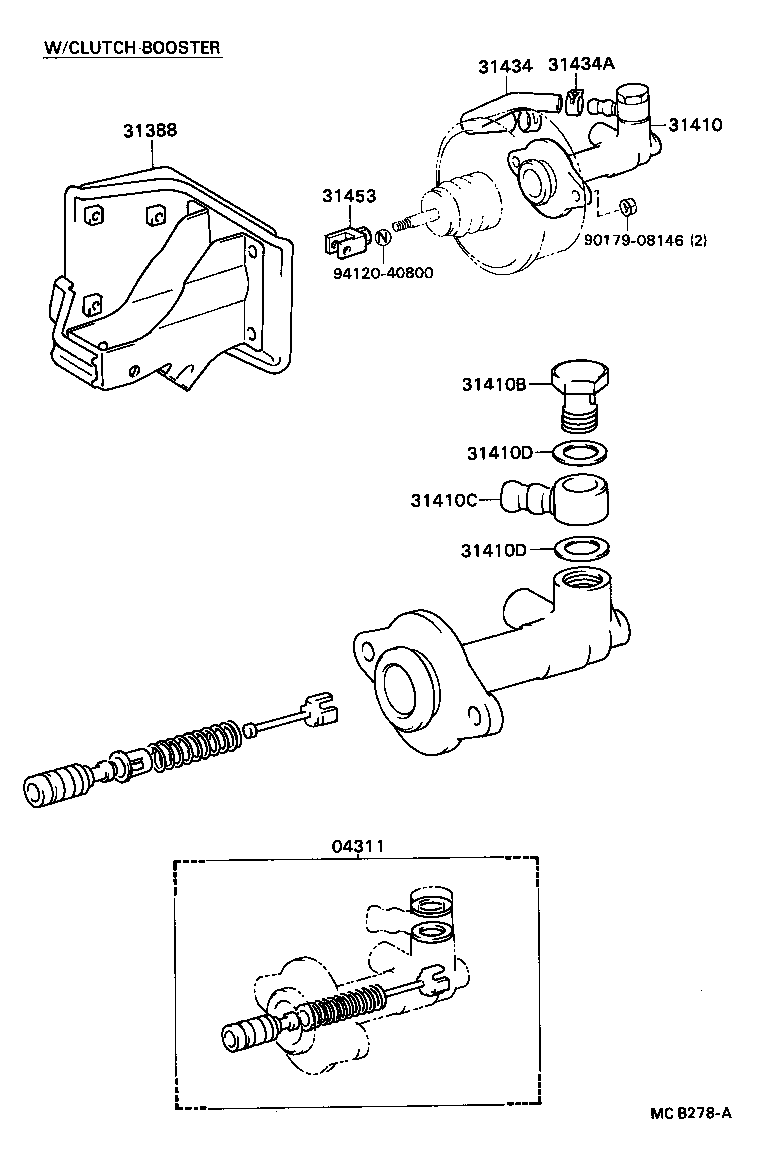

(8409- )BU6#,7#,8#,98

Click highlighted areas on diagram

diagram 04311 31388 31410 31410A 31410B 31410C 31410D 31410D 31434 31434A 31434A 31451 31453 31454 9412040800
Part # Description Qty Price
Common parts
94120-40800

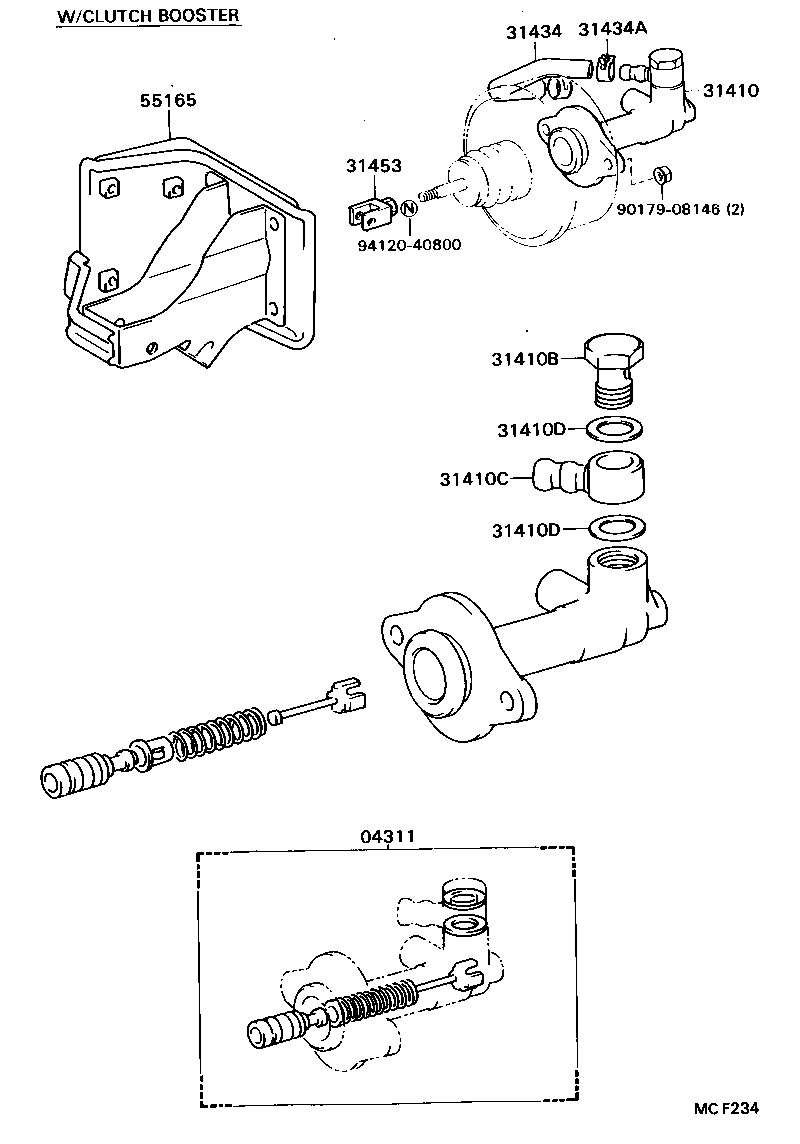

(8409- )

Click highlighted areas on diagram

diagram 04311 31388 31410 31410B 31410C 31410D 31410D 31434 31434A 31453 9017908146 9412040800
Part # Description Qty Price
Common parts
90179-08146
94120-40800

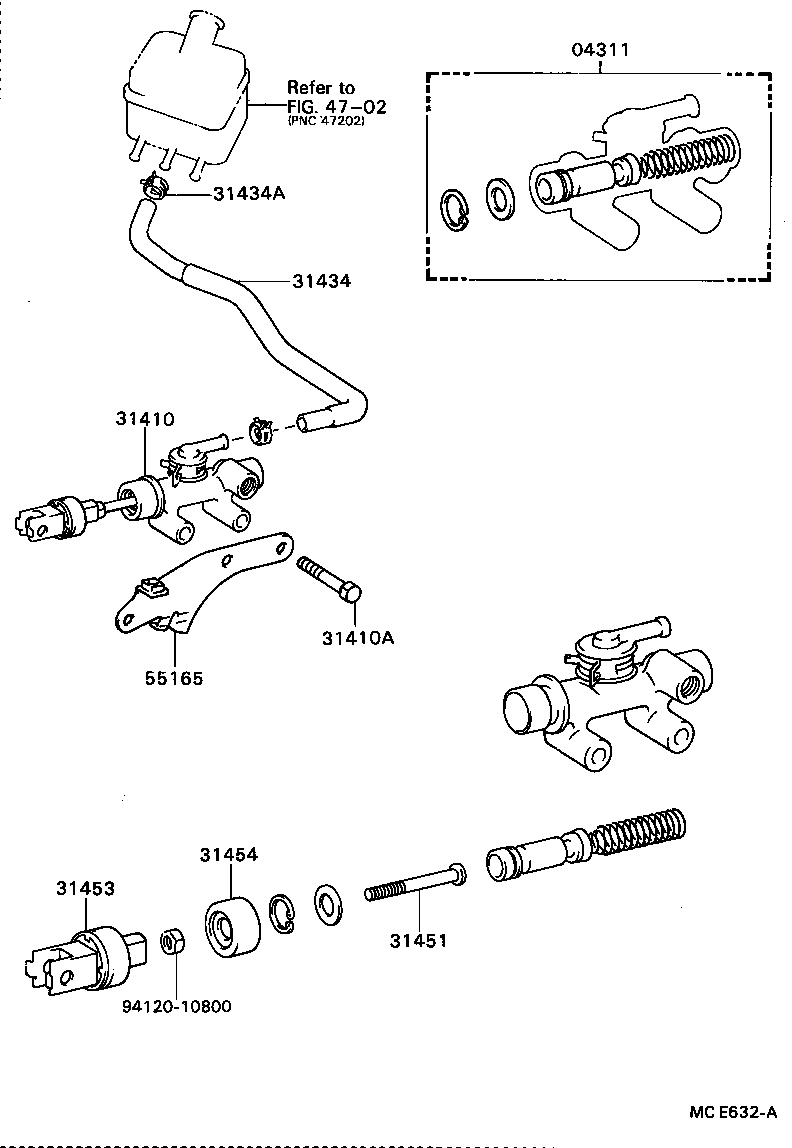

(8708- )

Click highlighted areas on diagram

diagram 04311 31410 31410A 31434 31434A 31451 31453 31454 4702 55165 9412010800
Part # Description Qty Price
Common parts
94120-10800
Linked diagrams
4702

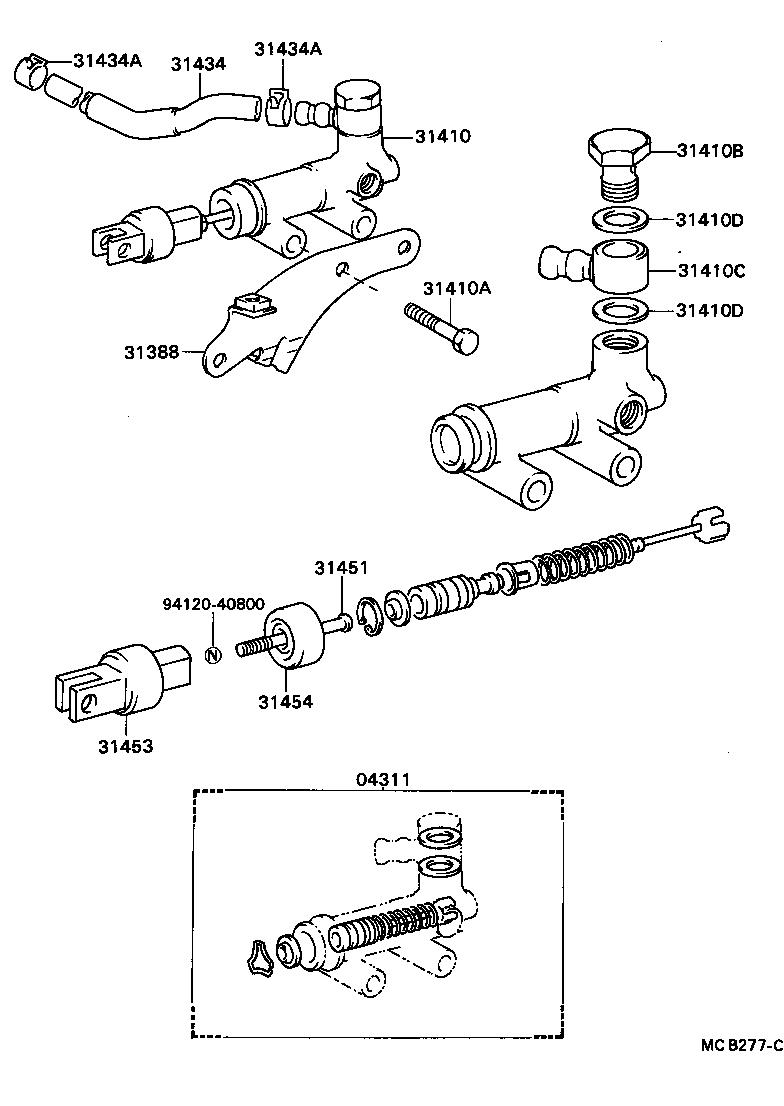

(8708- )

Click highlighted areas on diagram

diagram 04311 31410 31410B 31410C 31410D 31410D 31434 31434A 31453 55165 9017908146 9412040800
Part # Description Qty Price
Common parts
90179-08146
94120-40800

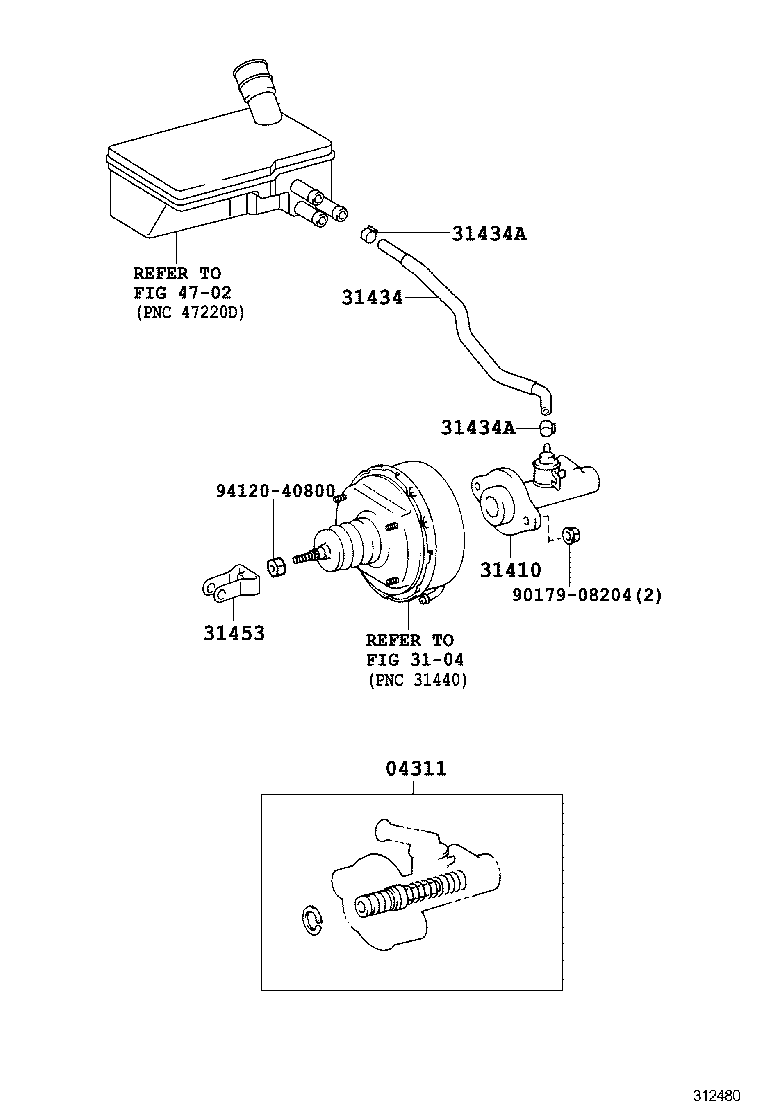

(1107- )MTM

Click highlighted areas on diagram

diagram 04311 3104 31410 31434 31434A 31434A 31453 4702 9017908204 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-37030

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-37011

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-37220

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

XZC710,XZU70#,71#,72#,73#,775..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

XZC710,XZU70#,71#,72#,73#,775..MTM

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-10040

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
Common parts
90179-08204
94120-40800
Linked diagrams
3104
4702
