XZU722-TKFRC (2017)
Toyota Dyna/Toyoace

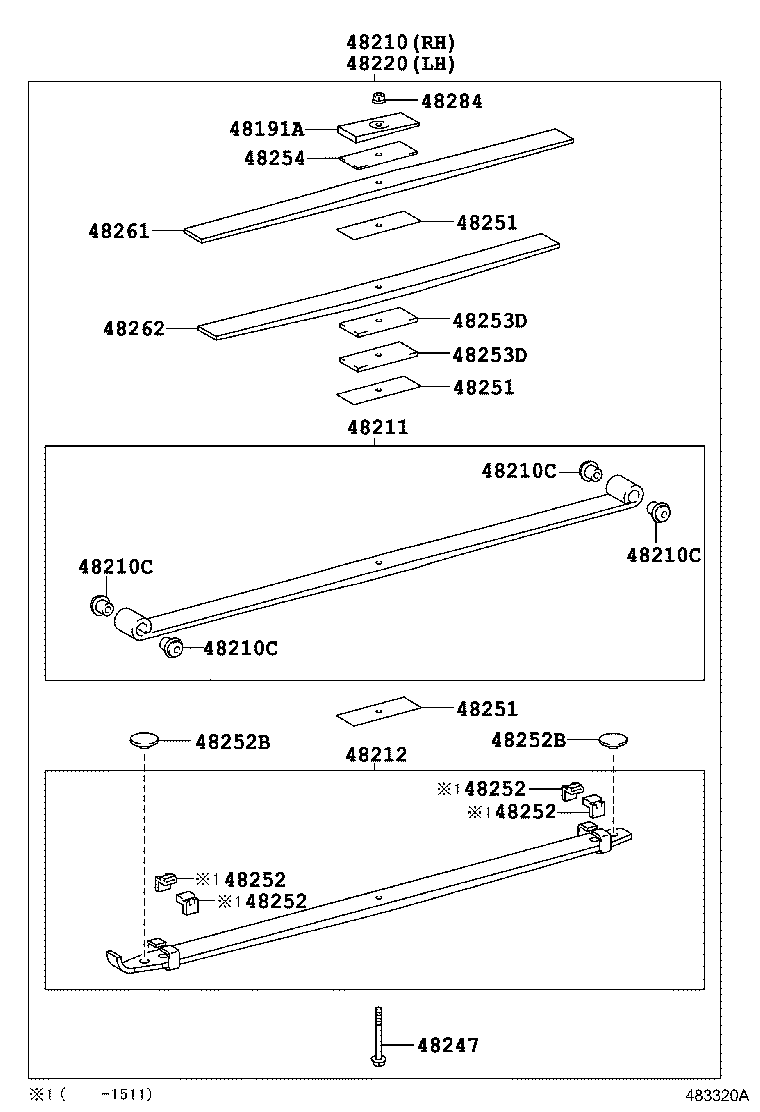

ILLUST NO. 2 OF 2(1705- )XZU72#,73#..T4..35T..DCRTK,DCRTL,DCRVT,DCRVU..IV3 ; (1905- )XZU71#,72
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48215-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48215-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||

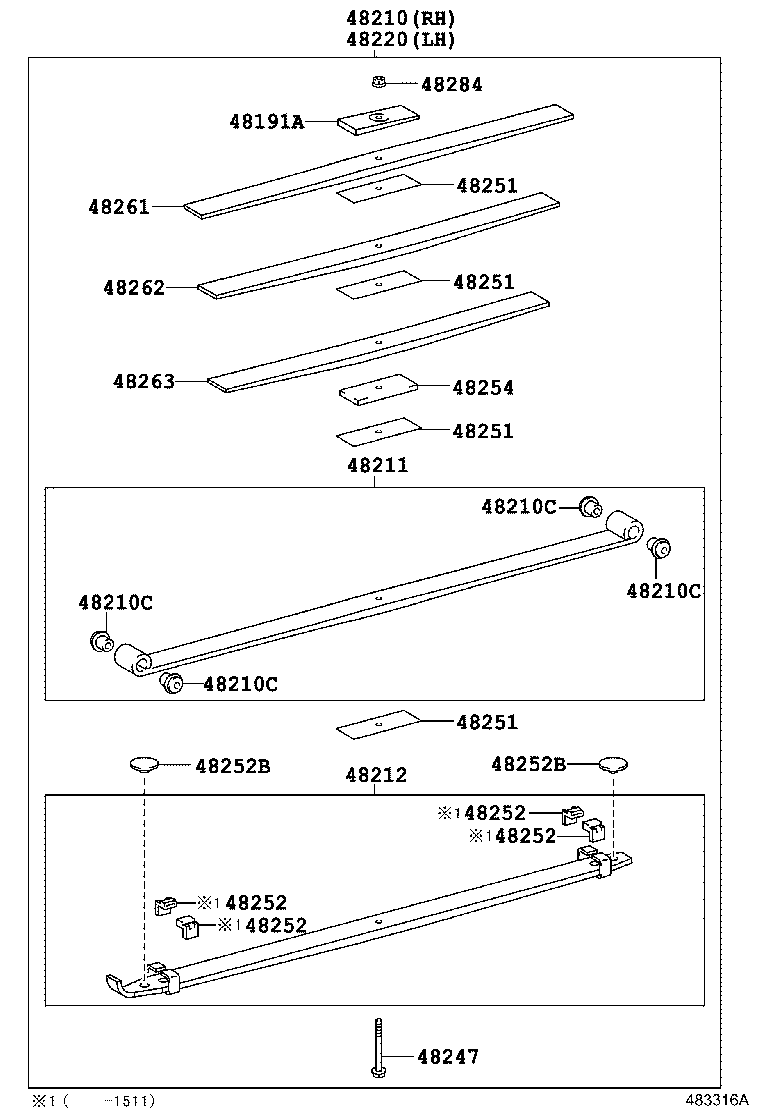

ILLUST NO. 2 OF 2(1705- )XZU72#..T3..35T..DCRTK,DCRVT ; (1705-)XZU71#..T3..35T..DCRTK,DCRVT..
MAIN 2 + HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48215-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48215-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48215-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
ILLUST NO. 2 OF 2(1705- )XZU71#,72#..30T..DCRTJ,DCRTK,DCRTL,DCRVT..IV3 ; (1905- )XZU71#,72#..3
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48192-37100 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 90389-16026 |
XZU710,720,730;XZC710,XZU700,712,722,732,775..DCRTJ,DCRTK,DCRTL |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48201-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48202-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J31 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48210-37J61 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37F60 |
XZU71#,72#..T3..35T..(DCRTK,DCRVT) |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48247-37E81 |
XZU71#..35T..IV3;XZU71#..T3..35T..CBU;XZU72#,73#..T4..35T..IV3;XZU72#..T3..35T..(DCRTK,DCRVT) ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| S4814-E0010 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48252-37521 |
XZU775..20T;XZU710..40T..DCRVT;XZU710,720,730..20T,30T,35T;XZC710,XZU70#,712,722,732..DCRTJ,DCRTK,DCRTL,DCRVT |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48253-37L51 |
XZU71#,72#..T3..(35T,40T)..(DCRTK,DCRVT) |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48213-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J41 |
XZU71#,72#,73#..35T |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48214-37J61 |
XZU71#,72#,73#..35T..IV3;XZU71#,72#,732..T3..35T..CBU ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ﾃﾝｼｮﾝ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48284-0W070 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
