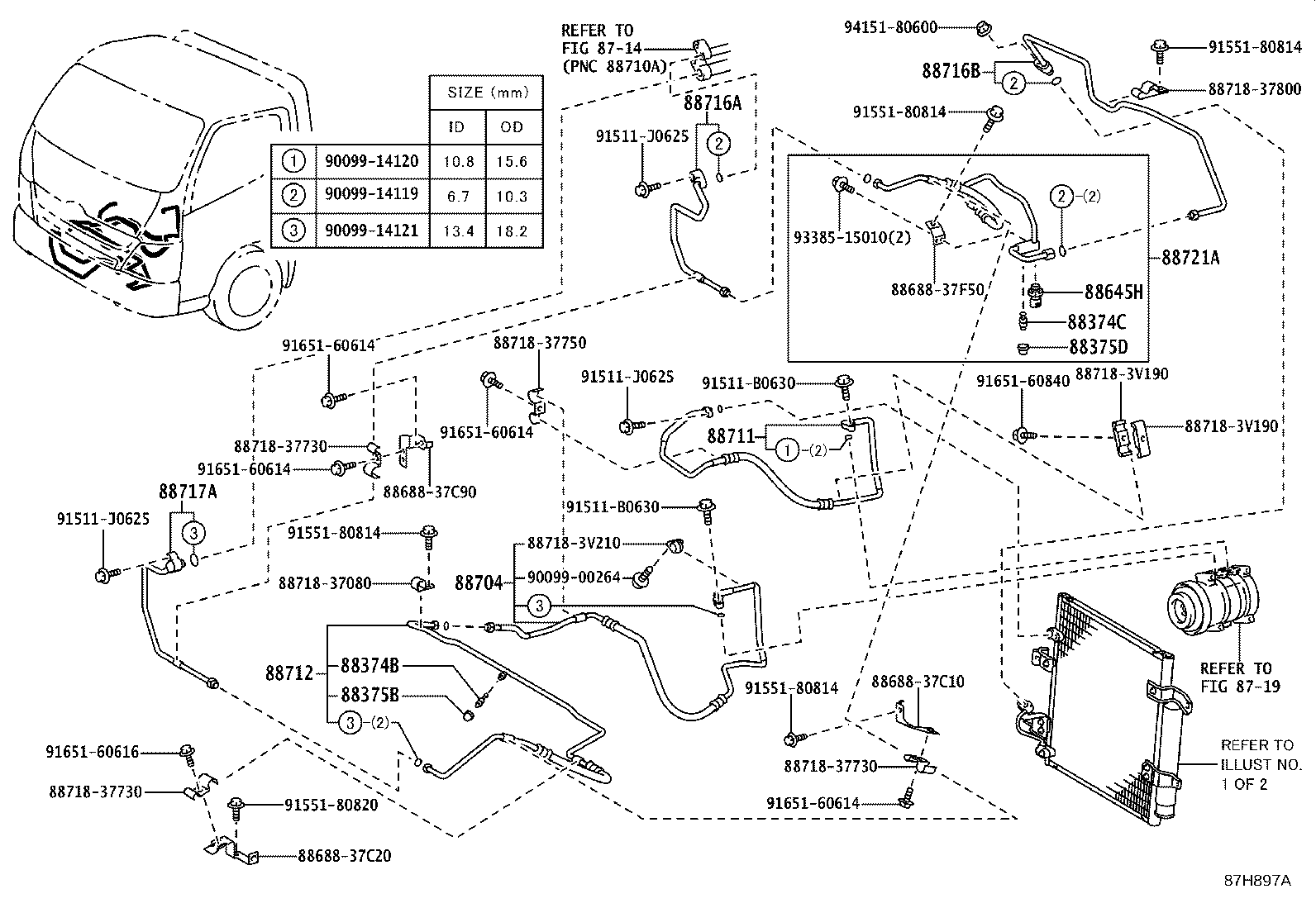

Toyota Dyna/toyoace XZU722 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-37150	XZC710,XZU70#,71#,72#..DCRWD,DCVTO	05/2019 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37C20	XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37F30	XZC710,XZU70#,71#,72#..DCRWD,DCVTO	05/2019 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37F30	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37D50	XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-37550	XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO	05/2019 - 12/2999	1
88721A - HOSE, LIQUID, A
88721-37E50	XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO)	05/2019 - 12/2999	1
Common parts
88688-37C10
88688-37C20
88688-37C90
88688-37F50
88718-37080
88718-37730
88718-37750
88718-37800
88718-3V190
88718-3V210
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-J0625
91551-80814
91551-80820
91651-60614
91651-60616
91651-60840
93385-15010
94151-80600
Linked diagrams
8714
8719

XZU722-TKFQX3 (2019)

ILLUST NO. 2 OF 3(1905- )XZC710,XZU70#,71#,72#..SCB..DCRWD,DCVTO,DCWDO
