XZU722-TKFQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

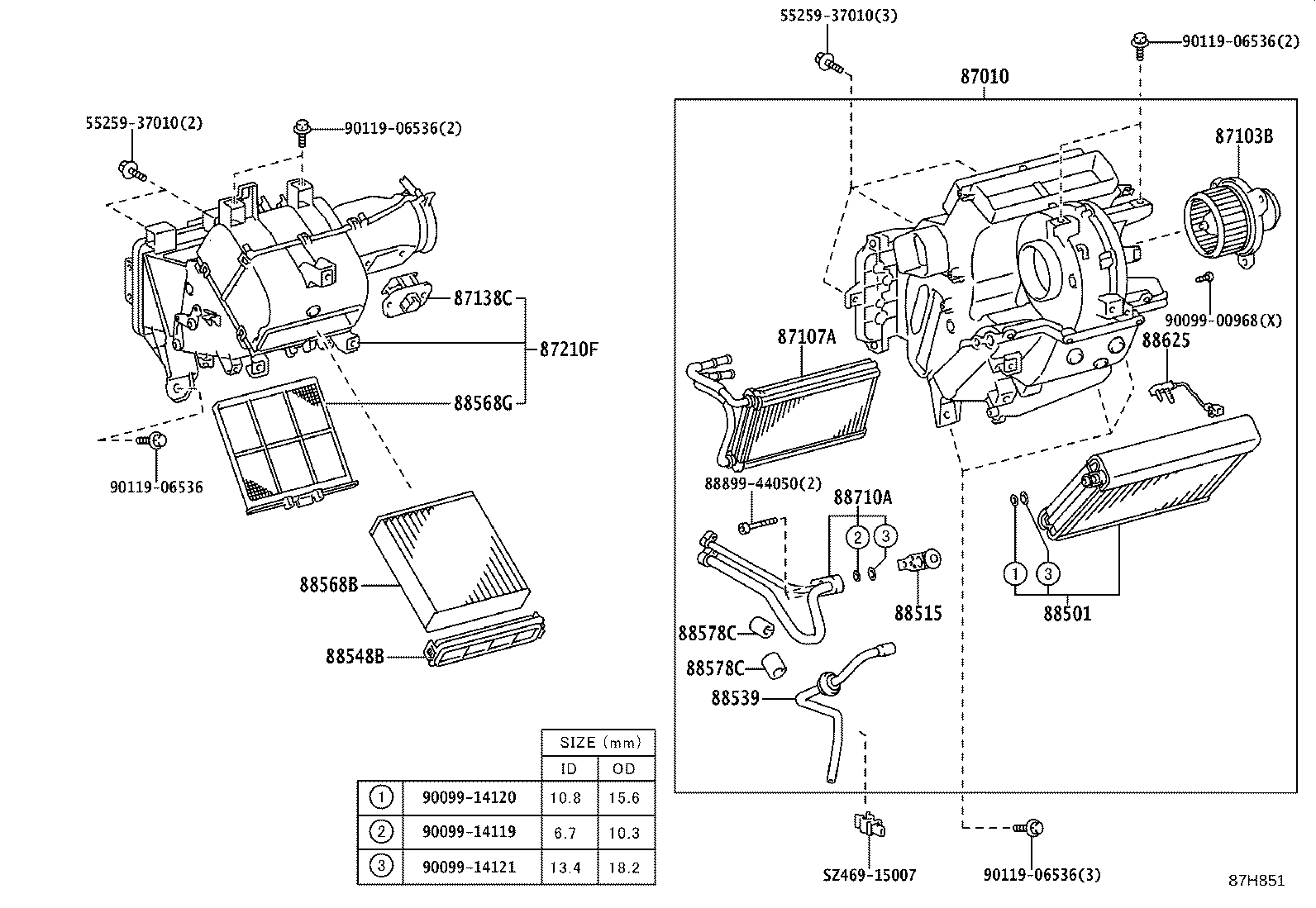

ILLUST NO. 1 OF 2(1905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 5525937010 5525937010 87010 87103B 87107A 87138C 87210F 88501 88515 88539 88548B 88568B 88568G 88578C 88578C 88625 88710A 8889944050 9009900968 9009914119 9009914120 9009914121 9011906536 9011906536 9011906536 9011906536 SZ46915007
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-37030

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-37020

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-37080

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
87138C - RESISTOR, BLOWER
87138-37230

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
87210F - CASE ASSY, AIR DAMPER
87210-37040

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37110

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88515 - VALVE, COOLER EXPANSION
88515-37030

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37090

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88548B - CASE, AIR FILTER
88548-37010

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88568B - FILTER, AIR
88568-37020

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88568G - FILTER, AIR
88568-37030

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-37180

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 2
88578C - PACKING, COOLING UNIT, NO.2
88578-37180

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 2
88625 - THERMISTOR, COOLER, NO.1
88625-26090

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37710

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
Common parts
55259-37010
88899-44050
90099-00968
90099-14119
90099-14120
90099-14121
90119-06536
SZ469-15007
