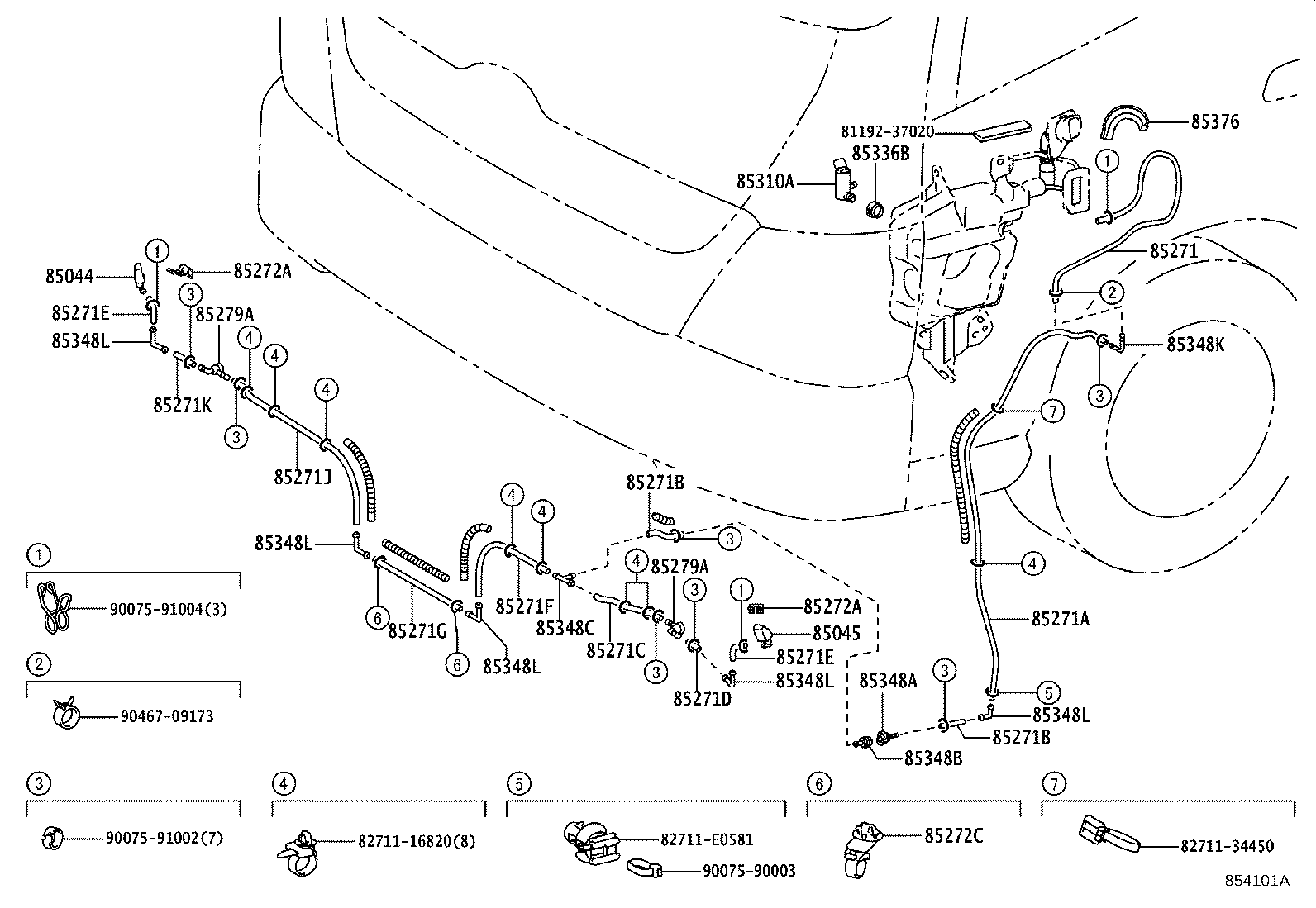

XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace
(1905- )XZC710,XZU70#,71#,72#..SCB..DCRWD,DCVTO,DCWDO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-37030 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85044-37040 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15084 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85275-37170 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 長さ=820,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15074 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=80,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 90075-15063 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 長さ=50,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15074 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=80,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 90075-15063 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 長さ=50,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15062 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=240,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90075-15063 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=50,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90075-15059 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=80,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90075-15059 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=80,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85271F - HOSE, HEADLAMP CLEANER, NO.7 | ||||
| 90075-15101 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=360,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271G - HOSE, HEAD LAMP | ||||
| 90075-15093 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=320,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271J - HOSE, HEADLAMP CLEANER, NO.9 | ||||
| 85275-60090 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=600,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85271K - HOSE, HEADLAMP CLEANER, NO.10 | ||||
| 90075-15068 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO 長さ=65,ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-60010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-60010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 90075-90006 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85279A - JOINT, HEADLAMP CLEANER HOSE | ||||
| 85279-77010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85279A - JOINT, HEADLAMP CLEANER HOSE | ||||
| 85279-77010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
2 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85280-37010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85336B - PACKING, HEADLAMP CLEANER WASHER | ||||
| 90099-32089 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17005 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17002 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17004 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17013 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
5 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17013 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
5 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17013 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
5 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17013 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
5 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17013 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
5 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-53060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| Common parts | ||||
| 81192-37020 | ||||
| 82711-16820 | ||||
| 82711-34450 | ||||
| 82711-E0581 | ||||
| 90075-90003 | ||||
| 90075-91002 | ||||
| 90075-91004 | ||||
| 90467-09173 | ||||
