XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace

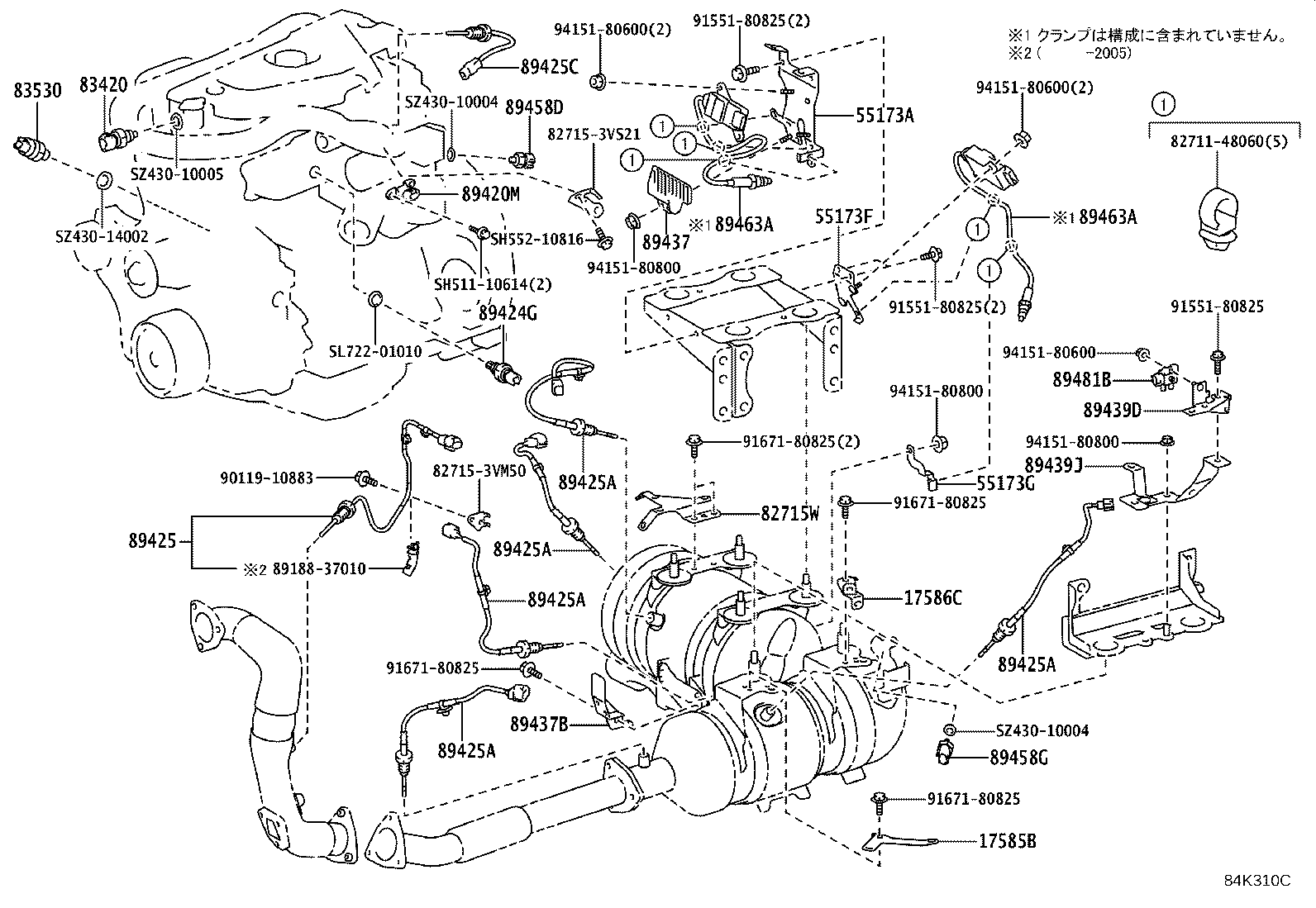

ILLUST NO. 1 OF10(1905- )XZC710,XZU70#,71#,72#..DCRWD,DCWDO
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17585B - BRACKET, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17585-78220 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 17585-78222 |
N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 17585-78220 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 17585-78221 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 17586C - BRACKET, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17586-78201 |
N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 55173A - BRACKET | ||||
| 55173-37831 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 55173F - BRACKET, ELECTRICAL PART | ||||
| 55173-37701 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 55173G - BRACKET, ELECTRICAL PART, NO.2 | ||||
| 55173-37760 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-3VX20 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 83530-E0250 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37400 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89425-37310 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
5 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
5 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-37051 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 89437B - COVER, SENSOR | ||||
| 89437-37071 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-37330 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89439J - BRACKET, SENSOR, NO.2 | ||||
| 89439-37440 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 89463-E0610 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0611 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 89463-E0610 |
XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 82715-3VM50 | ||||
| 82715-3VS21 | ||||
| 89188-37010 | ||||
| 90119-10883 | ||||
| 91551-80825 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SH552-10816 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

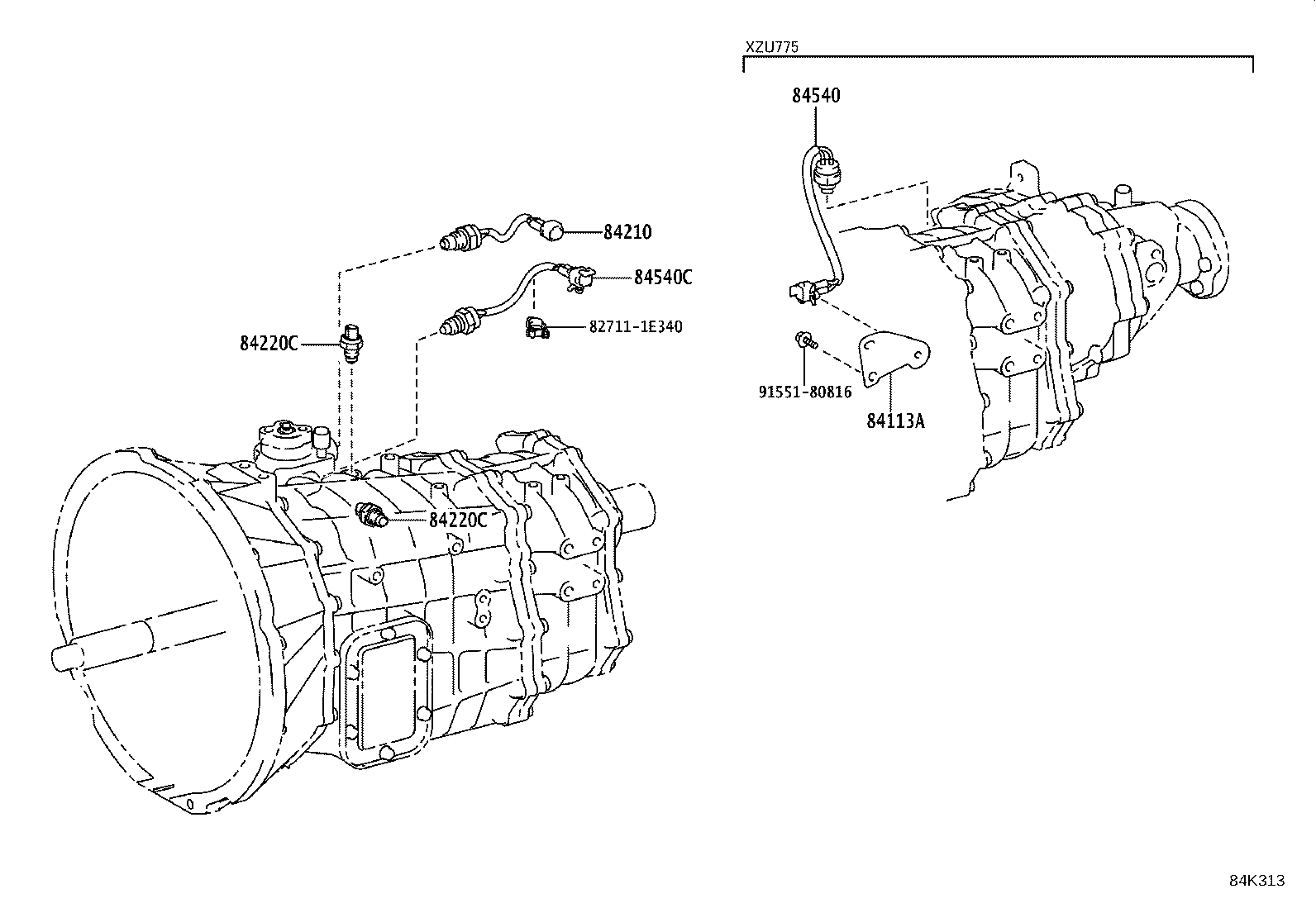

ILLUST NO. 2 OF10(1905- )MTM
ﾄﾗﾝｽﾐｯｼｮﾝ&ﾄﾗﾝｽﾌｧ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37050 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
2 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
2 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37090 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 91551-80816 | ||||

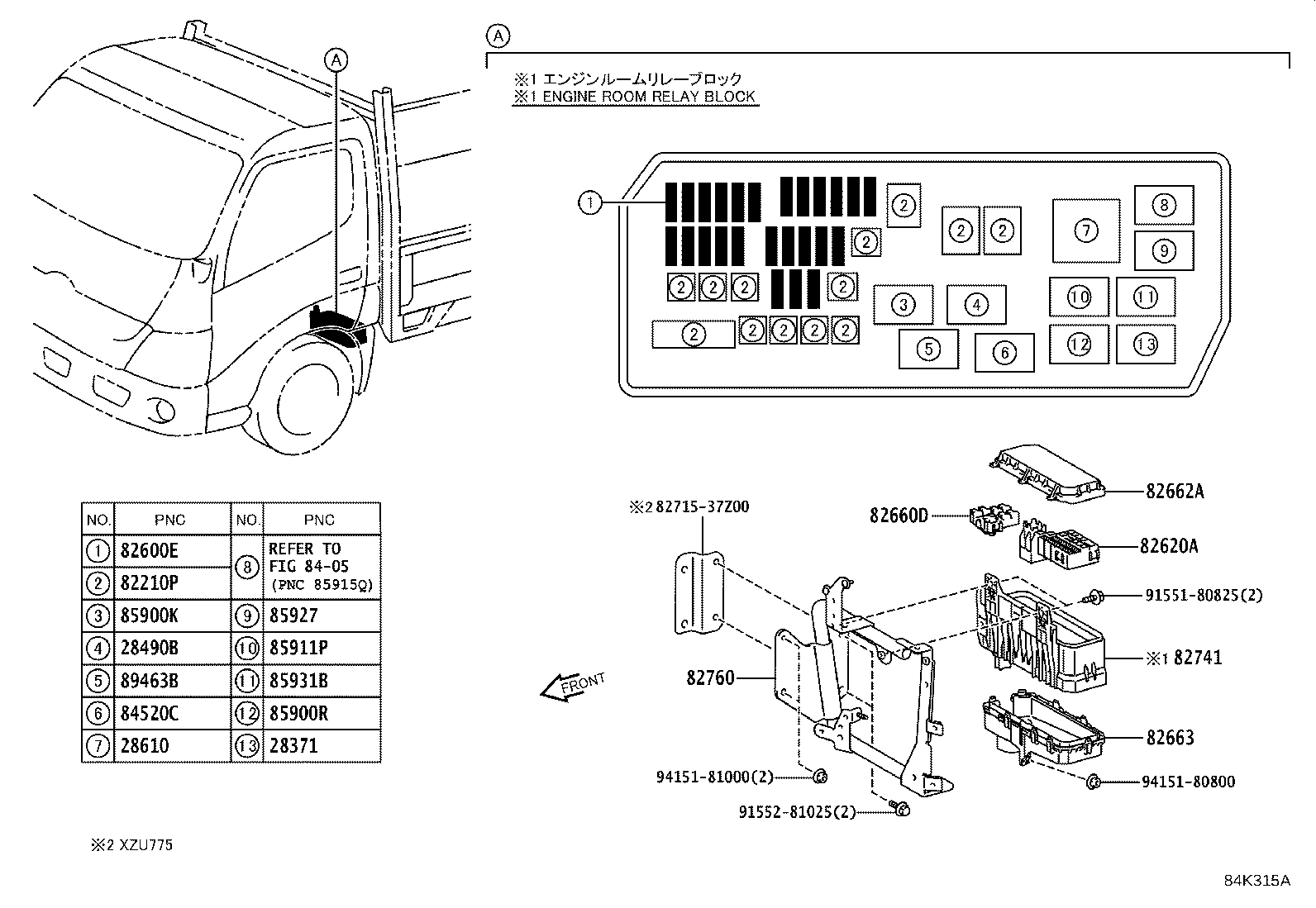

ILLUST NO. 4 OF10(1905- )
ｴﾝｼﾞﾝﾙｰﾑﾘﾚｰﾌﾞﾛｯｸ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-E0010 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 寒冷地仕様 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 82627-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 20A,ﾒｽ端子 |
1 | ||
| 90982-08295 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08294 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08274 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 120A,ｵｽ端子,白 |
1 | ||
| 90982-08300 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08203 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08296 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 50A,ﾒｽ端子,赤,識別符号:58V |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-37200 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37220 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37690 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37180 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37420 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 85900K - RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE) | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 85900-37150 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 85900R - RELAY, DC/DC CUT | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 89463B - RELAY, NITROGEN OXIDES | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82715-37Z00 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 8405 | ||||

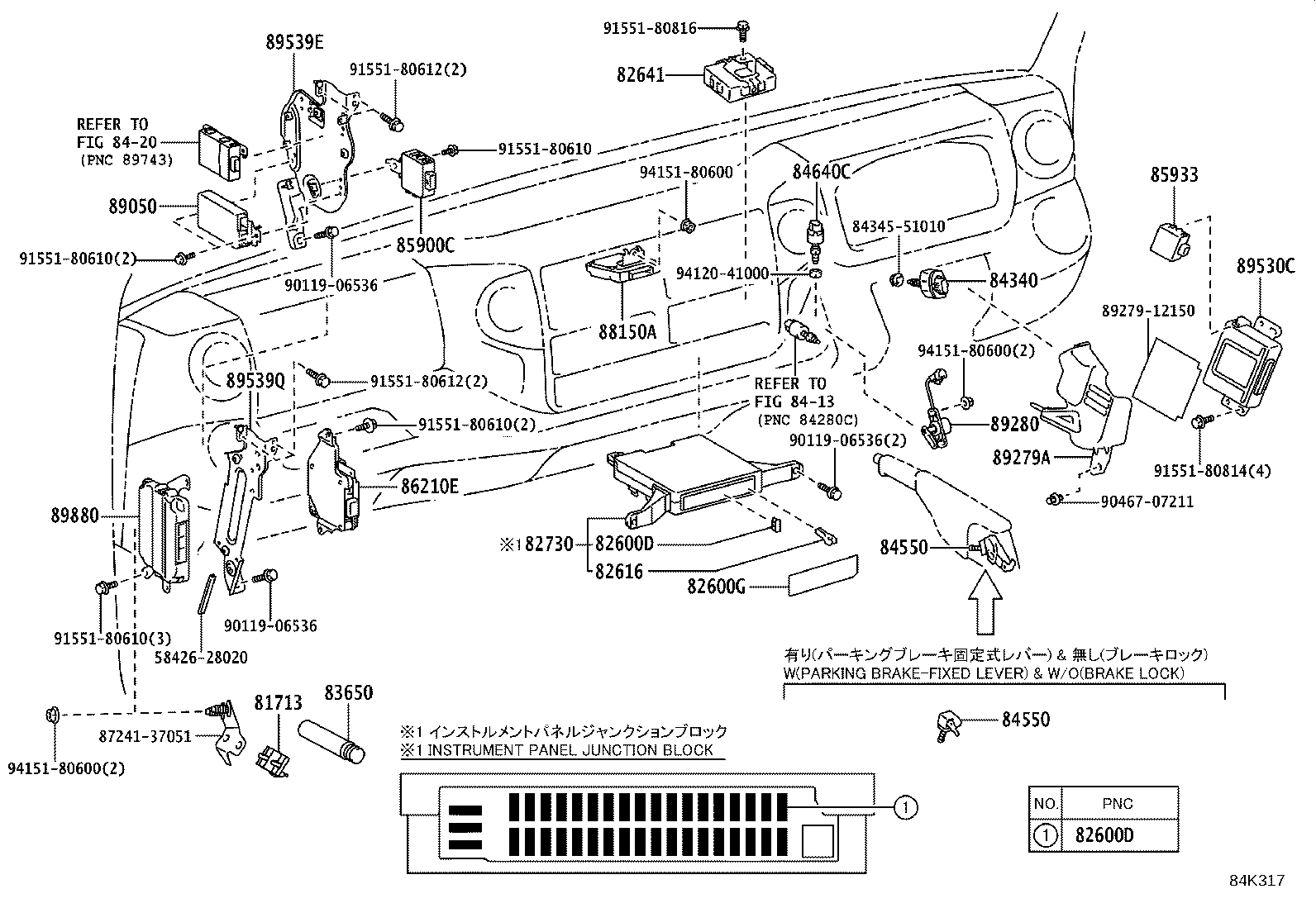

ILLUST NO. 5 OF10(1905- )
ｶｳﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09021 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09021 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37480 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37110 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-37140 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 82730-37060 |
XZC710,XZU70#,71#,72#,73#,775 VSC−無し |
1 | ||
| 82730-37291 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82730-37281 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO VSC−無し |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37060 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XZU702,712,722..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37070 |
XZU702,712,722..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37080 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-37070 |
XZC710,XZU70#,71#,72#,73#,775 品番ﾗﾍﾞﾙ=88150−37070 |
1 | ||
| 88150-37071 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 88150-37050 |
XZC710,XZU70#,71#,72#,73#,775 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,品番ﾗﾍﾞﾙ=88150−37050 |
1 | ||
| 88150-37050 |
XZC710,XZU70#,71#,72#,73#,775 品番ﾗﾍﾞﾙ=88150−37050 |
1 | ||
| 88150-37070 |
XZC710,XZU70#,71#,72#,73#,775 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し,品番ﾗﾍﾞﾙ=88150−37070 |
1 | ||
| 88150-37071 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-37030 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 89050-37030 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37020 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37091 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37081 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37G91 |
XZC710,XZU70#,71#,72#,73#,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G91 |
XZU720..40T..DCVUO..IV3;XZU700..(DM7,T4)..(DCRWD,DCVUO);XZU720..(20T,40T)..(DCRWD,DCVTO);XZC710,XZU702,71#,722,775..DCRWD;XZU700,710,720..T3..35T..DCVTO..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-37G91 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710,775..SCB..MTM..(IV3,IV5) ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#,775..MTM..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710..SCB..6F..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZU720..40T..DCVUO..IV3;XZU700,710..T3..35T..IV3;XZU710,720..SCB..6F..DCRWD;XZU702,712,722..SCB..DCRWD;XZU720..T3..(35T,40T)..DCVTO..IV3;XZC710,XZU700..(DM7,T4)..6F..(DCRWD,DCVUO) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G91 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710,775..SCB..(IV3,IV5);XZU702,712,72#..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZC710,XZU70#,71#,72#,73#..SCB..6F..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZU702,712,722..SCB;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720,73#..SCB..6F..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G91 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710,775..SCB..MTM..(IV3,IV5) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710..SCB..6F..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G91 |
XZC710,XZU70#,71#,72#,73#,775..MTM ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710,775..SCB..(IV3,IV5);XZU702,712,72#..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37S00 |
XZC710,XZU70#,71#,72#,73#..SCB..6F..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37S10 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37T40 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37T50 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37U90 |
XZC710,XZU70#,71#,72#,73#..SCB..6F |
1 | ||
| 89880-37W00 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様 |
1 | ||
| 89880-37V00 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37X20 |
XZC710,XZU70#,71#,72#,73#..SCB..6F..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37W10 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) 寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37X30 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37Y70 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V040 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37Y80 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L ×2 |
1 | ||
| 89880-3V160 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZC710,XZU70#,71#,72#,73#,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-3V150 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V030 |
XZC710,XZU70#,71#,72#,73#..SCB..6F 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU720..40T..DCVUO..IV3;XZU700..(DM7,T4)..(DCRWD,DCVUO);XZU720..(20T,40T)..(DCRWD,DCVTO);XZC710,XZU702,71#,722,775..DCRWD;XZU700,710,720..T3..35T..DCVTO..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-37G94 |
XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710..SCB..6F..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710,775..SCB..(IV3,IV5);XZU702,712,72#..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710,775..SCB..MTM..(IV3,IV5) ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZU720..40T..DCVUO..IV3;XZU700,710..T3..35T..IV3;XZU710,720..SCB..6F..DCRWD;XZU702,712,722..SCB..DCRWD;XZU720..T3..(35T,40T)..DCVTO..IV3;XZC710,XZU700..(DM7,T4)..6F..(DCRWD,DCVUO) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G94 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#,775..MTM..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710,775..SCB..MTM..(IV3,IV5) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710..SCB..6F..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZC710,XZU70#,71#,72#,73#..SCB..6F..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#,73#..DCVTO,DCVUO;XZC710,XZU700,710,775..SCB..(IV3,IV5);XZU702,712,72#..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G94 |
XZC710,XZU70#,71#,72#,73#,775..MTM ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU702,712,722..SCB;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720,73#..SCB..6F..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37S01 |
XZC710,XZU70#,71#,72#,73#..SCB..6F..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37T41 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37S11 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37V01 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37X21 |
XZC710,XZU70#,71#,72#,73#..SCB..6F..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37W01 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様 |
1 | ||
| 89880-37U91 |
XZC710,XZU70#,71#,72#,73#..SCB..6F |
1 | ||
| 89880-37W11 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) 寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37T51 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37Y71 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37Y81 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L ×2 |
1 | ||
| 89880-3V031 |
XZC710,XZU70#,71#,72#,73#..SCB..6F 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V041 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-3V151 |
XZU720..40T..DCVUO..IV3;XZU700,710,720..T3..35T..DCVTO..IV3;XZU700..(DM7,T4)..6F..(DCRWD,DCVUO);XZC710,XZU702,71#,72#..SCB..6F..DCRWD 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X31 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZC710,XZU70#,710..SCB..6F..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G95 |
XZU702,712,722..SCB..DCRWD;XZU700,710..T3..35T..DCVTO..IV3;XZU720..T3..(35T,40T)..DCVTO..IV3;XZC710,XZU700,710,720..SCB..6F..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-3V161 |
XZU710..(DCVTO,DCVUO)..CBU;XZU712,72#..6F..DCRWD..IV3;XZU712,72#,73#..6F..(DCVTO,DCVUO);XZC710,XZU70#,710..SCB..6F..(IV3,IV5) 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZC710,XZU70#,71#,722,775..DCRWD;XZU720..(20T,40T)..(DCRWD,DCVTO);XZU700,710,720..T3..35T..DCVTO..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-37G95 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#,775..MTM..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU720..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3;XZC710,XZU700,710..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G95 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZC710,XZU70#,71#,72#..SCB..6F..(DCRWD,DCVTO) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU720..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G95 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3;XZC710,XZU700,710..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37S02 |
XZC710,XZU70#,71#,72#..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37S12 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37T42 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#..SCB..6F..DCRWD 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37T52 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37V02 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37W12 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37U92 |
XZC710,XZU70#,71#,72#..SCB..6F..(DCRWD,DCVTO) |
1 | ||
| 89880-37W02 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#..SCB..6F..DCRWD 寒冷地仕様 |
1 | ||
| 89880-37X22 |
XZC710,XZU70#,71#,72#..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X32 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37Y82 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L ×2 |
1 | ||
| 89880-3V042 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-3V032 |
XZC710,XZU70#,71#,72#..SCB..6F..(DCRWD,DCVTO) 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37Y72 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#..SCB..6F..DCRWD 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V162 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZC710,XZU70#,71#,722,775..DCRWD;XZU720..(20T,40T)..(DCRWD,DCVTO);XZU700,710,720..T3..35T..DCVTO..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-3V152 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#..SCB..6F..DCRWD 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3;XZC710,XZU700,710..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#,775..MTM..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZU700,710,720..T3..35T..DCVTO..IV3;XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU720..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZU702,712,722..SCB..DCRWD;XZU700,710..T3..35T..DCVTO..IV3;XZU720..T3..(35T,40T)..DCVTO..IV3;XZC710,XZU700,710,720..SCB..6F..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G96 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU720..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37G96 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZU720..6F..DCVTO;XZU710..DCVTO..CBU;XZU720..6F..DCRWD..IV3;XZC710,XZU70#,71#,722,775..SCB..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZC710,XZU70#,71#,72#..SCB..6F..(DCRWD,DCVTO) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZU720..DCVTO;XZU710..DCVTO..CBU;XZU700,710..6FC..DCVTO;XZU720..6F..DCRWD..IV3;XZU702,712,722..(T3,T4)..DCRWD..IV3;XZC710,XZU700,710..SCB..6F..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L × 2 |
1 | ||
| 89880-37G96 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| Common parts | ||||
| 58426-28020 | ||||
| 84345-51010 | ||||
| 87241-37051 | ||||
| 89279-12150 | ||||
| 90119-06536 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 6 OF10(1905- )
ｶｳﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

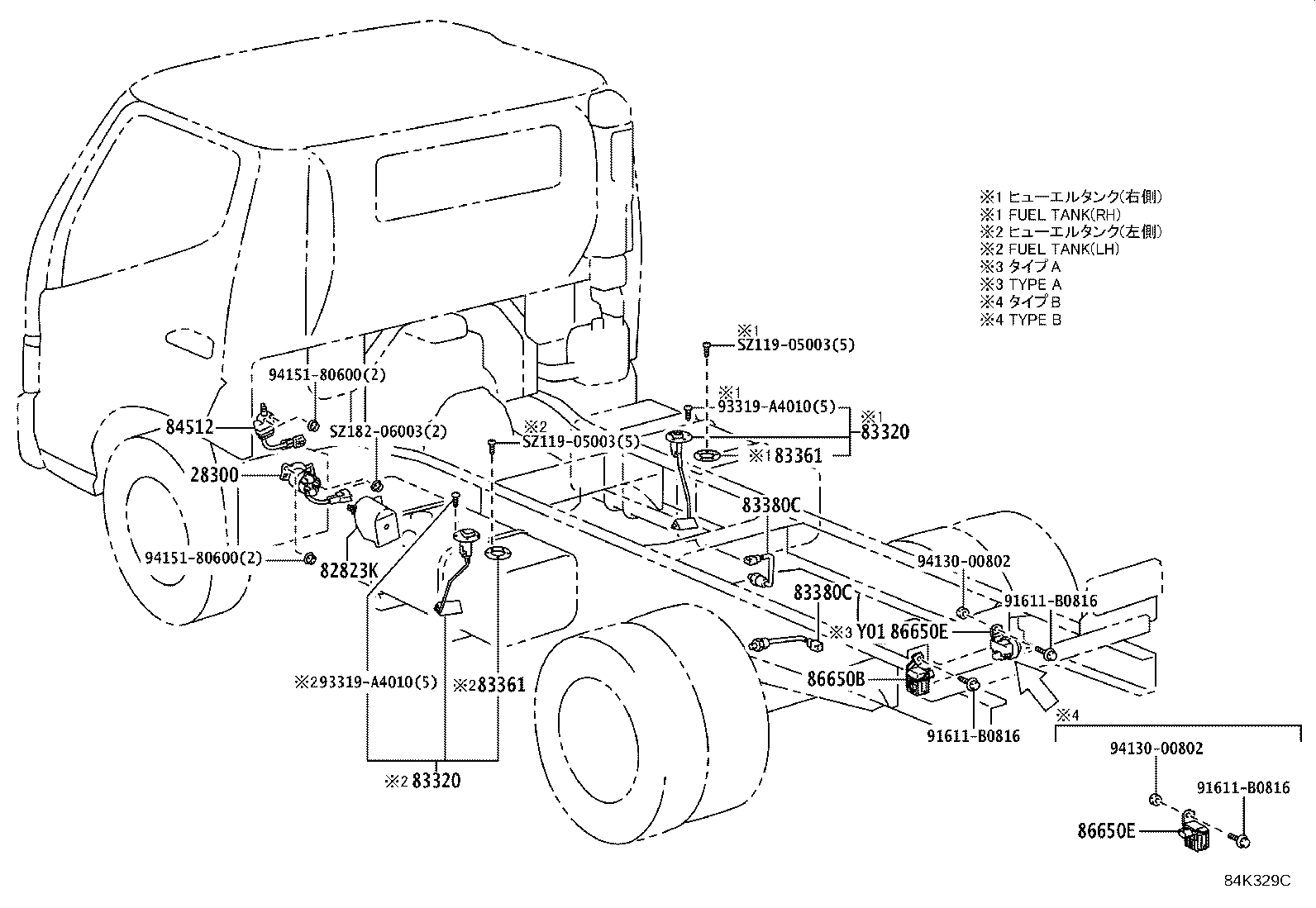

| 28300D - RELAY, STARTER CUT | ||||
| 90987-04008 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84520B - RELAY, CLUTCH START | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) ｸﾗｯﾁｽﾀｰﾄｼｽﾃﾑ−無し |
1 | ||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
1 | ||
| 85900E - RELAY, IDLE STOP | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04007 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85919E - RELAY, STOP LAMP | ||||
| S8592-02570 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||

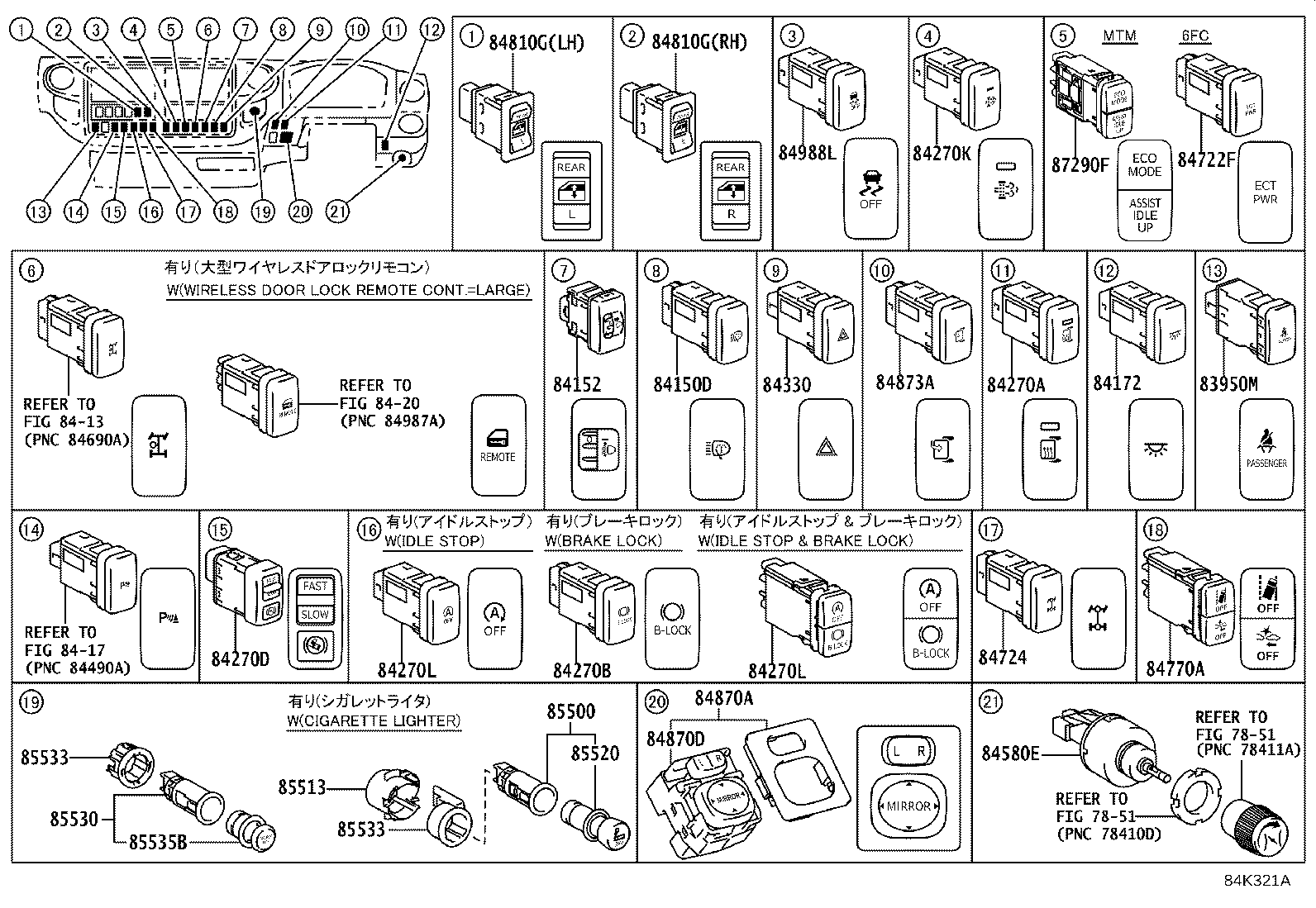

ILLUST NO. 7 OF10(1905- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席) |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-37011 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37041 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37260 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ&ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84270-37240 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) 坂道発進補助装置−有り(ESｽﾀｰﾄ&ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37460 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XZC710,XZU70#,71#,72#,775..(DCRWD,DCVTO)..IV3 |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84270-37510 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84870-34010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84872-52030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84873-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84873-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 84873-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM)､*CR(DOP) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84270-37300 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37060 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) 灰皿−有り(運転席&助手席) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) 灰皿−有り(運転席&助手席) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) 灰皿−有り(運転席&助手席) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) 灰皿−有り(運転席&助手席) |
1 | ||
| 85533-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) 灰皿−有り(運転席&助手席) |
1 | ||
| 85533-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC710,XZU70#,71#,72#,775..MTM..(DCRWD,DCVTO) |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8417 | ||||
| 8420 | ||||

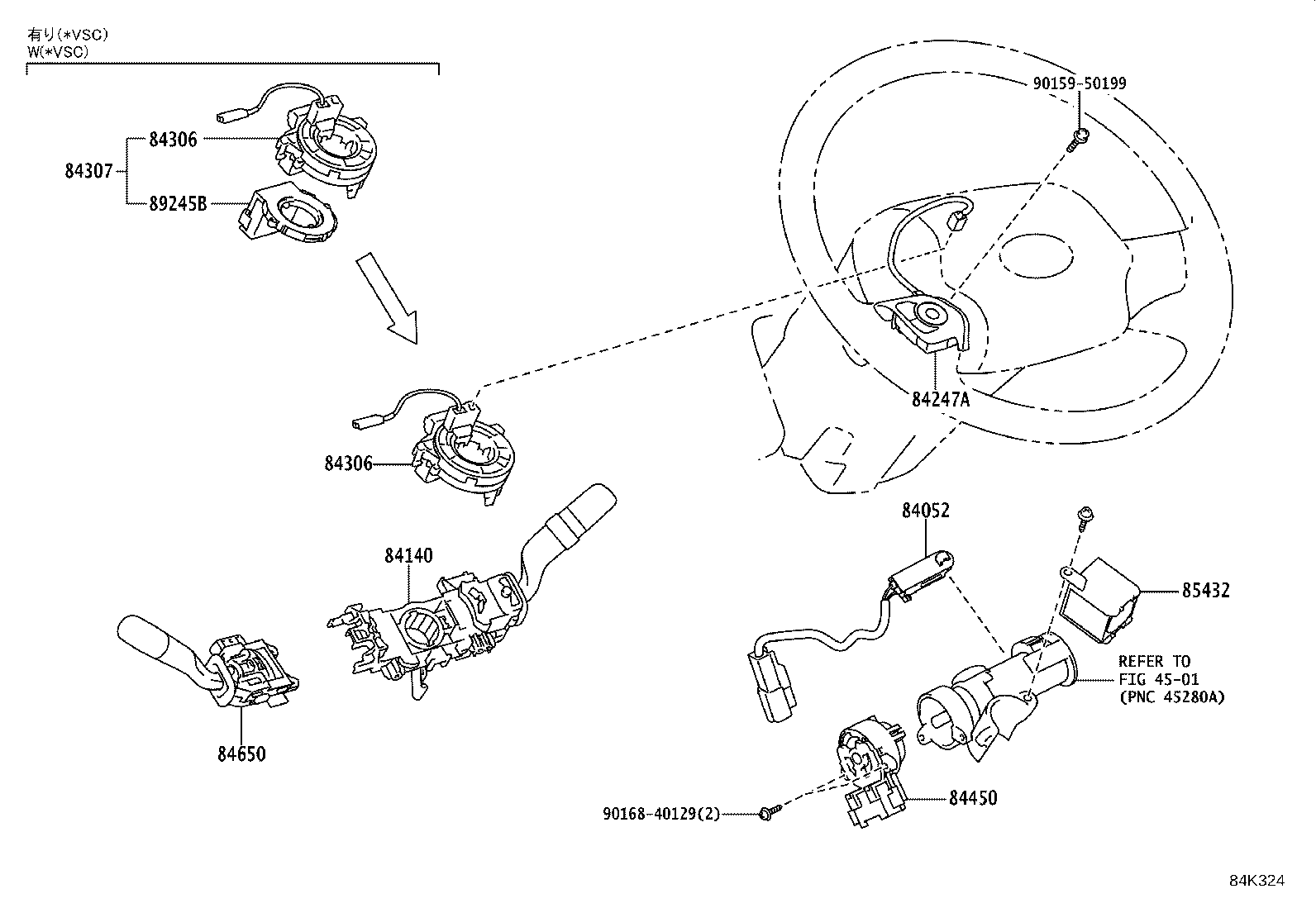

ILLUST NO. 8 OF10(1905- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37131 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-37121 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84247-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37080 |
XZU775..DCRWD;XZU720..DCVTO;XZU720..DCRWD..CBU;XZU710..T4..DCVTO..IV3;XZU700..T3..35T..DCVTO;XZU702..T3..DCRWD..CBU;XZU712,722..(35T,40T)..DCRWD..IV3;XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;XZC710,XZU71#,722..SCB..(DCRWD,DCVTO)..CBU;XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&VSC−無し&SRSｴｱﾊﾞｯｸﾞ−無し |
1 | ||
| 84306-37050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84306-37070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&VSC−無し |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37080 |
XZU775..DCRWD;XZU720..DCVTO;XZU720..DCRWD..CBU;XZU710..T4..DCVTO..IV3;XZU700..T3..35T..DCVTO;XZU702..T3..DCRWD..CBU;XZU712,722..(35T,40T)..DCRWD..IV3;XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;XZC710,XZU71#,722..SCB..(DCRWD,DCVTO)..CBU;XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&VSC−無し&SRSｴｱﾊﾞｯｸﾞ−無し |
1 | ||
| 84306-37050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84306-37070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&VSC−無し |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37350 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

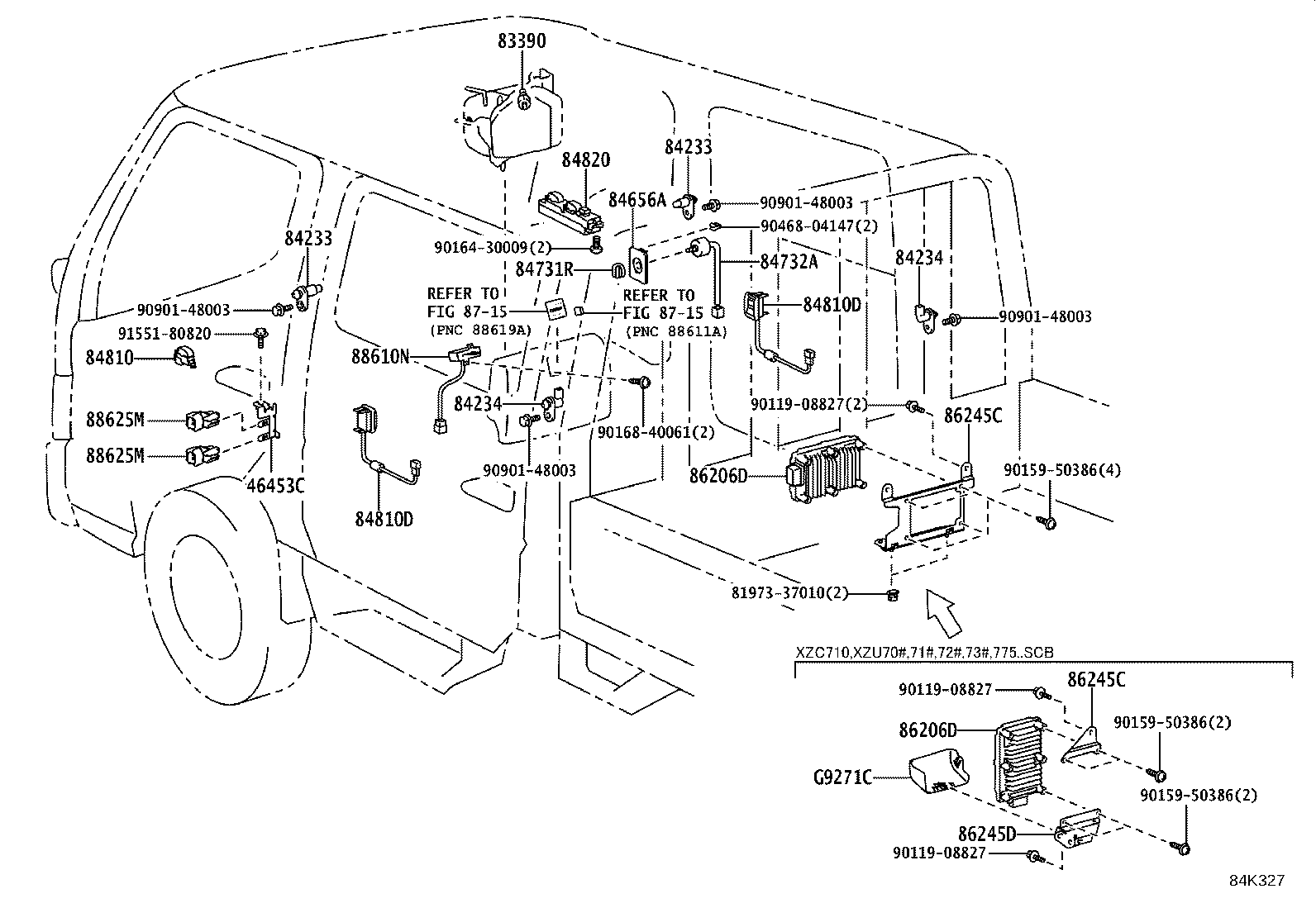

ILLUST NO. 9 OF10(1905- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾌﾛﾝﾄﾎﾞﾃﾞｨ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46453C - BRACKET, HOLDER | ||||
| 46453-37351 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37351 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37033 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 84820-37034 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37140 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37140 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37280 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37280 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 86245D - BRACKET, VOLTAGE CONVERTER, NO.2 | ||||
| 86245-37290 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
2 | ||
| 88625-32171 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
2 | ||
| 88625-32171 |
XZU702,712,722..SCB..DCRWD;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720..SCB..6F..(DCRWD,DCVTO) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| G9271C - COVER, CONVERTER | ||||
| G9271-37010 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90119-08827 | ||||
| 90159-50386 | ||||
| 90164-30009 | ||||
| 90168-40061 | ||||
| 90468-04147 | ||||
| 90901-48003 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO.10 OF10(1905- )
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78130 |
N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-37080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO) |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37181 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 94151-80600 | ||||
| SZ119-05003 | ||||
| SZ182-06003 | ||||
ILLUST NO. 3 OF10(1905- )
ｴﾝｼﾞﾝﾙｰﾑﾘﾚｰﾌﾞﾛｯｸ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-37060 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85270-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| Common parts | ||||
| 85272-37070 | ||||
| 93568-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
