XZU722-TKFQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )

Click highlighted areas on diagram

ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ

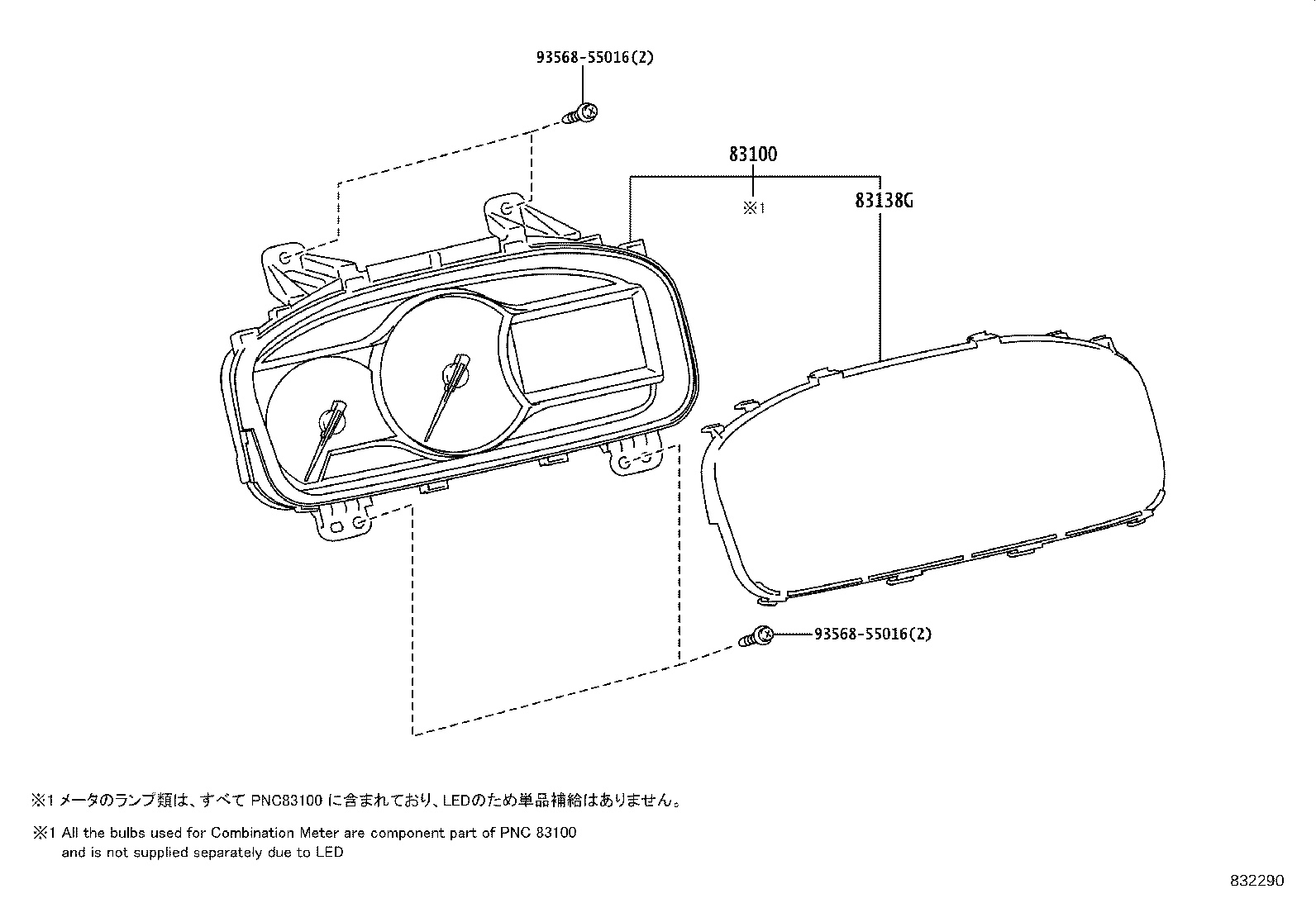

diagram 83100 83138G 9356855016 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-37U50

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

YAZAKI

 1
83800-37U20

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

YAZAKI,ﾃﾞｭﾄﾛ専用

 1
83138G - GLASS, COMBINATION METER
83852-37U20

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
Common parts
93568-55016
