XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace

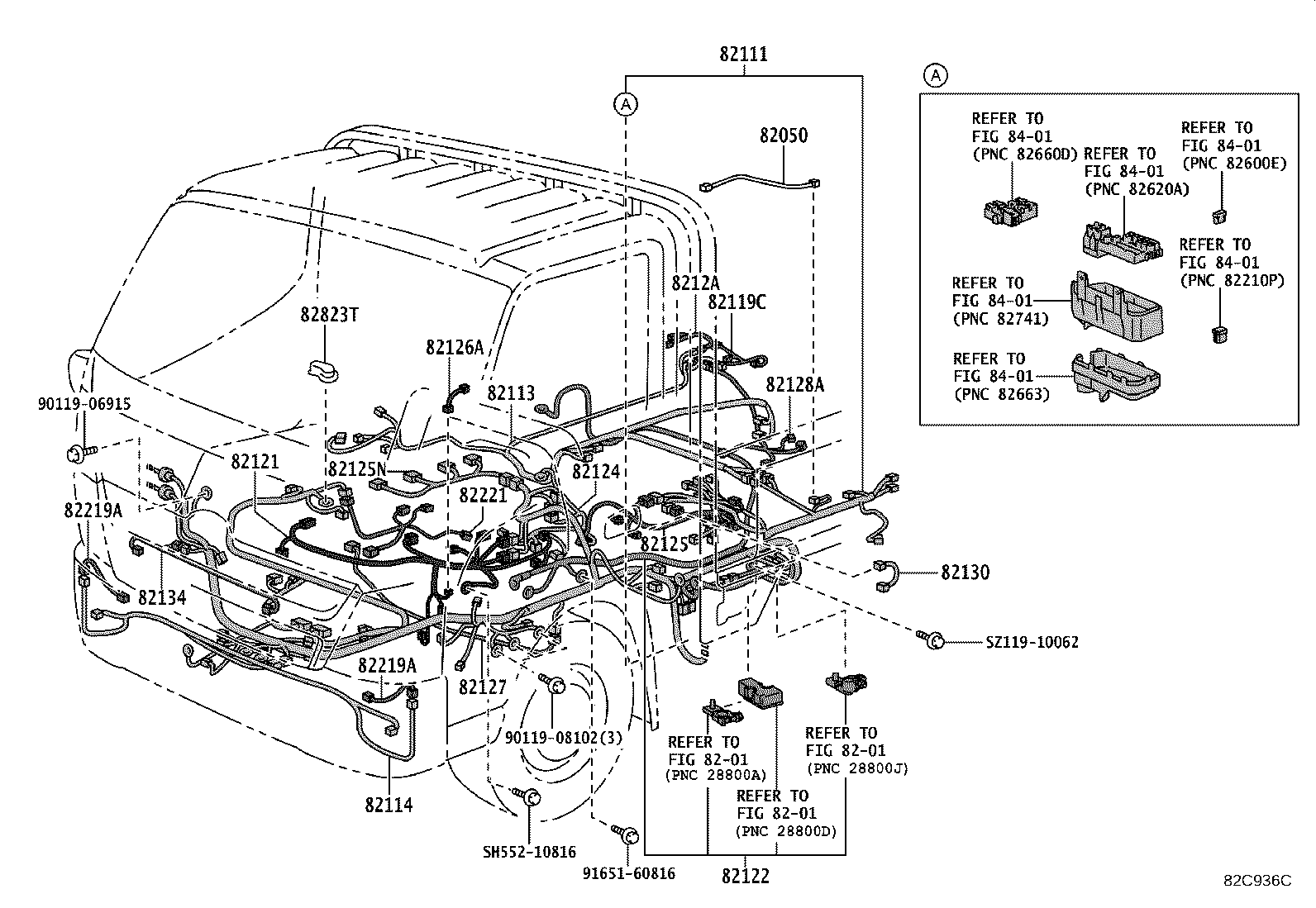

ILLUST NO. 1 OF 8(1905- )XZC710,XZU70#,71#,72#,73#..SCB
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-37N70 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N70 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 82116-37N70 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N70 |
XZU712..6F..CBU;XZU722,732..6F..35T;XZU710..T4..6F..35T..IV3;XZU712..6F..(35T,40T)..DCRWD..IV3;XZU720,730..6F..(30T,35T,40T)..IV3;XZU710..(T3,T5)..6F..(DCRWD,DCVTO)..IV3;XZU712,720..(T3,T5)..6F..(20T,30T)..DCRWD..IV3;XZU710,722..T3..6F..(30T,40T)..(DCRWD,DCVUO)..IV3;XZC710,XZU710,72#..SCB..6F..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 82116-37N70 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N40 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N70 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N40 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N40 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 82116-37N40 |
XZU72#..SCB..6F..DCRWD;XZU712..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#..SCB..6F..DCRWD..CBU;XZU71#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N40 |
XZU72#..SCB..6F..DCRWD;XZU712..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#..SCB..6F..DCRWD..CBU;XZU71#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N71 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 82116-37N71 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N71 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N50 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD |
1 | ||
| 82116-37N71 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N71 |
XZU712..6F..(DCRWD,DCVUO)..CBU;XZU712..6F..(35T,40T)..DCRWD..IV3;XZU722,732..6F..35T..(DCRWD,DCVUO);XZU710..(T3,T5)..6F..(DCRWD,DCVTO)..IV3;XZU710..T4..6F..35T..(DCVTO,DCVUO)..IV3;XZU712,720..(T3,T5)..6F..(20T,30T)..DCRWD..IV3;XZU720,730..6F..(30T,35T,40T)..(DCVTO,DCVUO)..IV3;XZC710,XZU710,72#..SCB..6F..(20T,30T)..DCRWD..CBU;XZU710,722..T3..6F..(30T,40T)..(DCRWD,DCVUO)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 82116-37N41 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 82116-37N71 |
XZU712,722..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..6F..DCRWD..CBU;XZU71#,72#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側)&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N41 |
XZU72#..SCB..6F..DCRWD;XZU712..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#..SCB..6F..DCRWD..CBU;XZU71#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N41 |
XZU72#..SCB..6F..DCRWD;XZU712..6F..(35T,40T)..DCRWD..IV3;XZC710,XZU71#..SCB..6F..DCRWD..CBU;XZU71#..(T3,T5)..6F..(20T,30T)..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ｱﾀﾞﾌﾟﾀ) |
1 | ||
| 82116-37N41 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82116-37N41 |
XZC710,XZU70#,71#,72#..SCB..6F..DCRWD ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37070 |
XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCVTO..IV3;XZU710..40T..DCVUO..IV3;XZC710,XZU70#,712,722,732..SCB;XZU710..SCB..(20T,35T)..(DCRWD,DCVUO) |
1 | ||
| 82113-37Q50 |
XZU712..CBU;XZU722,732..35T;XZU710..T4..35T..IV3;XZU712..(35T,40T)..DCRWD..IV3;XZU720,730..(30T,35T,40T)..IV3;XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;XZU712,720..(T3,T5)..(20T,30T)..DCRWD..IV3;XZU710,722..T3..(30T,40T)..(DCRWD,DCVUO)..IV3;XZC710,XZU710,72#..SCB..(20T,30T)..DCRWD..CBU ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 82113-37071 |
XZU720..DCRWD..CBU;XZU720..(DCRWD,DCVTO)..IV3;XZU710..(35T,40T)..DCVTO..IV3;XZU710..SCB..(20T,30T)..(DCRWD,DCVTO);XZC710,XZU70#,712,722..SCB..(DCRWD,DCVTO) |
1 | ||
| 82113-37Q51 |
XZU720..DCVTO..IV3;XZU710..T4..DCVTO..IV3;XZU712,722..(35T,40T)..DCRWD..IV3;XZC710,XZU71#,72#..SCB..DCRWD..CBU;XZU710..(T3,T5)..(DCRWD,DCVTO)..IV3;XZU712,72#..(T3,T5)..(20T,30T)..DCRWD..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L(左側) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37310 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82114-37330 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82114-37330 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82114-37320 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-37040 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37K20 |
XZC710,XZU70#,71#,72#,775..DCRWD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-37M30 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37K60 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82121-37K70 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO 寒冷地仕様 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37630 |
XZC710,XZU70#,71#,72#..6F..(DCRWD,DCVTO) |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82121-37L50 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82121-37M00 |
XZC710,XZU70#,71#,72#,775..DCRWD |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-37010 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82134-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
2 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
2 | ||
| 82219-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
2 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37221 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08102 | ||||
| 91651-60816 | ||||
| SH552-10816 | ||||
| SZ119-10062 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
