XZU722-TKFQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )XZC710,XZU70#,71#,72#,73#

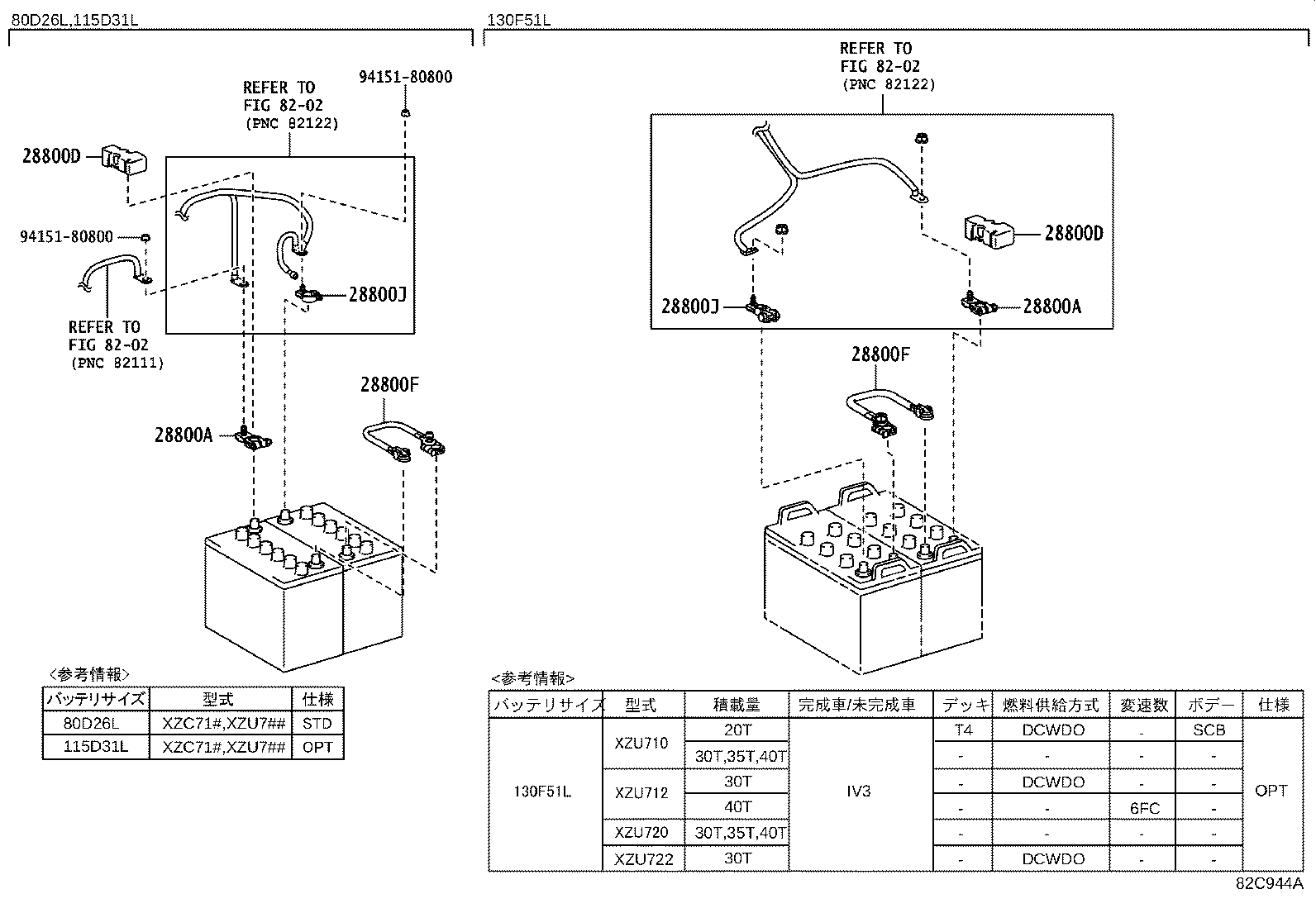

Click highlighted areas on diagram

diagram 28800A 28800A 28800D 28800D 28800F 28800F 28800J 28800J 8202 8202 8202 9415180800 9415180800
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37260

N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37260

N04C..XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06060

N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06060

N04C..XZC710,XZU70#,71#,72#..DCRWD,DCVTO

 1
Common parts
94151-80800
Linked diagrams
8202
