XZU722-TKFQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

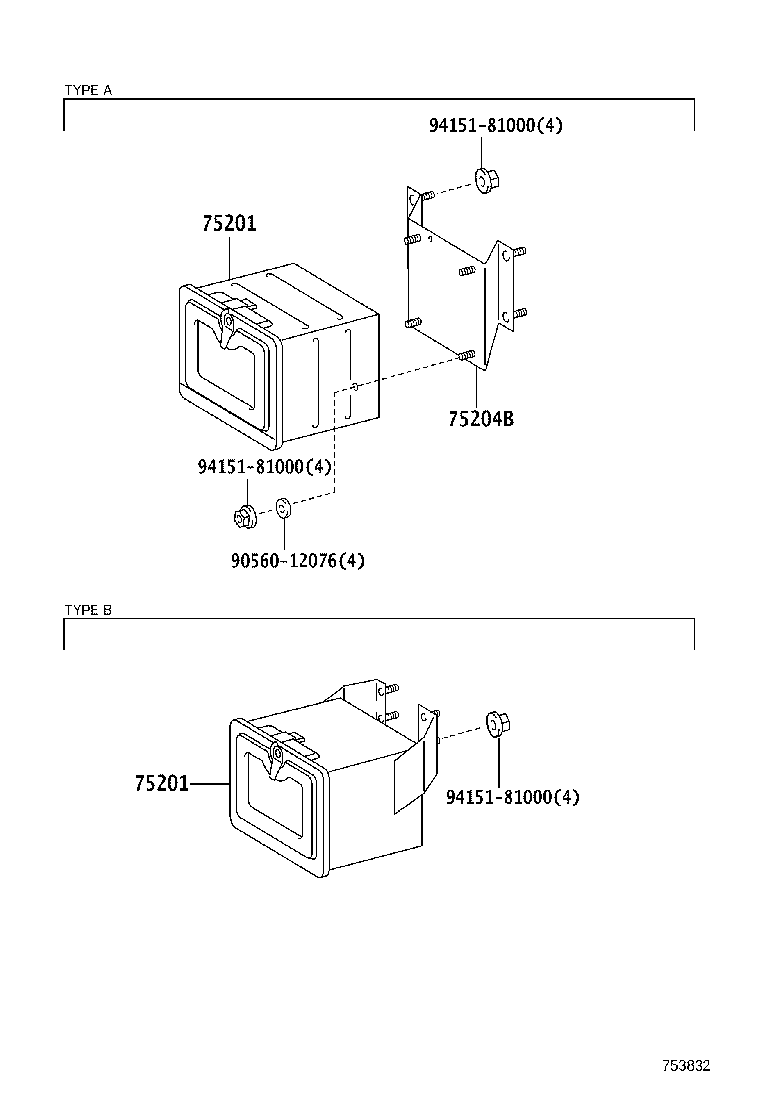

ILLUST NO. 1 OF 4(1905- )

Click highlighted areas on diagram

ﾂｰﾙﾎﾞｯｸｽ

diagram 75201 75201 75204B 9056012076 9415181000 9415181000 9415181000
Part # Description Qty Price
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37270

XZC710,XZU71#,72#,73#..SCB..IV3

ﾂｰﾙﾎﾞｯｸｽ−無し,TYPE A:ｲﾗｽﾄ参照

 1
75210-37270

XZC710,XZU71#,72#,73#..SCB..(DCRWD,DCVTO,DCVUO)..IV3

TYPE A:ｲﾗｽﾄ参照

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75210-37270

XZC710,XZU71#,72#,73#..SCB..IV3

ﾂｰﾙﾎﾞｯｸｽ−無し,TYPE A:ｲﾗｽﾄ参照

 1
75210-37270

XZC710,XZU71#,72#,73#..SCB..(DCRWD,DCVTO,DCVUO)..IV3

TYPE A:ｲﾗｽﾄ参照

 1
75204B - STAY SUB-ASSY, TOOL BOX
75233-37070

XZC710,XZU71#,72#,73#..SCB..IV3

ﾂｰﾙﾎﾞｯｸｽ−無し

 1
75233-37070

XZC710,XZU71#,72#,73#..SCB..(DCRWD,DCVTO,DCVUO)..IV3

 1
Common parts
90560-12076
94151-81000
