XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace
(1905- )

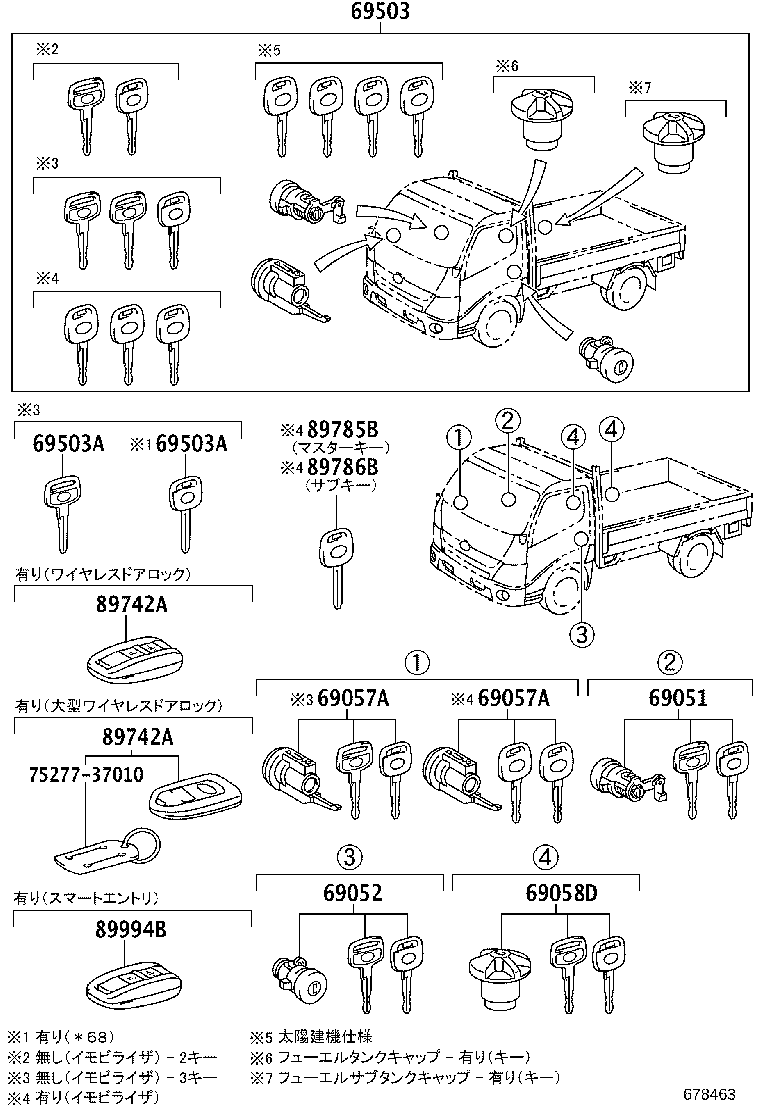

DYNA,TOYOACE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37310 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37330 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37320 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37310 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37330 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37320 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37K90 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2,TxPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37D11 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L10 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L80 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37M20 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化,TYPE`:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37M00 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化,TYPE A:ｲﾗｽﾄ参ﾆ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00186 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00224 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00225 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00186 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00224 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00225 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-37020 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-37040 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-37070 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 69570-37070 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 69570-37070 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 77310D - CAP ASSY, FUEL TANK | ||||
| 77310-25060 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60160 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89785-37020 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 89785-60160 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37040 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89786-37021 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾌﾞﾗﾝｸｷｰ,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89786-37040 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-37010 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
2 | ||
| 89994-37020 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
2 | ||
| Common parts | ||||
| 75277-37010 | ||||
(1905- )

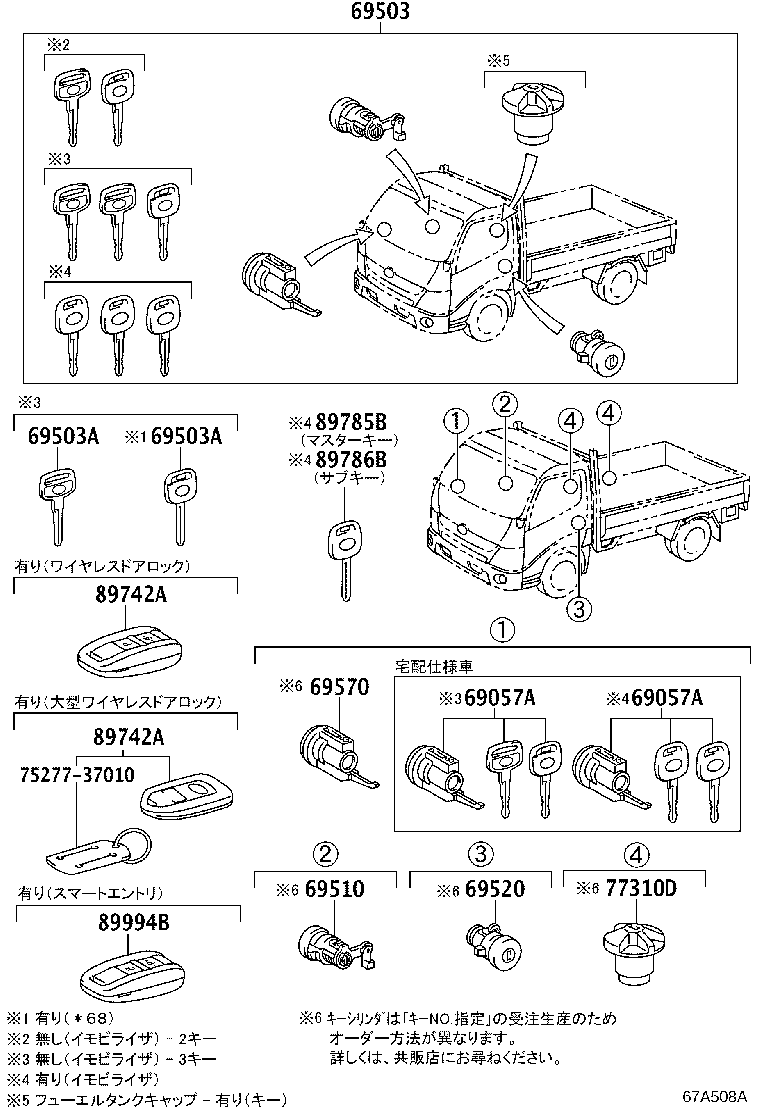

DUTRO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-37080 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69051-37080 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-37120 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37310 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37330 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37320 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37310 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37330 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化 |
1 | ||
| 69057-37320 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69058D - CYLINDER & KEY SET, FUEL TANK FILLER | ||||
| 69058-37160 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37K90 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2,TxPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37D11 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L10 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37L80 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37M20 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化,TYPE`:ｲﾗｽﾄ参照 |
1 | ||
| 69005-37M00 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−3枚(ｲﾓﾋﾞﾗｲｻﾞ仕様)&ｷｰｼﾘﾝﾀﾞ強化,TYPE A:ｲﾗｽﾄ参ﾆ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00186 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00224 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00225 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00186 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00224 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 90999-00225 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60160 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89785-37020 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO |
1 | ||
| 89785-60160 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37040 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89786-37021 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZU722..6FC..IV3;XZU720..DCVTO..IV3;XZU722..T3..6F..30T..IV3;XZU712..T3..6FC..(30T,40T);XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾌﾞﾗﾝｸｷｰ,ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
1 | ||
| 89786-37040 |
XZC710,XZU70#,71#,72#,73#,775..DCRWD,DCVTO,DCVUO ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-37010 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
2 | ||
| 89994-37020 |
XZU720..DCVTO..IV3;XZU722..6FC..DCRWD..IV3;XZU722..T3..6F..30T..DCRWD..IV3;XZU712..T3..6FC..(30T,40T)..DCRWD;XZU700,722..6F..(20T,35T)..DCRWD..IV3;XZU712,720..(T3,T5)..6F..(20T,35T,40T)..DCRWD..IV3;XZU70#,710..(T3,T5)..(20T,35T,40T)..(DCRWD,DCVTO)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｷｰﾌﾟﾚｰﾄ−2枚&ｽﾏｰﾄｷｰ2 |
2 | ||
| Common parts | ||||
| 75277-37010 | ||||
