XZU722-TKFQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )

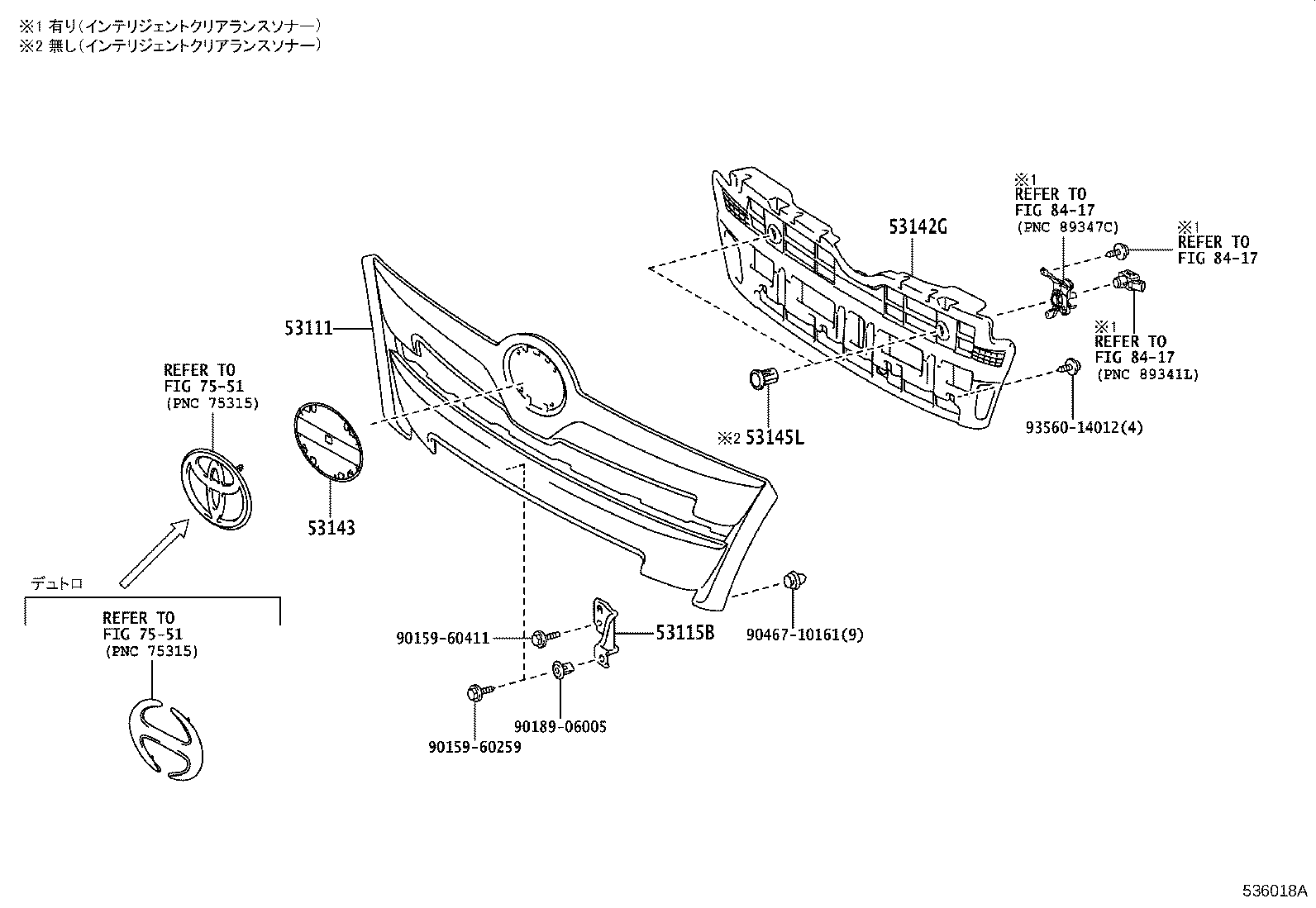

Click highlighted areas on diagram

diagram 53111 53115B 53142G 53143 53145L 7551 7551 8417 8417 8417 9015960259 9015960411 9018906005 9046710161 9356014012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37B30A0

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

WHITE,058

 1
53111-37B30A0

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用,WHITE,058

 1
53111-37B30H0

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用,TURQUOISE,766

 1
53111-37B30B1

XZC710,XZU70#,71#,72#,775..SCB..(T3,T4,T5)..(DCRWD,DCVTO)

ﾃﾞｭﾄﾛ専用,SILVER ME.,199

 1
53111-37B40

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 1
53111-37B30B1

XZC710,XZU70#,71#,72#,775..SCB..(T3,T4,T5)..(DCRWD,DCVTO)

SILVER ME.,199

 1
53111-37B30J1

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

BLUE,8P0

 1
53111-37B40

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 1
53111-37B40

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 1
53111-37B40

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 1
53111-37B30J1

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用,BLUE,8P0

 1
53111-37B30H0

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

TURQUOISE,766

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37121

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
53115-37110

XZC710,XZU70#,71#,72#,73#,775

 1
53142G - GARNISH, RADIATOR GRILLE, NO.2
53142-37020

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
53143 - GARNISH, RADIATOR GRILLE, NO.3
53143-37020

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

 1
53145L - CLIP, RADIATOR GRILLE
53145-37040

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 2
53145-37040

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 2
53145-37040

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾃﾞｭﾄﾛ専用&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し

 2
53145-37040

XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 2
Common parts
90159-60259
90159-60411
90189-06005
90467-10161
93560-14012
Linked diagrams
7551
8417
