XZU722-TKFQX3 (2019)
Toyota Dyna/Toyoace

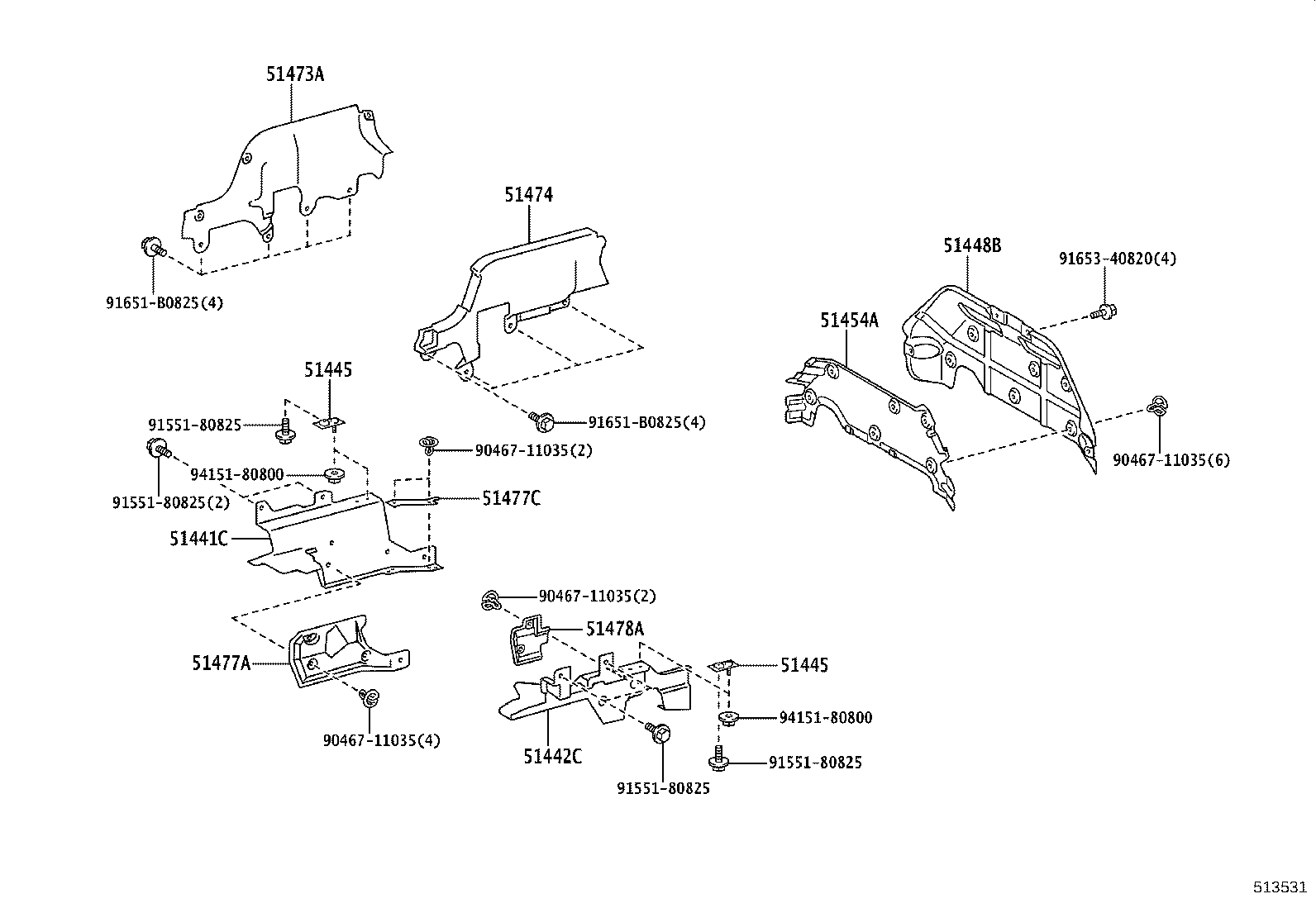

(1905- )XZC710,XZU70#,71#,72#..SCB..DCRWD,DCVTO ; (2103- )XZC710,XZU70#,71#,7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51448B - SHUTTER, ENGINE REAR SIDE | ||||
| 51448-37201 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51454A - SILENCER, ENGINE REAR COVER | ||||
| 51454-37241 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||

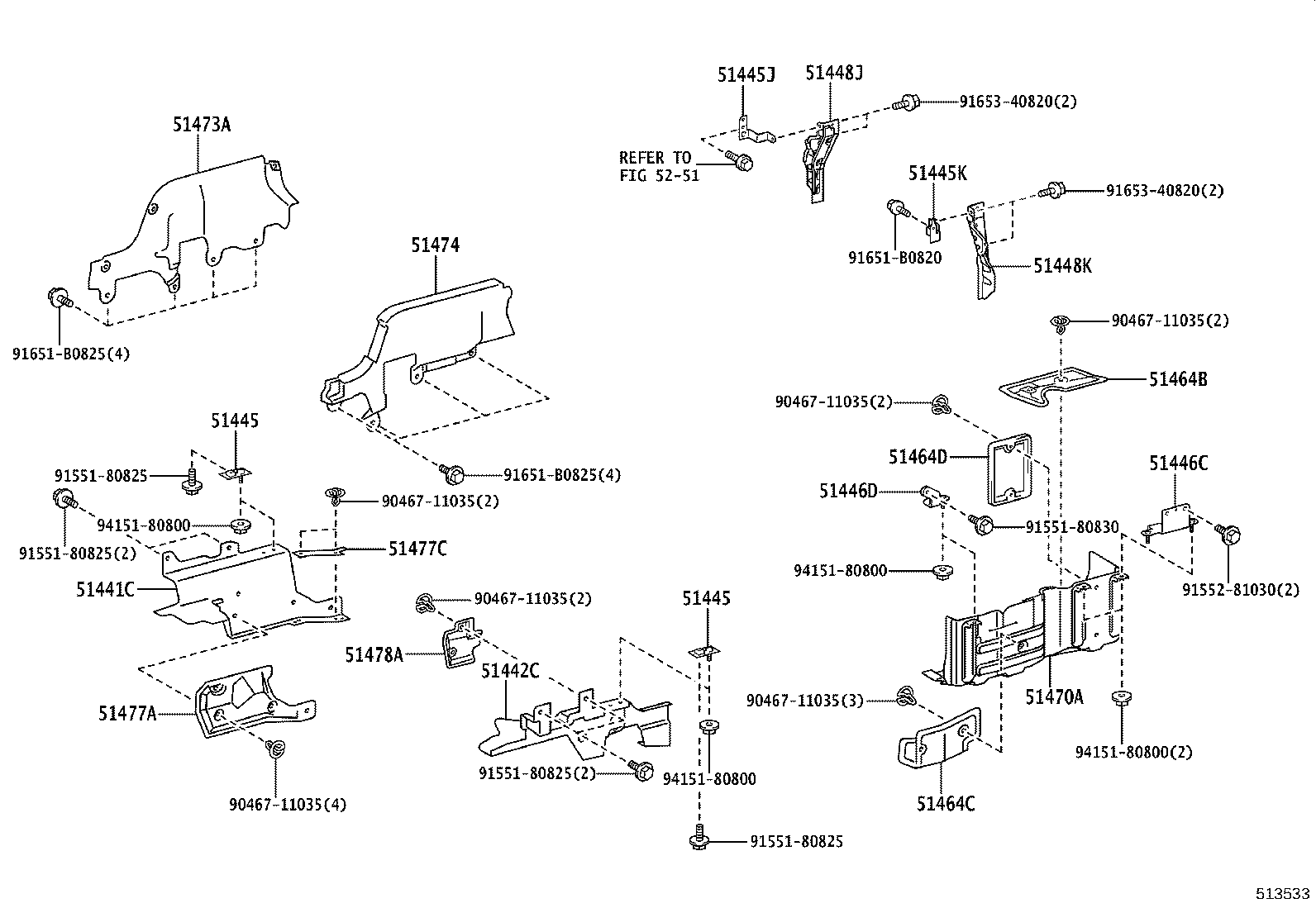

(1905- )20T..DCVUO ; (1905- )XZU700,712,722,73#..DCVUO ; (1905- )XZU710,72
ﾅｼ(ｼｬｵﾝｶﾊﾞｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51441-37790 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51442-37080 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445J - BRACKET, ENGINE REAR COVER, RH | ||||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445K - BRACKET, ENGINE REAR COVER, LH | ||||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448J - SHUTTER, ENGINE REAR SIDE, RH | ||||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448K - SHUTTER, ENGINE REAR SIDE, LH | ||||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51473-37290 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51474-37251 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51477-37040 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51477-37050 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51478-37210 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91552-81030 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||

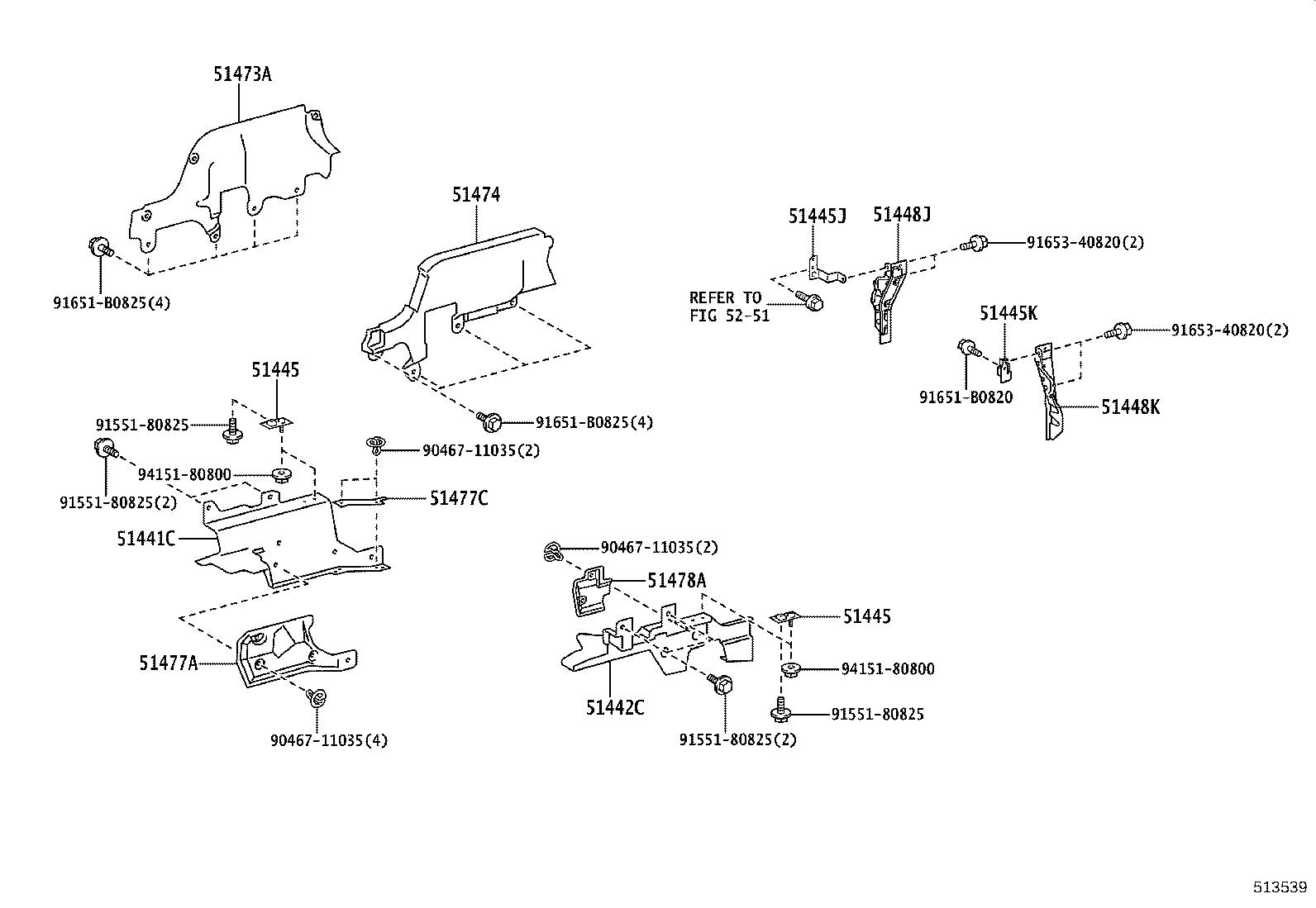

(1905- )XZC710,XZU70#,71#,72#..SCB..DCRWD,DCVTO ; (2103- )XZC710,XZU70#,71#,7
ﾅｼ(ｼｬｵﾝｶﾊﾞｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-37790 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-37080 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-37130 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
2 | ||
| 51445J - BRACKET, ENGINE REAR COVER, RH | ||||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C40 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51445K - BRACKET, ENGINE REAR COVER, LH | ||||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51445-37C50 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448J - SHUTTER, ENGINE REAR SIDE, RH | ||||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37170 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51448K - SHUTTER, ENGINE REAR SIDE, LH | ||||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ) |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) 遮音ｶﾊﾞｰ無し仕様 |
1 | ||
| 51448-37180 |
XZC710,XZU70#,71#,72#..SCB..(T3,T4,T5)..(DCRWD,DCVTO)..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ&Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ) |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37290 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37251 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-37040 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51477C - SILENCER, ENGINE UNDER COVER, LOWER RH | ||||
| 51477-37050 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-37210 |
XZC710,XZU70#,71#,72#..SCB..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91551-80825 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 91653-40820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 5251 | ||||
